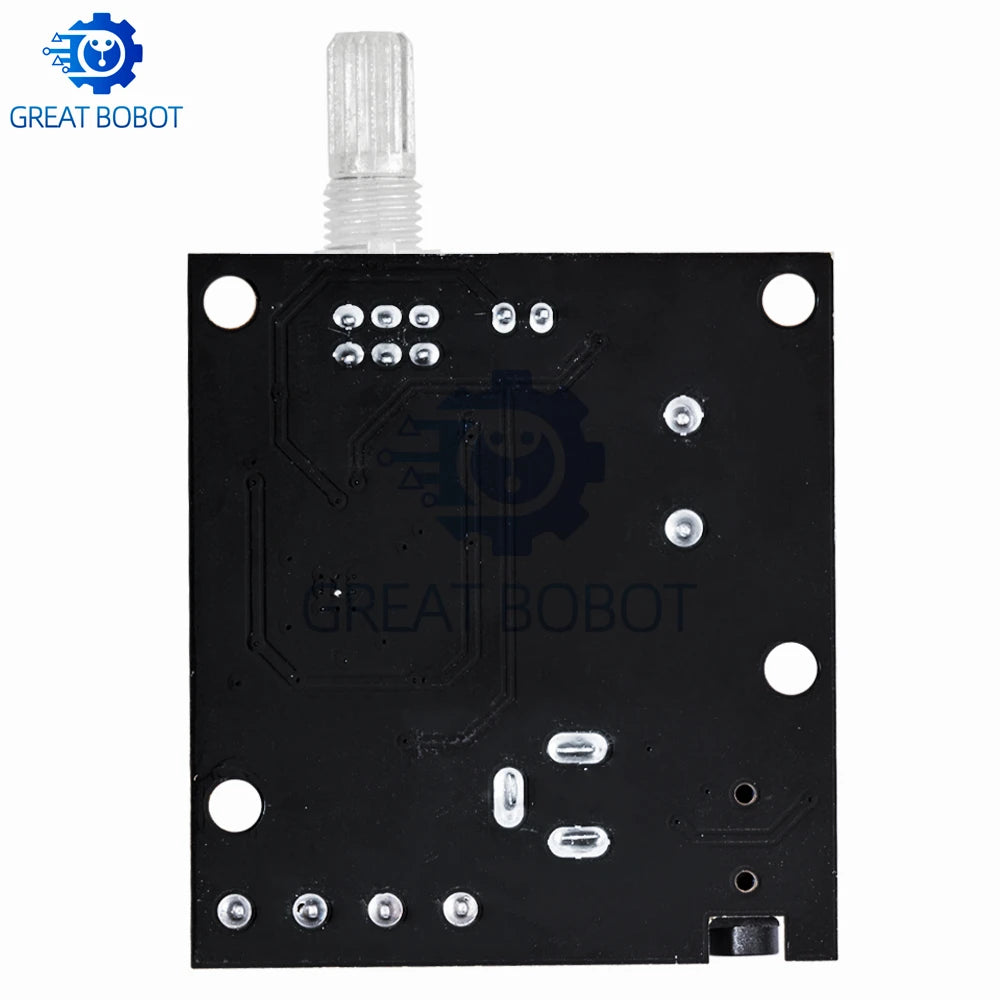

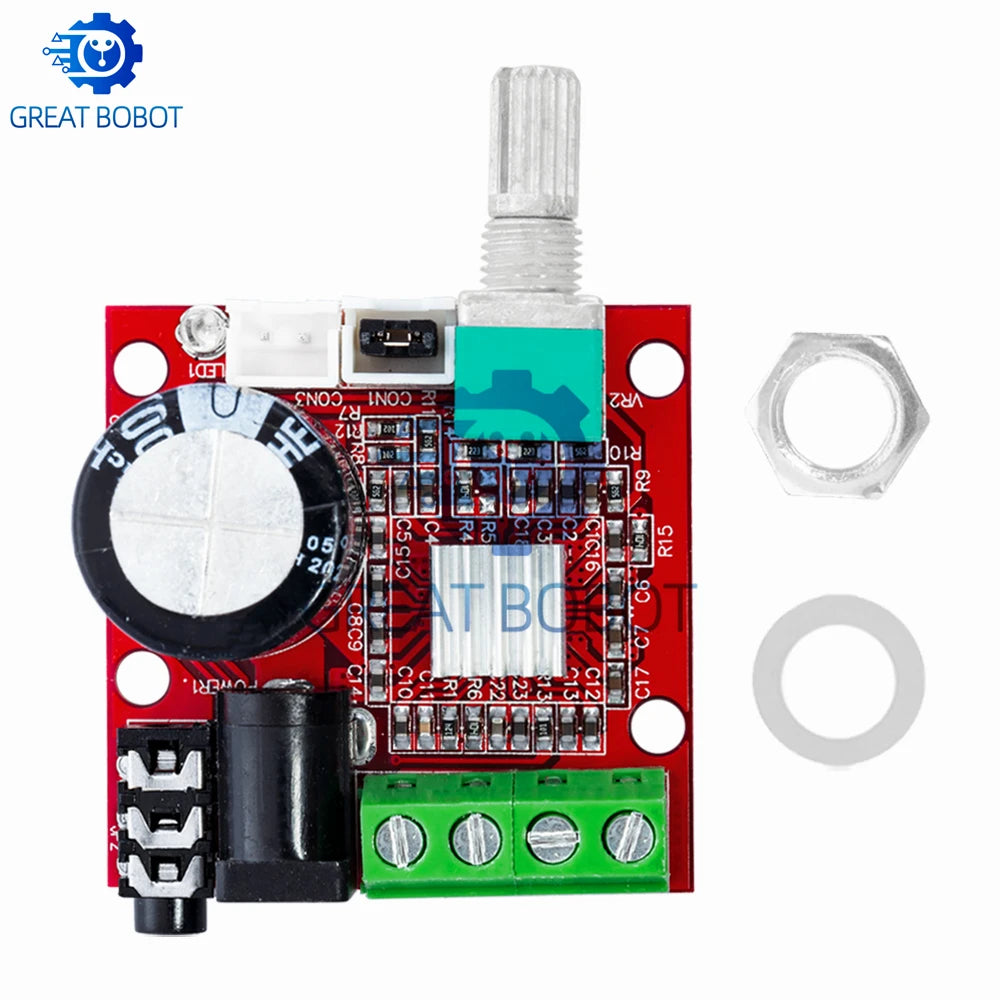

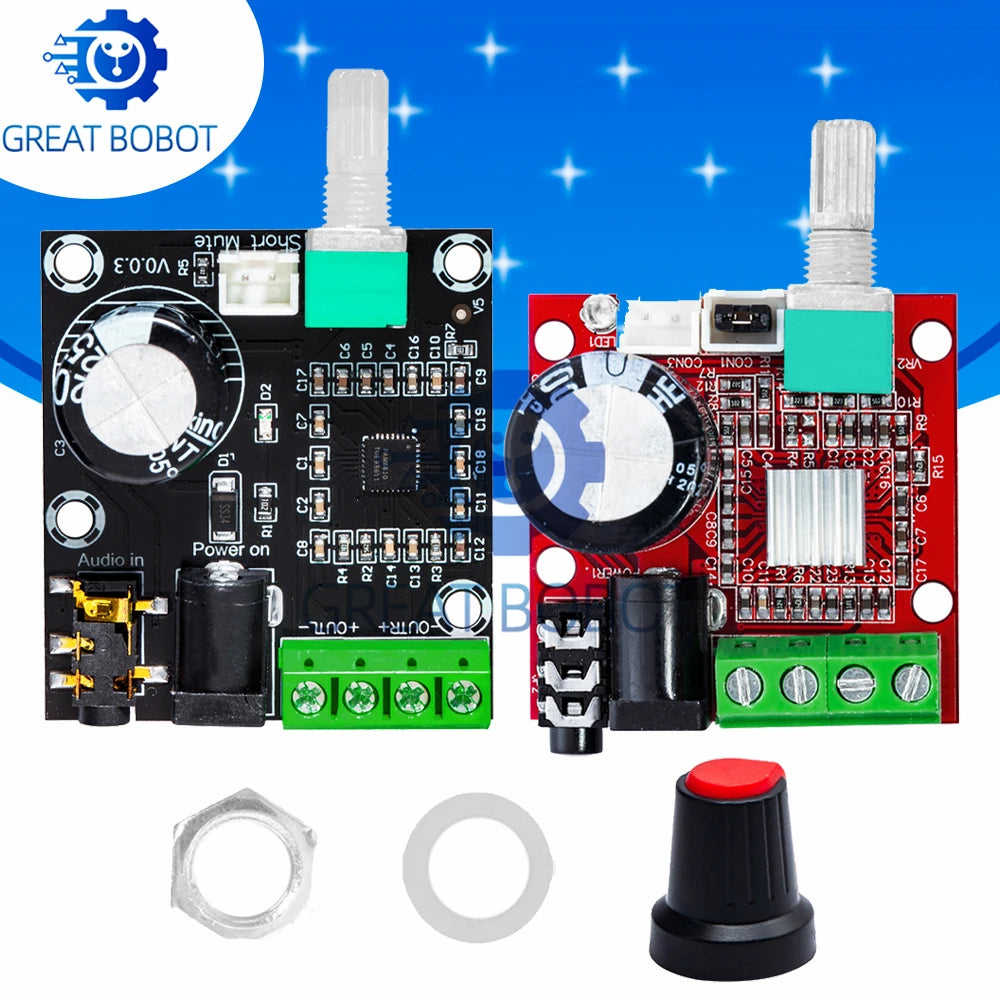

PAM8610 12V Mini Hi-Fi Stereo Amplifier Board – 2×10W Class D with Volume Control
Upgrade your audio projects with this compact, high-efficiency PAM8610 Class D stereo amplifier board. Delivering 2×10W of clean stereo output, this mini board is engineered for DIY audio builds, desktop speaker systems, computer setups, and embedded electronics projects. Its Class D topology ensures outstanding power efficiency, so you get big sound with minimal heat output.

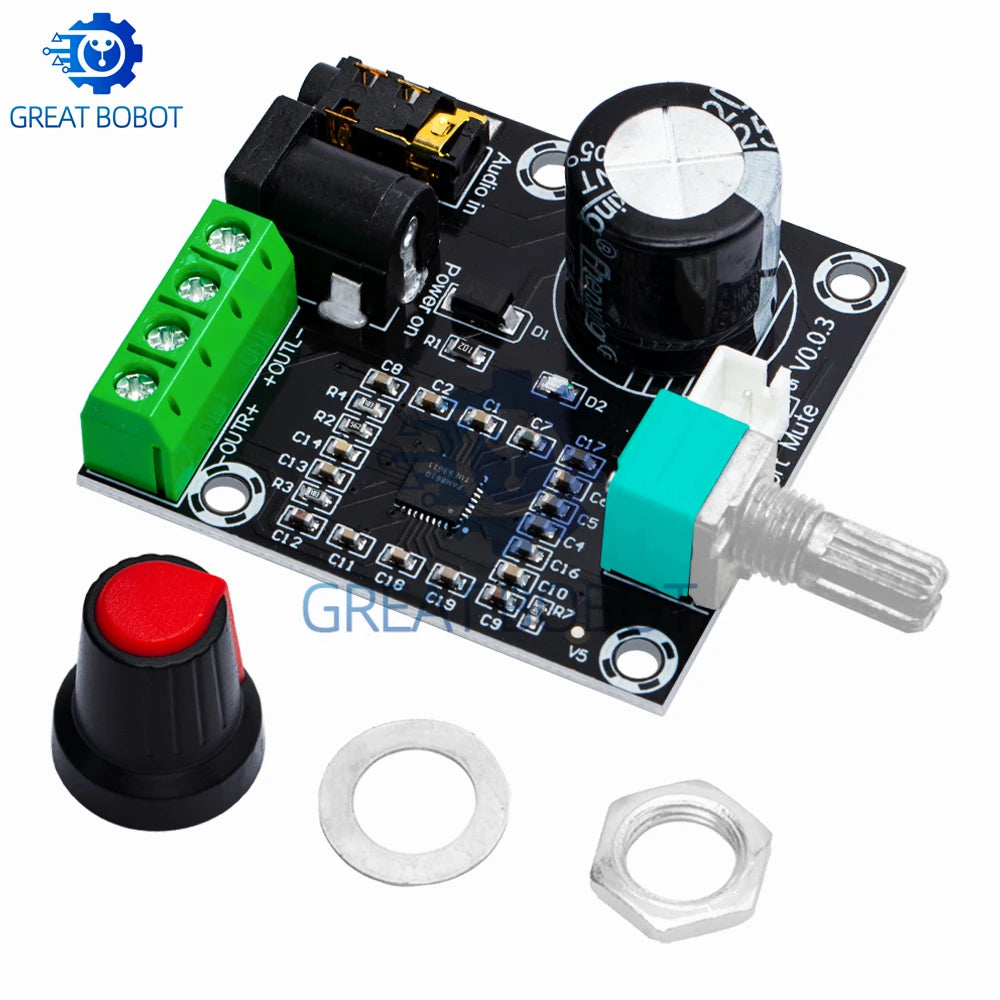

Built around the reliable PAM8610 IC, this board features an onboard volume adjustment potentiometer for easy output control — no external components needed. The wide supply voltage range of 7.5V–15V makes it compatible with a variety of DC power sources, including standard 12V adapters and battery packs. With a maximum dissipation power of 2×15W, there's plenty of headroom for dynamic audio.
Made in Mainland China.
Key Features
- Chip: PAM8610 Class D amplifier IC
- Output Power: 2×10W stereo (max dissipation 2×15W)
- Supply Voltage: 7.5V–15V DC (recommended 12V)
- Operating Temperature: -40°C to +80°C
- Class D efficiency: Stays cool even during extended use
- Onboard volume control for instant adjustment

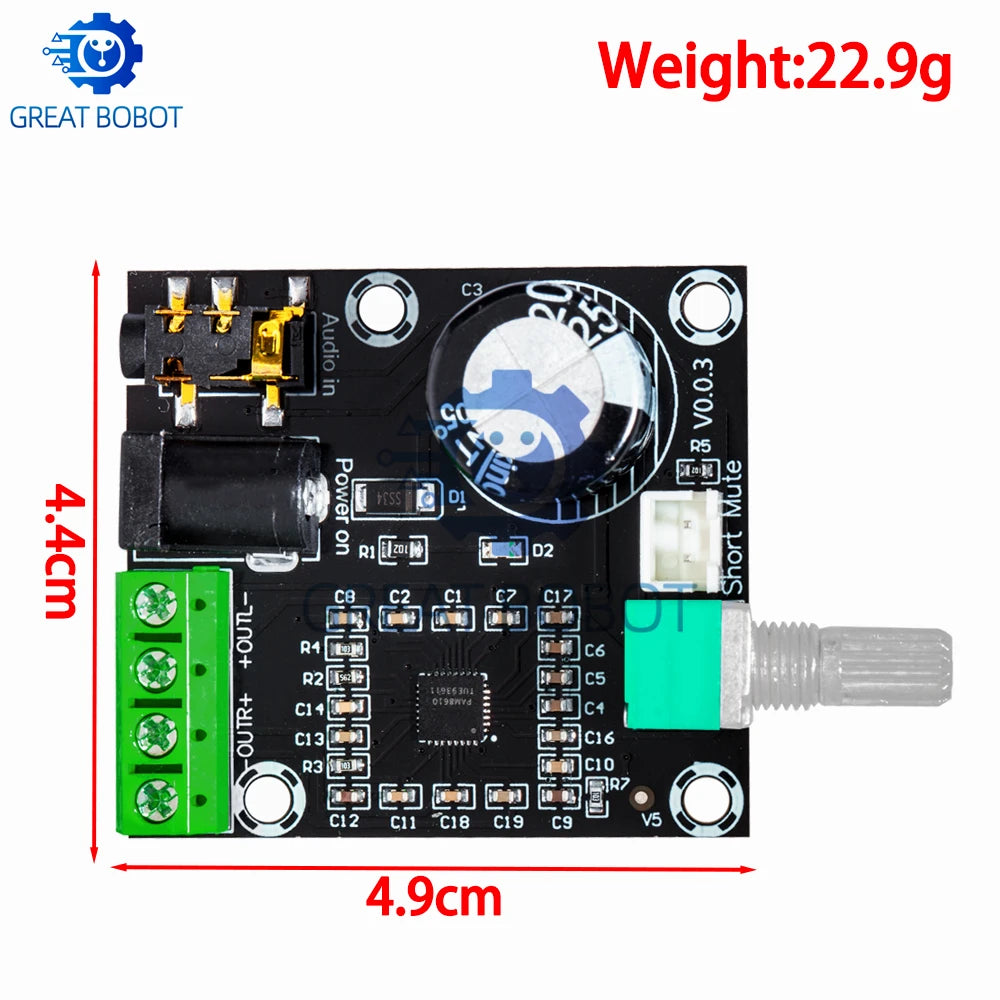

- Compact form factor – ideal for embedded and DIY builds
- Stereo channels: Left + Right independent outputs
- No high-concern chemicals — clean, safe build
- Quantity: 1 board per order
What Is Class D Amplification?
Class D amplifiers use pulse-width modulation (PWM) to switch the output transistors rapidly, achieving efficiency ratings often above 85–90%. This means far less energy is wasted as heat compared to traditional Class A/B designs — making Class D the go-to choice for battery-powered devices, mini speaker systems, and any application where space and heat management matter.
Ideal Applications
- DIY desktop or bookshelf speaker systems
- Computer audio amplification
- Raspberry Pi / Arduino audio output stages
- Portable battery-powered speaker enclosures
- Maker and electronics prototyping projects
- Replacing blown amplifier stages in existing equipment
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What speakers can I connect to this PAM8610 amplifier board?
A: The PAM8610 board is designed to drive 4Ω to 8Ω speakers. For best results at 2×10W output, pair it with 4Ω speakers using a 12V DC supply. 8Ω speakers will work too, typically producing slightly less output power. Always ensure your speaker power rating meets or exceeds the board's output.
Q: What power supply do I need for this stereo amplifier board?
A: This board accepts a wide DC supply voltage of 7.5V to 15V. A standard 12V DC adapter (at least 2A for full stereo output) is the most common choice. You can also power it from a 12V battery or regulated bench supply within that range.
Q: Does the PAM8610 Class D board produce noticeable heat during use?
A: Thanks to its high-efficiency Class D design, this board stays significantly cooler than Class A or A/B alternatives. Under normal listening conditions, heat generation is minimal. The board is rated for operating temperatures from -40°C to +80°C, giving it excellent thermal headroom for continuous use.
Q: Can I use this board in a Raspberry Pi or Arduino audio project?
A: Yes! The compact size and low voltage requirement make this PAM8610 board a popular choice for Raspberry Pi, Arduino, and other single-board computer audio projects. Simply feed the audio signal to the input terminals and power the board from your project's DC supply (ensure it falls within the 7.5V–15V range).
