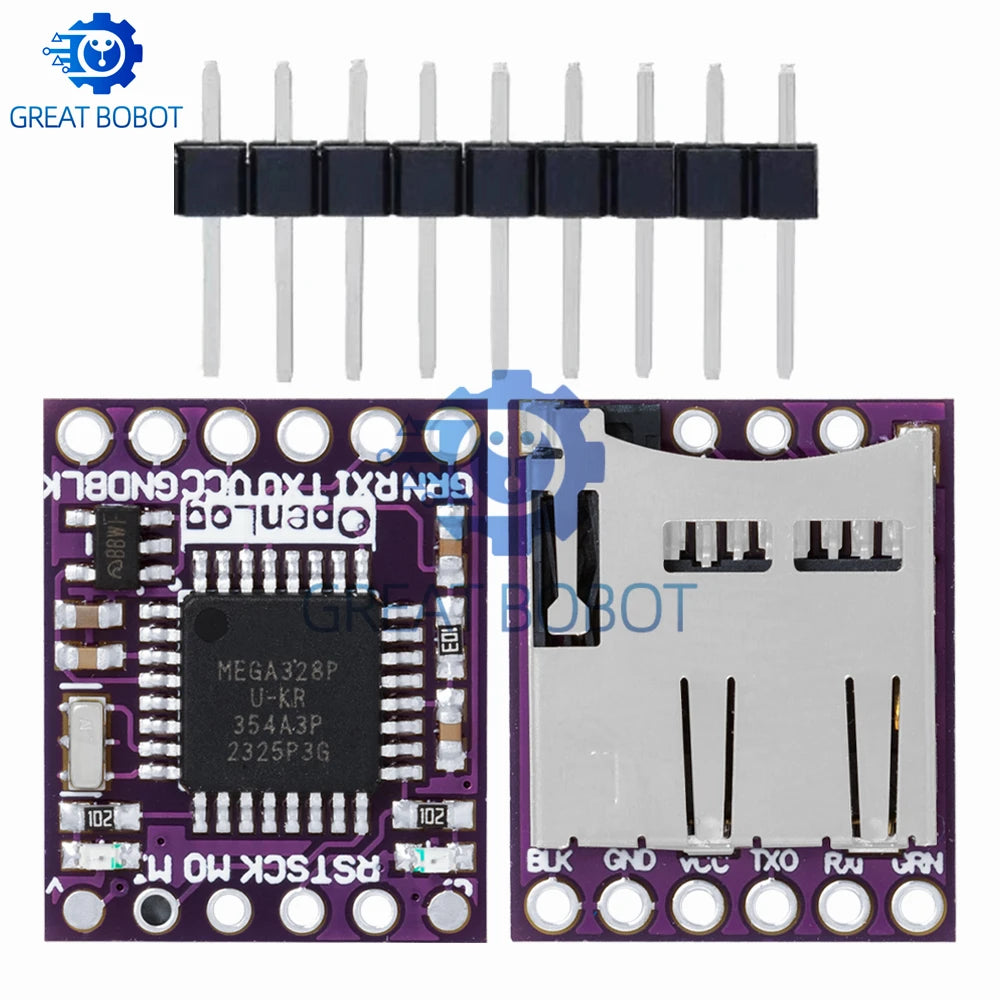

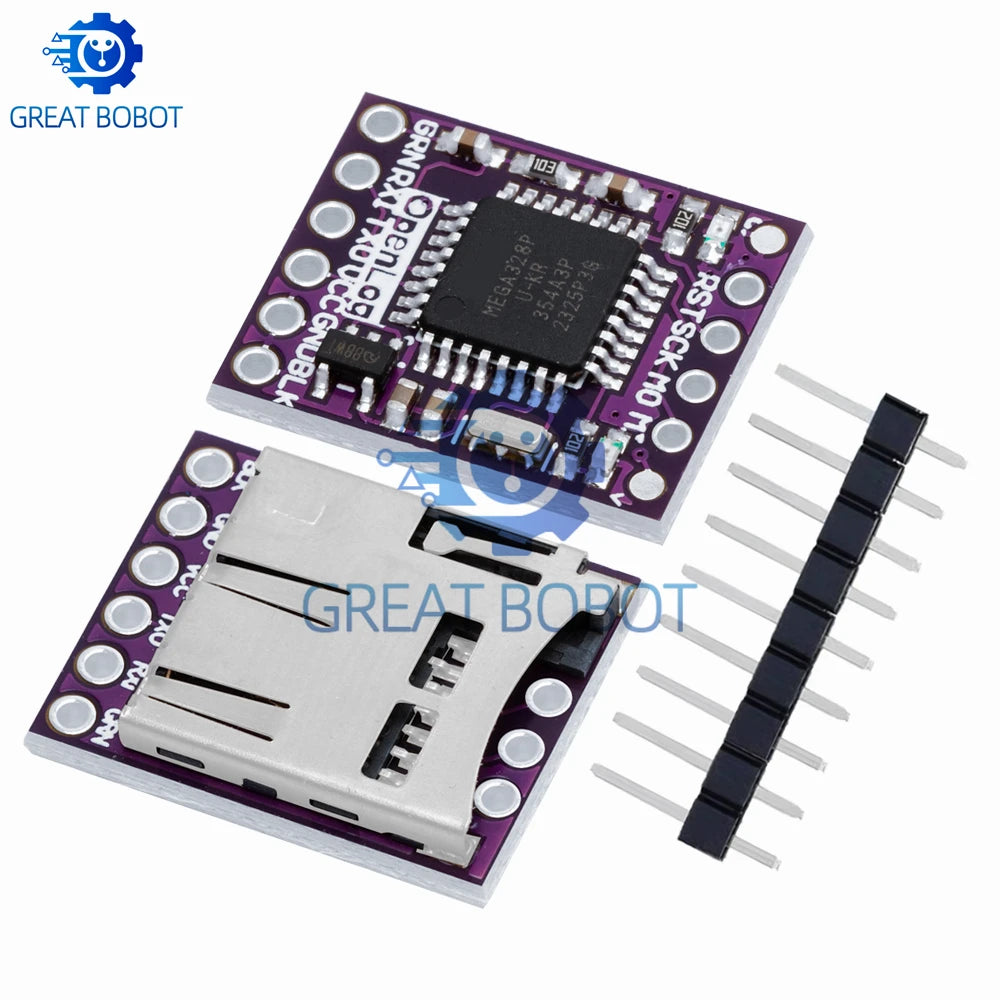

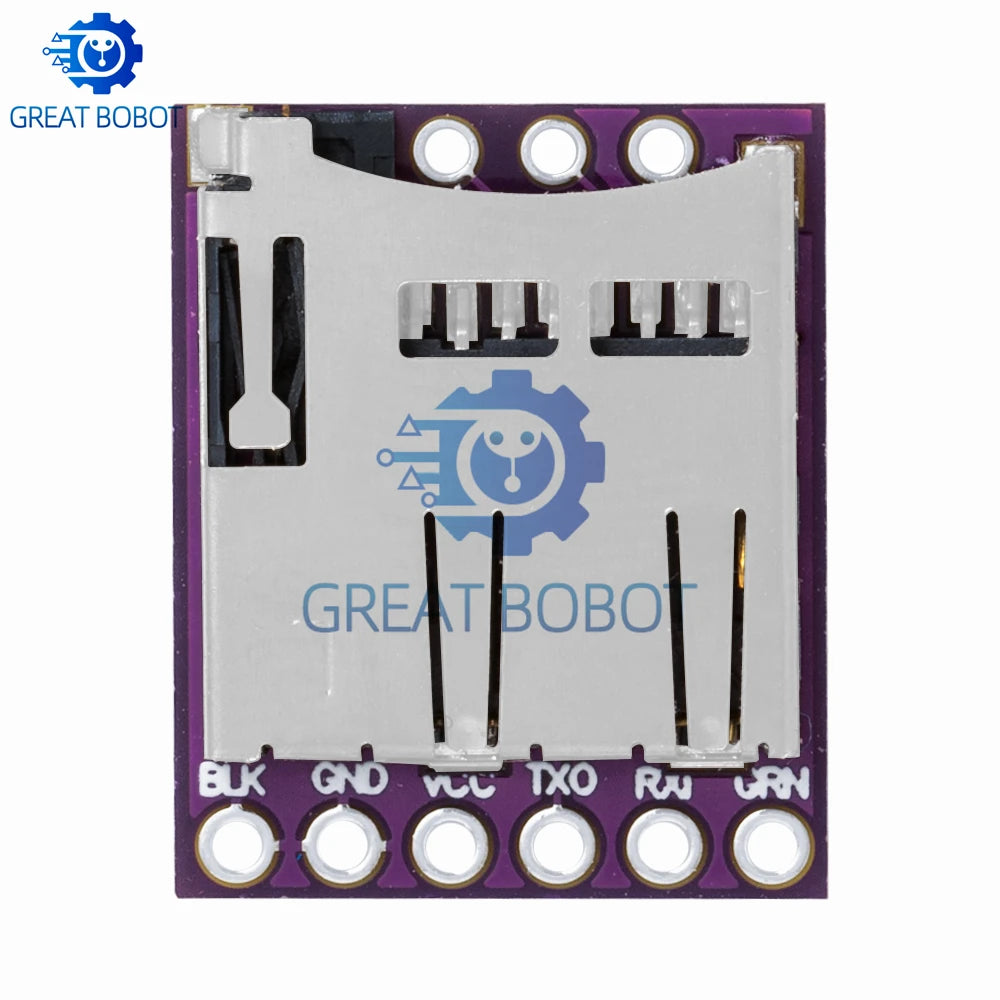

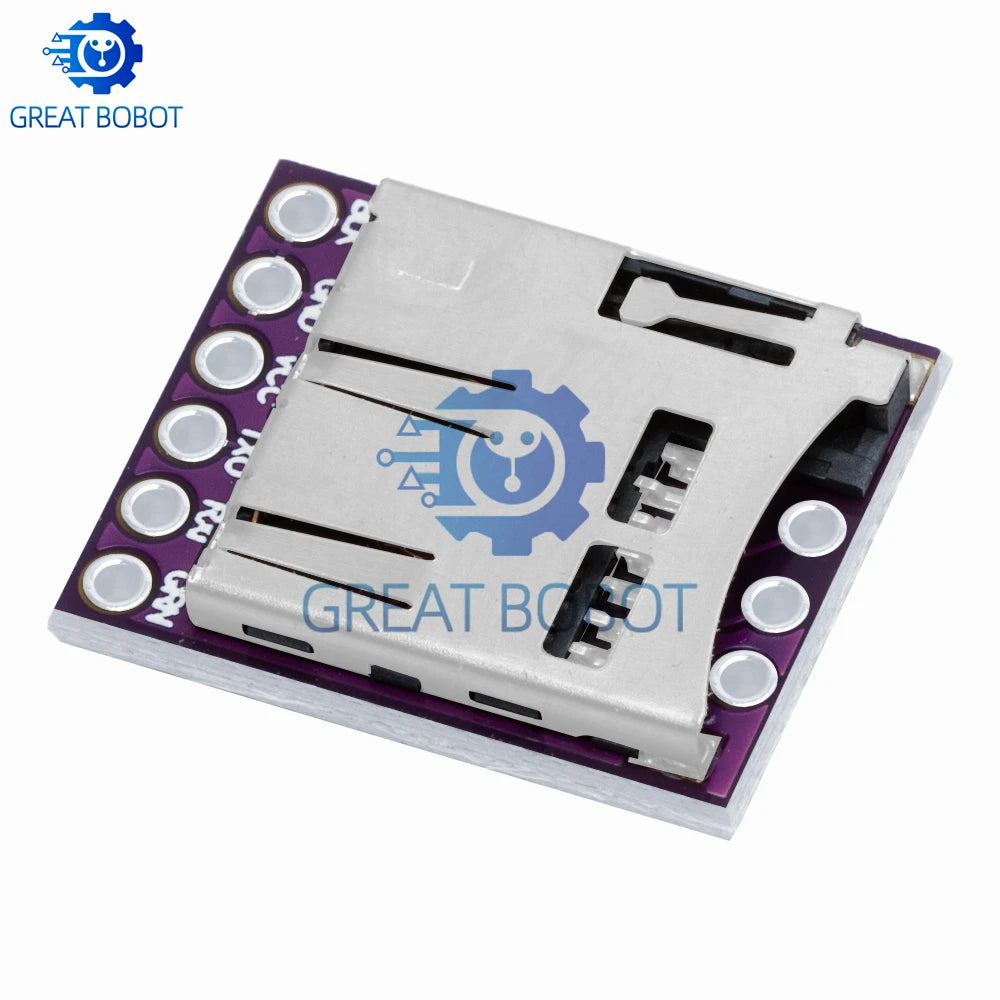

OpenLog Serial Data Logger – Micro SD Module for Arduino, Naze32 & F3 Blackbox

Capture and store serial data with precision using this compact OpenLog Serial Data Logger. Compatible with Naze32, F3 Blackbox, ATmega328, and a wide range of Arduino-based projects, this Micro SD logging module is an essential tool for developers, hobbyists, and drone builders who need reliable on-board data recording.

Made in Mainland China.

Key Features

  • Broad Compatibility: Works seamlessly with Naze32, F3 Blackbox flight controllers, ATmega328, and standard Arduino platforms via UART serial interface.
  • Micro SD Card Support: Logs data directly to a Micro SD card — no PC connection required during operation. Simply insert your card and start recording.
  • Wide Operating Temperature: Rated for -40°C to 80°C, making it suitable for indoor lab use as well as demanding outdoor and airborne environments.
  • SMD Package Design: Compact surface-mount form factor keeps weight and footprint minimal — ideal for embedding in tight builds like FPV drones and compact Arduino projects.
  • Open Source Firmware: Built on the open-source OpenLog platform, allowing full customization of baud rate, logging behavior, and file management via a simple configuration file.
  • Easy Integration: Connects via standard TX/RX/VCC/GND pins — no complex wiring or drivers needed. Ready to use right out of the box.
  • Plug-and-Play Logging: Automatically creates new log files on each power cycle, keeping your data organized and session-separated.

Technical Specifications

  • Compatible Platforms: Naze32, F3 Blackbox, ATmega328, Arduino
  • Storage Interface: Micro SD (not included)
  • Package Type: SMD
  • Operating Temperature: -40°C to 80°C
  • Condition: New
  • Quantity: 1 unit
  • High-Concern Chemicals: None
  • Origin: Made in Mainland China

What's in the Box?

  • 1 × OpenLog Serial Data Logger Module

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What microcontrollers and flight controllers is this OpenLog Serial Data Logger compatible with?

A: This OpenLog module is compatible with Naze32, F3 Blackbox flight controllers, ATmega328, and any Arduino or Arduino-compatible board that communicates over a standard UART serial interface (TX/RX). It can also work with other microcontrollers that output serial data at a configurable baud rate.

Q: Does the Micro SD card come included with the data logger?

A: No, the Micro SD card is not included. You will need to supply your own Micro SD card. The logger supports standard FAT16/FAT32-formatted cards and automatically creates log files upon each power-up.

Q: How do I configure the baud rate and logging settings on the OpenLog module?

A: The OpenLog module uses an open-source firmware that reads a simple config.txt file stored on the Micro SD card. You can edit this file to set the desired baud rate (e.g. 9600, 57600, 115200) and other logging parameters — no special software required, just a standard text editor.

Q: Is this data logger suitable for use in drone or FPV builds?

A: Yes. Its compact SMD form factor and wide operating temperature range (-40°C to 80°C) make it well suited for FPV drone builds, particularly those using Naze32 or F3 Blackbox-compatible flight controllers where in-flight data logging is essential.
