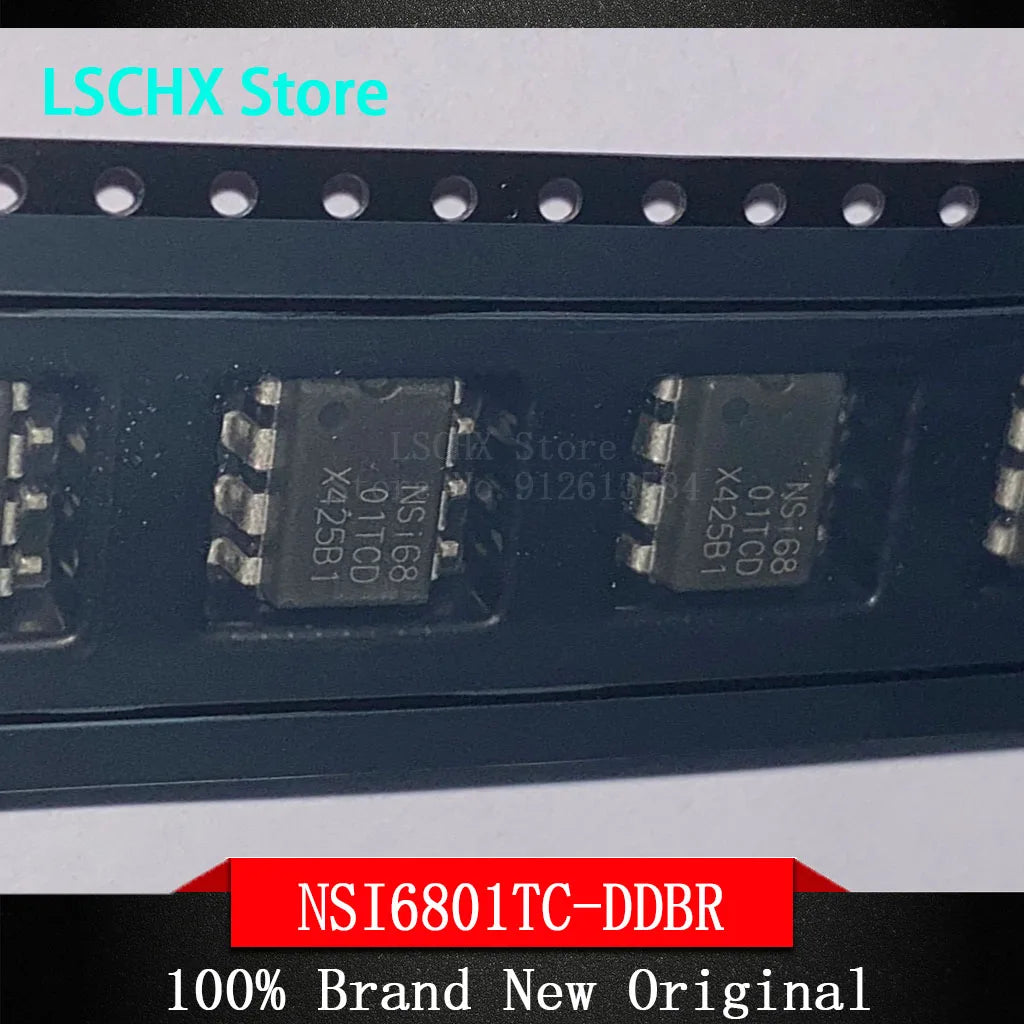

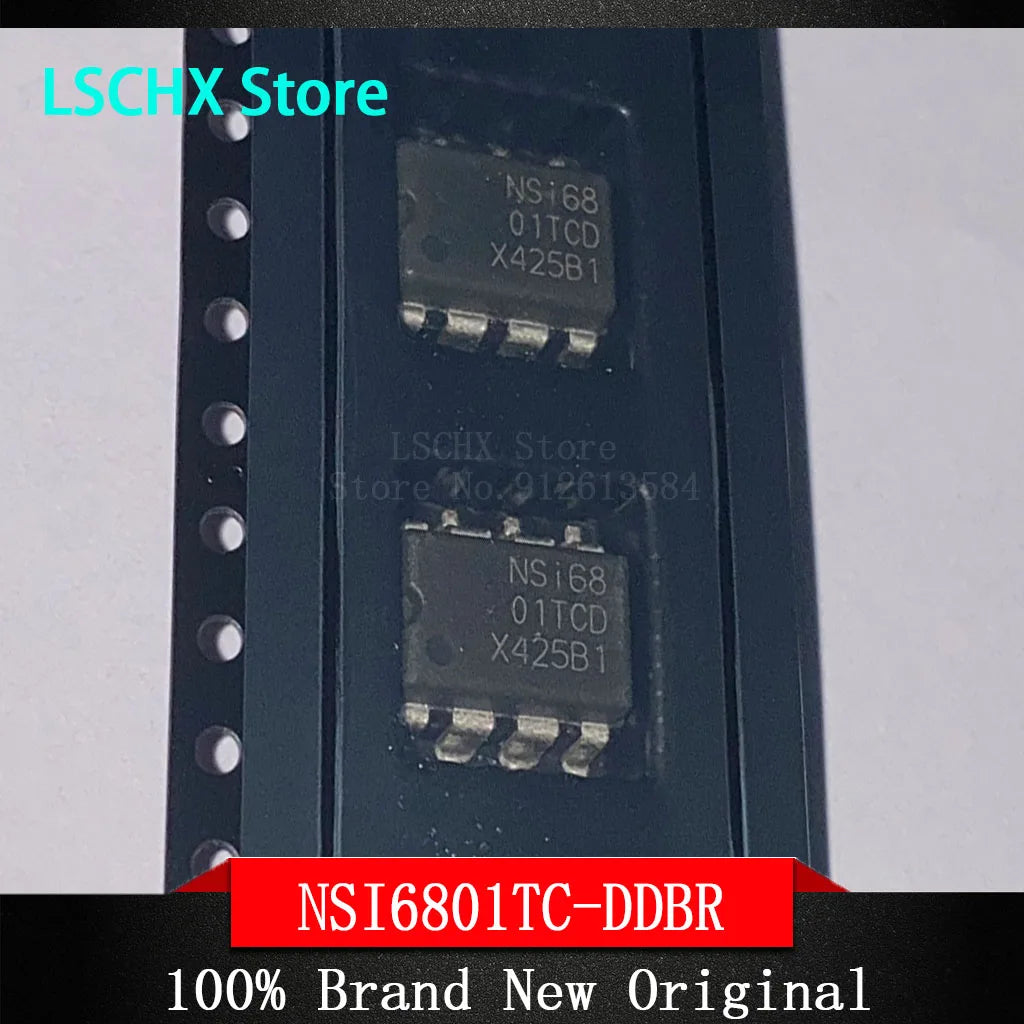

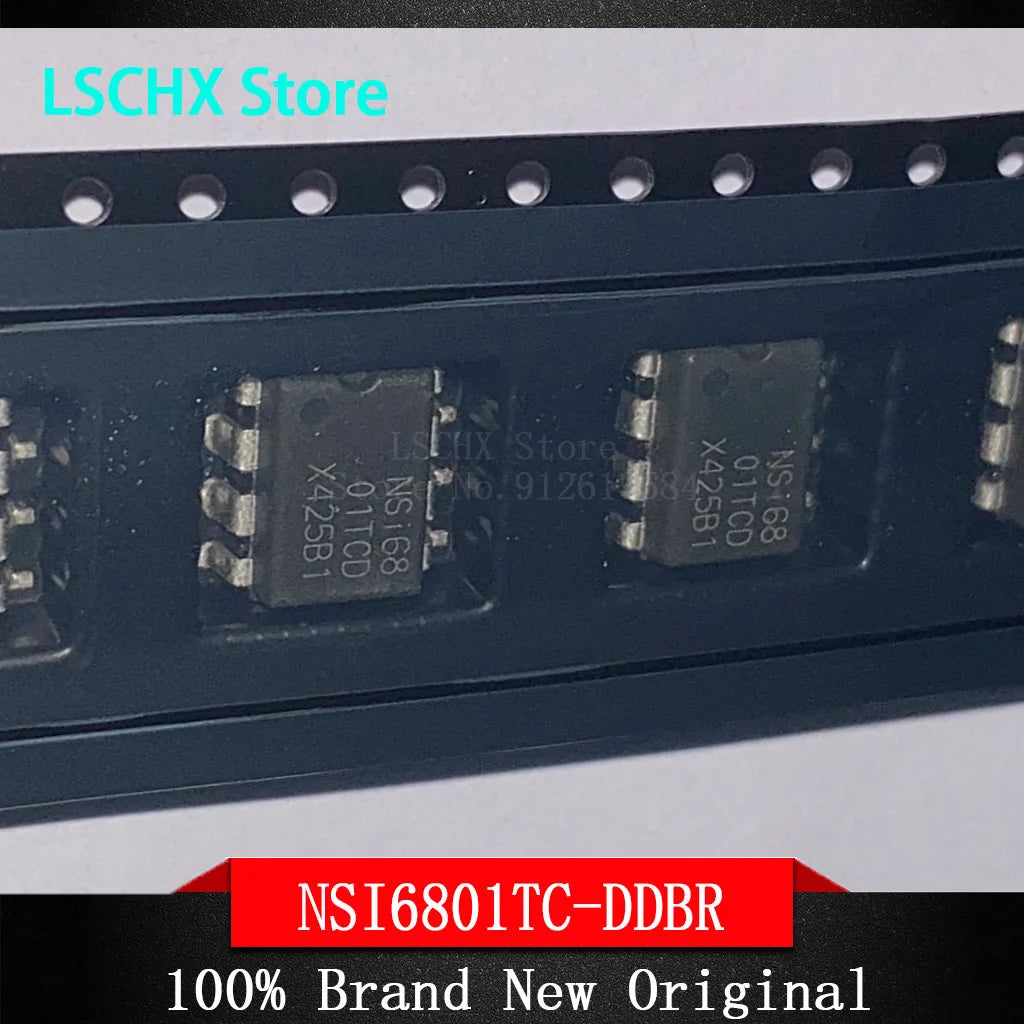

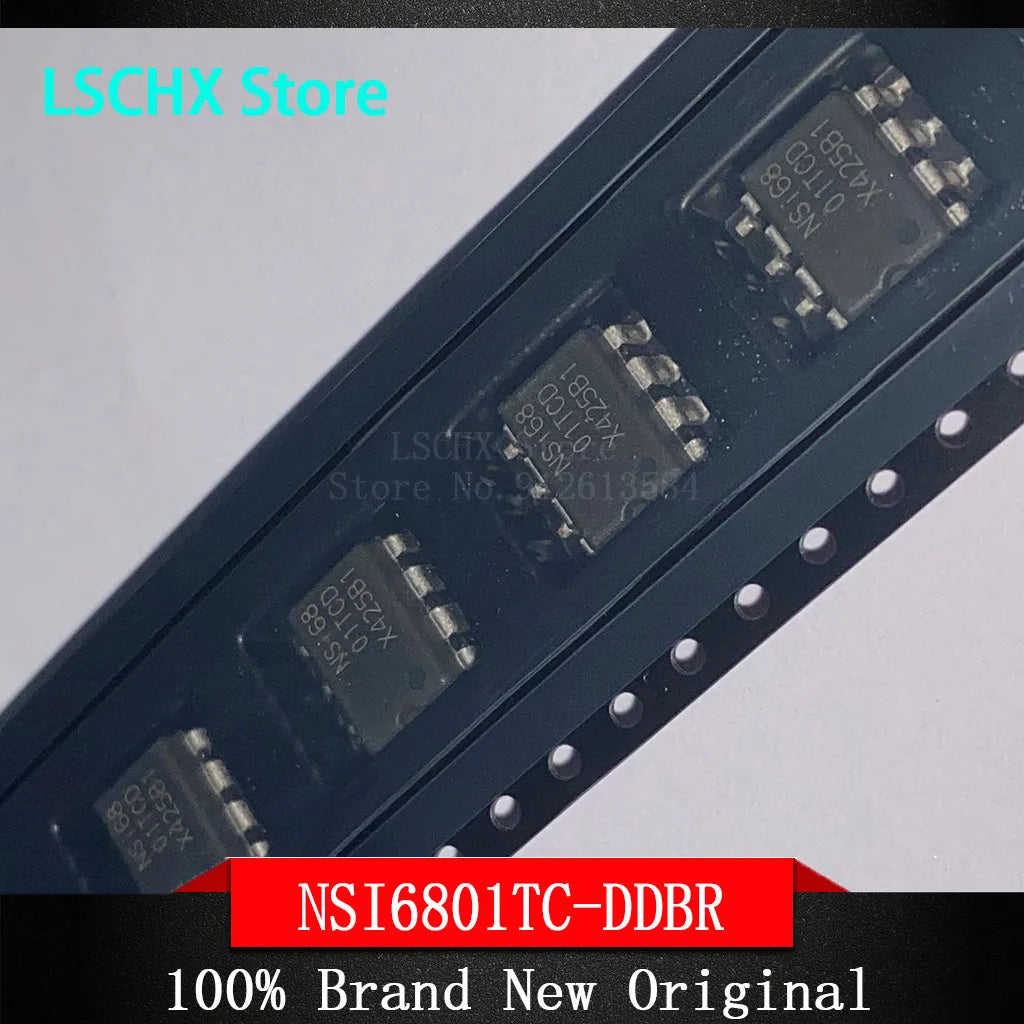

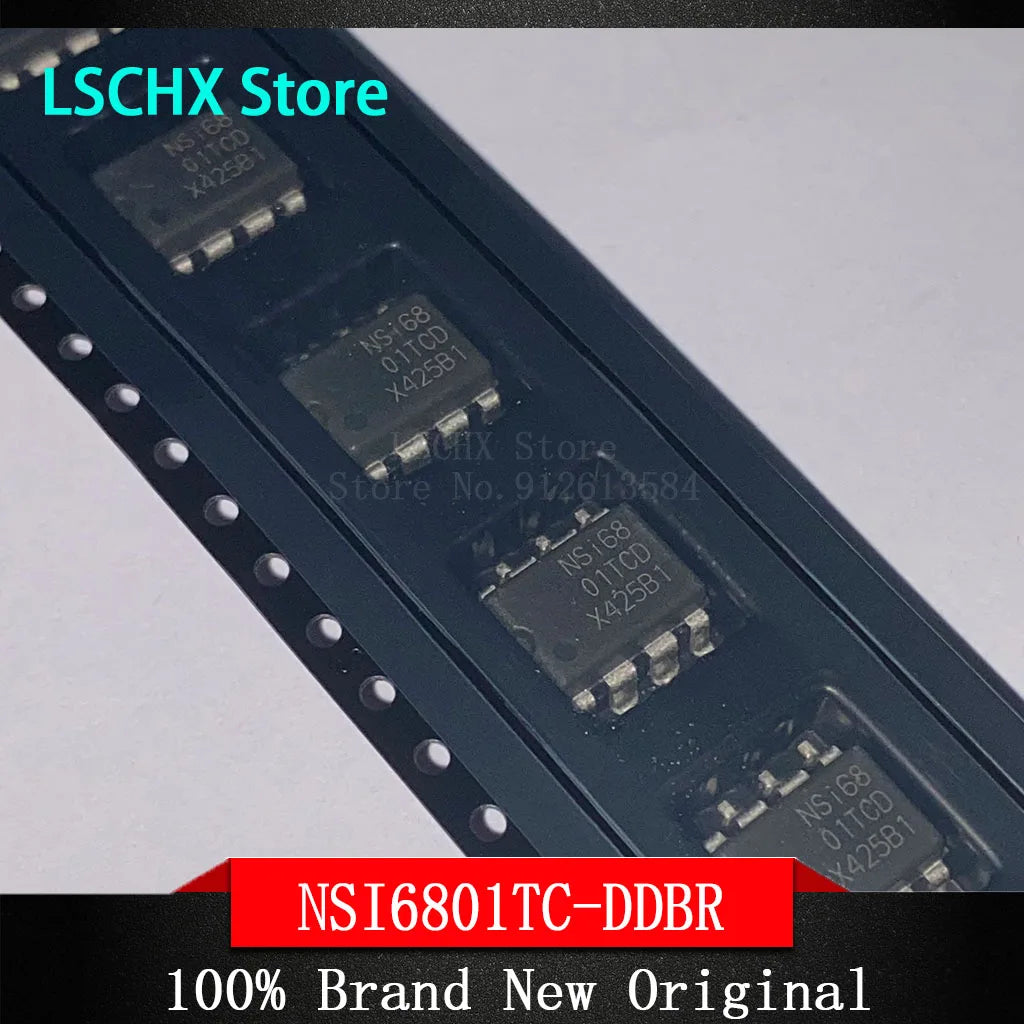

NSI6801 Isolated Gate Driver IC – 20-Piece Pack
Stock your workbench or production line with this convenient 20-piece assortment of NSI6801 series isolated gate driver ICs. Covering five compatible model numbers — NSI6801TC-DDBR, NSI6801TB-DDBR (DUB-8 package), NSI6801B-DSWFR, and NSI6801C-DSWFR (SOW-6 package) — this multi-pack is ideal for engineers, electronics hobbyists, and repair technicians who need reliable general-purpose isolated drivers on hand.
These compact surface-mount ICs deliver galvanic isolation between the input control signal and the gate drive output, making them well-suited for motor drives, power converters, industrial automation, and switching power supply designs where signal isolation is essential for safe and stable operation.
Made in Mainland China.
Key Features
- Multi-model pack: Includes NSI6801TC-DDBR, NSI6801TB-DDBR, NSI6801B-DSWFR, NSI6801C-DSWFR variants
- Dual package formats: DUB-8 and SOW-6 SMD packages for flexible PCB layout options
- Isolated gate drive: Provides galvanic isolation between logic control and power-stage gate signals
- General-purpose use: Suitable for motor drives, DC-DC converters, inverters, and industrial switching circuits
- International standard compliance: Meets international standard requirements for voltage, protection, and contact load
- Quantity: 20 pieces per order — great value for prototyping, repair, or low-volume production
- Customized availability: Custom quantities available on request
Package Contents
- 20 × NSI6801 series isolated gate driver ICs (mixed models as listed)
Technical Specifications
| Models Included | NSI6801TC-DDBR, NSI6801TB-DDBR, NSI6801B-DSWFR, NSI6801C-DSWFR |
| Package Types | DUB-8, SOW-6 |
| Mount Type | Surface Mount (SMD) |
| Function | Isolated Gate / Grid Driver |
| Application | General Purpose |
| Voltage Standard | International Standard |
| Origin | Mainland China |
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What package types are included in this NSI6801 isolated gate driver IC pack?
A: This 20-piece pack includes ICs in both DUB-8 and SOW-6 SMD package formats, covering model numbers NSI6801TC-DDBR, NSI6801TB-DDBR, NSI6801B-DSWFR, and NSI6801C-DSWFR. This gives you flexibility across different PCB layout requirements.
Q: What are typical applications for the NSI6801 isolated gate driver IC?
A: The NSI6801 series is designed for general-purpose isolated gate driving in applications such as motor drives, DC-DC power converters, inverters, and industrial switching power supplies. The galvanic isolation between input and output is key for circuits where the control logic and power stage must remain electrically separated.
Q: Are these ICs suitable for prototype and low-volume production use?
A: Yes — the 20-piece quantity is well-suited to prototyping, bench testing, small batch production, and component stocking for repair technicians. Custom quantities are also available upon request.
