MY2NJ HH52P DPDT 8-Pin Electromagnetic Relay with Socket Base
MY2NJ HH52P DPDT 8-Pin Electromagnetic Relay with Socket Base
MY2NJ HH52P DPDT Miniature Electromagnetic Relay with Socket Base

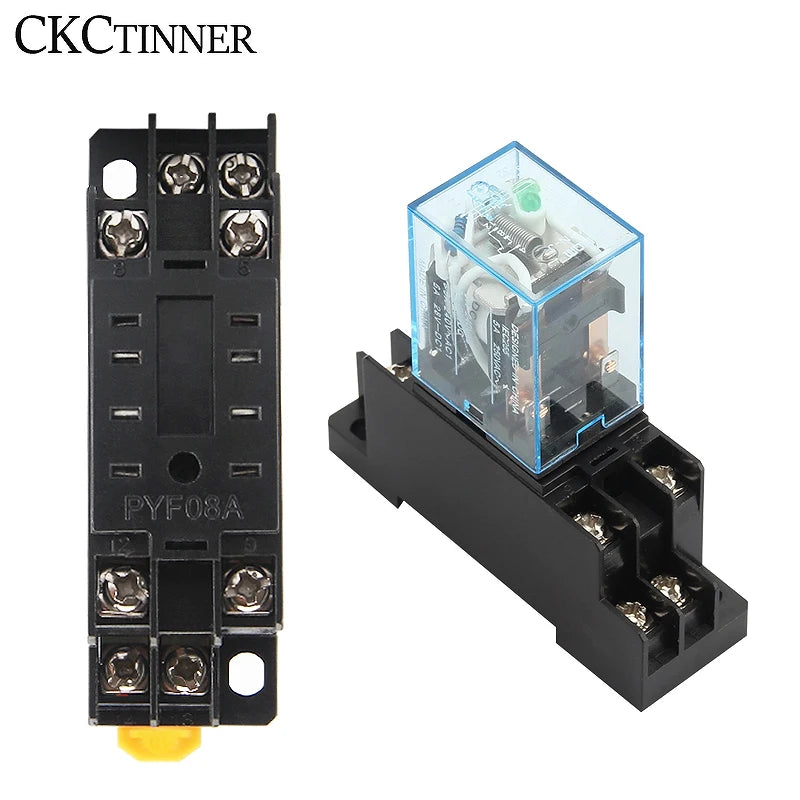

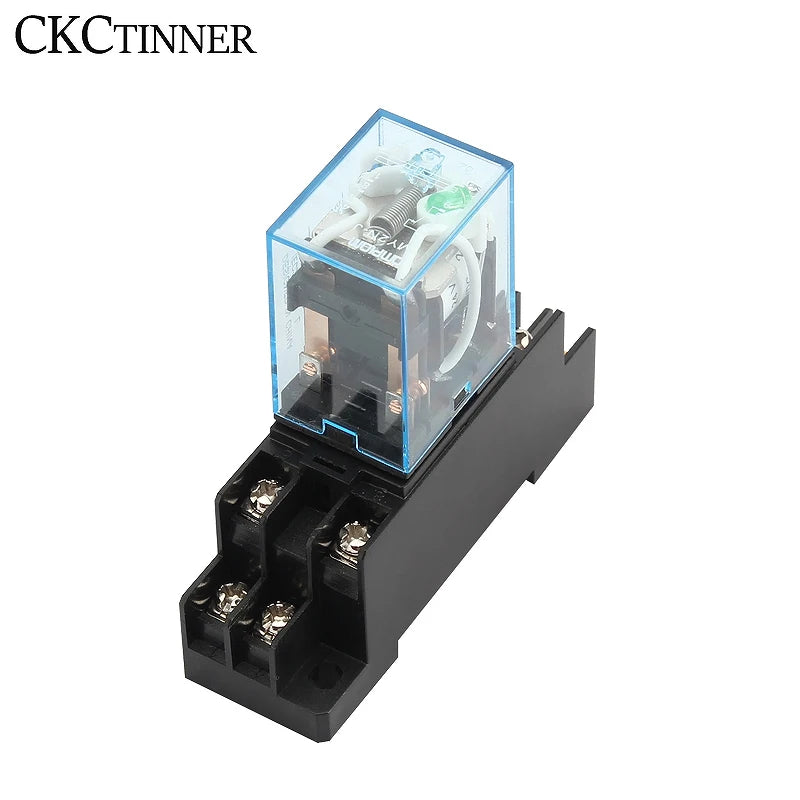

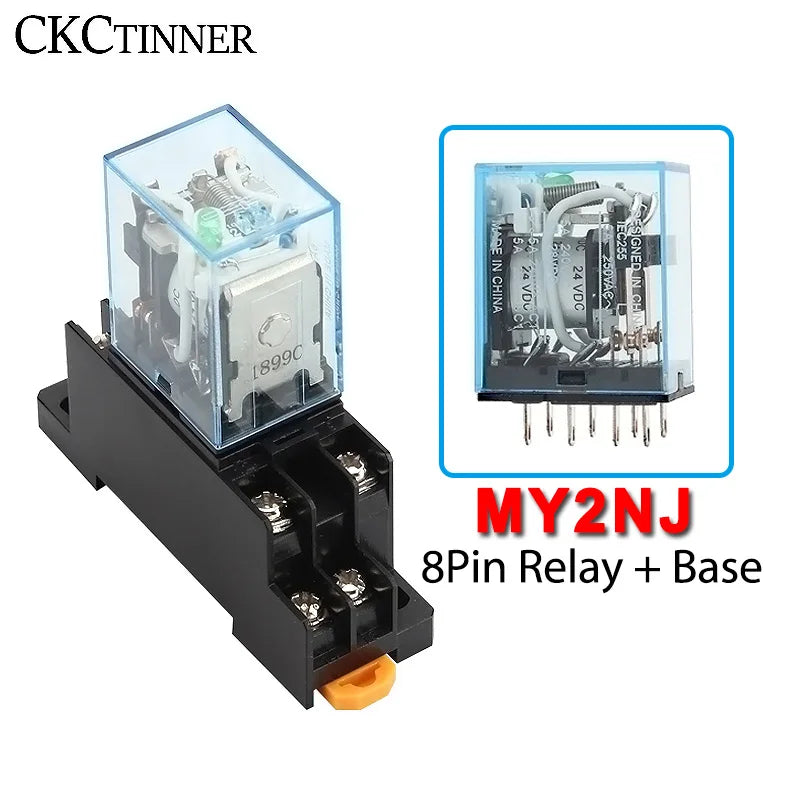

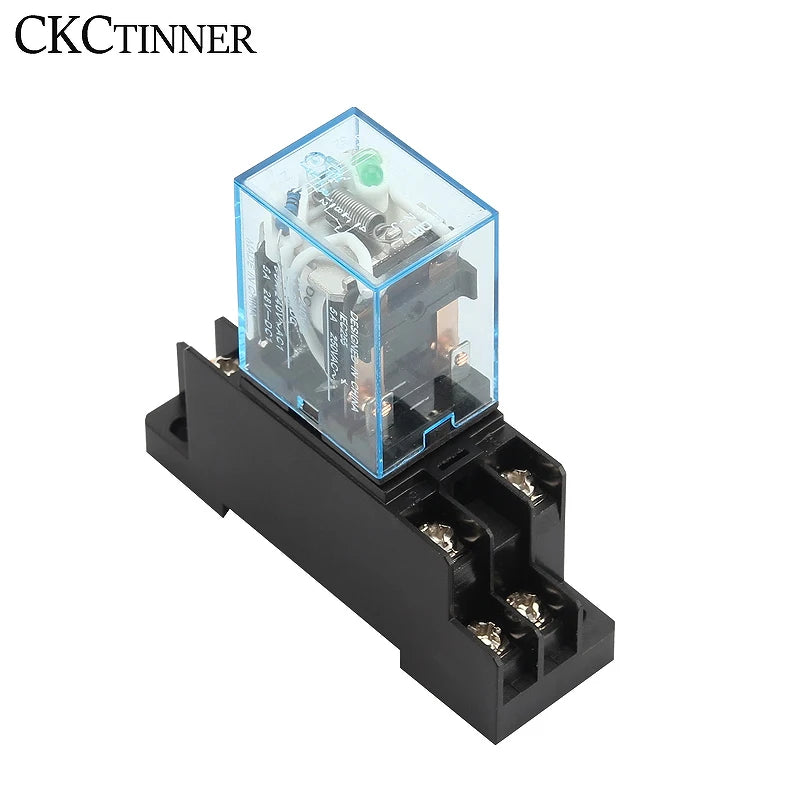

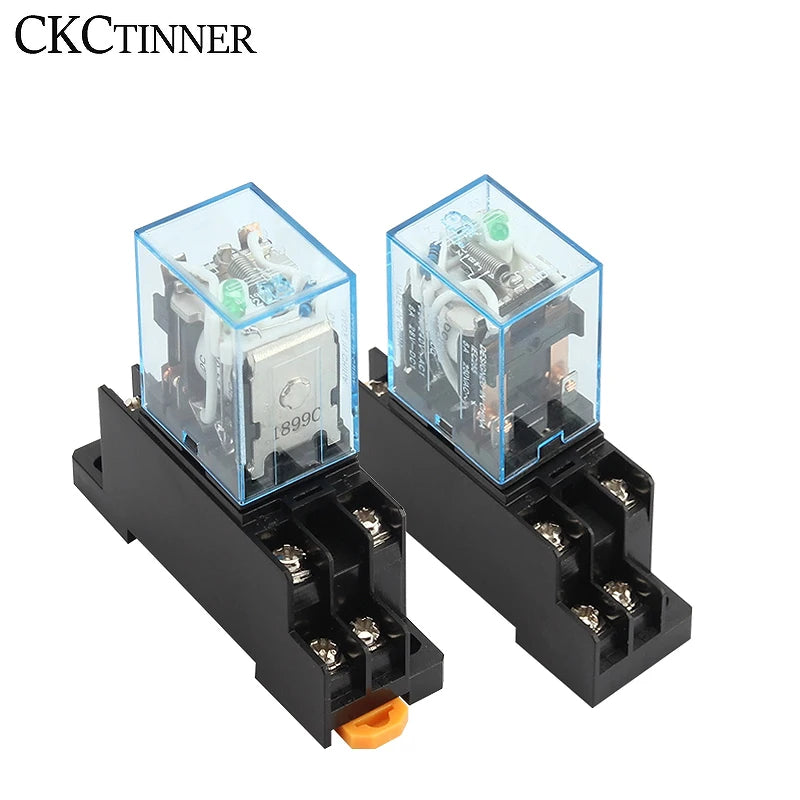

The MY2NJ HH52P is a compact, general-purpose DPDT (Double Pole Double Throw) electromagnetic relay designed for reliable switching in control circuits, automation panels, industrial equipment, and DIY electronics projects. Available in multiple coil voltages — AC 12V, AC 24V, DC 24V, AC 110V, and AC 220V — this relay delivers versatile compatibility across a wide range of applications. The included 8-pin socket base makes installation quick and tool-friendly, fitting standard 35mm DIN rail mounting for clean panel assembly.
CE certified and sealed for added protection, the MY2NJ relay offers a durable electromagnetic design suited for both hobbyist and professional environments. Made in Mainland China.
Key Features
- Model: MY2NJ / HH52P
- Action Type: DPDT (Double Pole Double Throw)
- Coil Voltages: AC 12V, AC/DC 24V, AC 110V, AC 220V
- Pin Configuration: 8-pin
- Mounting: 35mm DIN Rail compatible socket base
- Protect Feature: Sealed housing
- Certification: CE

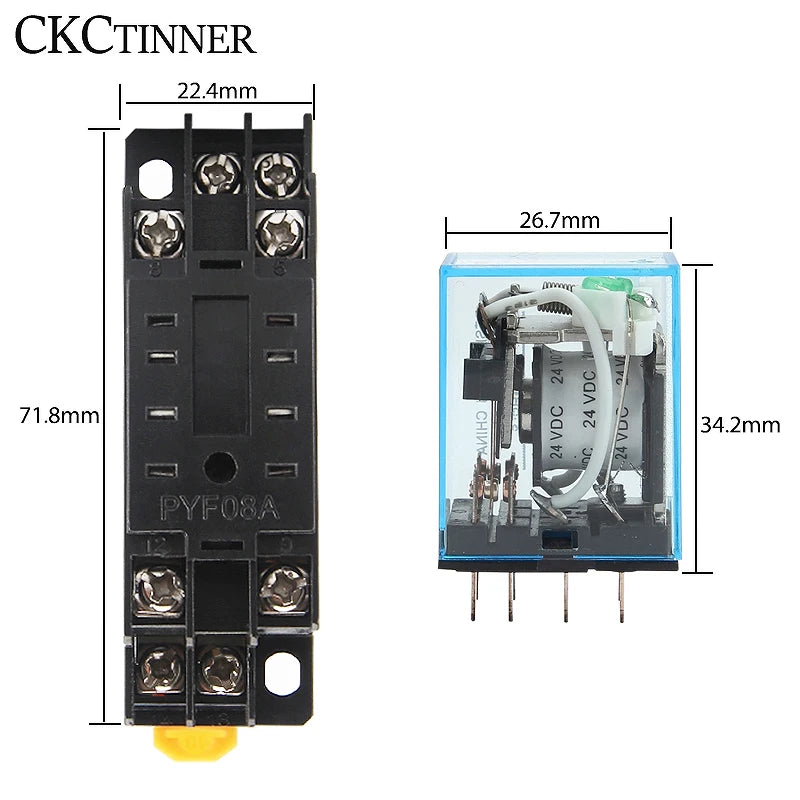

- Dimensions: Approx. 7.8 × 6.5 × 2.3 cm (3.1" × 2.6" × 0.9")
- Origin: Made in Mainland China
Specifications at a Glance
| Parameter | Value |
|---|---|
| Model | HH52P / MY2NJ |
| Contact Configuration | DPDT (2NO + 2NC) |
| Coil Voltage Options | AC 12V / AC 24V / DC 24V / AC 110V / AC 220V |
| Number of Pins | 8-pin |
| Rail Type | 35mm DIN Rail |
| Housing | Sealed |
| Certification | CE |
What's in the Box?
- 1 × MY2NJ HH52P DPDT Electromagnetic Relay
- 1 × 8-Pin Socket Base
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What does DPDT mean on the MY2NJ relay?
A: DPDT stands for Double Pole Double Throw. This means the MY2NJ relay has two independent switching circuits, each capable of connecting to either of two outputs. It provides 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, making it ideal for controlling multiple circuits simultaneously.
Q: Does the MY2NJ HH52P relay come with a socket base?
A: Yes. This listing includes both the MY2NJ HH52P DPDT relay and a matching 8-pin socket base, which mounts on a standard 35mm DIN rail for easy and secure panel installation.
Q: Which coil voltage should I choose for my application?
A: Choose the coil voltage that matches your control circuit's supply. Available options include AC 12V, AC 24V, DC 24V, AC 110V, and AC 220V. For most industrial control panels in North America, AC 110V or DC 24V are common choices, while AC 220V suits European and industrial setups.
Q: Is the MY2NJ relay suitable for DIN rail installation?
A: Yes. The included socket base is designed for standard 35mm DIN rail mounting, making it fully compatible with typical control panel assemblies and distribution boards.
