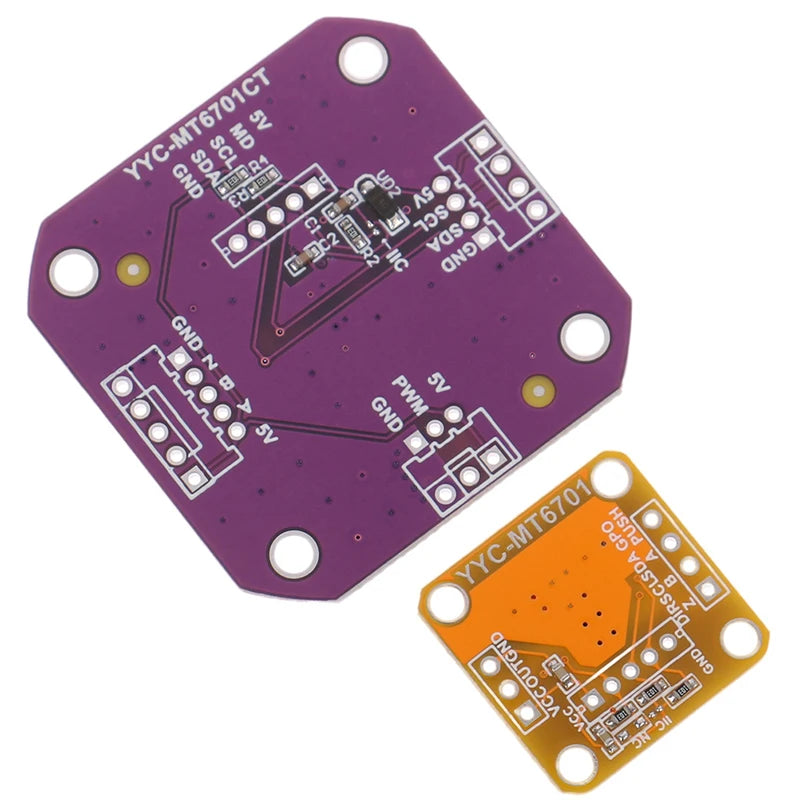

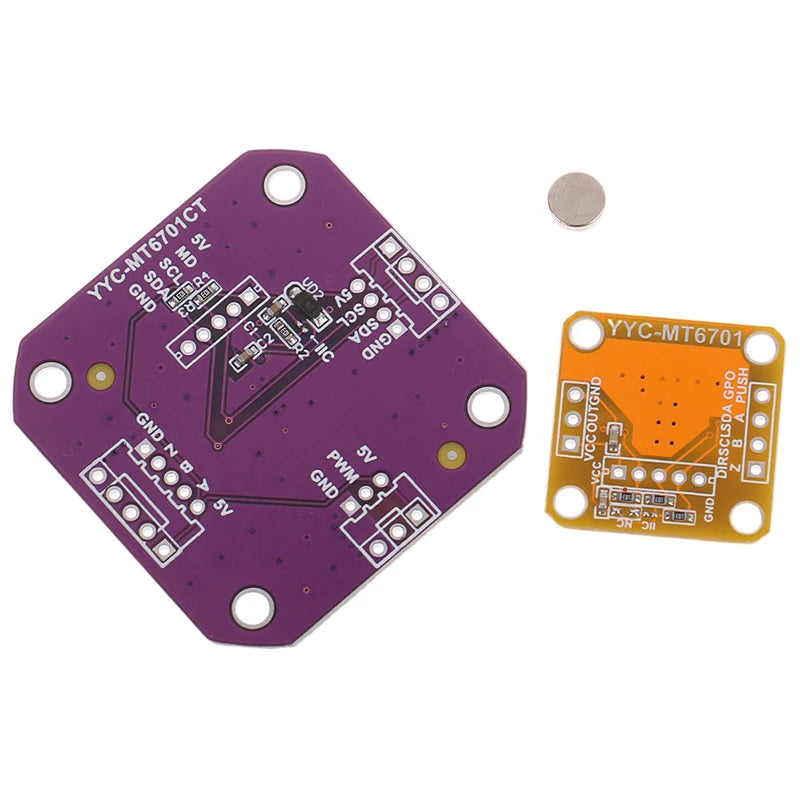

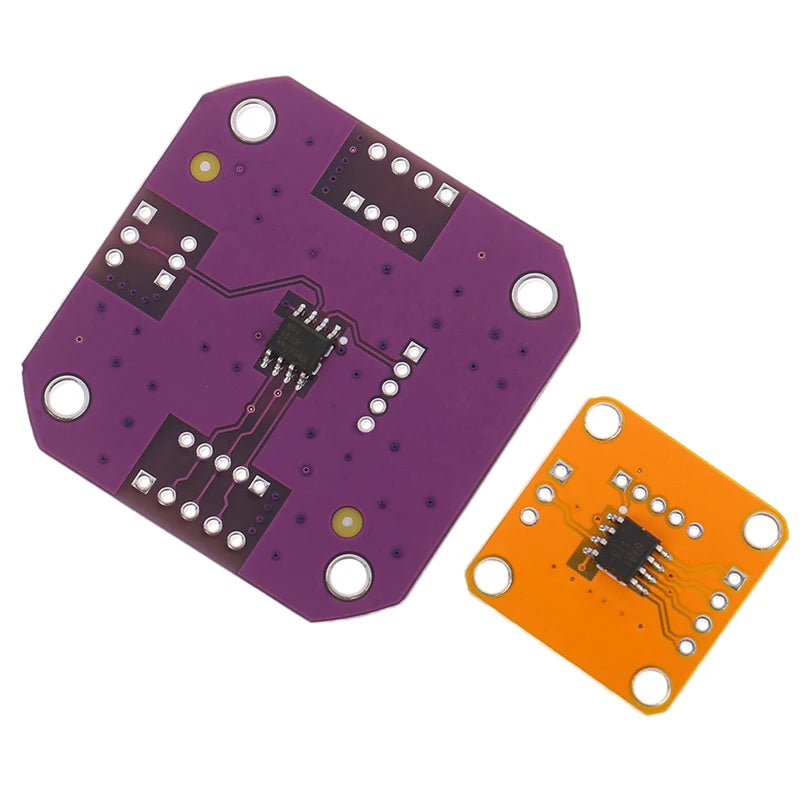

MT6701 Magnetic Induction Angle Measurement Sensor Module

Upgrade your motion control projects with the MT6701 Magnetic Encoder Sensor Module — a high-precision, 14-bit magnetic induction angle measurement solution. Whether you're building robotics, servo systems, or precision motor controllers, this compact module delivers accurate, contactless angle detection with outstanding repeatability. It is a fully compatible, high-performance replacement for the AS5600 encoder.

Made in Mainland China.

Key Features

  • 14-Bit High Precision: Delivers up to 16,384 steps per revolution for ultra-fine angular resolution.
  • Magnetic Induction Technology: Contactless sensing ensures long service life and reliable performance with no mechanical wear.
  • AS5600 Compatible: A drop-in replacement for AS5600-based designs — no firmware changes required in most applications.

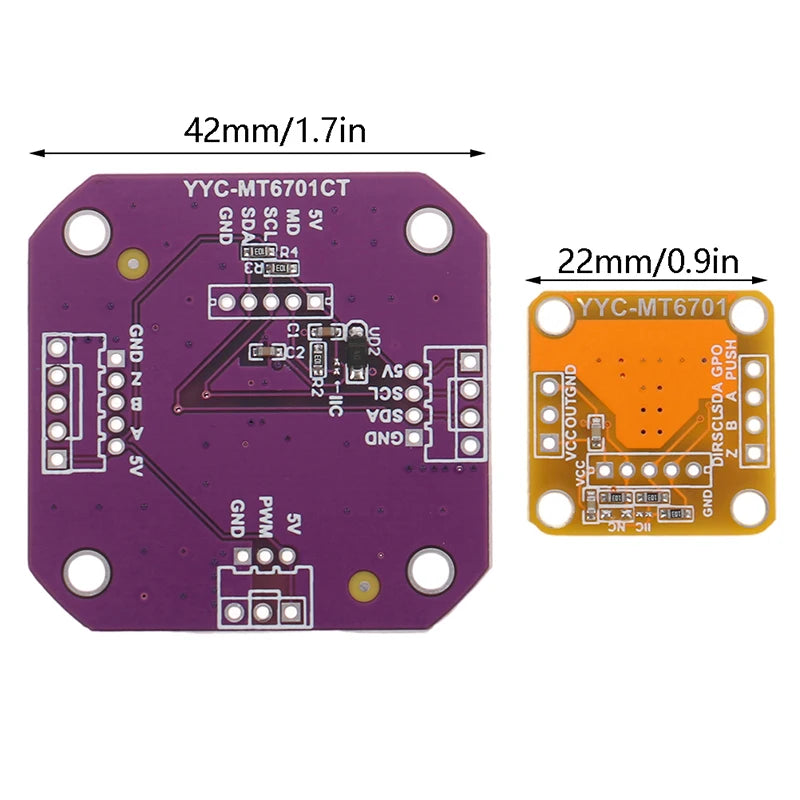

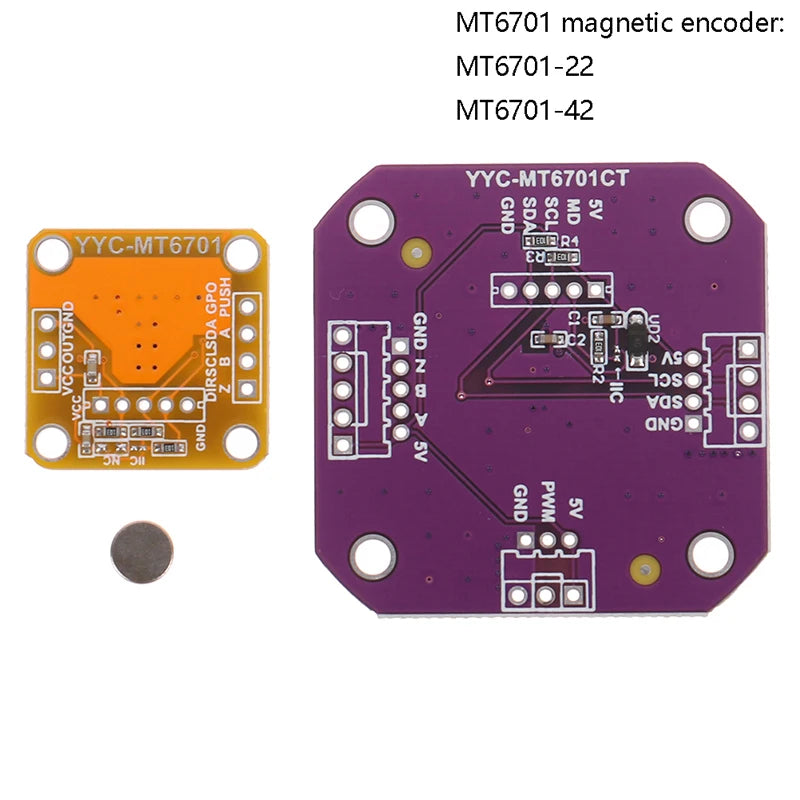

  • Two Size Options: Available in MT6701-22 (2×22mm) and MT6701-42 (42×42mm) to suit different mounting requirements.
  • Compact & Lightweight: Plastic housing keeps the module light for weight-sensitive builds.
  • Wide Application Range: Ideal for BLDC motor feedback, gimbal systems, CNC axis control, robotic joints, and more.
  • Brand New & High Quality: 100% new components, rigorously checked before shipping.

Specifications

Sensor IC MT6701
Resolution 14-Bit (16,384 steps/revolution)
Interface SSI / ABZ / UVW / Analog
Material Plastic

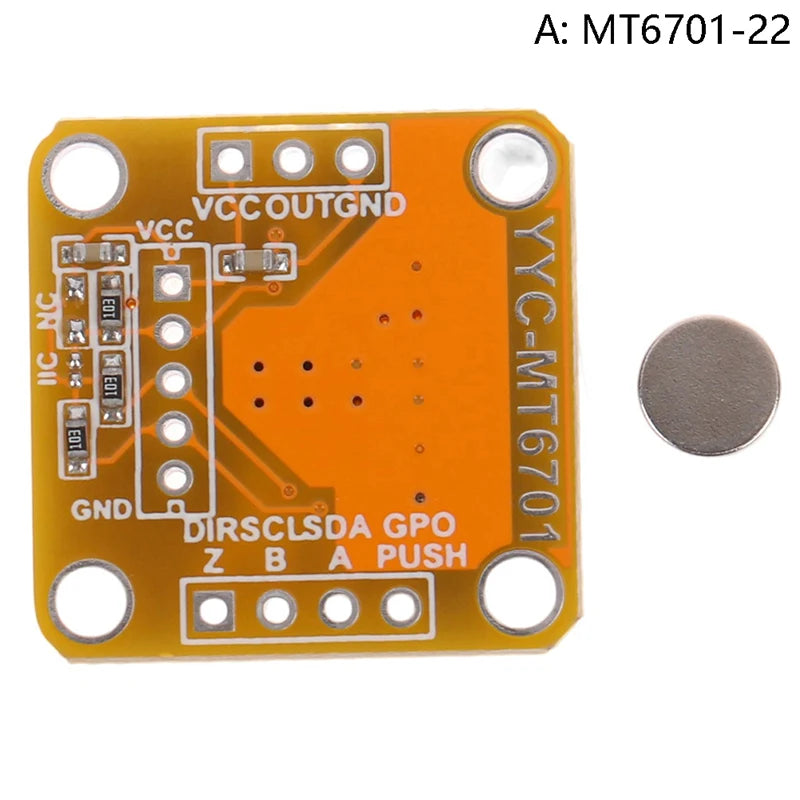

Size – MT6701-22 2 × 22 mm

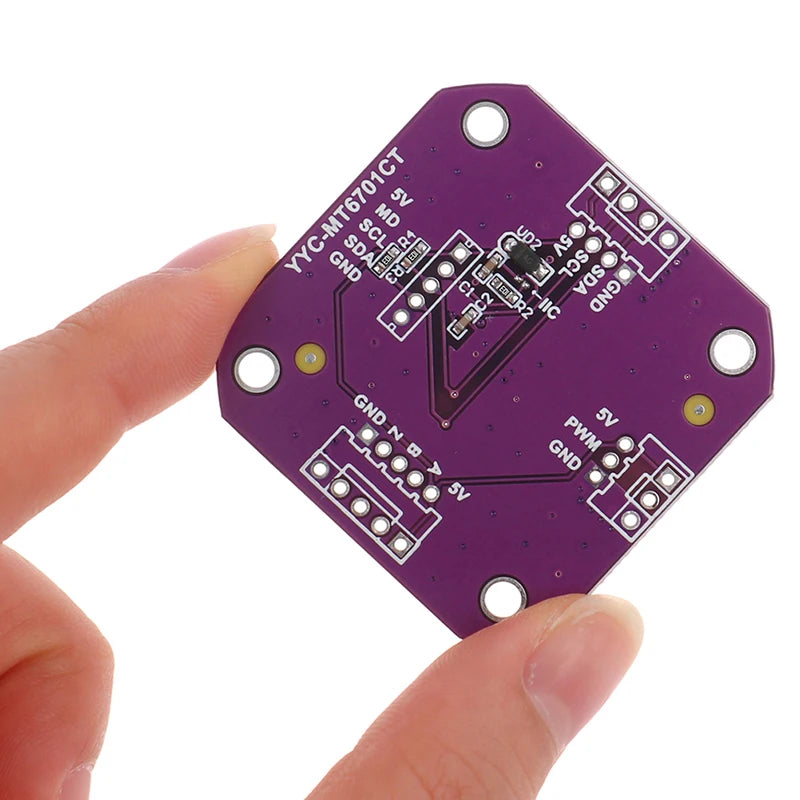

Size – MT6701-42 42 × 42 mm
Package Contents 1 × MT6701 Magnetic Encoder Module
Origin Mainland China

Perfect For

  • BLDC / PMSM motor position feedback
  • Robotic arm joint angle sensing
  • CNC machine axis feedback
  • Gimbal stabilizer systems
  • FOC (Field-Oriented Control) motor drives
  • DIY servo and stepper motor projects

Related Products You May Like

Note: Product images are for illustration purposes only and may not reflect the exact size. Please refer to the specification table above for dimensions. Allow ±5–10 mm variance due to manual measurement. Actual colour may vary slightly between monitors.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Is the MT6701 magnetic encoder module a direct replacement for the AS5600?

A: Yes. The MT6701 is designed as a high-precision, drop-in replacement for AS5600-based designs. It shares compatible output interfaces and offers the same or better 14-bit angular resolution, making it straightforward to swap into existing schematics and firmware without significant changes.

Q: What size options are available for the MT6701 encoder module?

A: The MT6701 magnetic encoder module comes in two sizes: MT6701-22 (2×22mm) for compact, space-constrained builds, and MT6701-42 (42×42mm) for standard NEMA 17-style motor mounts. Choose the size that best fits your motor or mechanical assembly.

Q: What applications is the MT6701 14-bit angle sensor module best suited for?

A: This module is ideal for any application requiring precise, contactless rotational position feedback — including BLDC/PMSM motor FOC control, CNC axis positioning, robotic joint sensing, gimbal stabilization, and DIY servo projects. Its 14-bit resolution ensures smooth, high-accuracy motion feedback.
