MK2P Electromagnetic Relay + PF083A Socket 8-Pin DC/AC
MK2P Electromagnetic Relay + PF083A Socket 8-Pin DC/AC

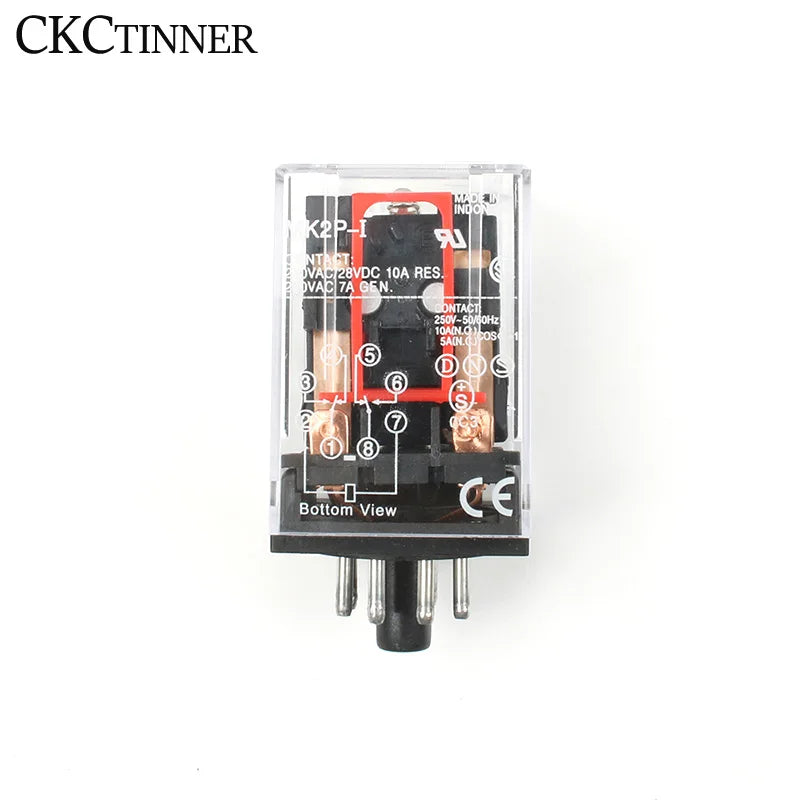

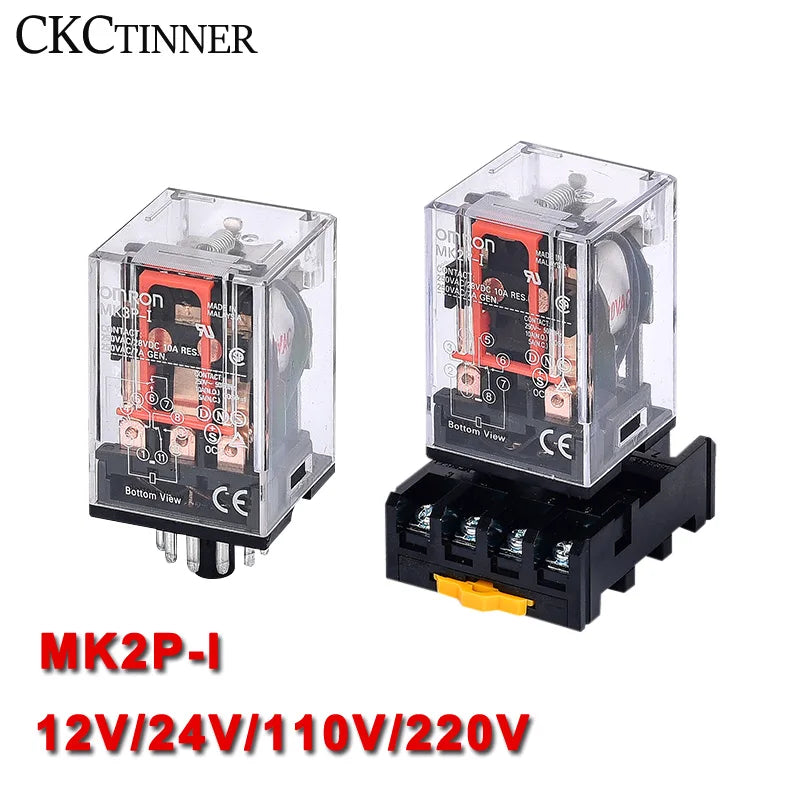

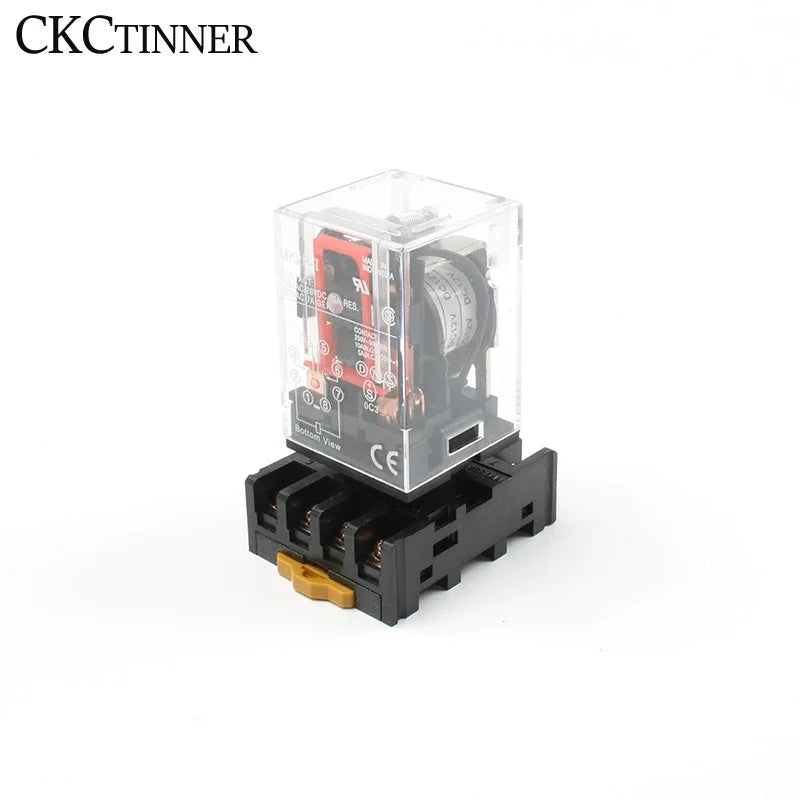

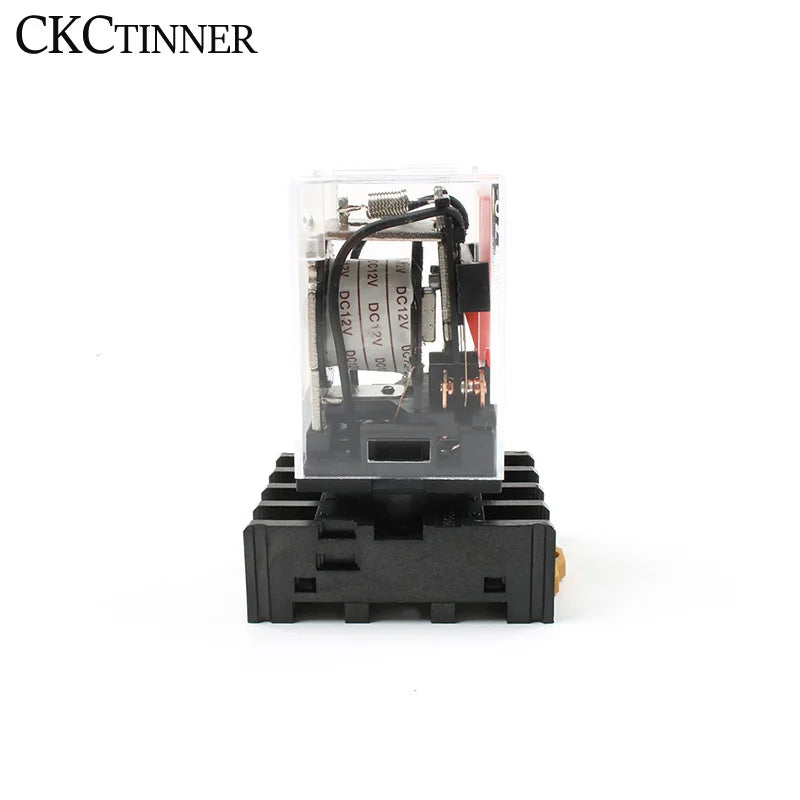

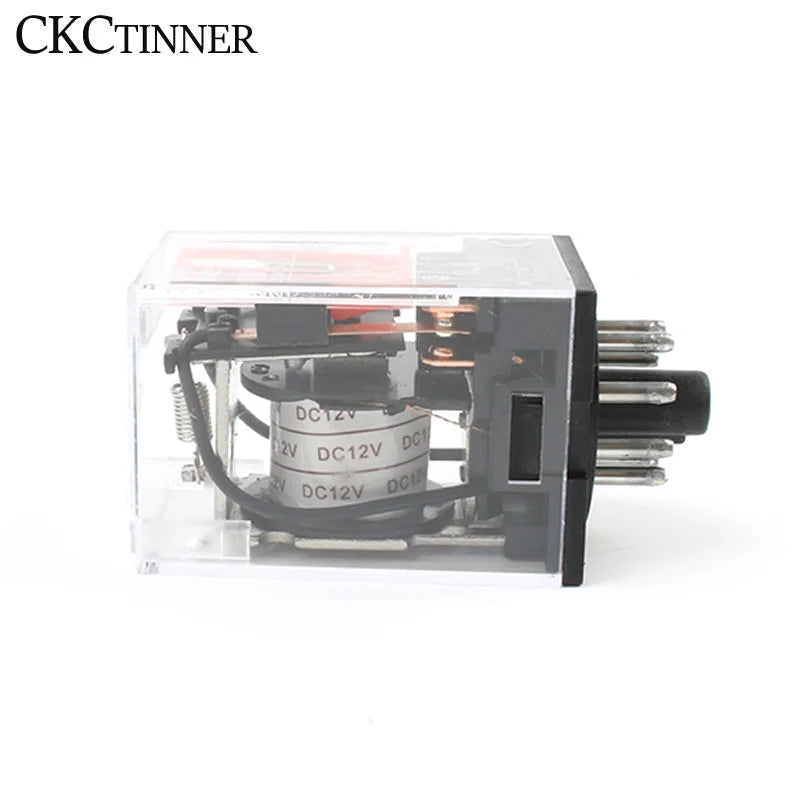

MK2P-I Intermediate Electromagnetic Relay with PF083A Socket Base
The MK2P series electromagnetic relay is a compact, general-purpose intermediate relay designed for reliable switching in industrial control panels, automation systems, and electrical circuits. Available in DC 12V, DC 24V, AC 110V, and AC 220V coil voltages, this versatile 8-pin relay pairs perfectly with the included PF083A socket base for quick, secure mounting.
Featuring silver alloy contacts, a CE-certified sealed construction, and a DPDT contact configuration, the MK2P delivers long mechanical and electrical service life — making it an ideal choice for engineers, electricians, and DIY automation enthusiasts.
Made in Mainland China.
Key Features
- Multiple Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V — choose the voltage that fits your application
- DPDT Contact Form: Supports DPST-NO, DPST-NC, and DPDT configurations for flexible wiring
- 10A Contact Rating: Rated for 10A @ 28V DC / 240V AC for dependable load switching
- Silver Alloy Contacts: Low contact resistance (50mΩ max) for efficient, low-loss switching
- Sealed Housing: CE-certified sealed body protects against dust and moisture
- 8-Pin Termination: Quick-connect 8-pin design fits the matched PF083A socket base
- Long Service Life: Mechanical life of 10,000,000 operations min; electrical life of 100,000 operations min
- Wide Operating Range: -25°C to +55°C, 35–85% RH (no condensation)
Technical Specifications
| Model | MK2P / MK2P-I Series |
| Contact Material | Silver Alloy |
| Contact Form | DPST-NO, DPST-NC, DPDT |
| Contact Rating | 10A @ 28V DC / 240V AC |
| Rated Coil Power | 3.5W (AC), 2W (DC) |
| Coil Voltages | DC 12V / DC 24V / AC 110V / AC 220V |
| Dielectric Strength | 1,500V AC (coil to contacts); 1,200V AC (open contacts) |
| Insulation Resistance | 100MΩ min @ 500V DC |
| Contact Resistance | 50mΩ max |
| Termination | 8 Pins |
| Matched Socket | PF083A |
| Dimensions | 34.5 × 34.5 × 53 mm |
| Operating Temperature | -25°C to +55°C |
| Operating Humidity | 35–85% RH, no condensation |
| Certification | CE |
| Country of Origin | Mainland China |

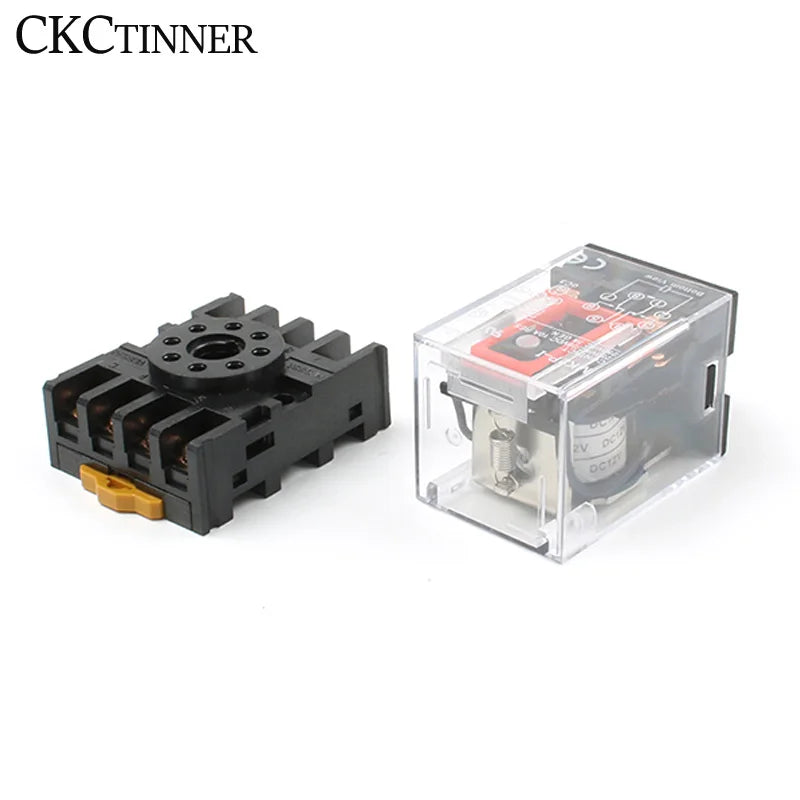

What's in the Box
- 1 × MK2P Electromagnetic Relay
- 1 × PF083A Socket Base
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What coil voltages are available for the MK2P electromagnetic relay?
A: The MK2P series relay is available in four coil voltages: DC 12V, DC 24V, AC 110V, and AC 220V. Simply select the voltage that matches your control circuit when ordering.
Q: Does the MK2P relay come with the PF083A socket base?
A: Yes, this listing includes both the MK2P relay and the matched PF083A socket base, providing everything you need for quick-connect panel mounting right out of the box.
Q: What is the contact rating of the MK2P relay?
A: The MK2P relay is rated for 10A at 28V DC or 240V AC, making it suitable for a wide range of general-purpose switching applications in industrial control and automation systems.
Q: Is the MK2P relay certified for safety compliance?
A: Yes, the MK2P relay carries CE certification and features a sealed housing for added protection. Its insulation resistance is rated at 100MΩ minimum at 500V DC.
