Mini 2S 7A–15A Brushless ESC Motor Driver Board for RC Aircraft
Mini 2S 7A–15A Brushless ESC Motor Driver Board for RC Aircraft
Mini 2S Brushless ESC Motor Driver Board – 7A to 15A for RC Aircraft Models
Take your RC aircraft and drone builds to the next level with this compact Mini 2S Brushless Electronic Speed Controller (ESC) Motor Driver Board. Available in 7A and 15A variants, this lightweight module delivers precise throttle response and smooth power delivery for model aircraft, micro drones, and DIY RC projects. Its ultra-compact footprint (approx. 11 × 29.3 mm) makes it ideal for tight airframes where every millimetre counts.
Key Features

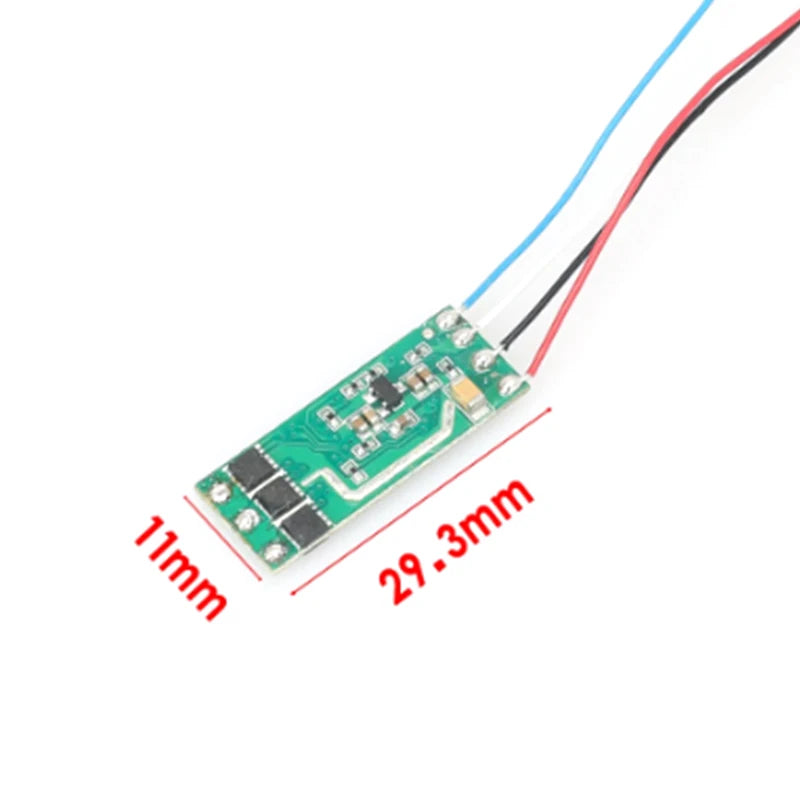

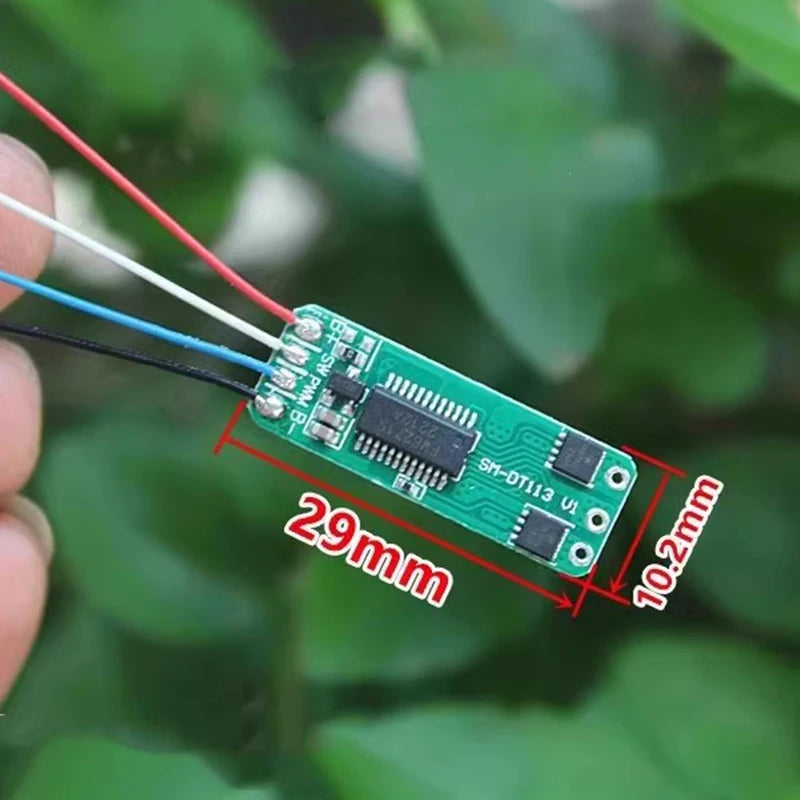

- Compact Design: Measures approximately 11 × 29.3 mm — perfect for micro and mini RC aircraft builds.
- 2S Compatible: Designed for 2S LiPo battery configurations for efficient power management.
- Current Rating Options: Available in 7A and 15A to match your motor's demands.
- High-Quality Construction: 100% brand new with durable plastic housing for reliable performance.
- Drop-In Ready: Standard signal input for easy integration with most RC receivers and flight controllers.
- Lightweight: Minimal weight addition keeps your aircraft agile and efficient in the air.
Specifications
- Type: Brushless ESC (Electronic Speed Controller)
- Current Ratings: 7A / 15A (choose your variant)
- Battery Compatibility: 2S LiPo
- Material: Plastic
- Dimensions: Approx. 11 × 29.3 mm
- Packaging: OPP bag
- Package Contents: 1 × Brushless ESC Motor Driver Board
- Country of Origin: Made in Mainland China
What's in the Box?
1 × Mini 2S Brushless ESC Motor Driver Board (7A or 15A — as selected)
Please Note
- Slight dimensional differences may occur due to manual measurement. Dimensions listed are for reference.
- Colours may appear slightly different on screen due to monitor brightness and contrast settings.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What battery type is compatible with this Mini 2S Brushless ESC?
A: This brushless ESC motor driver board is designed for use with 2S LiPo (Lithium Polymer) batteries, which are standard in many micro and mini RC aircraft models.
Q: What is the difference between the 7A and 15A variants of this brushless ESC?
A: The current rating indicates the maximum continuous current the ESC can handle. The 7A variant suits smaller, lighter brushless motors, while the 15A version supports motors with higher power demands. Choose based on your motor's rated current draw.
Q: Is this ESC compatible with standard RC receivers and flight controllers?

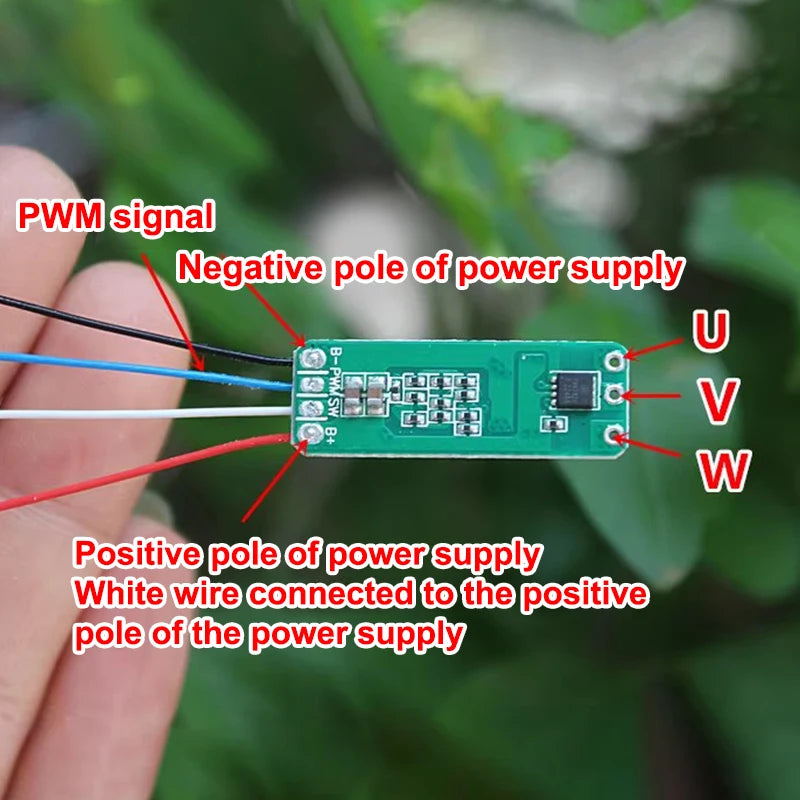

A: Yes. This brushless ESC uses a standard PWM signal input, making it compatible with most RC receivers and popular flight controllers used in micro drone and RC aircraft builds.
