Micro:bit Super:bit Expansion Board V2.0 – Robotics & Python

Super:bit Micro:bit Expansion Board – Robotbit V2.0 for STEM & Python Programming

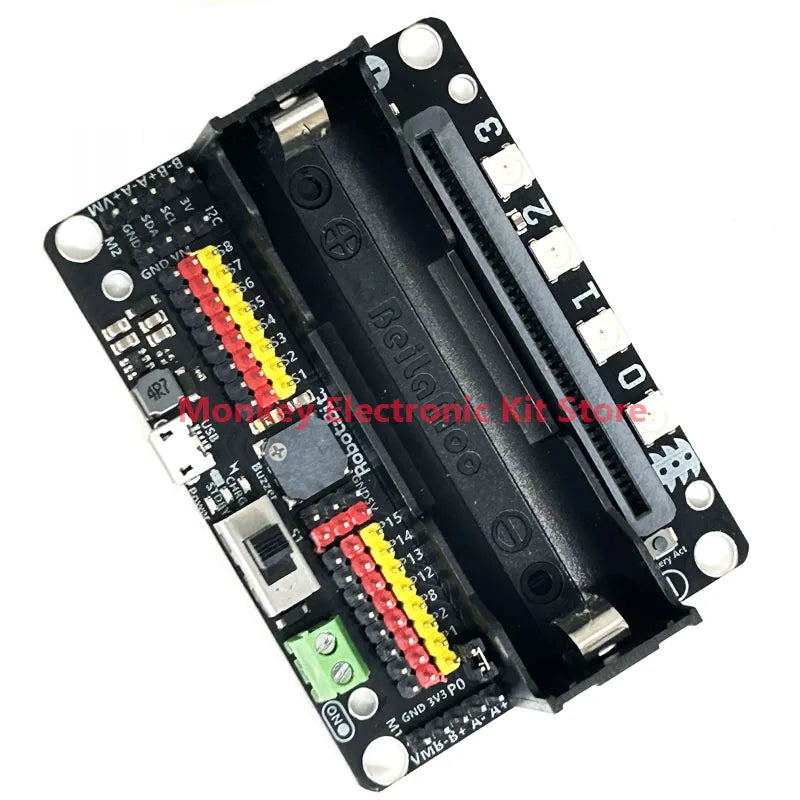

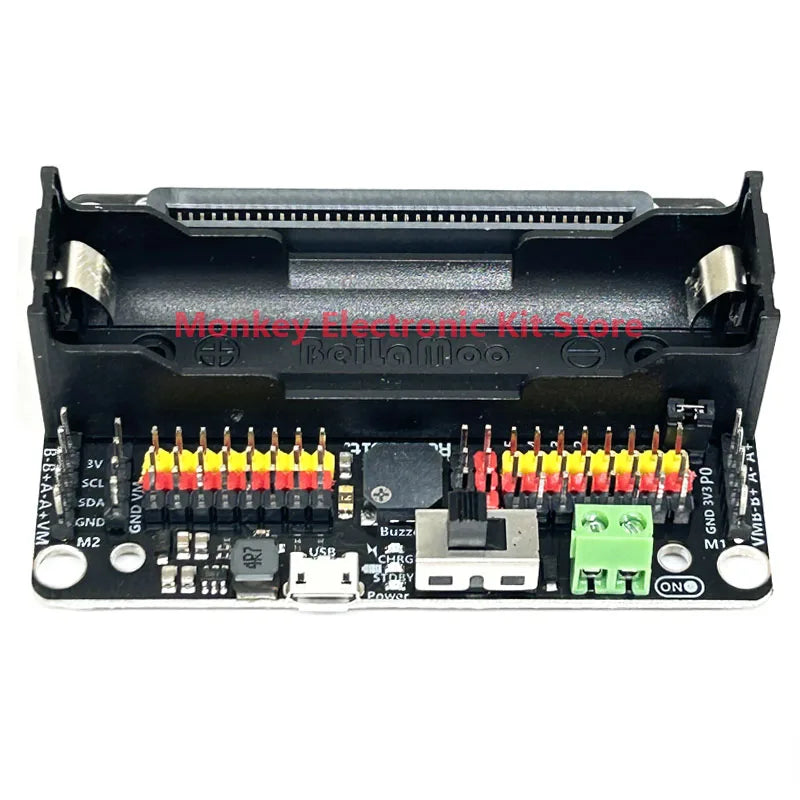

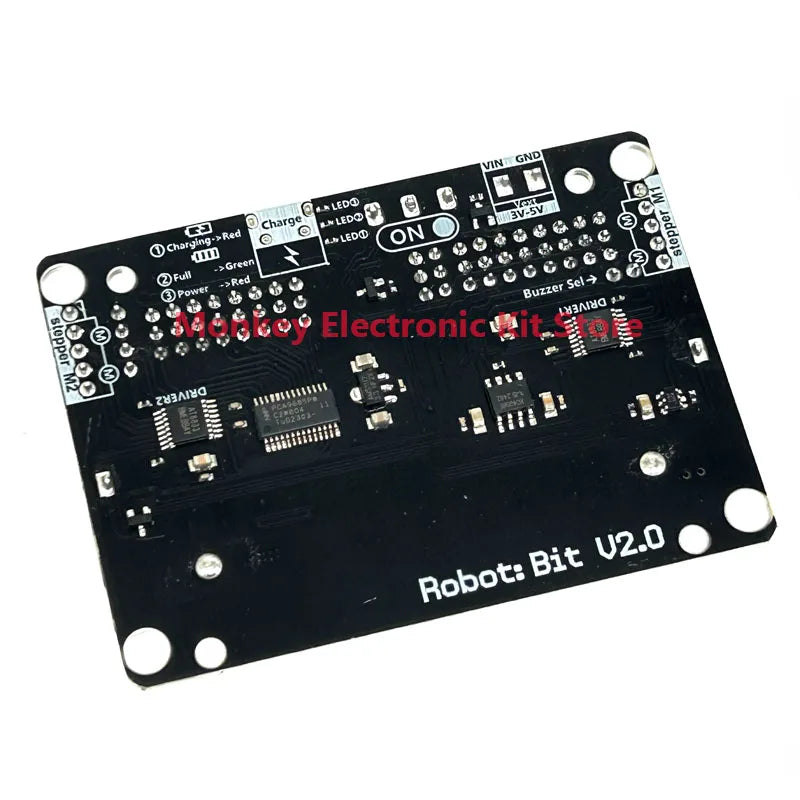

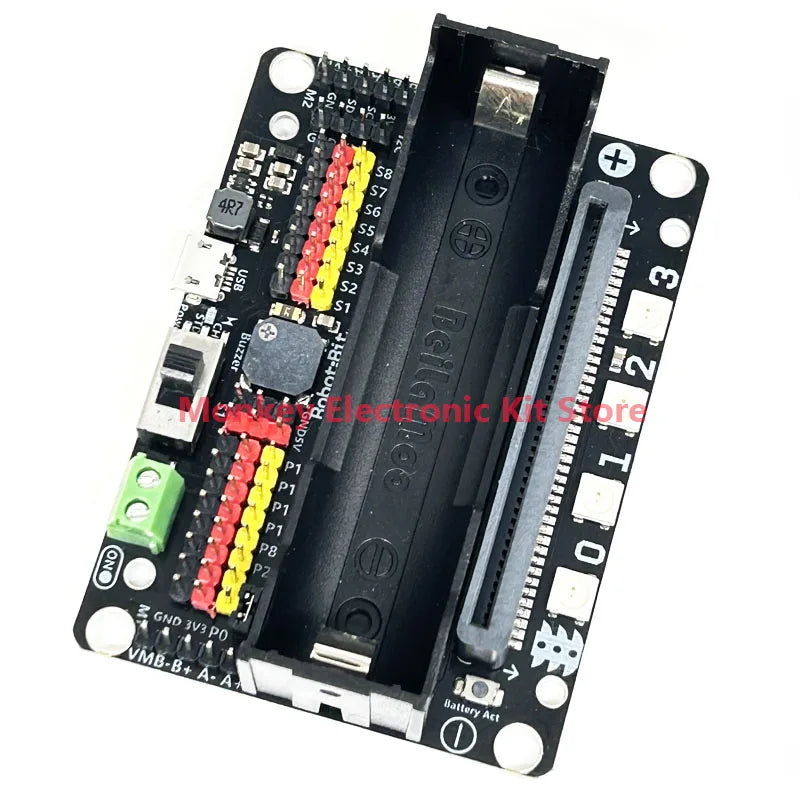

Take your Micro:bit projects to the next level with the Super:bit Expansion Board (Model KY-003), developed by the WeBee team. Designed for elementary and middle school students as well as hobbyists and makers, this powerful robotics expansion board converts the Micro:bit's gold-finger edge connector into easy-to-use standard 2.54mm pin interfaces — making it simple to connect sensors, motors, servos, and more without complex wiring.

Whether you're building robots, learning Python programming, or exploring STEM concepts, the Super:bit board provides everything you need in one compact, ready-to-use package. Made in Mainland China.

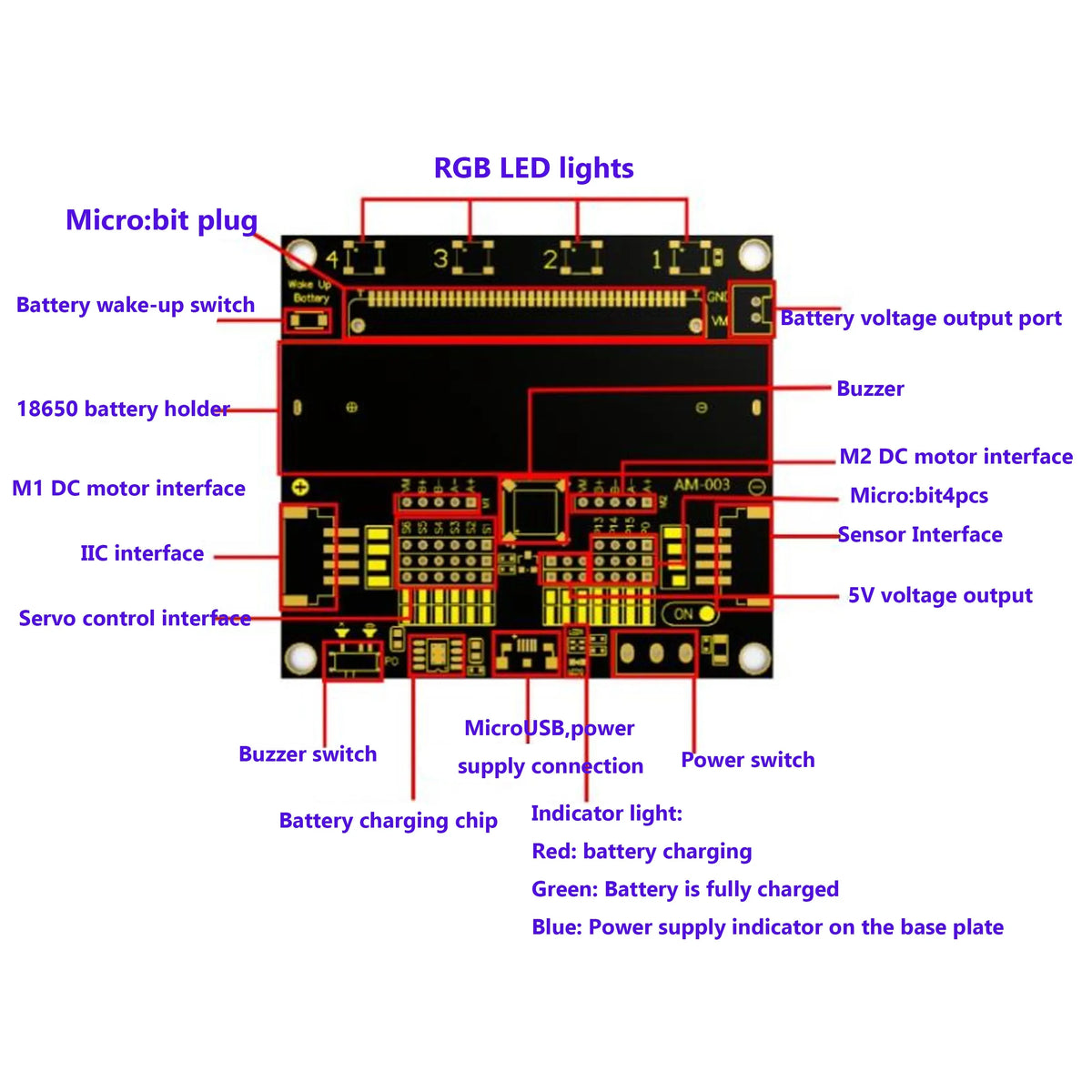

Key Features

• On-Board Power Management: Supports 18650 3.7V lithium battery (holder included) OR 5V Micro USB power supply — with built-in charging protection and 3.3V/5V voltage regulation circuits
• 18650 Battery Charging: Charge on-board via Micro USB (5V) — no need to remove the battery
• 4 RGB LED Lights: Single-bus series control for colorful visual feedback in your projects
• 1× Buzzer Circuit: Includes switchable buzzer control for audio outputs and alerts
• 4-Way DC Motor Control: Switchable to 2-way 5-wire stepper motor control interface for versatile robotics builds
• 6-Way Servo Control Interface: Control up to 6 servos simultaneously for robotic arms, vehicles, and more
• 1× IIC Interface (2.54mm pitch): Connect I²C peripheral modules with ease
• 3× Sensor Interfaces: 1× 4-pin + 2× 3-pin sensor connectors (2.54mm pitch) for rapid sensor integration
• 4× Micro:bit GPIO Pin Breakouts: 2.54mm row pin headers for direct GPIO access
• Battery Power Pinout: Output battery voltage available for powering external circuits
• Working Temperature: 0°C – 85°C for reliable performance in varied environments

Product Specifications

Who Is This For?

The Super:bit expansion board is ideal for elementary and middle school students in STEM and robotics classes, as well as hobbyist makers and educators who want a plug-and-play solution for Micro:bit robotics. It supports Python (MicroPython), block-based coding (MakeCode), and is compatible with popular robotics kits.

What's in the Box?

• 1× Super:bit Expansion Board (KY-003)

Note: 18650 battery and Micro:bit board are not included.

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Is the 18650 battery included with the Super:bit Micro:bit expansion board?

A: No, the 18650 lithium battery is not included. The board features an on-board 18650 battery holder and charging circuit, so you will need to purchase a standard 18650 3.7V Li-ion battery separately. You can also power the board directly via a Micro USB 5V connection.

Q: Is this expansion board compatible with all versions of the BBC Micro:bit?

A: Yes, the Super:bit expansion board (KY-003) is designed to be compatible with BBC Micro:bit boards. It connects via the standard edge connector and breaks out the GPIO, power, and communication pins to convenient 2.54mm standard header interfaces for sensors, motors, and servos.

Q: Can I use Python to program robots built with this Micro:bit expansion board?

A: Absolutely. The Super:bit board is fully compatible with MicroPython programming for Micro:bit, as well as Microsoft MakeCode block-based coding. It supports 4-way DC motor control, 6-way servo control, RGB LEDs, and sensor interfaces — making it a great platform for Python-based robotics and STEM projects.

Q: What motors and servos can I connect to this board?

A: The board supports up to 4 DC motors (or 2× 5-wire stepper motors) and up to 6 servos simultaneously. This makes it suitable for building wheeled robots, robotic arms, and other multi-actuator projects with the Micro:bit.
