Magnetic Door Hinge Jig – Precise, Fast & Frustration-Free Hinge Installation
Take the guesswork out of door hinge installation with this Magnetic Door Hinge Jig Template. Whether you're a seasoned carpenter or a weekend DIY enthusiast, this compact yet powerful tool ensures every hinge is positioned perfectly — first time, every time. Made in Mainland China.
Key Features
- Large-Area Magnetic Stability: The built-in magnetic structure locks the jig firmly in place, preventing drill bit shifting during use. Say goodbye to misaligned holes and wasted materials.
- 2mm Precision Groove Design: Engineered grooves guarantee mechanical alignment standardisation, delivering consistent, professional-grade results across every project without constant recalibration.

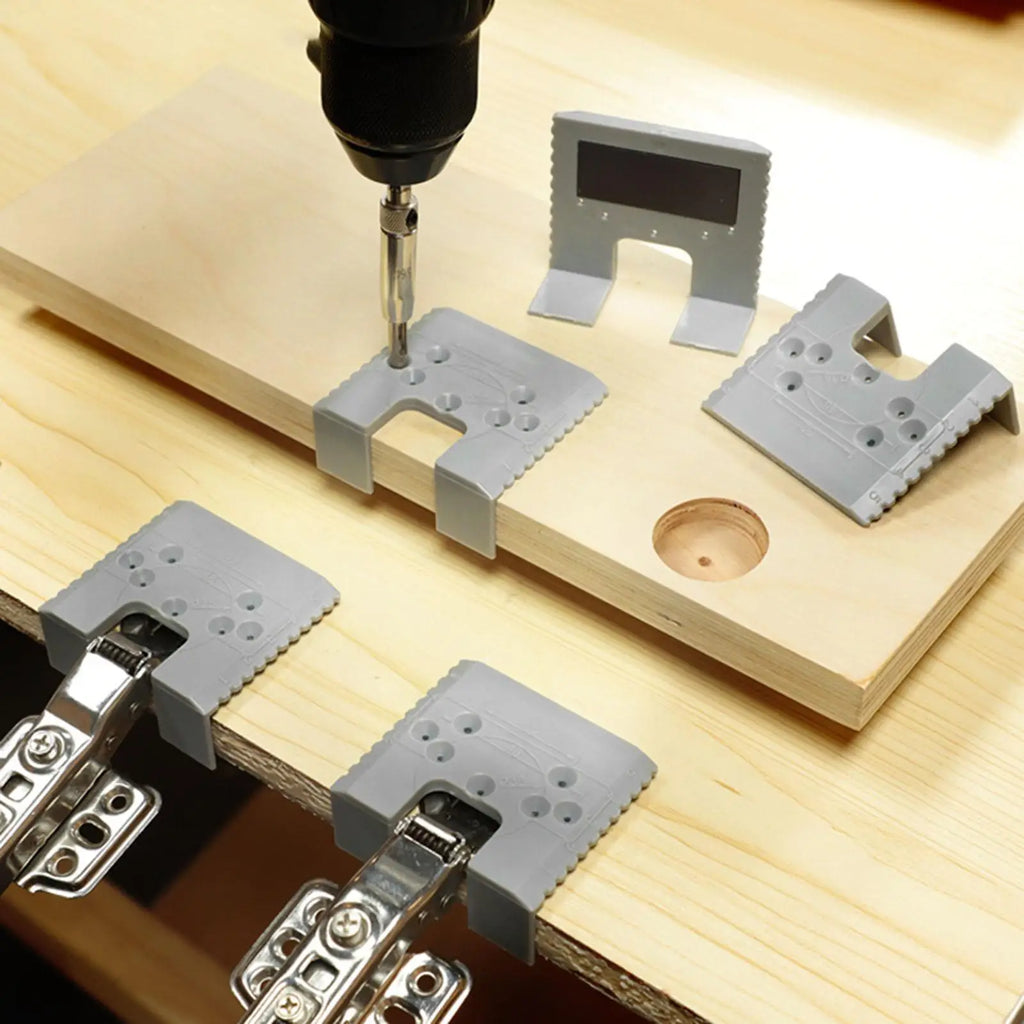

- Perfect Drill Bit Guidance: The jig channels your drill bit to exactly the right position, ensuring flawless hole alignment for cabinet hinges, interior doors, exterior doors, and garage doors alike.
- Impact-Resistant ABS Construction: Built from tough ABS material, this jig withstands the rigours of regular workshop use, maintaining structural integrity and extending its service life through countless projects.
- Multi-Hinge Compatibility: Flexible design adapts to multiple hinge types, making it ideal for cabinets, room doors, exterior doors, and garage door frames.
Specifications
- Material: ABS (impact-resistant)

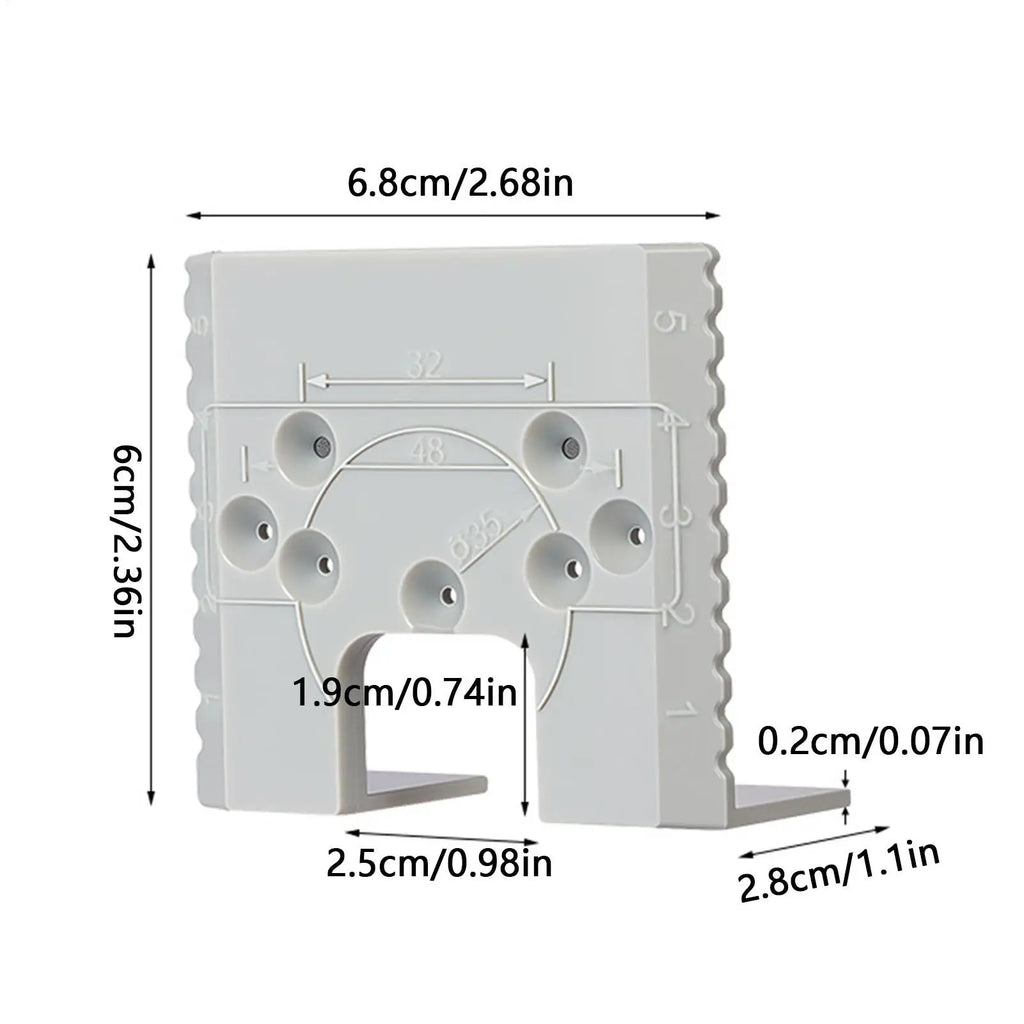

- Dimensions: approx. 6.8 × 6 × 2.8 cm / 2.68 × 2.36 × 1.1 inches
- Weight: 25 g
- Side Panel Thickness Compatibility: 16mm
- Certification: CE
What's in the Box
- 1 × Door Hinge Jig Template
Perfect for These Projects

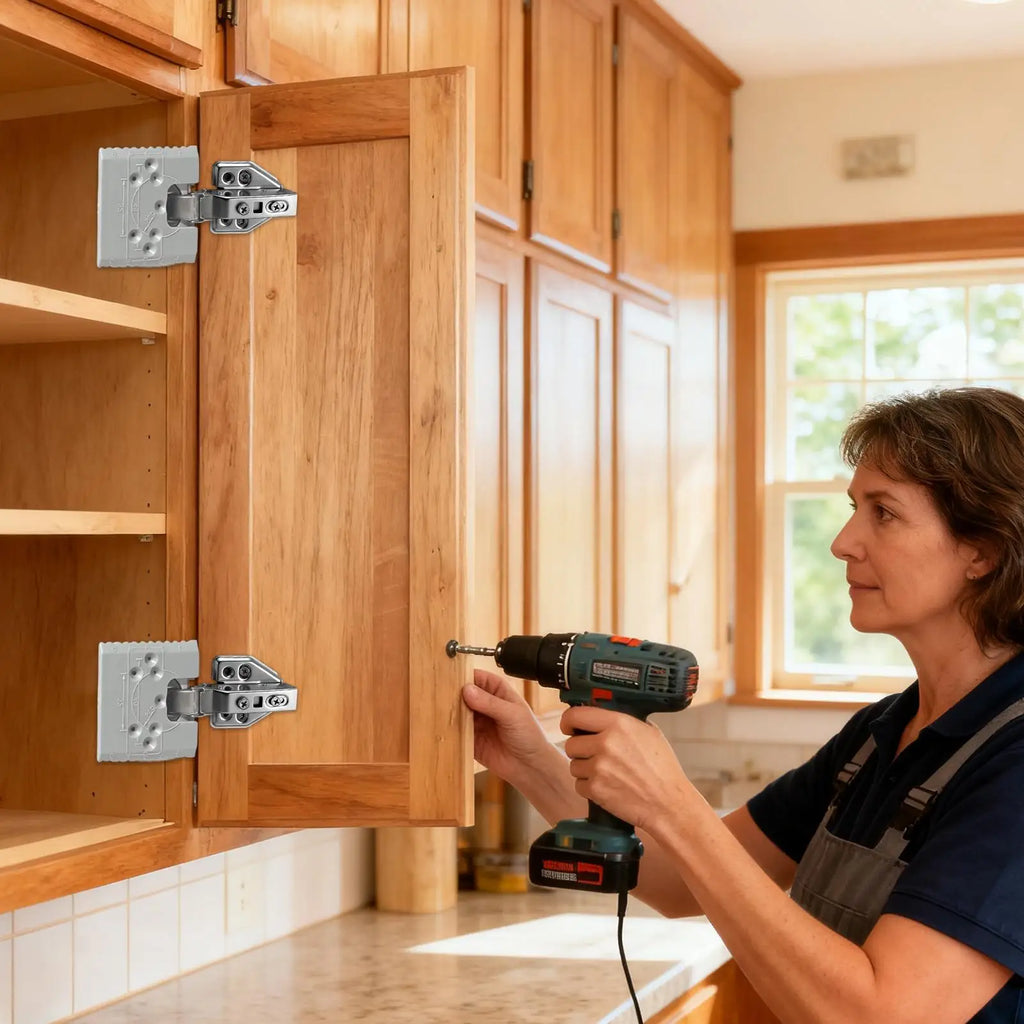

From fitting hinges on interior bedroom doors to weatherproof exterior entryways and overhead garage doors, this jig streamlines your workflow and keeps every installation looking crisp and professional. It's equally at home in a dedicated workshop or a kitchen being refitted with new cabinet doors.
Pair it with other DIY essentials from our store — check out the Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees for outdoor project prep, or browse the 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers if you love working with wood.
Note: Due to monitor calibration differences, product colour may vary slightly from images. Dimensions are measured manually and may have minor tolerances.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What types of hinges is this door hinge jig compatible with?
A: The magnetic door hinge jig is designed with a flexible groove system that accommodates multiple hinge types, including standard butt hinges used on interior doors, exterior doors, cabinet doors, and garage doors. Always verify your hinge dimensions against the jig's 16mm side panel compatibility before use.
Q: Does the magnetic feature work on all door materials?
A: The large-area magnetic structure is optimised to grip against steel or ferrous surfaces such as metal door frames and metal-faced tools. On wooden doors and frames, the magnetic base helps stabilise the jig while the precision groove guides your drill — ensuring accurate, consistent positioning regardless of door material.
Q: Is this jig suitable for beginner DIYers, or is it only for professional carpenters?
A: This door hinge template is designed for both beginners and professionals. The built-in 2mm precision groove eliminates the need for complex measuring and constant re-marking, making it easy for first-time installers to achieve professional-grade hinge placement right out of the box.
Q: What is the jig made of, and how durable is it?
A: The jig is constructed from impact-resistant ABS plastic, a material known for its toughness and longevity in workshop environments. It can handle repeated use across many installations without cracking or losing its structural shape.
