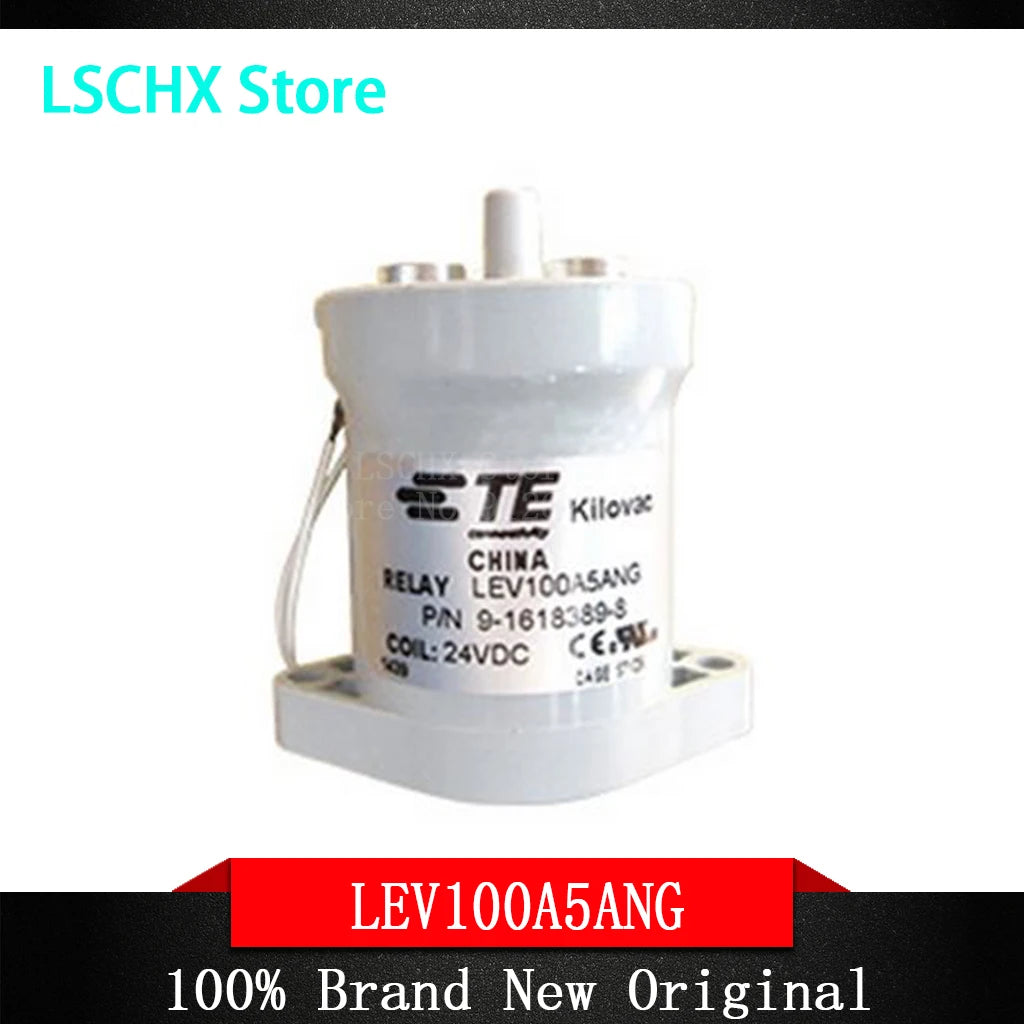

LEV100A High Voltage DC Relay – 12V/24V NEV Coil Contactor

High Voltage DC Relay LEV100A – 12V & 24V Coil for New Energy Vehicles

The LEV100A High Voltage DC Relay is a precision-engineered contactor designed for new energy vehicle (NEV) battery management systems, EV power circuits, and high-voltage DC switching applications. Available in both 12V coil (3-1618389-7 / LEV100A4ANG) and 24V coil (9-1618389-8 / LEV100A5ANG) configurations, this relay delivers dependable switching performance in demanding EV and industrial environments.

Key Features

• Dual Coil Voltage Options: 12V (Part No. 3-1618389-7, Model LEV100A4ANG) and 24V (Part No. 9-1618389-8, Model LEV100A5ANG) — select the configuration that matches your system requirements.
• High Voltage DC Rated: Engineered for high-voltage DC circuits commonly found in electric vehicles, hybrid powertrains, and energy storage systems.
• Robust & Reliable Construction: Built to withstand the vibration, temperature fluctuations, and electrical demands of new energy vehicle applications.
• Direct Replacement Compatibility: OEM part numbers ensure a precise fit and drop-in replacement for compatible NEV systems.
• Single-Piece Listing (1 PCS): Each order includes one (1) relay unit.

Specifications

Ideal Applications

• Electric vehicle (EV) and hybrid vehicle battery management systems
• High-voltage DC power distribution and switching
• Energy storage and charging equipment
• Industrial DC power control systems

Related Products You May Find Useful

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between the LEV100A4ANG (12V) and LEV100A5ANG (24V) relay?

A: The primary difference is the coil operating voltage. The LEV100A4ANG (Part No. 3-1618389-7) operates with a 12V DC control coil, while the LEV100A5ANG (Part No. 9-1618389-8) uses a 24V DC control coil. Both are high voltage DC relays designed for new energy vehicle applications — choose the variant that matches your vehicle or system's control voltage.

Q: Is this relay compatible with electric vehicles and EV battery management systems?

A: Yes. The LEV100A series high voltage DC relay is specifically designed for new energy vehicle (NEV) applications, including EV and hybrid vehicle battery management systems, high-voltage DC switching, and energy storage equipment. Always verify the part number and coil voltage against your system specifications before installation.

Q: How many relays are included in one order?

A: Each listing is for 1 PCS (one piece) of the selected LEV100A relay. If you require multiple units, please adjust the quantity at checkout accordingly.
