LCD Digital Programmable Time Relay – ST3P Series with PF083A Socket Base
Take precise control of your electrical circuits with the ST3P LCD Digital Programmable Time Relay. Featuring a clear digital display and four flexible working modes, this CE-certified relay is ideal for industrial automation, HVAC systems, lighting control, machinery timing, and general-purpose electrical projects. Compatible with 12V/24V/220V power supplies, it covers virtually any application.
Key Features
- Wide Time Range: 0.01 seconds to 99,990 hours — fine-grained control for any timing application
-
Four Working Modes:
- Power-on Delay – activates output after a set time upon power-up
- Delayed Disconnect – keeps output active then cuts off after a set time
- Cycle Delay – repeating on/off cycles for automated sequences
- Signal Off Delay – output remains active for a set period after signal is removed

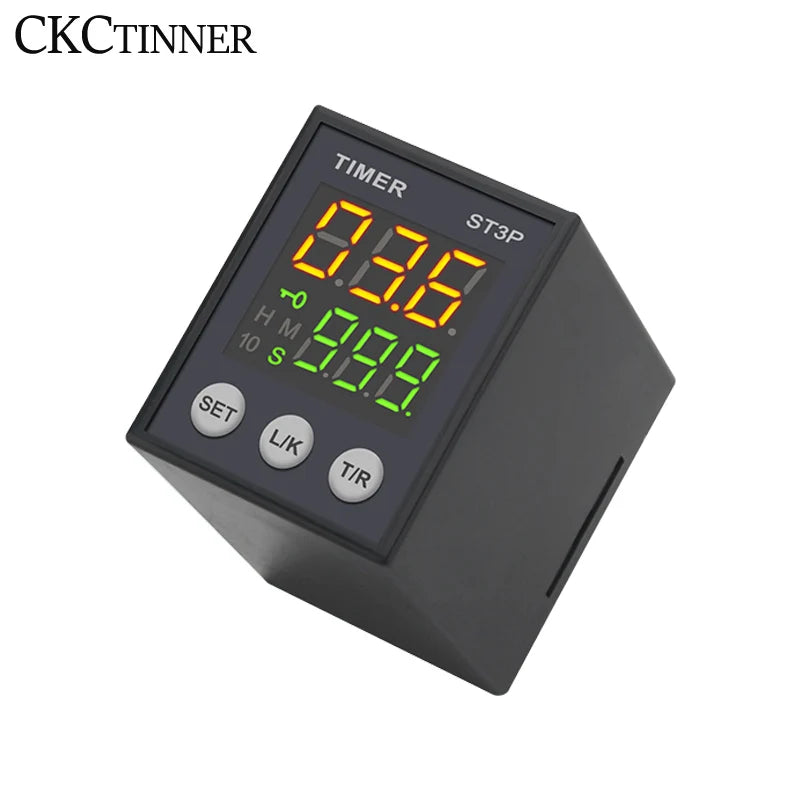

- LCD Digital Display: Easy-to-read screen for straightforward programming and monitoring
- High Delay Accuracy: ≤0.5% — reliable and consistent timing performance

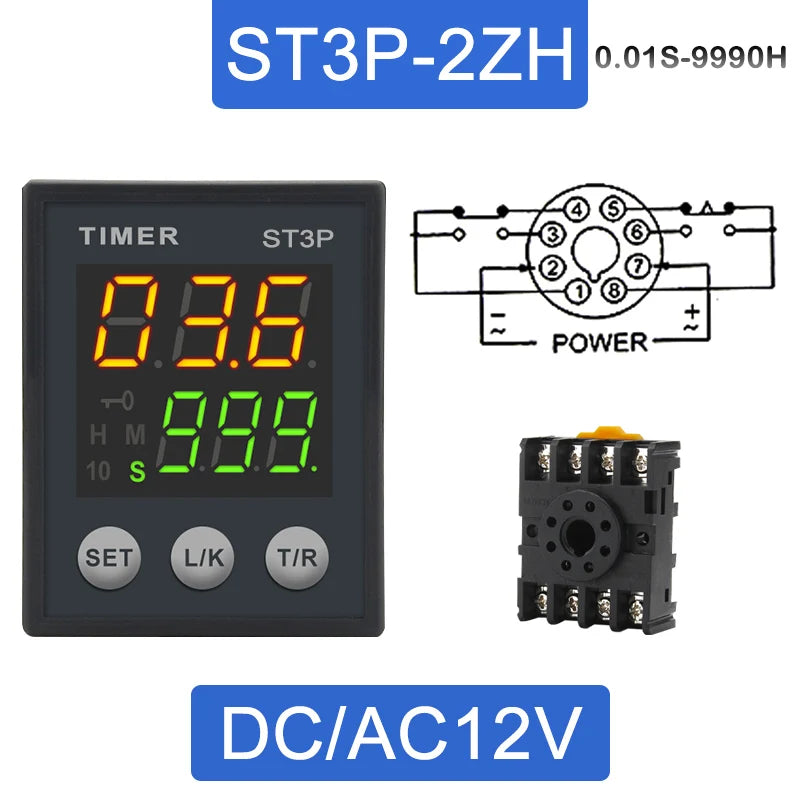

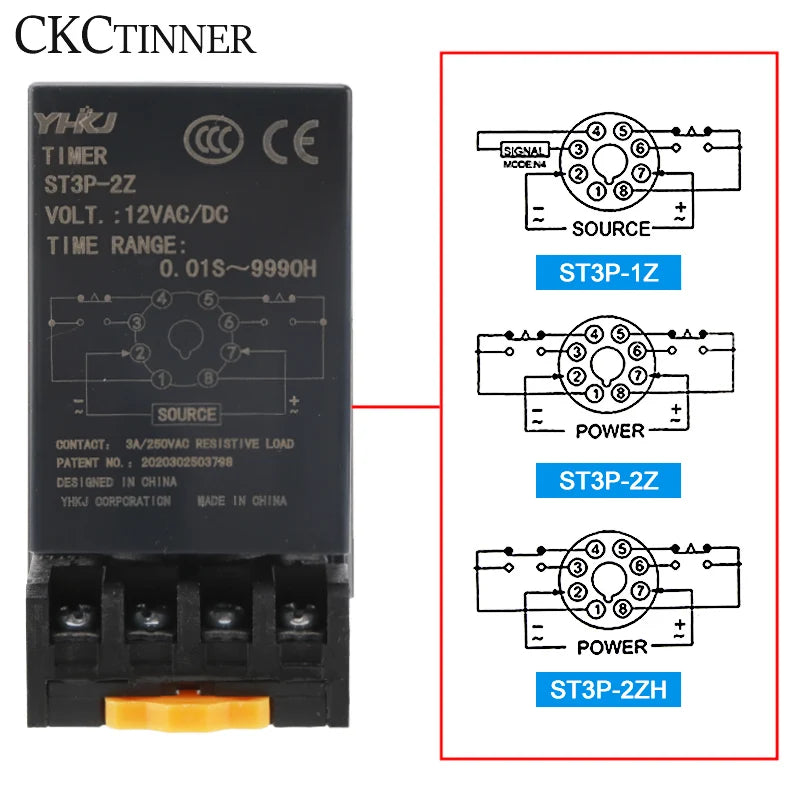

- Multi-Voltage Support: 12VAC/DC, 24V, and 220V options available (ST3P-1Z, ST3P-2Z, ST3P-2ZH models)
- Sealed Design: Protected against dust and minor contaminants for long service life
- CE Certified: Meets European conformity standards for safety and electromagnetic compatibility

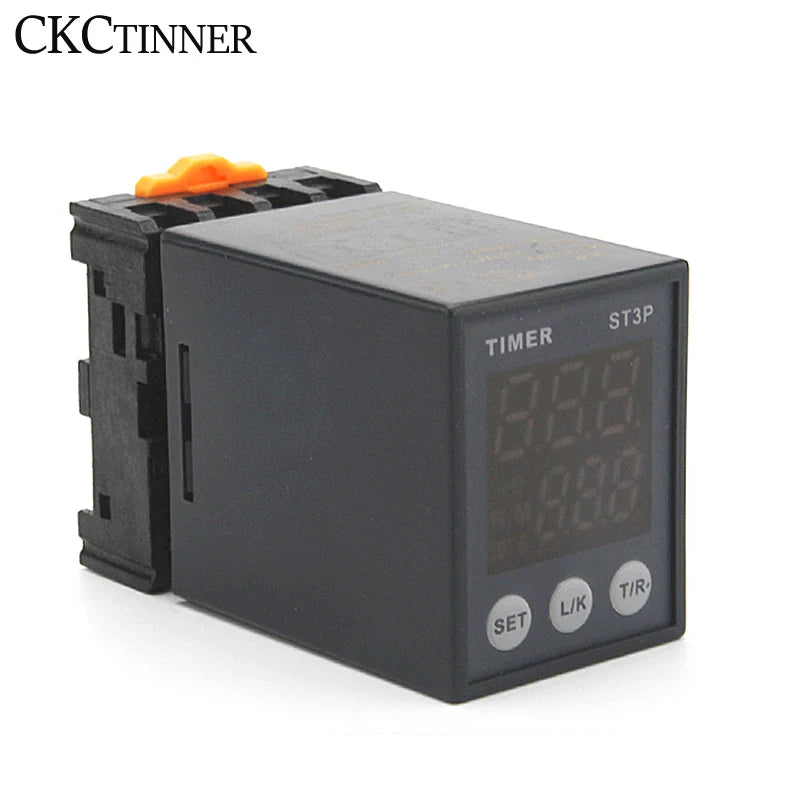

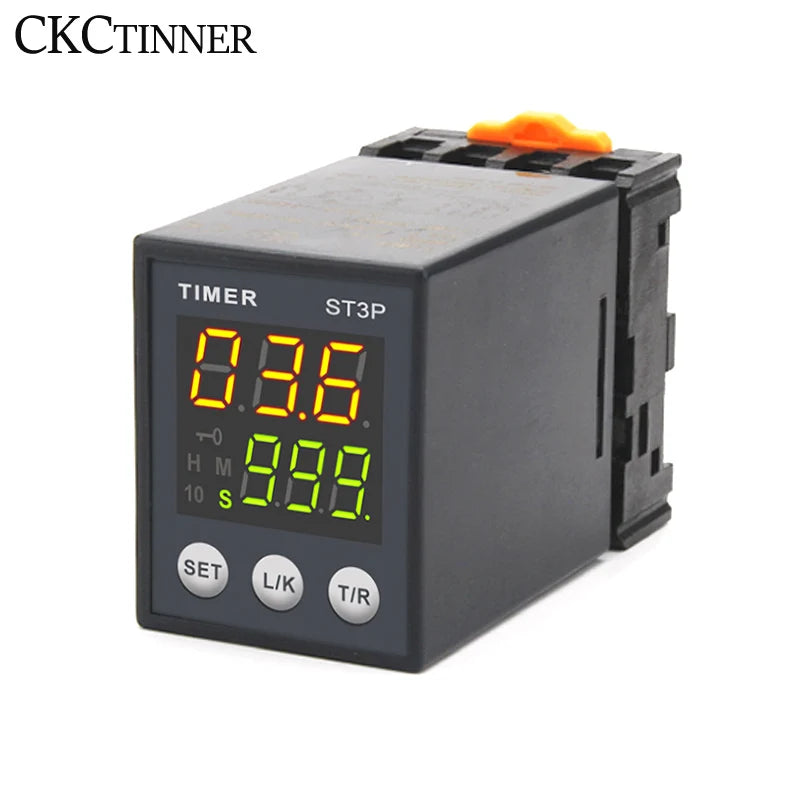

- Includes PF083A Socket Base: Plug-in mounting for quick, tool-free installation and easy replacement
Specifications
| Models | ST3P-1Z / ST3P-2Z / ST3P-2ZH |
| Rated Voltage | 12VAC/DC (see model options for 24V / 220V) |
| Time Range | 0.01S – 99990H |
| Delay Accuracy | ≤ 0.5% |
| Power Consumption | ≤ 1.3W |
| Contact Capacity | 3A 250VAC (resistive load) |
| Operating Temperature | -10°C to +50°C |
| Certification | CE |
| Power Source | AC/DC |
| Housing | Sealed |
What's in the Box
- 1 × LCD Digital Time Relay (ST3P model as selected)
- 1 × PF083A Socket Base
Made in Mainland China.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage options are available for the ST3P programmable time relay?
A: The ST3P series supports multiple voltage ratings. The ST3P-1Z is rated for 12VAC/DC, the ST3P-2Z for 24V, and the ST3P-2ZH for 220V. Please select the model that matches your circuit's supply voltage before purchasing.
Q: How many timing modes does the ST3P digital time relay support?
A: The ST3P LCD digital time relay supports four programmable working modes: Power-on Delay, Delayed Disconnect, Cycle Delay, and Signal Off Delay — making it highly versatile for a wide range of industrial and general-purpose automation applications.
Q: Is the PF083A socket base included, and how does it help with installation?
A: Yes, every purchase includes one PF083A socket base. The plug-in socket base allows for quick, tool-free installation and easy relay replacement without rewiring, saving time during setup or maintenance.
Q: What is the maximum time delay this relay can be programmed to?
A: The ST3P time relay offers an impressive timing range from 0.01 seconds all the way up to 99,990 hours, giving you extremely fine control for both short-burst and long-duration timing applications.
