LAY6 22mm Push Button Switch – Momentary Self-Locking 1NO1NC
LAY6 22mm Push Button Switch – Momentary Self-Locking 1NO1NC
LAY6 22mm Plastic Push Button Switch – Momentary, Self-Locking & Self-Resetting
The LAY6 22mm Push Button Switch is a versatile, CE & CCC certified control switch engineered for reliable performance in industrial, commercial, and DIY electrical projects. Available in Momentary, Self-Locking, and Self-Resetting configurations with a 1NO1NC (1 Normally Open / 1 Normally Closed) contact arrangement, this switch gives you the flexibility to suit a wide range of control panel and automation applications.
Made in Mainland China.
Key Features
- 22mm Panel Mount – Standard 22mm diameter fits most industrial enclosures and control panels with ease
- Three Operation Modes – Choose from Momentary (spring-return), Self-Locking (stays engaged until pressed again), or Self-Resetting action
- 1NO1NC Contact Configuration – Supports both normally open and normally closed circuit control in a single switch body
- Durable Plastic Construction – Lightweight yet robust housing built to withstand everyday operational demands
- CE & CCC Certified – Meets international safety and electromagnetic compatibility standards for peace of mind
- No High-Concern Chemicals – Manufactured without hazardous substances for safer handling and disposal

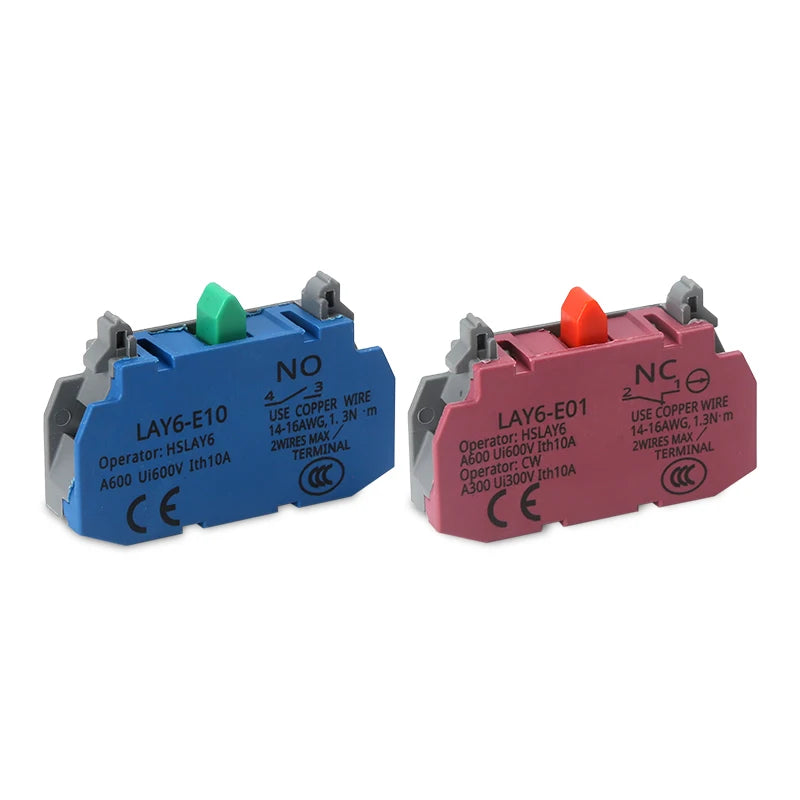

- Model: LAY6 – Compatible with LAY6 series accessories and contact blocks
Specifications
| Brand | CKCTINNER |
| Model Number | LAY6 |

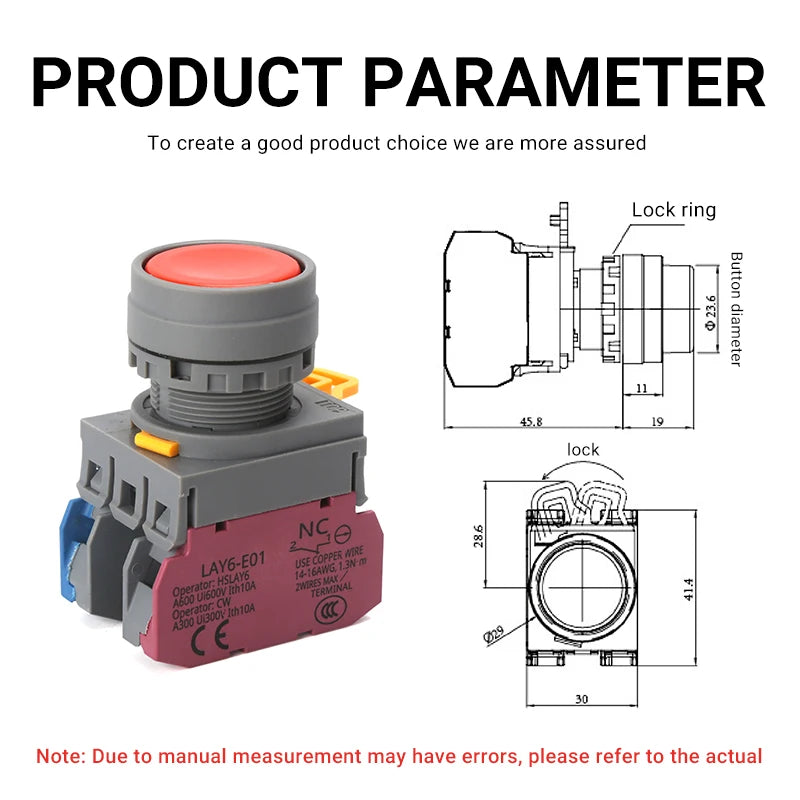

| Panel Cutout Diameter | 22mm |
| Contact Type | 1NO1NC |
| Switch Type | Push Button (Momentary / Self-Locking / Self-Resetting) |
| Material | Plastic |
| Certification | CE, CCC |
| Origin | Mainland China |
Ideal Applications
- Industrial control panels and machine tool enclosures
- DIY electronics and automation projects
- Motor starters and conveyor controls
- Electrical testing and prototyping setups
- HVAC and building automation systems
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between the Momentary and Self-Locking versions of the LAY6 push button switch?
A: The Momentary version completes the circuit only while the button is physically pressed — releasing the button causes it to spring back and break the circuit. The Self-Locking version latches in position when pressed and stays engaged until it is pressed a second time to release. The Self-Resetting option automatically returns to its original position after each press. Choose based on your specific control circuit requirements.
Q: Is the LAY6 22mm push button switch compatible with standard industrial control panel enclosures?
A: Yes — the LAY6 uses a standard 22mm panel cutout, which is the most widely used size in industrial control panels worldwide. It is compatible with LAY6 series contact blocks and accessories, making it straightforward to install or replace in existing setups.
Q: What do the 1NO and 1NC contacts mean on this switch?
A: 1NO (1 Normally Open) means one set of contacts is open (no current flow) when the switch is at rest, and closes when the button is pressed. 1NC (1 Normally Closed) means one set of contacts is closed (current flows) at rest, and opens when the button is pressed. This dual-contact design allows the switch to control two independent circuit functions simultaneously.
