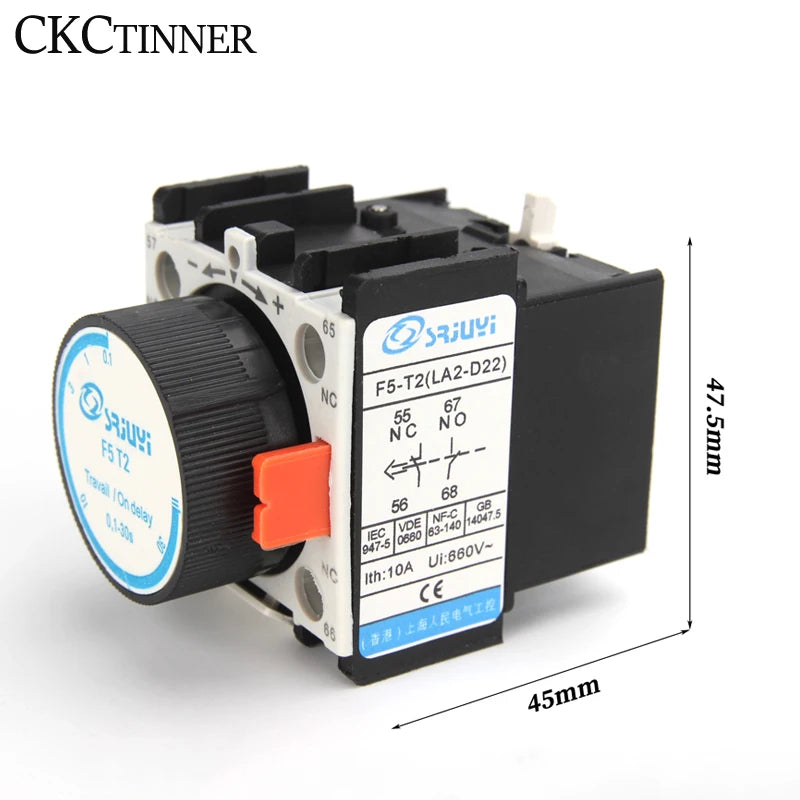

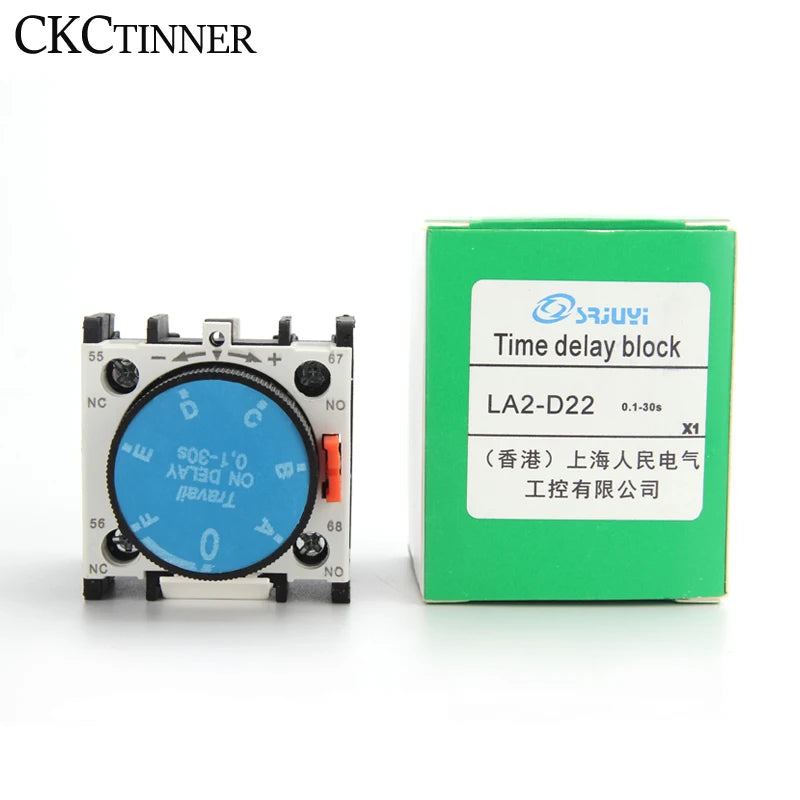

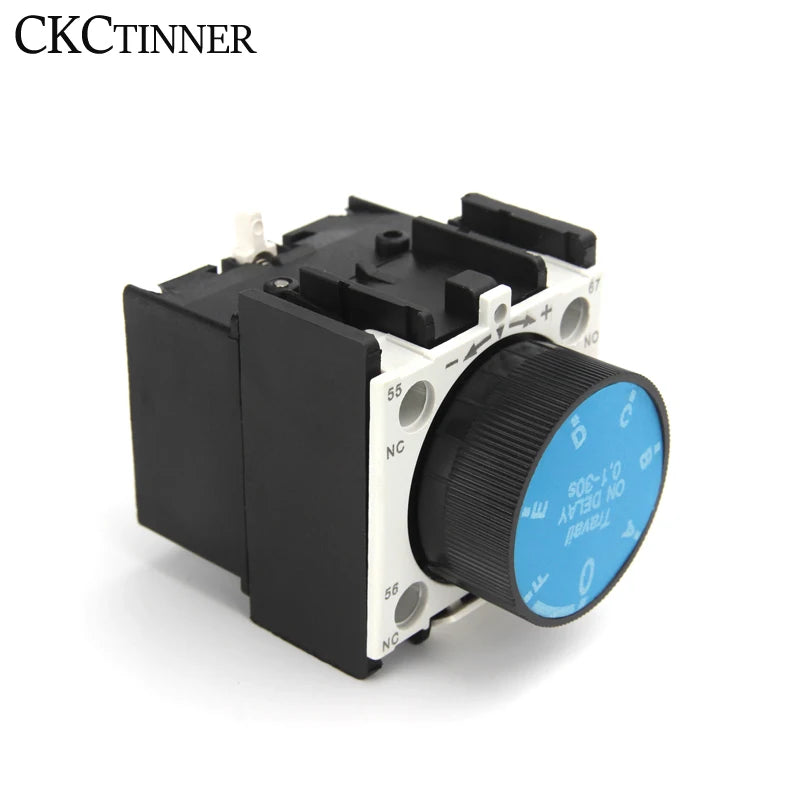

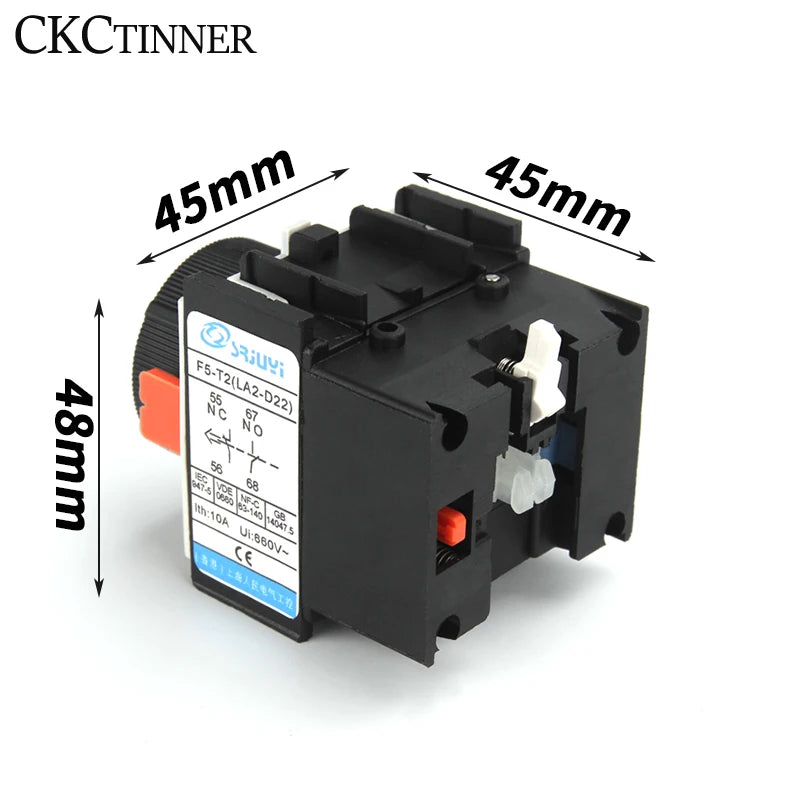

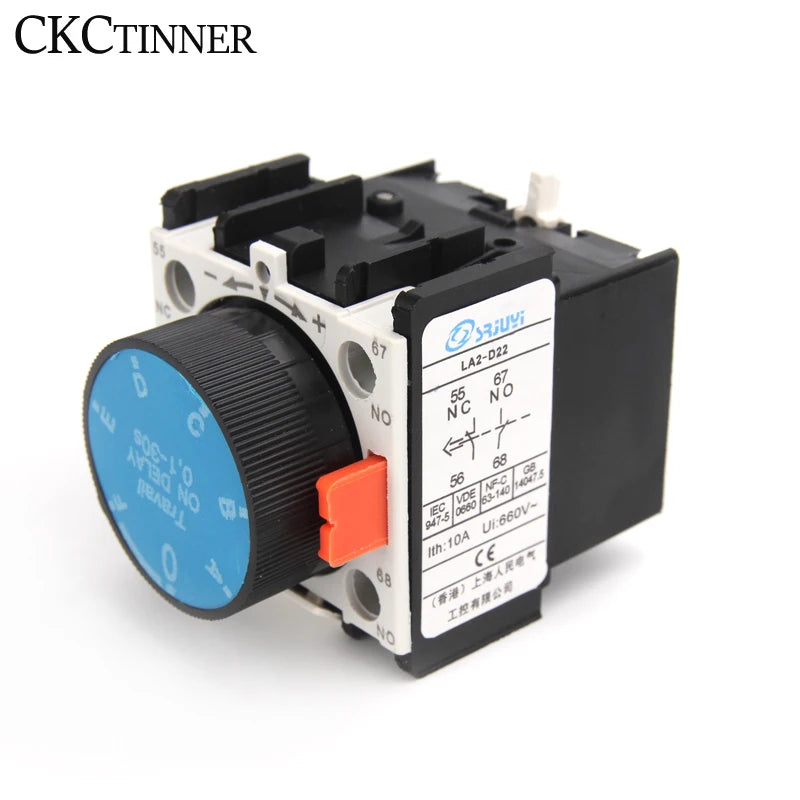

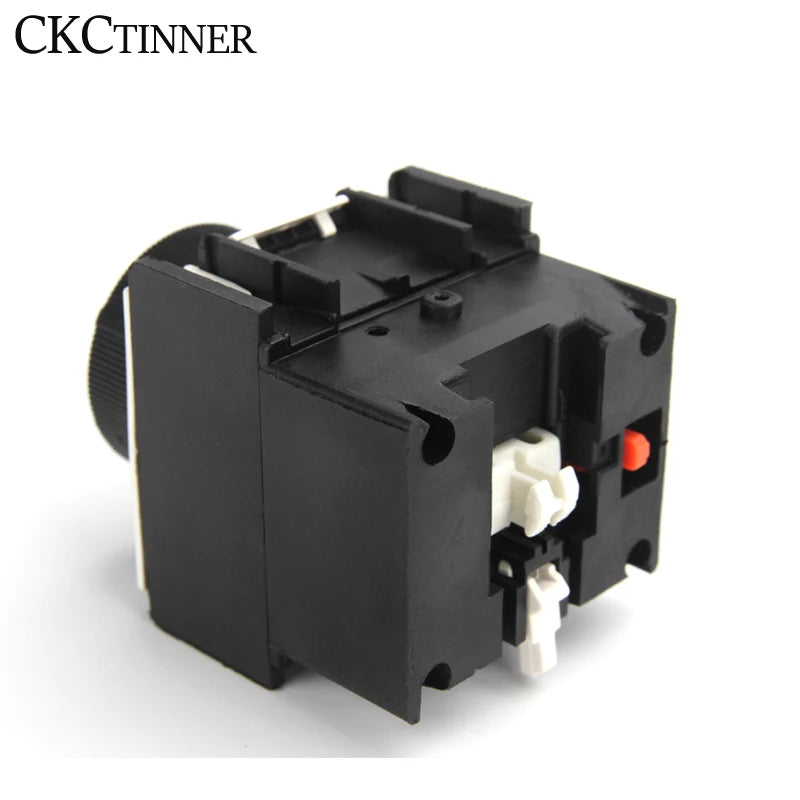

LA2-D22 Air Delay Head – Time Delay Auxiliary Contact Module

The LA2-D22 Time Delay Auxiliary Contact Module is a CE-certified, silver-point contactor add-on designed for reliable power-on delay control in industrial and commercial electrical systems. With an adjustable delay range of 0.1 to 30 seconds, this module mounts directly to compatible contactors, giving you precise timing control without extra wiring complexity.

Key Specifications

  • Model: LA2-D22
  • Contact Configuration: 1 NO (Normally Open) + 1 NC (Normally Closed)
  • Power-On Delay Range: 0.1 – 30 seconds (adjustable)
  • Contact Type: Silver-point contacts for superior conductivity and durability
  • Certification: CE
  • Made in Mainland China

Why Choose the LA2-D22?

  • Plug-and-Play Mounting: Attaches directly to standard contactor bodies — no additional panel space required.
  • Silver-Point Contacts: Ensure low contact resistance, reliable switching, and extended service life even under frequent operation.
  • Adjustable Delay (0.1–30s): Easily tuned to suit your application's exact timing needs.
  • Dual Contact Output (NO + NC): Provides maximum wiring flexibility for a wide range of control circuit configurations.
  • CE Certified: Meets European conformity standards for electrical safety and performance.

Typical Applications

  • Motor starter circuits requiring sequential power-on delays
  • Industrial automation and PLC control panels
  • HVAC and compressor control systems
  • Conveyor and machine tool protection circuits
  • Star-delta (Y-Δ) starter transition timing

Package Contents

  • 1 × LA2-D22 Time Delay Auxiliary Contact Module

Looking for other electrical and DIY tools? Check out our Air Compressor Pressure Gauge 0–25 Bar | DIY Tool or our Electromagnetic Induction Tester – Coil & Circuit Fault Detector for your workshop or control panel needs.

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What contactors is the LA2-D22 time delay auxiliary contact module compatible with?

A: The LA2-D22 is designed to mount directly onto standard LC1/LC2-series contactor bodies that accept LA2-series auxiliary contact blocks. Always verify the mechanical and electrical ratings of your specific contactor before installation to ensure compatibility.

Q: How do I adjust the power-on delay on the LA2-D22 module?

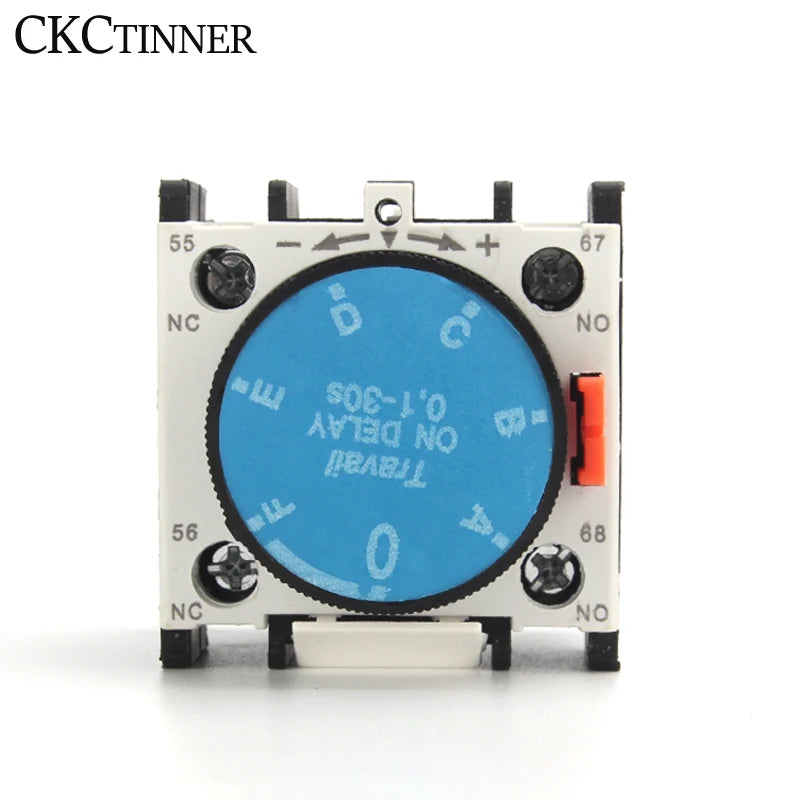

A: The LA2-D22 features a built-in adjustment dial that lets you set the power-on delay anywhere between 0.1 and 30 seconds. Simply rotate the dial to your desired delay time before energizing the circuit. No additional tools or components are required.

Q: What does NO + NC contact configuration mean on this module?

A: NO (Normally Open) means the contact is open when the coil is de-energized and closes after the set delay period. NC (Normally Closed) means the contact is closed when de-energized and opens after the delay. Having both gives you maximum flexibility for designing interlock, alarm, or sequencing circuits in your control panel.

Q: Is the LA2-D22 suitable for outdoor or harsh environments?

A: The LA2-D22 is intended for use within enclosed control panels or enclosures. It is not rated for direct outdoor exposure. For harsh or wet environments, ensure it is installed inside an appropriately rated (IP65 or higher) enclosure for protection.
