KM-DM01D Intelligent Auto-Scan Digital Multimeter – 6000 Count True RMS
Meet the KM-DM01D Digital Multimeter — a pocket-sized, burn-proof precision instrument that automatically scans and identifies AC/DC voltage, AC/DC current, and resistance without any manual dial switching. Whether you're a professional electrician, a DIY enthusiast, or a student learning electronics, this compact multimeter delivers fast, reliable readings every time.
Key Features
- Intelligent Auto-Scan: Automatically identifies and measures input voltage, current, and resistance — no dial selection required. Simply connect the probes and read your results instantly.

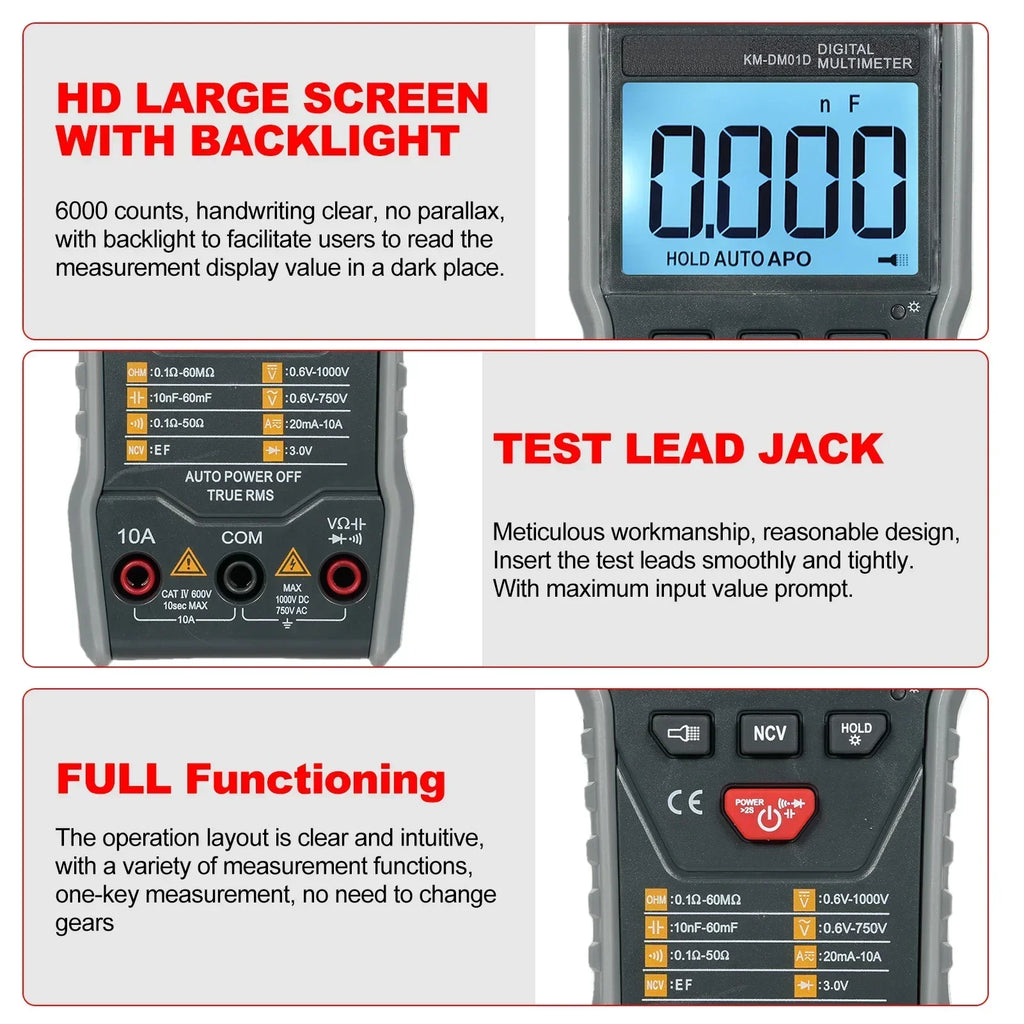

- True RMS 6000 Count Display: Large, backlit LCD with 5999 (3 5/6) digits and auto polarity display ensures clear, accurate readings even in low-light environments.
- Multifunctional Measurement: Auto-identifies AC/DC voltage, AC/DC current, and resistance. Manual switching available for capacitance, diode testing, and continuity checks.

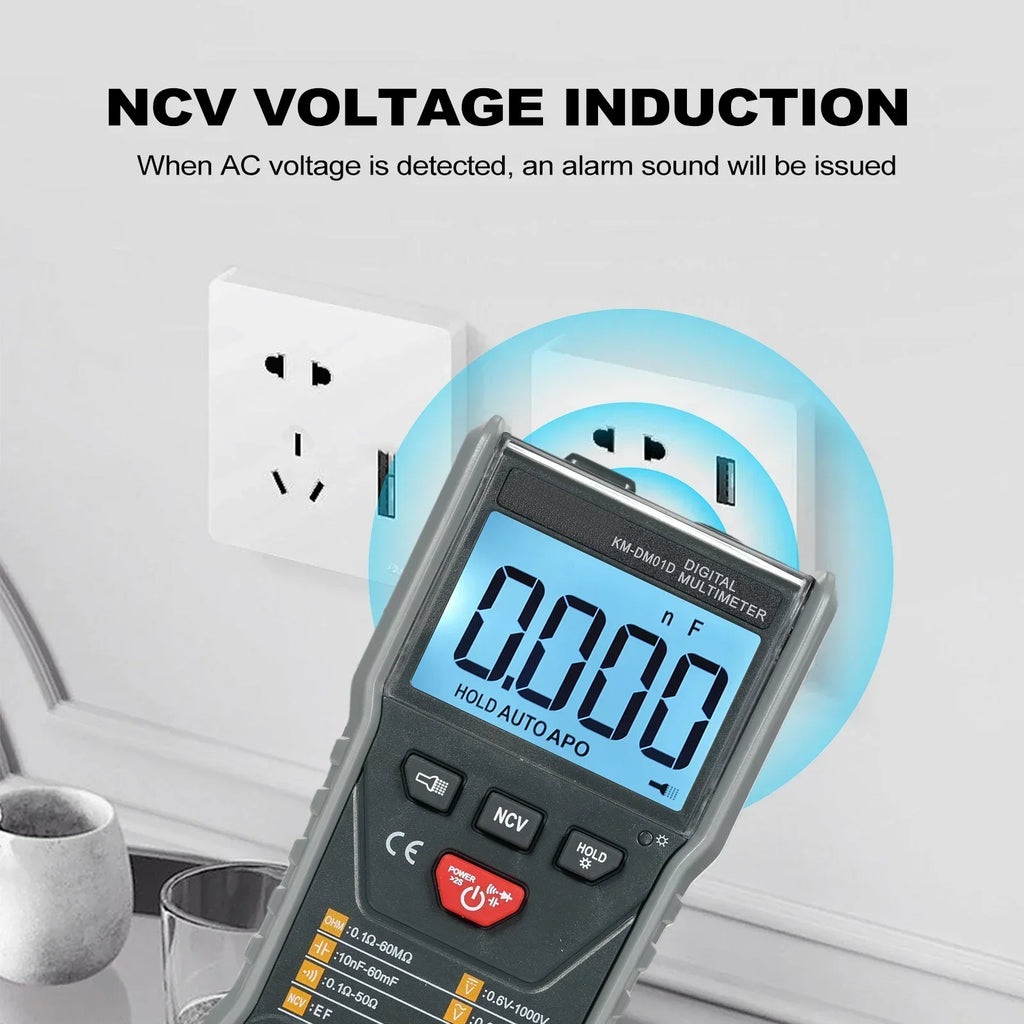

- NCV Voltage Detection: Built-in Non-Contact Voltage (NCV) sensing — an alarm sounds when nearby AC voltage is detected, adding an extra layer of safety during inspections.
- Burn-Proof Protection: Engineered with overvoltage protection for confident use across a wide measurement range.
- Data Hold Function: One-button hold freezes the current reading on-screen for easy data logging and recording.
- Auto Power Off: Powered by AAA batteries (not included), the device automatically enters sleep mode after ~15 minutes of inactivity to preserve battery life. Wake it up with any button press.

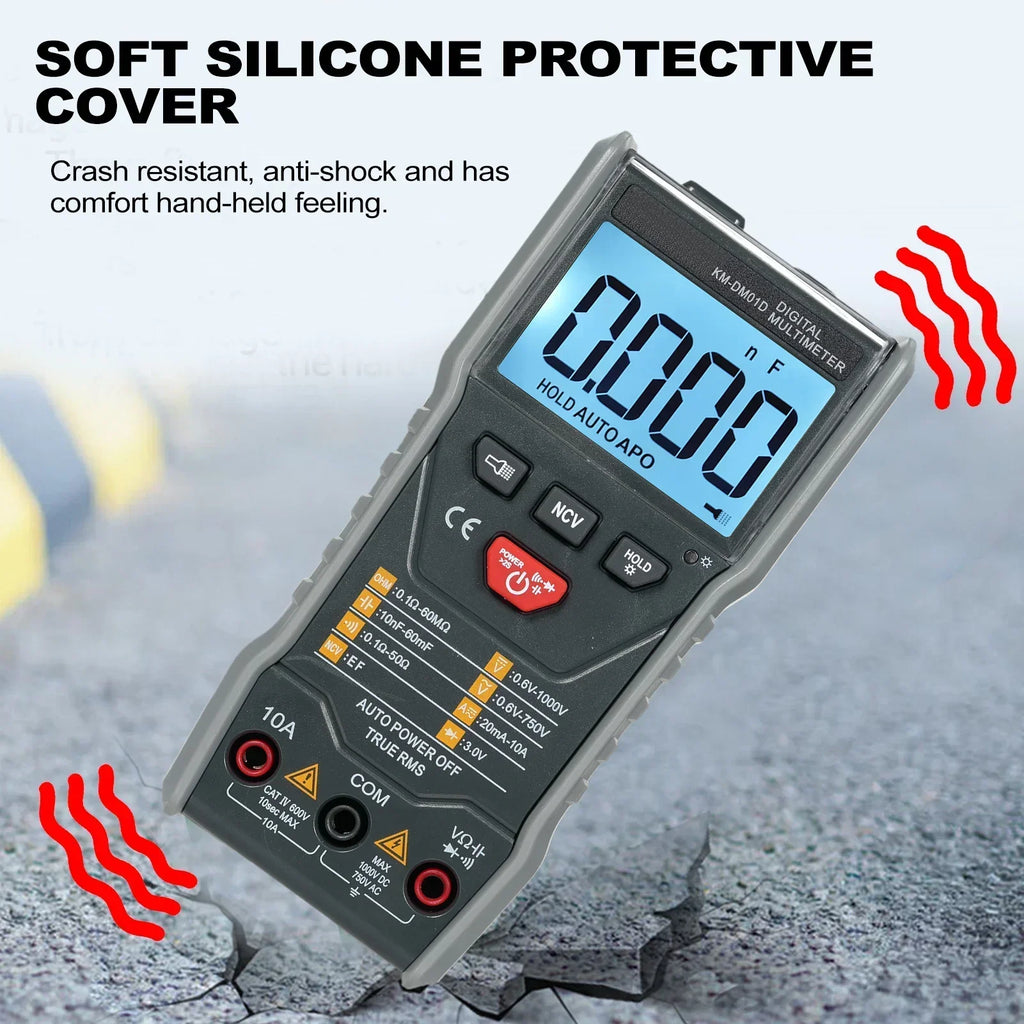

- Rugged, Ergonomic Build: High-quality ABS shell with soft silicone protective case — shock-resistant and drop-resistant for demanding work environments.
- Built-In Tilting Stand: Innovative fold-out stand lets you prop the meter at a comfortable angle for hands-free, bench-top readings.
- Compact & Portable: At just 142 × 70 × 32 mm (similar in size to a smartphone), it slips easily into a tool bag, pocket, or kit.
Full Specifications
| Model | KM-DM01D |
| Material | ABS with silicone protective case |
| Color | Black |
| Dimensions | 142 × 70 × 32 mm / 5.59 × 2.75 × 1.26 in |
| DC Voltage | 6V / 60V / 600V / 1000V |
| AC Voltage | 6V / 60V / 600V / 750V |
| DC Current | 600µA / 6000µA / 60mA / 600mA / 10A |
| AC Current | 600µA / 6000µA / 60mA / 600mA / 10A |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance | 10nF / 100nF / 1µF / 10µF / 100µF / 1mF / 10mF / 60mF |
| Duty Cycle | 0.1% – 99% |
| Display | LCD, 5999 counts (3 5/6 digits), backlit |
| Measurement Method | Dual-Integral A/D Conversion |
| Sampling Rate | ~3 times/second |
| Operating Mode | Auto Range |
| Operating Environment | 0–40°C, Relative Humidity <80% |
| Power | AAA batteries (not included) |
What's in the Box
- 1 × KM-DM01D Digital Multimeter
- 2 × Test Leads (probes)
Made in Mainland China.
Looking for more useful tools and diagnostic equipment? Check out our Electromagnetic Induction Tester – Coil & Circuit Fault Detector or the Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool to expand your toolkit.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does the KM-DM01D multimeter require manual range selection?
A: No — the KM-DM01D features intelligent auto-scan technology that automatically identifies and selects the correct range for AC/DC voltage, AC/DC current, and resistance. Manual switching is only needed for capacitance, diode, and continuity measurements.
Q: What batteries does the KM-DM01D multimeter use, and are they included?
A: The KM-DM01D is powered by standard AAA batteries. Batteries are not included in the package. The device features auto power-off after approximately 15 minutes of inactivity to help extend battery life.
Q: Is the KM-DM01D multimeter safe to use for checking live circuits?
A: Yes. The KM-DM01D is built with burn-proof overvoltage protection and features NCV (Non-Contact Voltage) sensing that audibly alerts you to nearby AC voltage before you make contact — helping you work more safely. Always follow standard electrical safety practices when working with live circuits.
Q: What is the maximum voltage this multimeter can measure?
A: The KM-DM01D can measure up to 1000V DC and 750V AC, covering the full range of household and most professional electrical applications.
