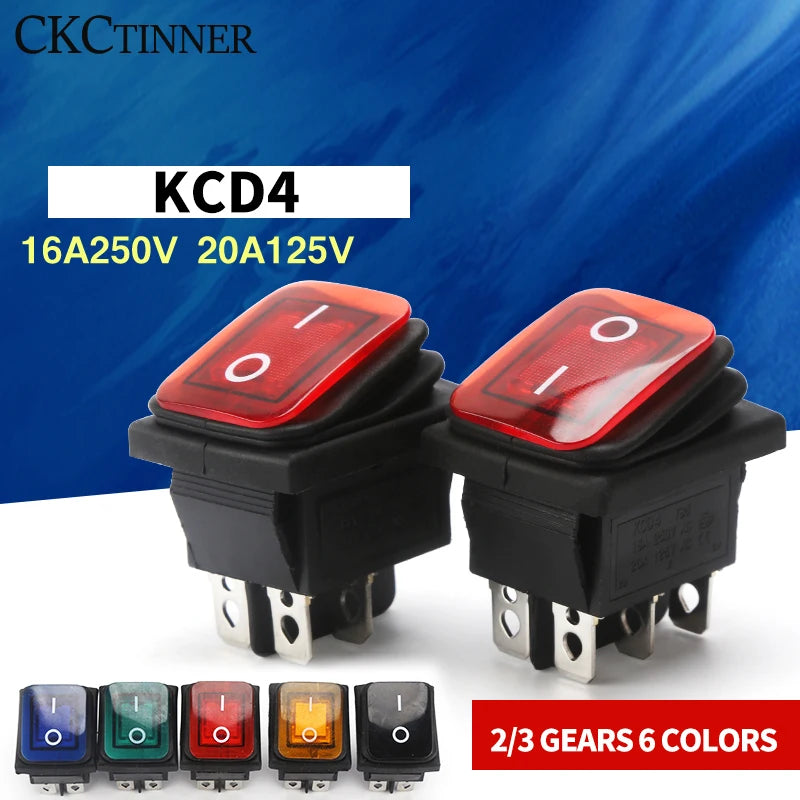

KCD4 Illuminated Rocker Power Switch – 4-Pin & 6-Pin, 16A/250V
Keep your appliances and DIY projects under control with this versatile KCD4 Rocker Switch. Designed for both household and industrial use, this illuminated ON/OFF rocker switch delivers reliable switching performance rated at 16A 250VAC / 20A 125VAC. Available in 4-pin and 6-pin wiring configurations, it fits a wide range of applications right out of the box.
Key Features
- Model: KCD4
- Wiring Configurations: 4-pin or 6-pin
- Switch Function: ON / OFF
- Rated Current/Voltage: 16A 250VAC / 20A 125VAC

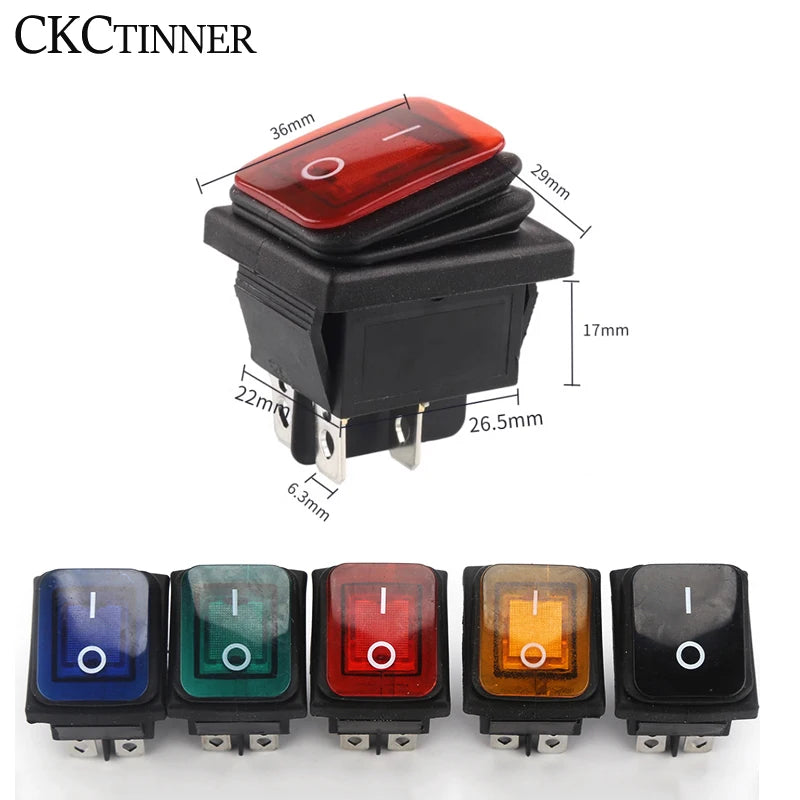

- Installation Cutout Size: 22mm × 27.5mm
- Overall Dimensions: 29mm × 36mm

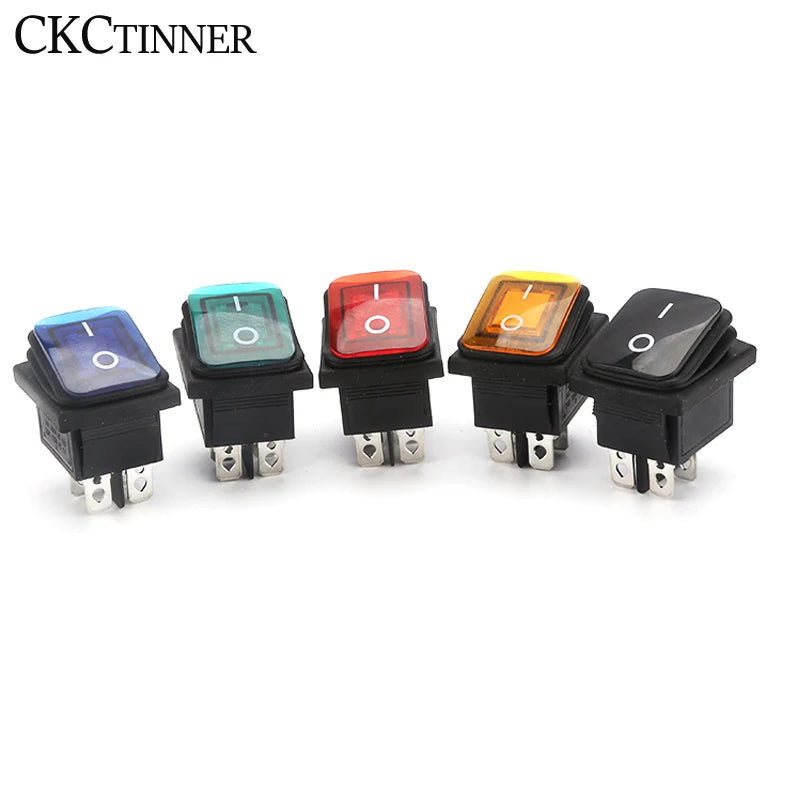

- Indicator Light Colors: Red, Yellow, Blue, Green, Black
- Material: Durable plastic housing
- Quantity: 1 rocker switch per pack
Wide Range of Applications
This KCD4 rocker switch is widely used across household appliances and industrial equipment, including:
- Refrigerators & freezers
- Electric kettles & water dispensers
- Microwave ovens
- Machine tools & turntables
- DIY electronics projects & inventions
- Industrial machinery & control panels
Why Choose the KCD4 Rocker Switch?
The built-in indicator light makes it easy to confirm power status at a glance — a simple but crucial feature for safe operation. Its sturdy plastic body withstands frequent use, while the universal 22×27.5mm panel cutout makes installation straightforward in standard enclosures. Whether you're replacing a worn-out switch or building something new, the KCD4 is a go-to choice for makers and technicians alike.
Made in Mainland China.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions

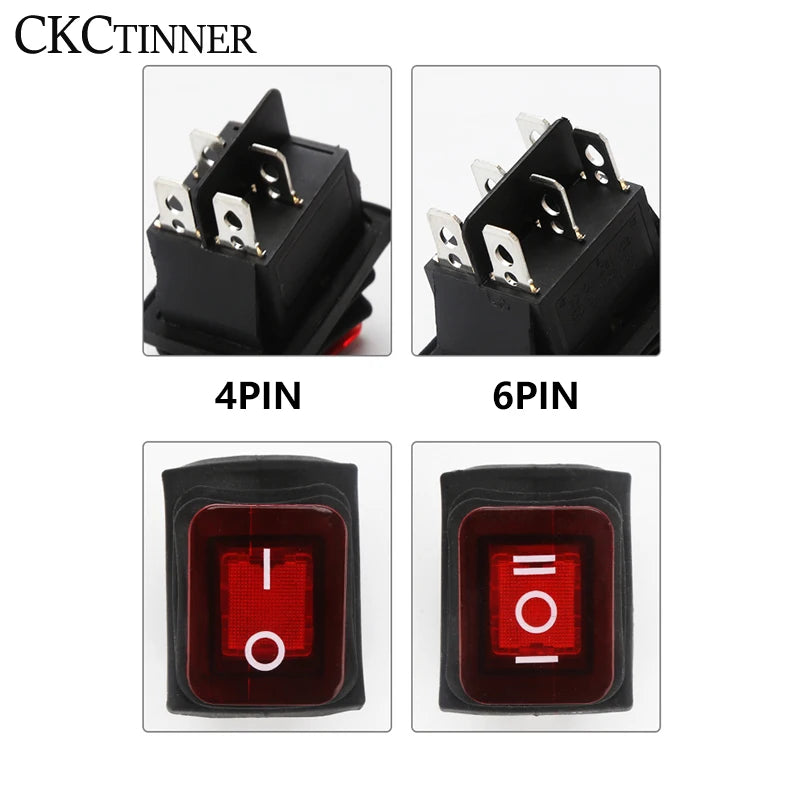

Q: What is the difference between the 4-pin and 6-pin KCD4 rocker switch?
A: The 4-pin version is typically used for single-pole ON/OFF switching, while the 6-pin version allows for more complex wiring configurations such as double-pole switching. Choose based on your circuit requirements. Both share the same 16A 250VAC / 20A 125VAC rating and fit the same 22×27.5mm panel cutout.
Q: What panel cutout size is required to install the KCD4 rocker switch?
A: The KCD4 rocker switch requires a rectangular panel cutout of 22mm × 27.5mm. The switch body itself measures 29mm × 36mm, providing a secure, flush fit in most standard enclosures and appliance panels.
Q: Can I use the KCD4 switch for DIY electronics projects?
A: Yes! The KCD4 is popular among DIY enthusiasts and makers for custom enclosures, workshop tools, and electronics projects. Its illuminated indicator light, multiple color options, and high current rating make it flexible for a wide variety of builds, both household and light industrial.
Q: What indicator light colors are available for the KCD4 rocker switch?
A: The KCD4 illuminated rocker switch is available in five indicator light colors: Red, Yellow, Blue, Green, and Black. Select the color that best suits your panel design or safety indication needs.
