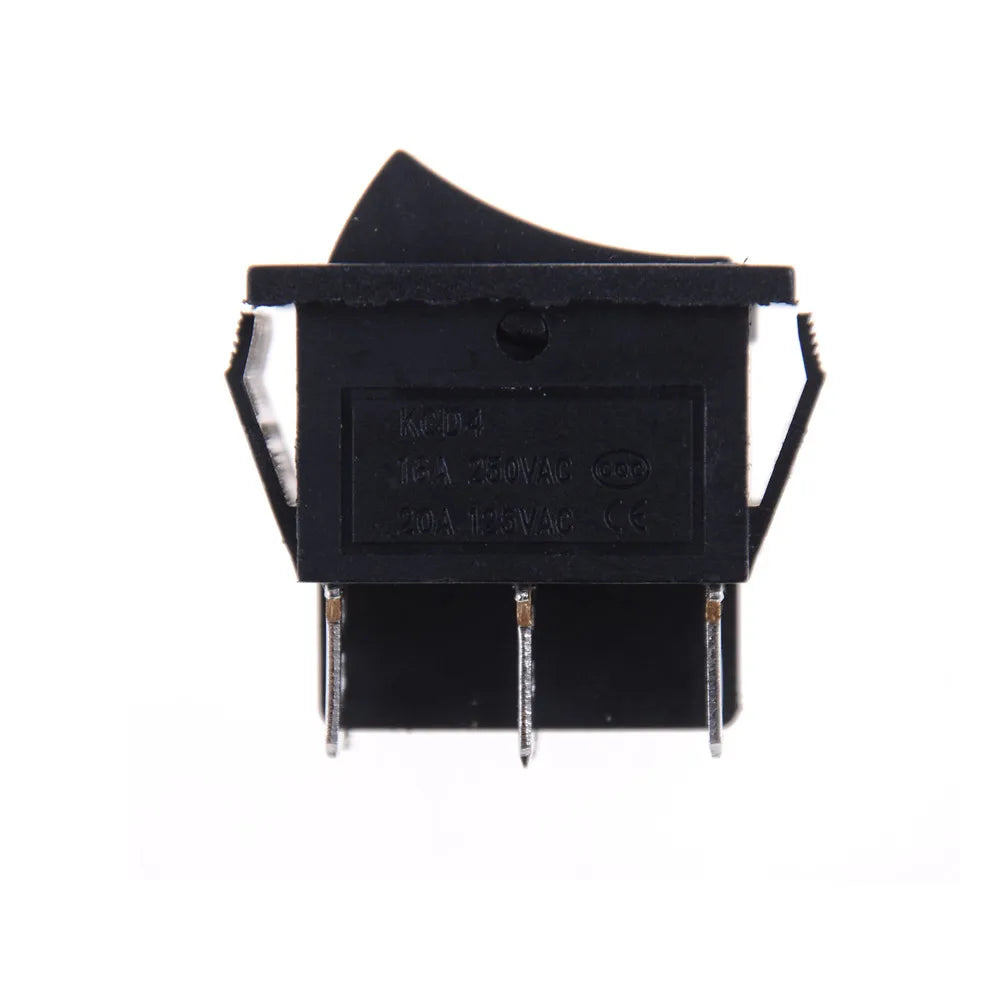

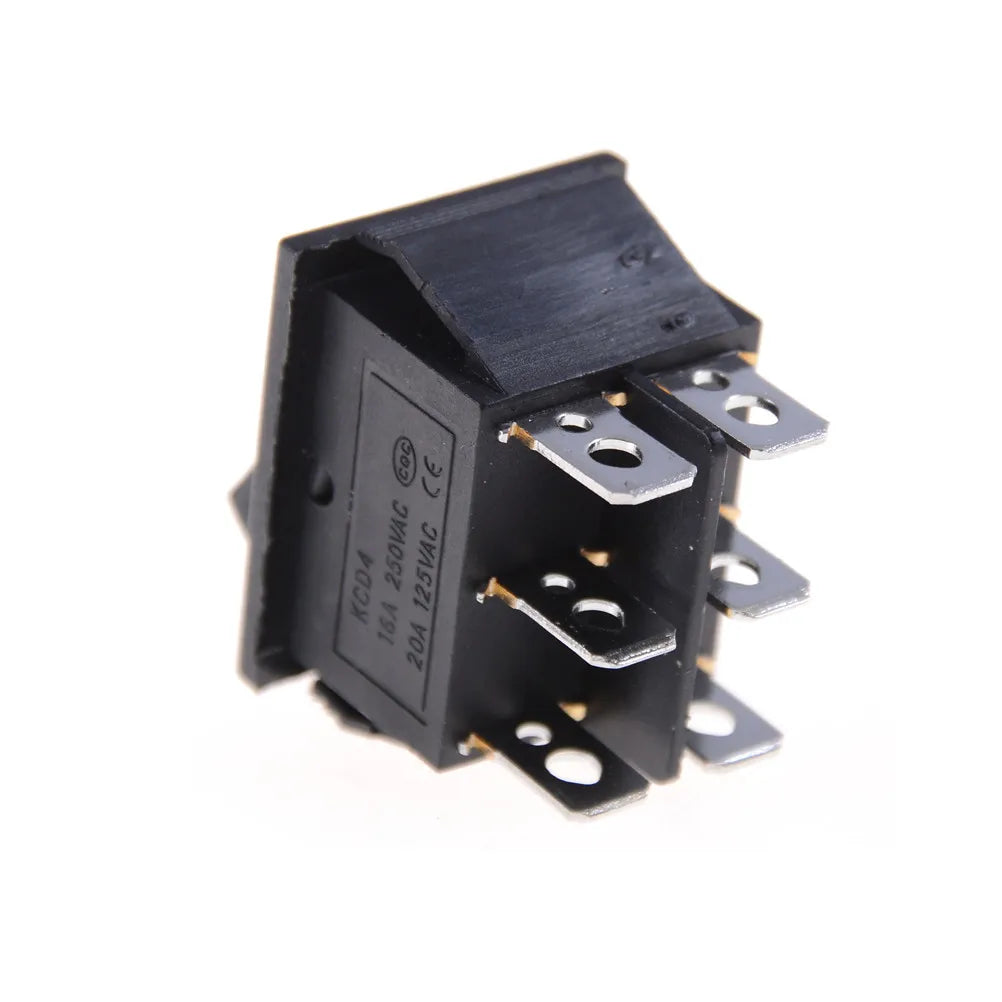

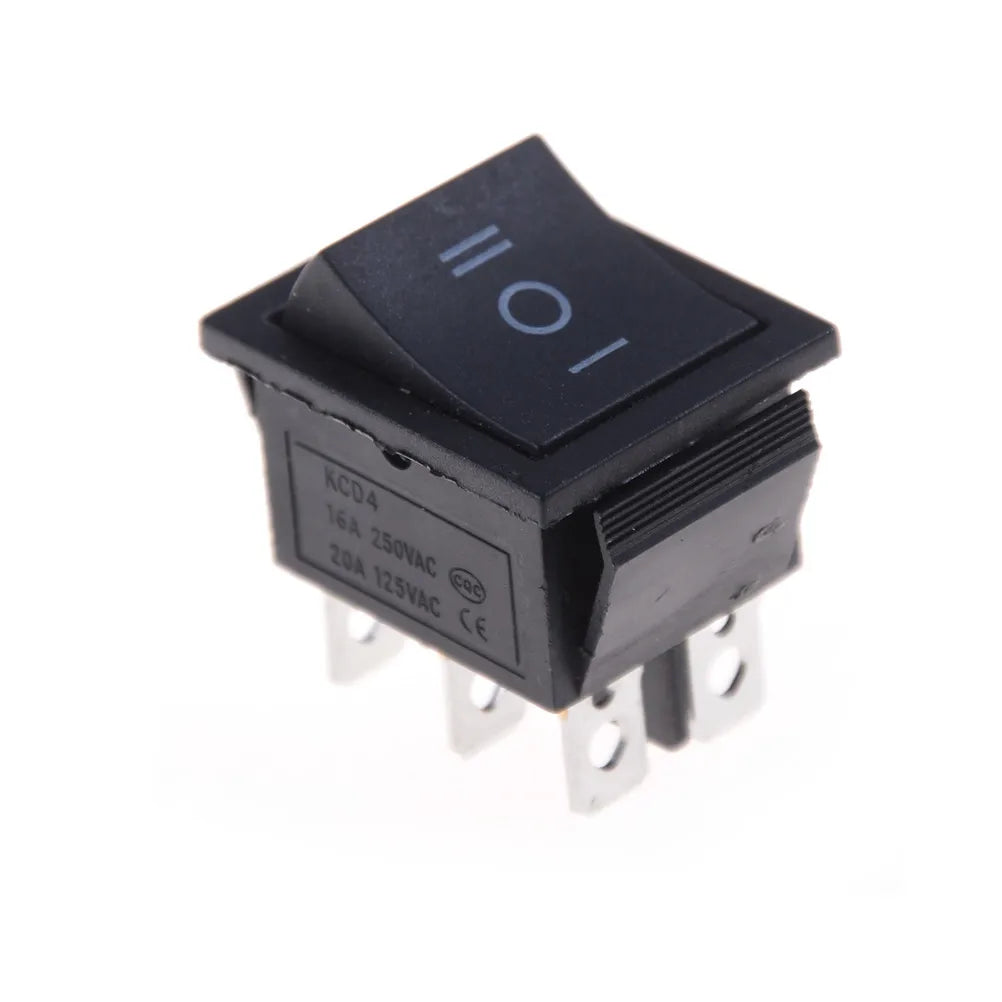

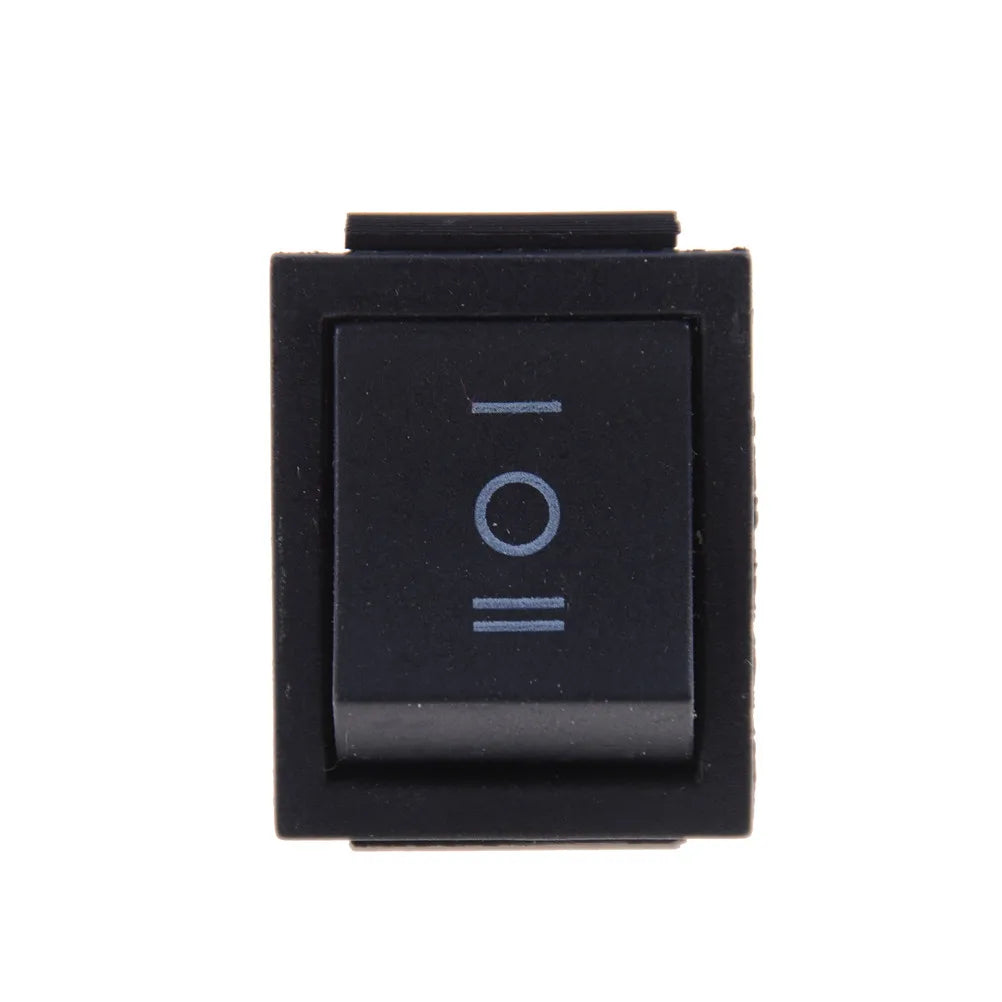

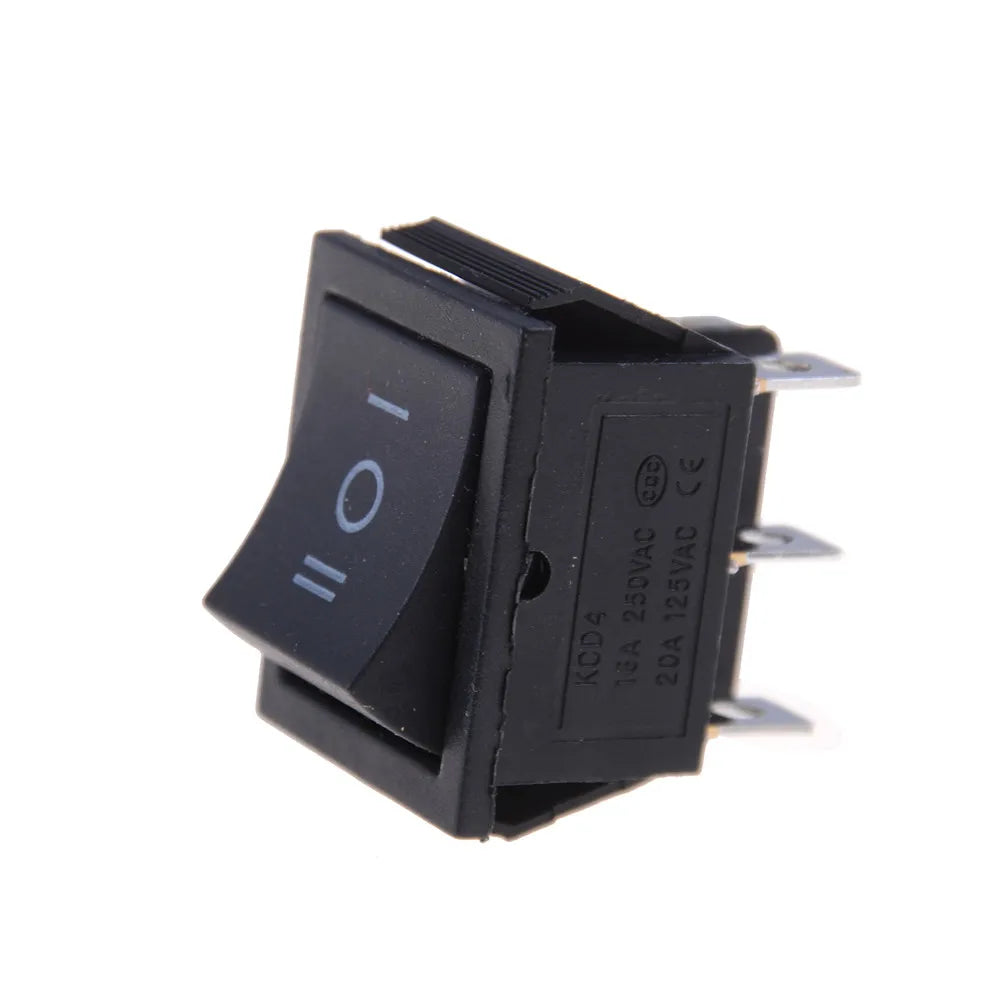

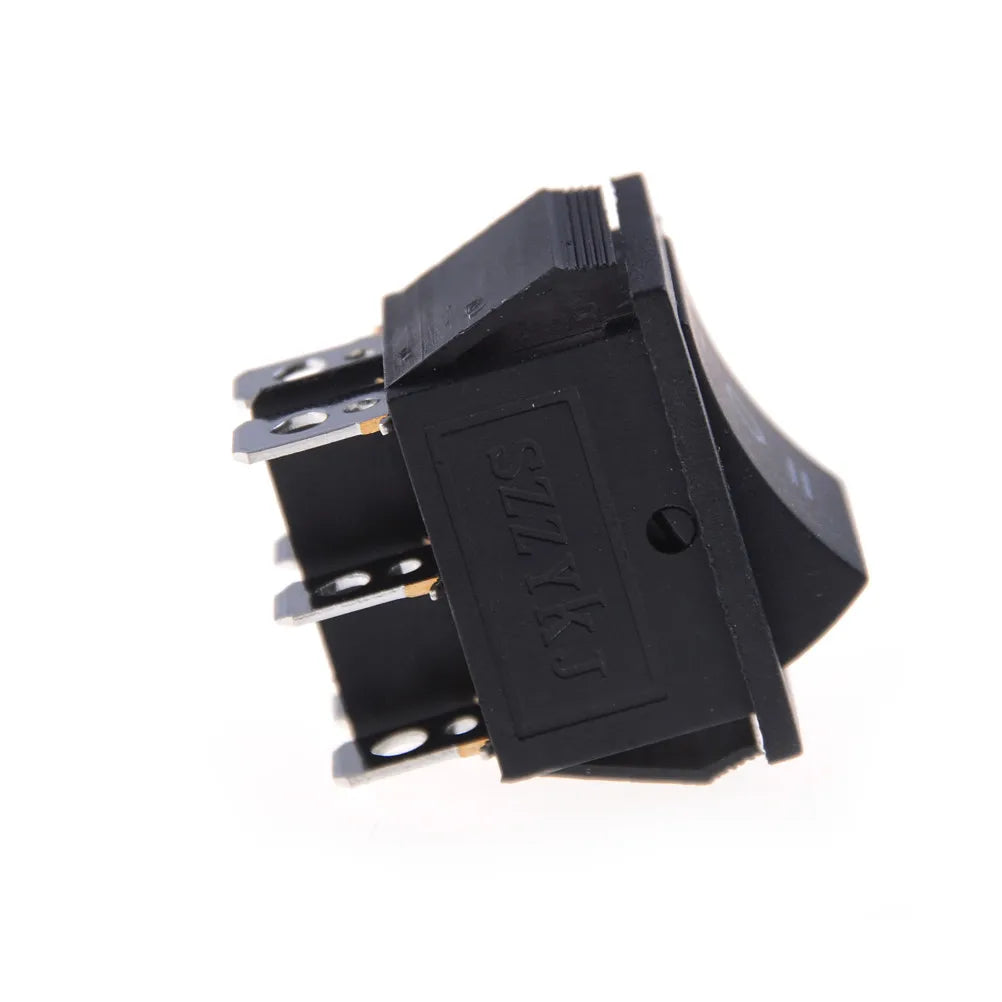

KCD4 Black Rocker Switch – DPDT ON/OFF/ON, 6 Pin, 16A/250VAC
This KCD4 rocker switch is a dependable, heavy-duty DPDT (Double Pole Double Throw) component ideal for DIY electronics, appliance repair, industrial control panels, and custom wiring projects. With an ON/OFF/ON configuration and a robust ABS and metal construction, it offers smooth, positive switching action and long service life.
Key Specifications
- Type: KCD4 Rocker Switch
- Contact Configuration: DPDT (Double Pole Double Throw)
- Switch Positions: ON – OFF – ON
- Number of Pins: 6
- Rated Voltage & Current: 16A @ 250V AC / 20A @ 125V AC
- Mounting Cutout Size: 30 × 21 mm (1.2" × 0.8")
- Overall Dimensions: 31 × 25 × 35 mm (1.2" × 1.0" × 1.4") L×W×H
- Color: Black
- Material: ABS Plastic body with Metal contacts
- Package Contents: 1 × KCD4 Rocker Switch
Why Choose This Rocker Switch?
- High Current Rating: Handles up to 20A at 125V AC or 16A at 250V AC — suitable for demanding electrical applications.
- DPDT Versatility: Controls two separate circuits simultaneously, perfect for reversing motors, toggling between power sources, and more.
- Three-Position Control: ON/OFF/ON functionality gives you full directional or dual-source control in one compact switch.
- Easy Panel Mounting: Standard 30 × 21 mm cutout fits most project enclosures and control panels with no modification needed.
- Durable Build: Reinforced ABS housing and metal internals ensure consistent performance over thousands of switching cycles.
Common Applications
- DIY electronics and maker projects
- Motor direction control (forward/off/reverse)
- Power tool modifications
- Electrical control panels and enclosures
- Appliance repair and replacement
- Custom automotive and marine wiring
Made in Mainland China.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does DPDT ON/OFF/ON mean on a KCD4 rocker switch?
A: DPDT stands for Double Pole Double Throw, meaning the switch controls two separate circuits at the same time. The ON/OFF/ON positions allow you to connect to one circuit (first ON), fully disconnect (OFF), or connect to a second circuit (second ON). This is commonly used for motor direction control, dual power source selection, and multi-circuit switching applications.
Q: What panel cutout size does this KCD4 rocker switch require?
A: This KCD4 rocker switch requires a standard panel cutout of 30 × 21 mm (approximately 1.2" × 0.8"). This is a widely used size that fits most commercial project enclosures and electrical panels without any custom modifications.
Q: What is the maximum current and voltage rating for this switch?
A: This rocker switch is rated for 16A at 250V AC and 20A at 125V AC, making it suitable for a wide range of high-current household, industrial, and DIY electrical applications. Always ensure your application does not exceed these ratings for safe and reliable operation.
Q: How many pins does this rocker switch have, and how are they wired?
A: This switch has 6 pins corresponding to its DPDT configuration — two poles, each with three terminals (common, normally open, normally closed). Refer to a standard DPDT wiring diagram to correctly connect your circuits based on your specific ON/OFF/ON switching needs.
