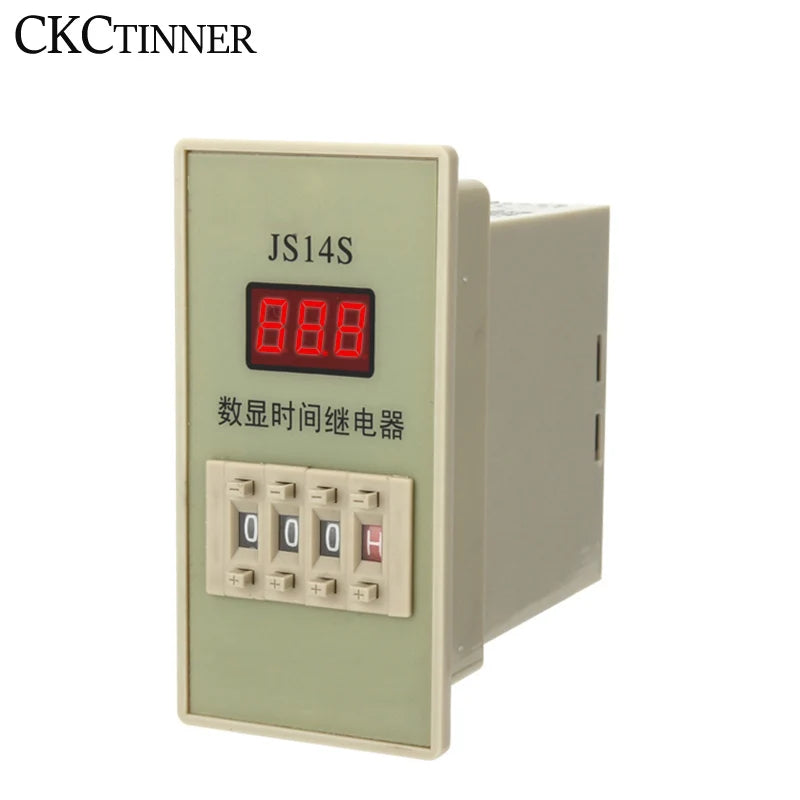

JS14S Digital Programmable Time Relay – Precision Delay Timing for Industrial & General Use

The JS14S Digital Time Relay is a versatile, programmable delay timer designed for industrial control panels, automation systems, and general-purpose electrical applications. With a wide voltage range (100V–240V AC/DC, 36V/380V AC, 12V/24V DC) and an ultra-wide timing range of 0.01 seconds to 999 hours, this relay delivers precise, repeatable timing performance every time. The bright 8-segment digital display and intuitive dial-switch setup make configuration straightforward — no complicated software required. Includes a matched PF113A socket base for quick panel mounting.

Made in Mainland China.

Key Features

  • Wide Timing Range: 0.01 seconds to 999 hours — handles short bursts and long delay cycles alike
  • Broad Voltage Compatibility: 100V–240V AC/DC; 36V & 380V AC, 50/60 Hz; 12V & 24V DC
  • DPDT Output: Dual-pole, dual-throw contacts rated 3A @ 250V AC / 5A @ 24V DC

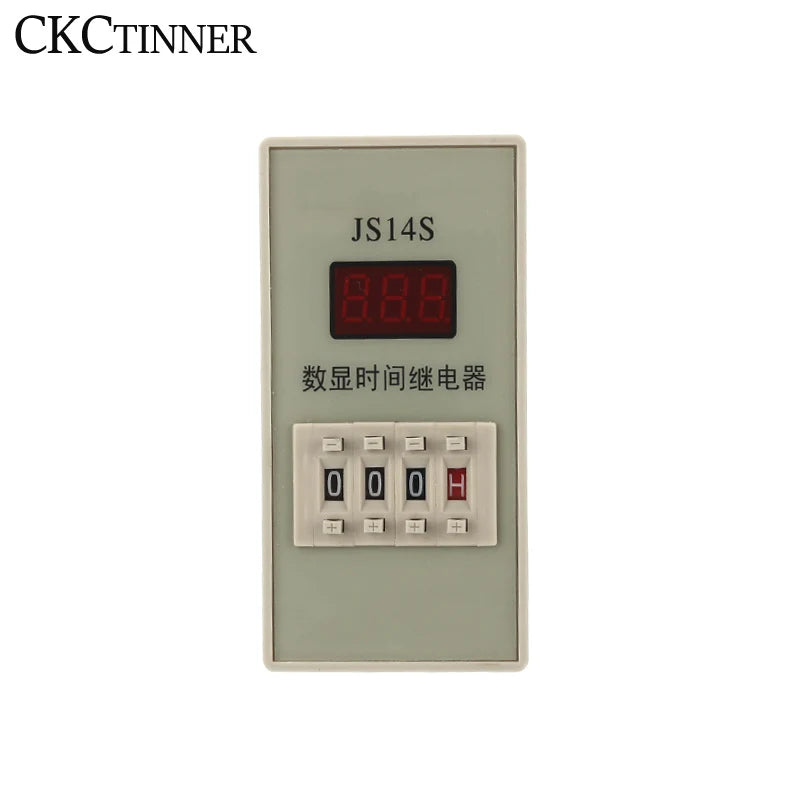

  • 8-Segment Digital Display: Clear real-time countdown/count-up readout at a glance
  • Dial Switch Setting: Fast, tool-free time-range and mode selection
  • High Repeat Accuracy: ±0.3% / ±0.05 sec — reliable cycle after cycle

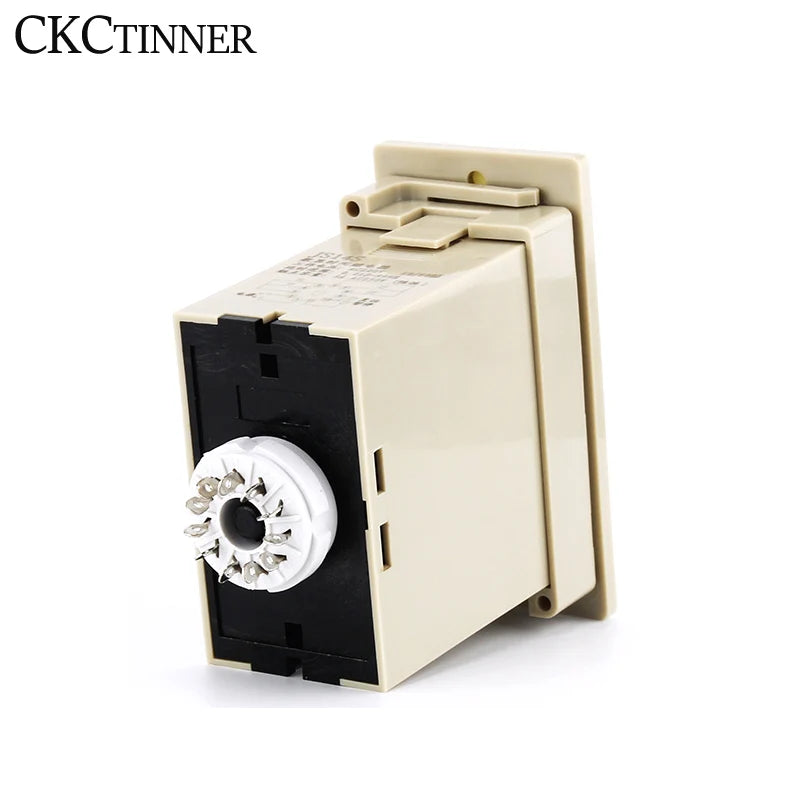

  • Included Socket Base: Compatible PF113A 11-pin socket for clean panel-mount installation
  • CE Certified: Meets European conformity standards for safety and performance
  • Long Service Life: Mechanical life 1×10⁶ operations; electrical life 1×10⁵ operations

Full Specifications

Model Number JS14S
Supply Voltage 100V–240V AC/DC; 36V, 380V AC (50/60 Hz); 12V, 24V DC
Voltage Tolerance AC: -15% to +10%; DC: -10% to +10% of rated voltage
Power Consumption 3W max
Timing Range 0.01 seconds – 999 hours
Setting Method Dial switch
Display 8-segment digital display
Contact Rating 3A @ 250V AC; 5A @ 24V DC
Repeat Accuracy ±0.3%, ±0.05 sec
Setting Error ±0.5%, ±0.05 sec

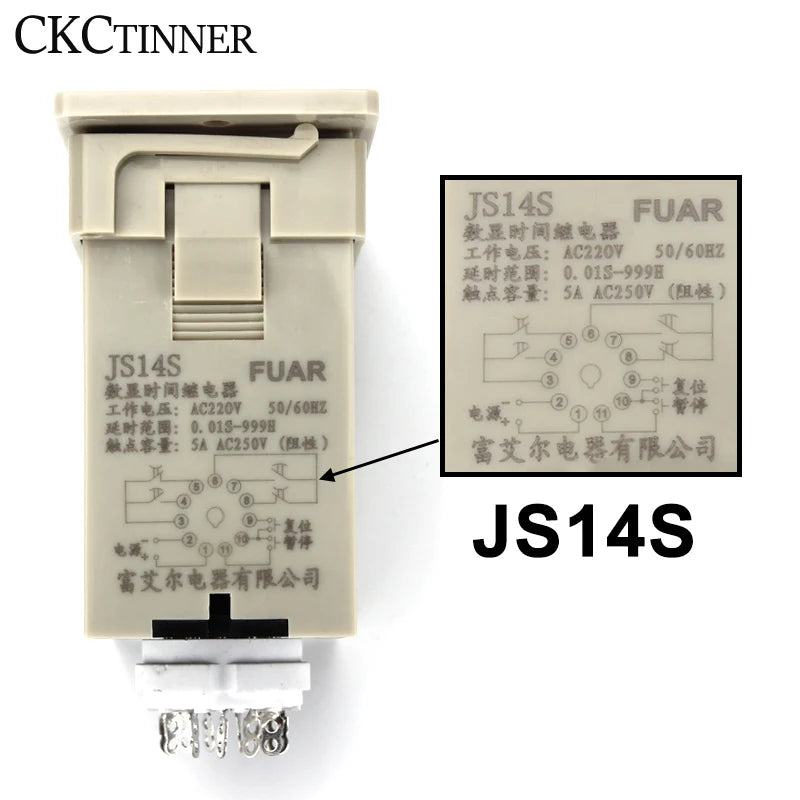

Termination 11 pins
Mounting Panel mount
Matched Socket PF113A
External Dimensions 126 × 104 × 52 mm
Panel Cutout Dimensions 77±1.0 × 46±1.0 mm
Operating Temperature -5°C to 45°C (23°F to 113°F)
Operating Humidity 95% RH max, non-condensing
Mechanical Life 1×10⁶ operations
Electrical Life 1×10⁵ operations
Certification CE
Origin Mainland China

What's in the Box

  • 1 × JS14S Digital Time Relay
  • 1 × PF113A Socket Base (matched 11-pin socket)

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What voltage options does the JS14S Digital Time Relay support?

A: The JS14S time relay supports a wide input voltage range including 100V–240V AC/DC, 36V AC, 380V AC (50/60 Hz), as well as 12V and 24V DC. This makes it compatible with most standard industrial and commercial electrical systems worldwide.

Q: Does the JS14S time relay come with a socket base included?

A: Yes! The package includes a compatible PF113A 11-pin socket base, allowing for quick and clean panel-mount installation without needing to source a separate socket.

Q: What is the timing range of the JS14S digital delay timer?

A: The JS14S offers an exceptionally wide timing range from 0.01 seconds all the way up to 999 hours, making it suitable for both very short-cycle automation tasks and extended long-duration delay applications.

Q: How do I set the time delay on the JS14S relay?

A: Time delay settings are configured via an easy-to-use dial switch on the front panel. The 8-segment digital display provides a clear real-time readout so you can verify your settings instantly — no computer or software is needed.
