IP55 Electromagnetic Push Button Safety Switch – 110V/220V, 15A

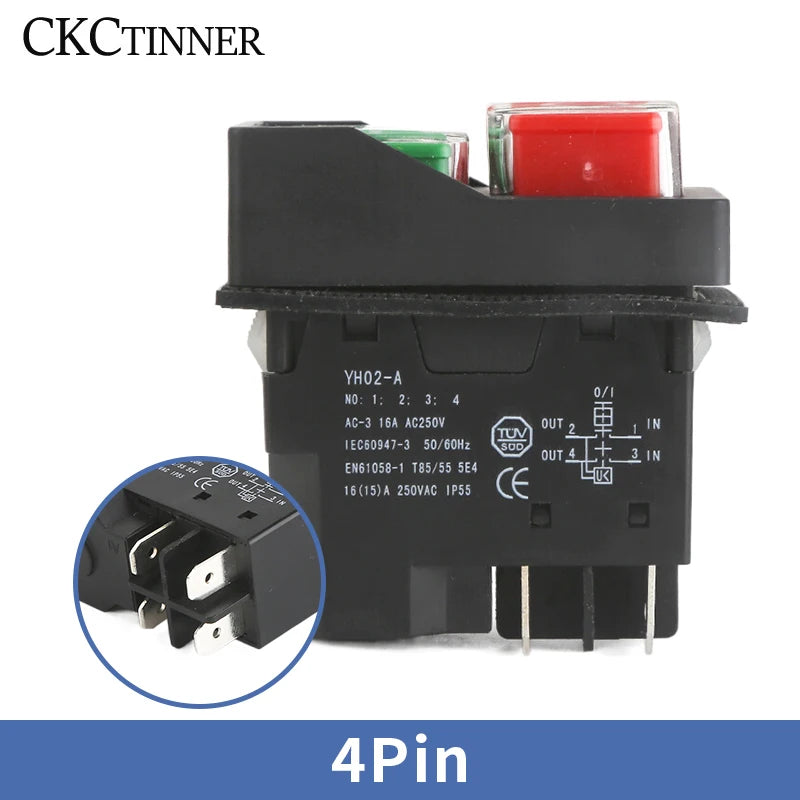

Keep your power tools and garden machinery operating safely with this heavy-duty Electromagnetic Push Button Safety Switch (Model KJD17 / YH02-A). Rated for 110V and 220V operation at up to 15A (AC-3), this CE & CCC certified switch is built for workshops, garden equipment, and industrial machine tools where reliable cut-off control is essential.
One of its standout safety features is automatic power-off protection: if power is interrupted unexpectedly, the machine will not restart on its own. The operator must press the green start button to resume operation — eliminating dangerous accidental restarts. This makes it an ideal safety upgrade for table saws, grinders, lathes, and heavy garden machinery.

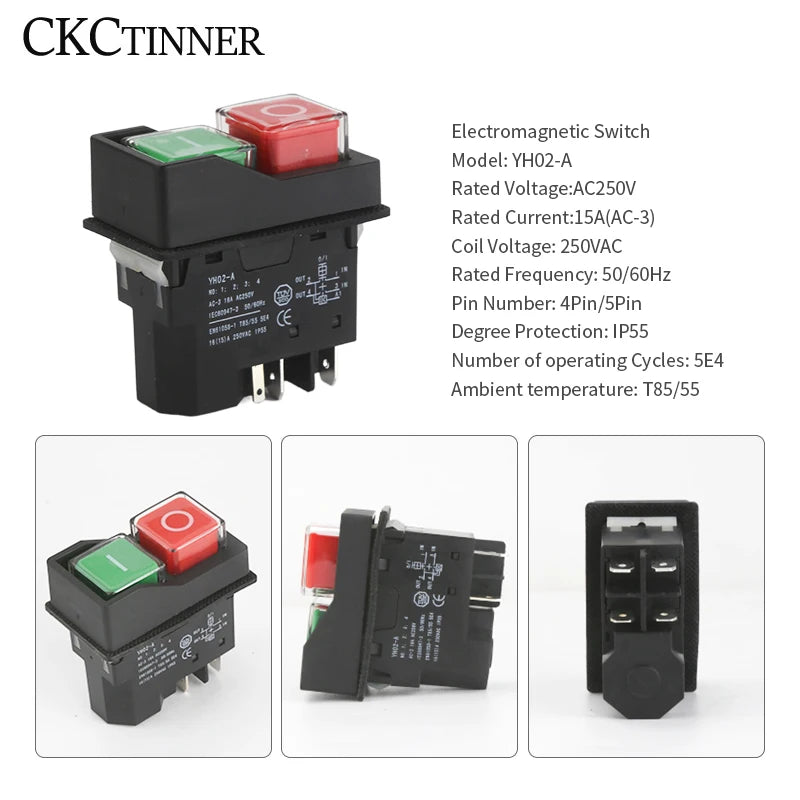

Key Features
- Voltage: AC 110V / 220–240V (Coil Voltage: 220–240V)
- Rated Current: 15A (AC-3)
- Rated Frequency: 50/60 Hz
- Protection Rating: IP55 Waterproof & Dust Resistant

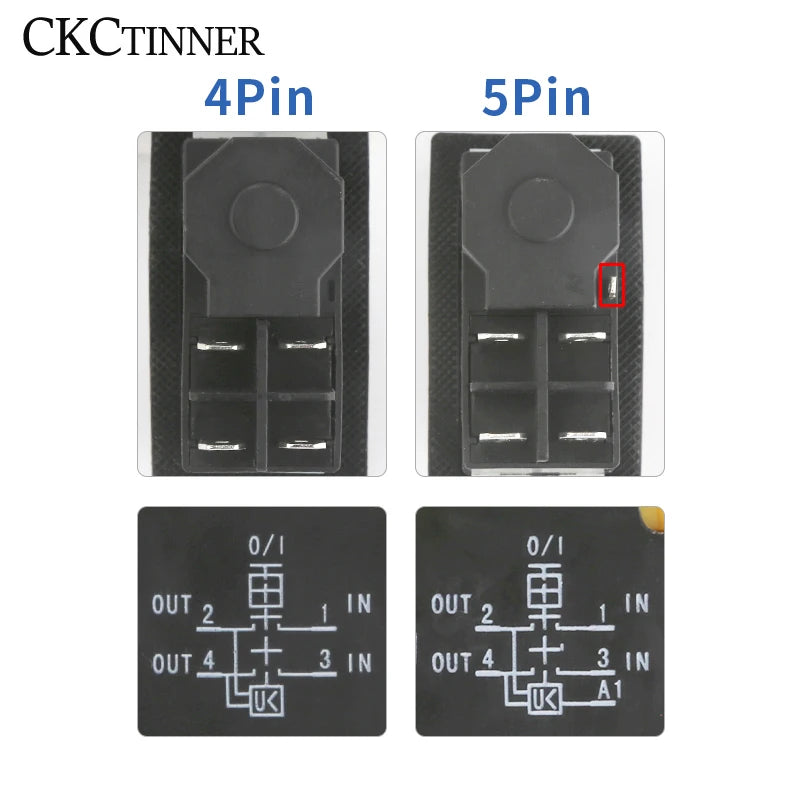

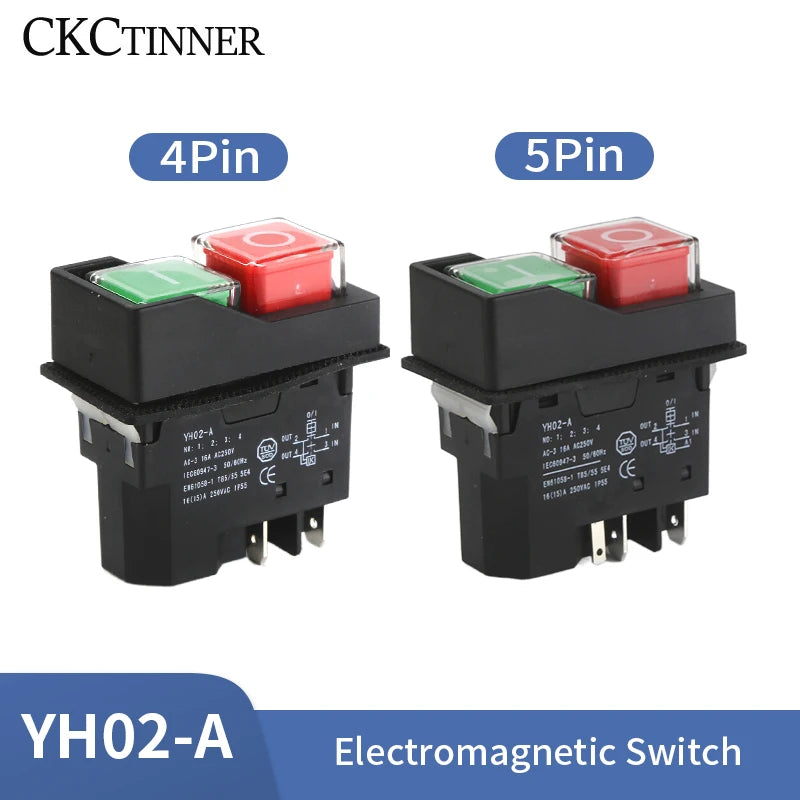

- Pin Configuration: 4-Pin / 5-Pin
- Operating Cycles: 5×10⁴
- Ambient Temperature: T85/55
- Material: Durable ABS Plastic Housing
- Certifications: CE, CCC
- Warranty: 365 Days
Built-In Protection Functions
- Double Pole Cut-Off – Complete circuit disconnection for maximum safety.
- Brake Function (Single Pole Cut-Off) – Controlled stoppage for precision machinery.
- Under-Voltage & Overload Protection – Can be combined with an overload protection switch for comprehensive electrical safeguarding.
Wide Range of Applications
This switch is widely suited for:
- Woodworking machines (table saws, planers, band saws)
- Garden machinery (lawn mowers, chippers, wood splitters)
- Industrial power tools and large bench-top equipment
- Pump motors and compressor units
Made in Mainland China.
Looking for more workshop and garden essentials? Check out our Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar and our Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the rated voltage and current for this electromagnetic push button switch?
A: This electromagnetic safety switch supports AC 110V and 220–240V operation with a rated current of 15A (AC-3) and a rated frequency of 50/60 Hz, making it suitable for a broad range of power tools and garden machinery.
Q: Does this switch prevent accidental restart after a power outage?
A: Yes — this is a core safety feature of the KJD17 / YH02-A electromagnetic switch. After any unexpected power interruption, the machine connected to it will not restart automatically. The operator must press the green start button to re-engage power, preventing dangerous unintended startups.
Q: Is this push button switch waterproof?
A: Yes. The switch carries an IP55 protection rating, meaning it is resistant to dust ingress and protected against water jets from any direction — suitable for outdoor garden machinery and workshop environments where moisture may be present.
Q: Can this switch be combined with an overload protection device?
A: Absolutely. Both the double pole cut-off and single-pole brake function versions of this switch are compatible with external overload protection switches, enabling a combined under-voltage and overload protection setup for greater machine safety.
