Infrared Thermal Imaging Camera for Android | 640×480 IR Imager

See the Invisible – Infrared Thermal Imaging for Your Android Device

Turn your Android smartphone into a powerful thermal imaging tool with this compact IR imager. Featuring a high-resolution 640×480 thermal pixel sensor and a wide temperature measurement range of -20°C to 1000°C, this pocket-sized device plugs directly into your phone's USB Type-C port — no batteries required. Whether you're a technician, hobbyist, or DIY enthusiast, it's the perfect on-the-go thermal solution.

Key Features

• High-Resolution Thermal Sensor: 640×480 thermal pixels for clear, detailed heat mapping across surfaces and components.
• Wide Temperature Range: Measures from -20°C to 1000°C (max measurement accuracy ±3°C), suitable for a broad range of inspection tasks.

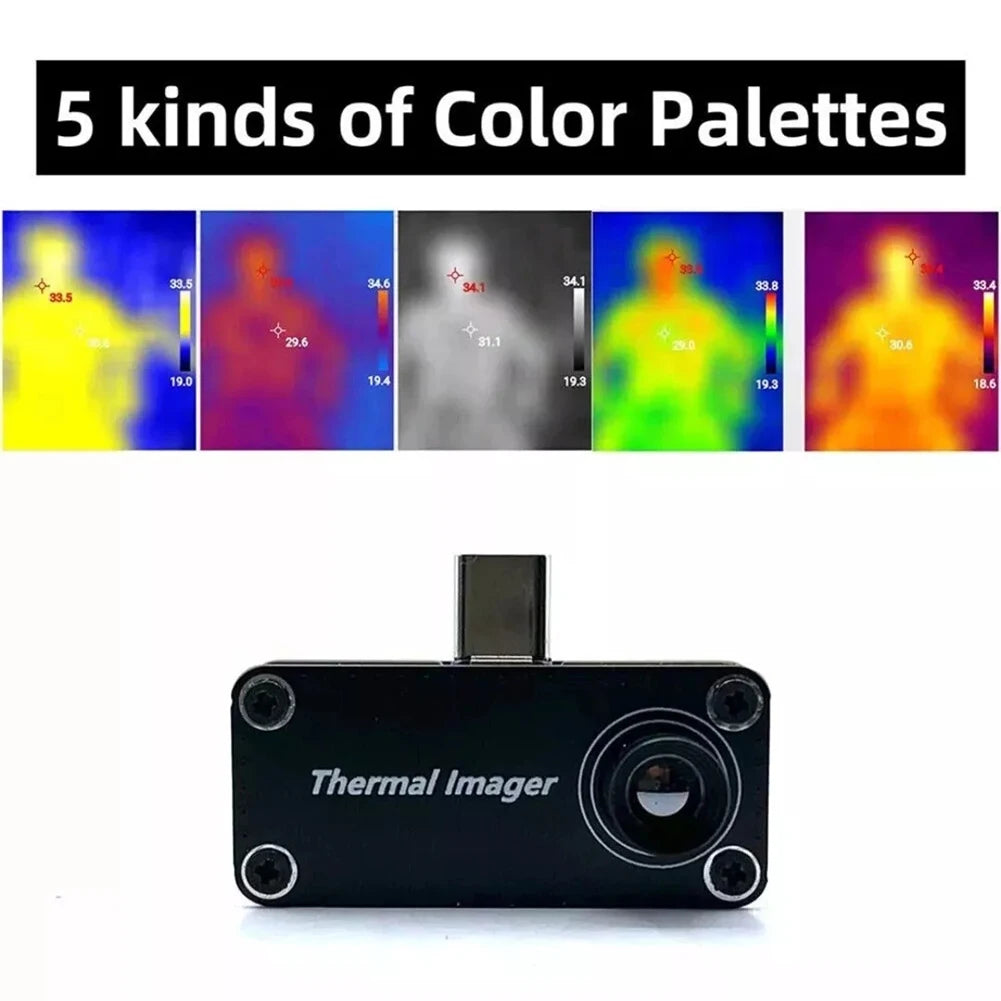

• 5 Color Palette Schemes: Switch between multiple pseudo-color palettes to suit different environments and inspection needs — making hot spots easy to identify at a glance.
• Android Compatible (8–12): Plug-and-play via USB Type-C; supports local image storage directly on your phone.
• Adjustable Palette Scale: Set upper and lower temperature limits manually or let the app auto-scale to the current screen temperature range.
• Emissivity Control: Adjust emissivity settings to achieve more accurate readings for different surface materials.
• Landscape Flip (Landrevert): Rotate the thermal imager above your phone for ergonomic one-handed use; compatible with phones that have auto-rotation.
• Bilingual App Support: The companion app supports English and Simplified Chinese, selectable from the main menu.

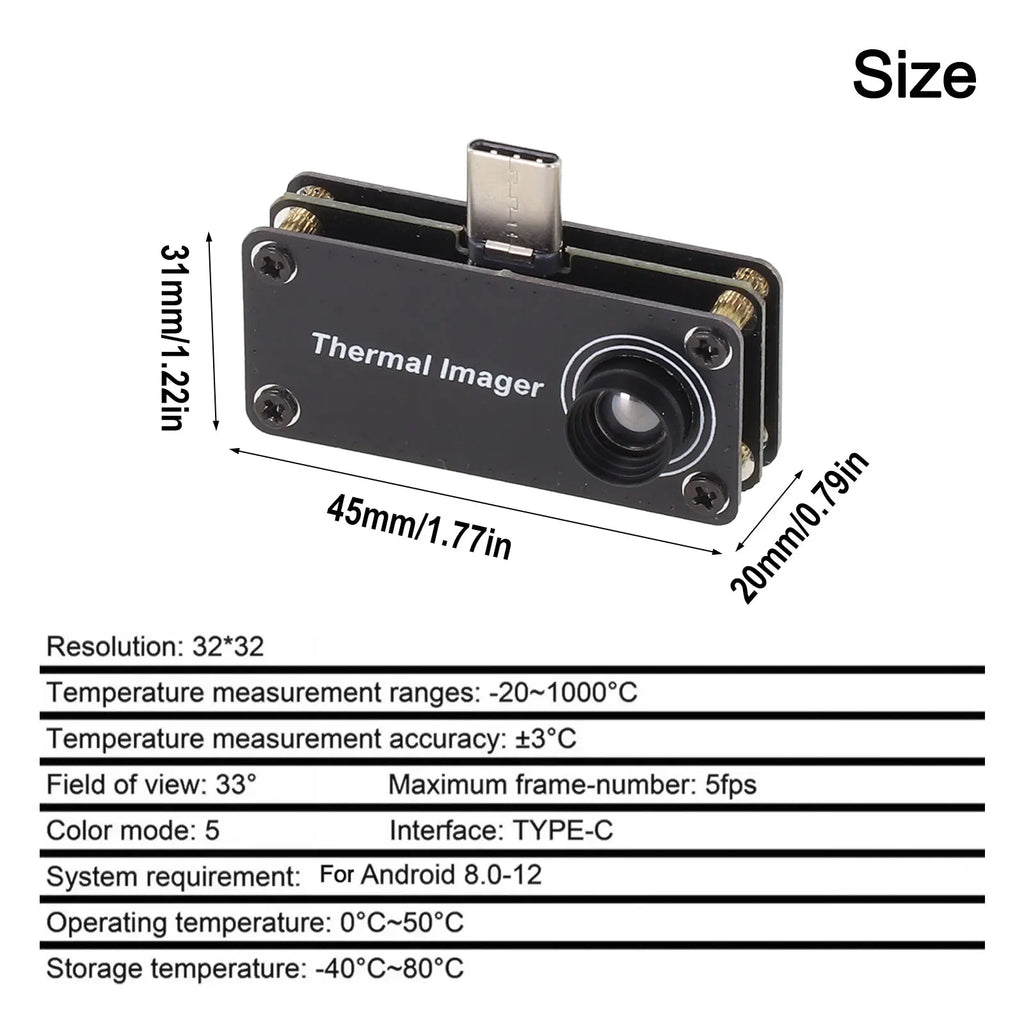

• Compact & Lightweight: Measuring just 44 × 29.2 × 19 mm, it slips into your pocket or tool bag with ease.
• No Battery Needed: Powered entirely through your phone's USB Type-C port — nothing extra to charge or carry.

Full Specifications

What's in the Box

• 1 × Infrared Thermal Imager
• 1 × Instruction Manual

Ideal For

• Electrical and circuit board inspections
• HVAC and building envelope diagnostics
• Automotive and engine heat mapping
• DIY home thermal assessments
• Industrial equipment monitoring

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Which Android versions are compatible with this infrared thermal imaging camera?

A: This IR imager is compatible with Android smartphones running Android 8 through Android 12. It connects via USB Type-C and supports local image storage on your device. Please ensure your phone has a USB Type-C port.

Q: What is the temperature measurement range and accuracy of this thermal imager?

A: The thermal imager measures temperatures from -20°C up to 1000°C, with a measurement accuracy of ±3°C. It also features adjustable emissivity settings so you can fine-tune readings for different surface materials and conditions.

Q: Can I use multiple color schemes with this IR camera?

A: Yes! The device supports 5 different pseudo-color palette schemes, letting you switch between views to best suit your inspection scenario — whether you need high contrast for subtle temperature differences or a classic heat-map look for quick hotspot detection.

Q: Does the thermal imager require its own battery?

A: No. This IR imager is powered directly through your Android phone's USB Type-C port, so no separate battery or charging is required. Simply plug it in and launch the companion app to start imaging.
