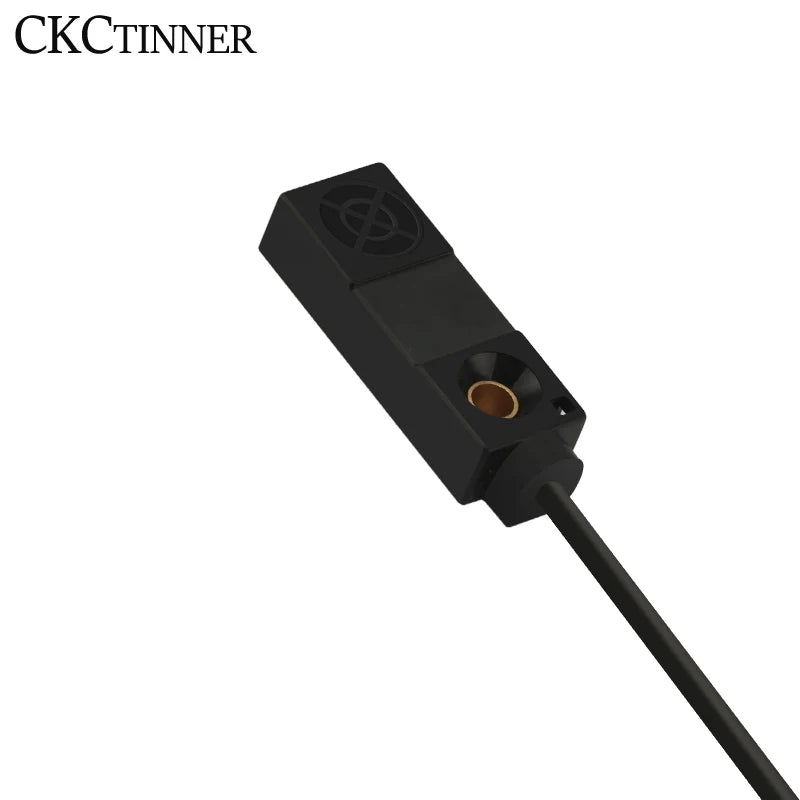

Inductive Proximity Switch – TL-W3 / TL-W5 Series | NPN & PNP, NO & NC

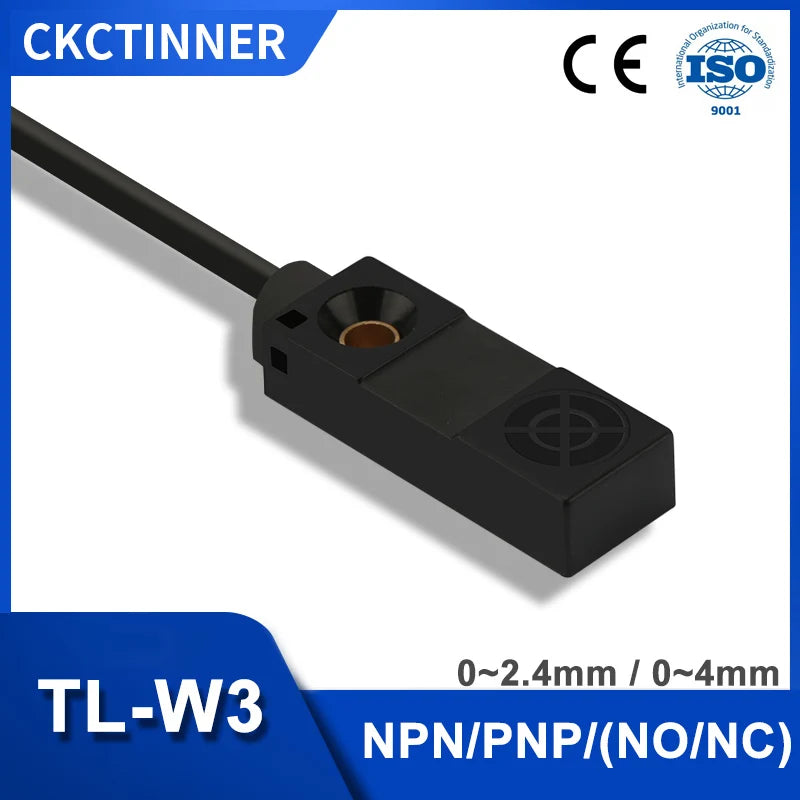

Detect metal objects quickly and reliably with this compact square inductive proximity switch. Compatible with models TL-W3MC1, TL-W5MC2, TL-W3MB1, and TL-W5MB2, this CE-certified 3-wire sensor delivers fast, accurate non-contact metal detection for industrial automation, machinery, conveyor systems, and DIY electronics projects.
Made in China.
Key Features
- Wide Compatibility: Supports NPN and PNP output types in both Normally Open (NO) and Normally Closed (NC) configurations — choose the exact version your application requires.
- Fast Response: Response time under 0.5ms with a switching frequency of 1KHz — ideal for high-speed automation lines.

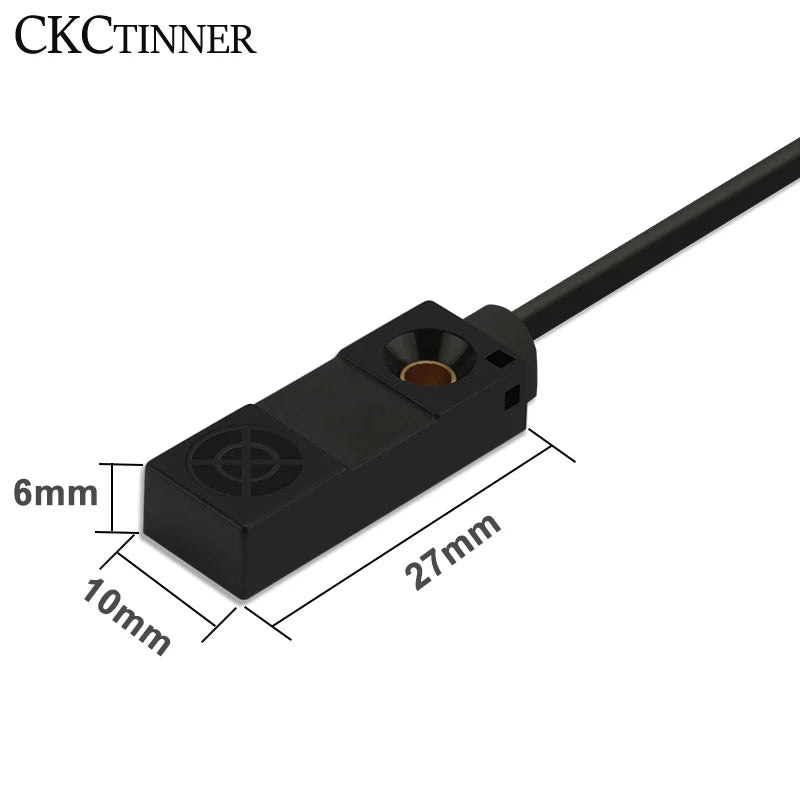

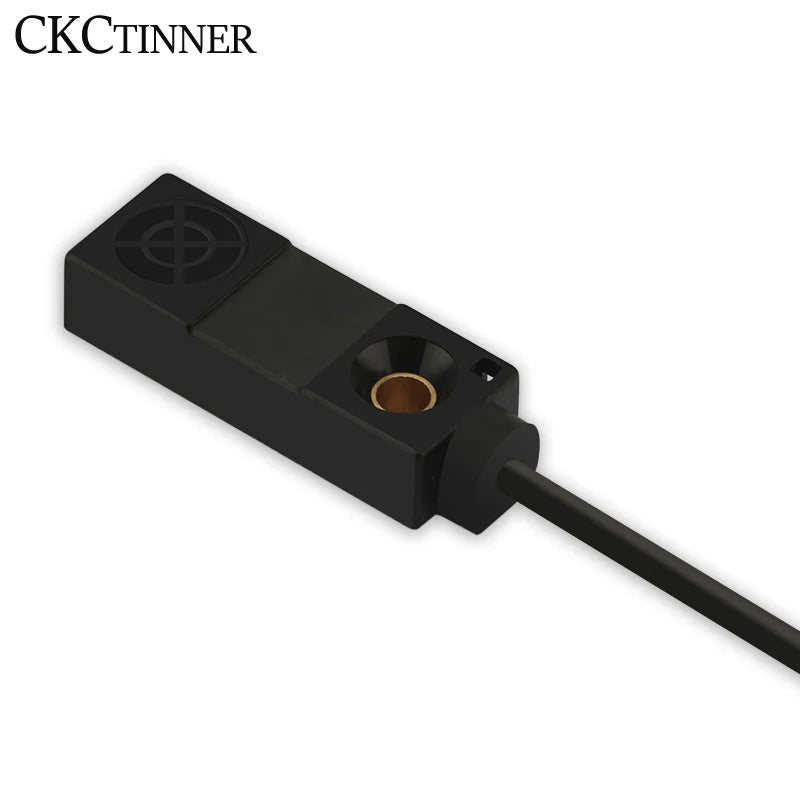

- Compact Square Design: Small form factor fits into tight spaces on machinery, fixtures, and control panels without sacrificing performance.
- IP67 Waterproof & Dustproof: Fully protected against dust ingress and short-term water immersion — built for demanding workshop and industrial environments.
- Reverse Polarity Protection: Built-in protection safeguards the sensor from incorrect wiring connections, adding an extra layer of reliability.

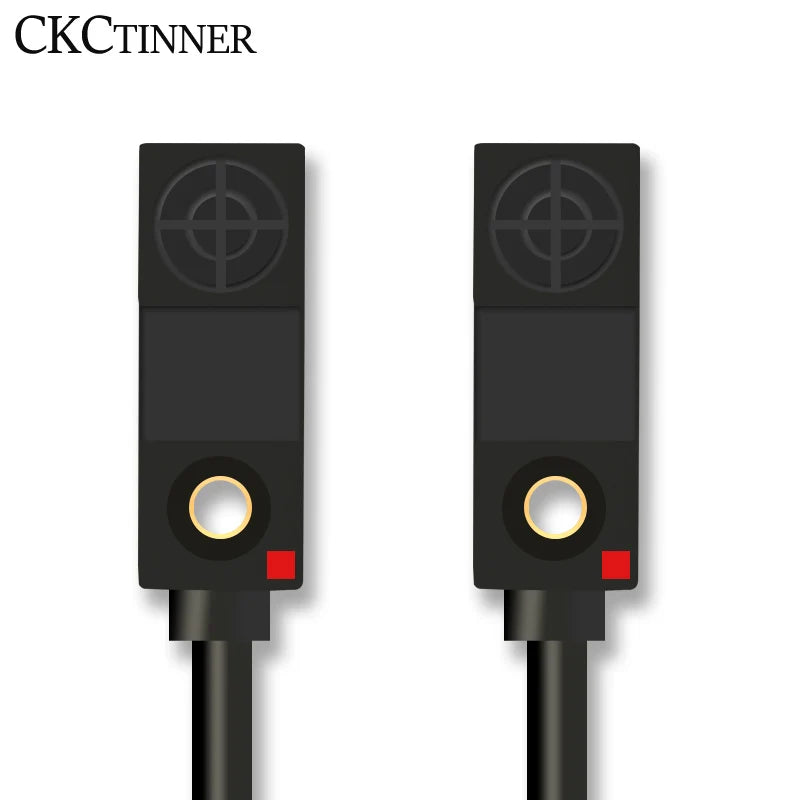

- LED Indicator: On-board LED provides instant visual confirmation of detection status during setup and operation.
- Wide Operating Temperature: Functions reliably from -25°C to 75°C, suitable for both cold storage and warm production environments.
Technical Specifications

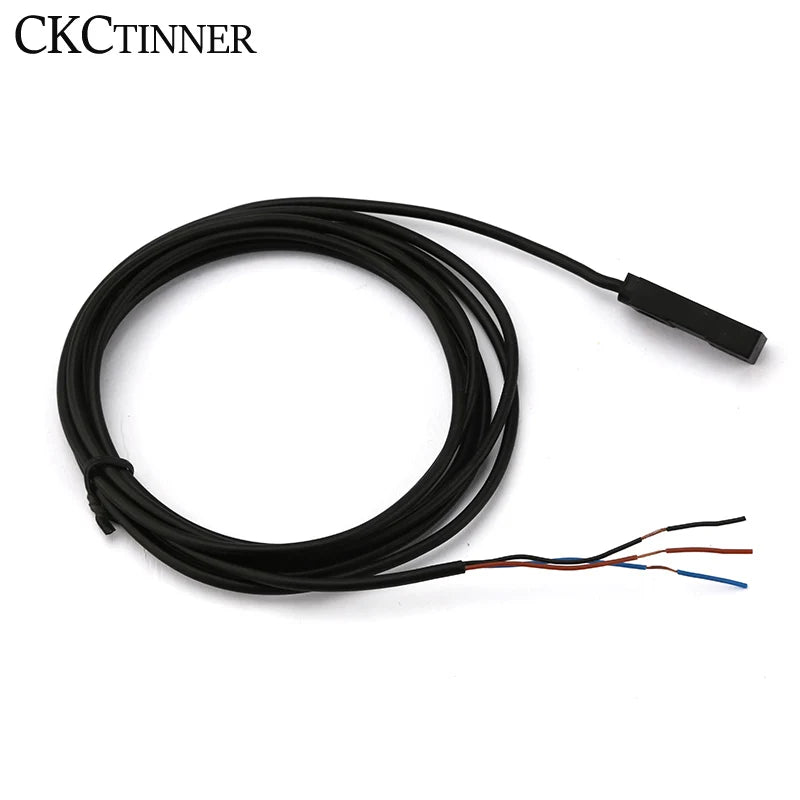

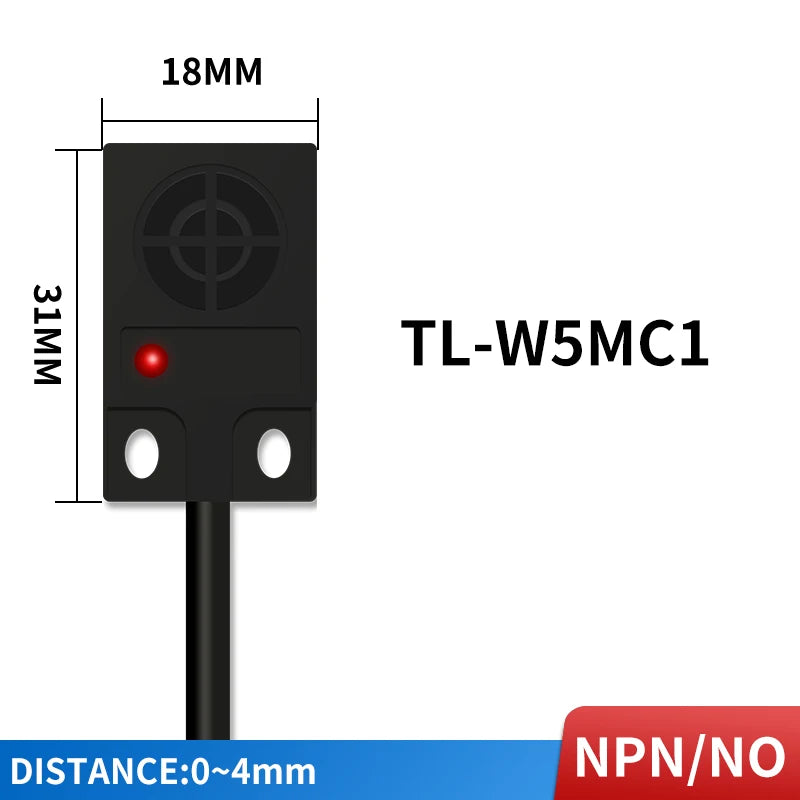

| Model Series | TL-W3MC1 / TL-W5MC2 / TL-W3MB1 / TL-W5MB2 |
| Sensor Type | Inductive Proximity Switch (3-Wire) |
| Output Type | NPN / PNP, NO / NC |
| Detection Distance | 2.4 mm (TL-W3) / 4 mm (TL-W5) |
| Operating Voltage | 10–24V DC |
| Operating Current | 300 mA max |
| Response Time | < 0.5 ms |
| Response Frequency | 50 Hz |
| Switching Frequency | 1 KHz |
| Operating Temperature | -25°C to +75°C |
| Material | ABS Plastic |
| Protection Rating | IP67 |
| Indicator | LED |
| Reverse Polarity Protection | Yes |
| Certification | CE |
What's in the Box
- 1 × Inductive Proximity Switch (model as selected)
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the difference between the TL-W3 and TL-W5 proximity switch models?
A: The main difference is the sensing distance. The TL-W3 series detects metal objects at up to 2.4 mm, while the TL-W5 series offers an extended detection range of up to 4 mm. Both are available in NPN/PNP and NO/NC output configurations.
Q: Can this inductive proximity switch be used outdoors or in wet environments?
A: Yes. With an IP67 protection rating, the sensor is fully sealed against dust and can withstand temporary immersion in water, making it suitable for wet, dusty, or outdoor industrial environments.
Q: How do I know which output type (NPN or PNP, NO or NC) I need?
A: NPN (sinking) output is commonly used with PLCs and controllers that have sourcing inputs, while PNP (sourcing) output suits sinking inputs. NO (Normally Open) means the circuit closes when an object is detected; NC (Normally Closed) means the circuit opens upon detection. Refer to your controller's wiring diagram to select the correct configuration for your application.
Q: What operating voltage does this proximity sensor require?
A: This proximity switch operates on 10–24V DC, making it compatible with a wide range of standard industrial power supplies and microcontroller-based systems.
