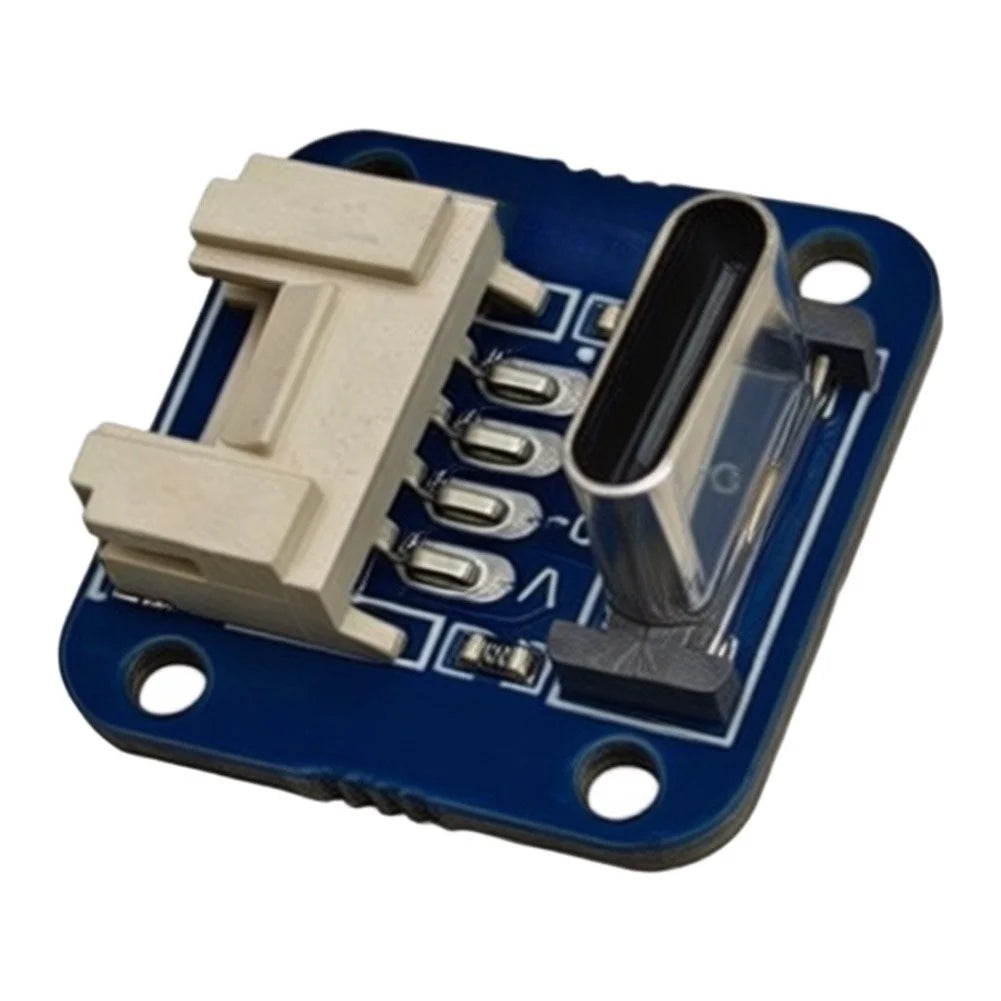

HY2.0 Output Charging Module Test Board – 20mm × 20mm
This compact charging module test board features a 14-pin input interface and HY2.0 output, designed for seamless integration into handheld vacuum cleaner power setups and other portable electronics. At just 20mm × 20mm, it delivers reliable power management in a space-saving PCB form factor — ideal for DIY electronics builders, repair technicians, and hobbyists.
Made in Mainland China.
Key Features
- Ultra-Compact Design: Measures only 20mm × 20mm, making it easy to integrate into tight spaces within portable devices and custom power setups.
- 14-Pin Input / HY2.0 Output: Standardized connector interfaces ensure a secure, dependable connection for efficient power delivery.
- Optimized Power Management: Designed to optimize power distribution for faster charging cycles and improved energy efficiency, helping extend your device's battery lifespan.
- Durable PCB Construction: Built from quality PCB materials engineered to withstand regular use in demanding environments.
- User-Friendly Interface: Straightforward design simplifies the testing and monitoring process — no advanced technical expertise required.
- Handheld Vacuum Cleaner Compatible: Purpose-built for handheld vacuum cleaners and other compact rechargeable devices requiring reliable power routing.
Specifications
| Size | 20mm × 20mm |
| Color | Blue |
| Material | PCB |
| Input Interface | 14-Pin |
| Output Interface | HY2.0 |
| Voltage | Low voltage: Below 50Vac or 75Vdc |
| Battery Included | No |
| Wireless | No |
| Origin | Mainland China |
Package Contents
- 1 × Charging Module Test Board
Notes
Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow a slight measurement deviation (±1mm) for all listed dimensions.
