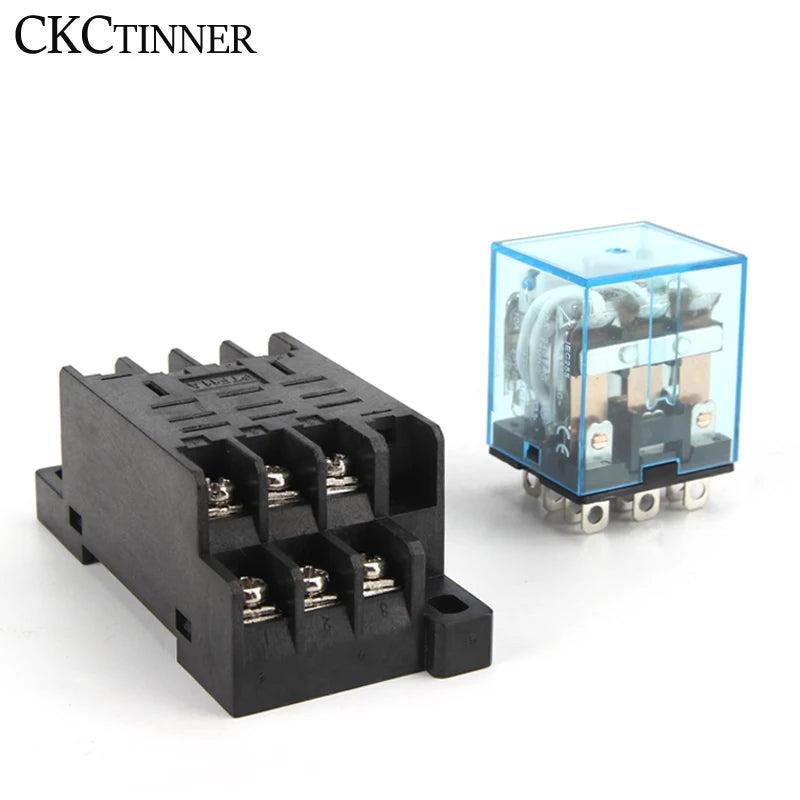

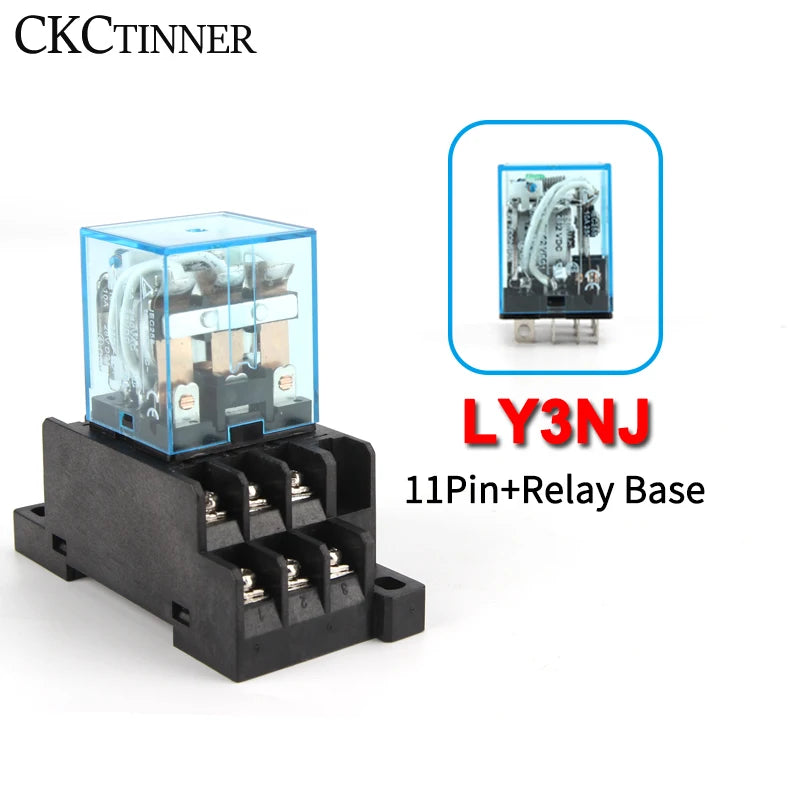

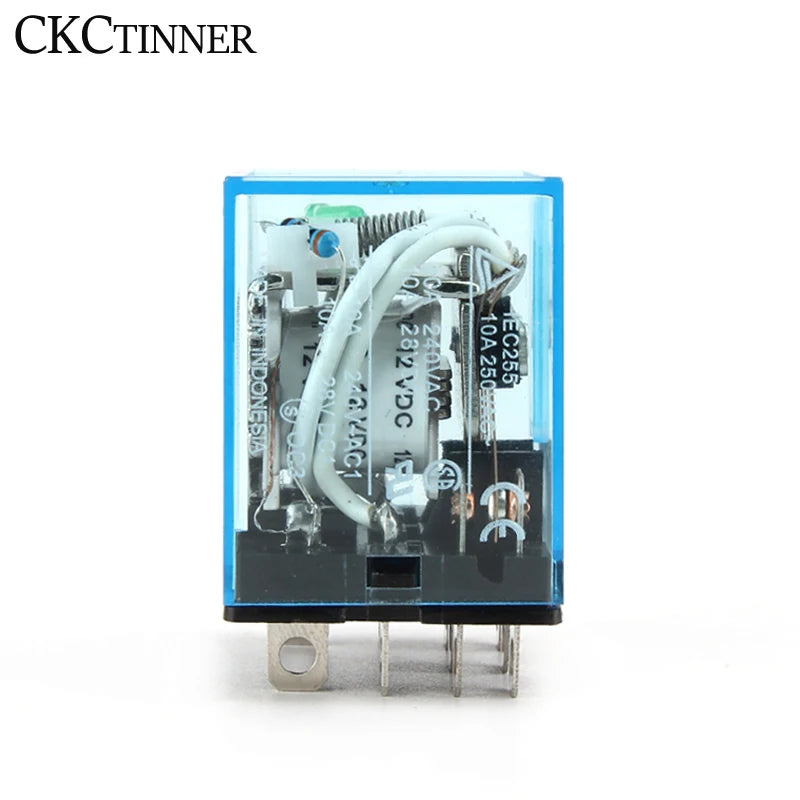

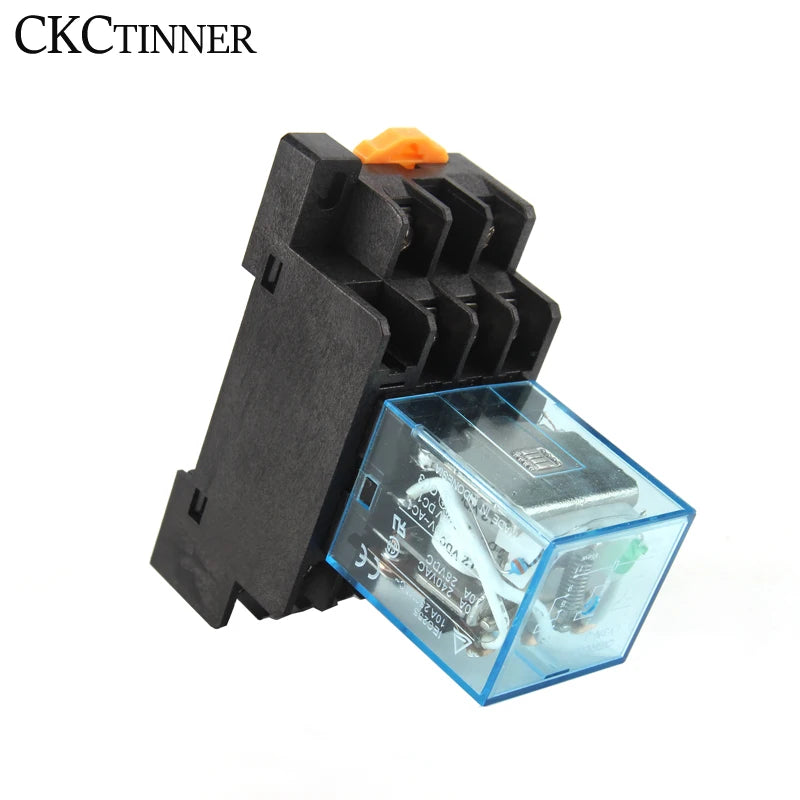

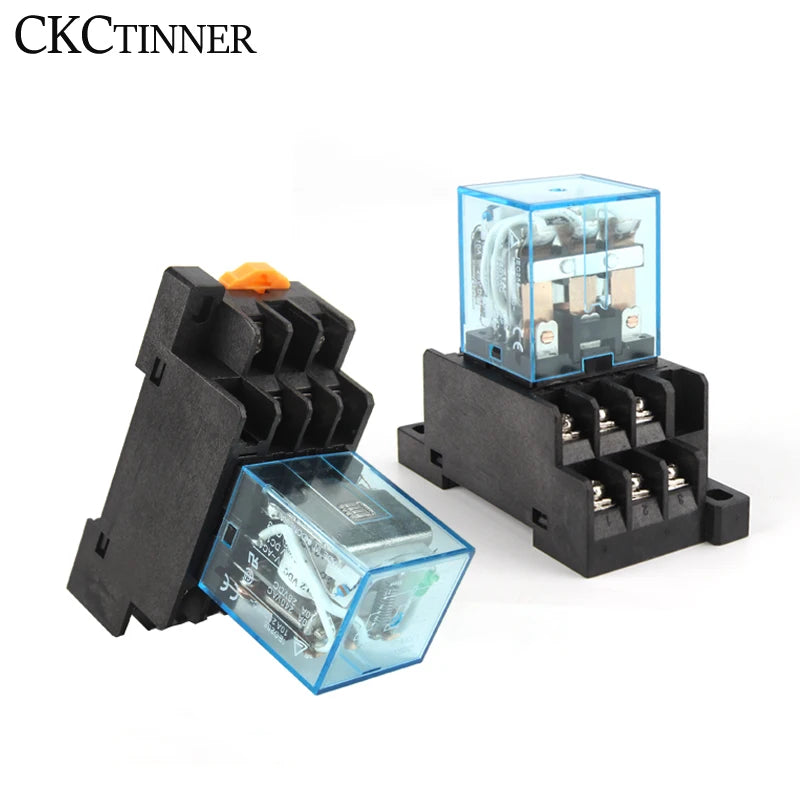

HH63P LY3NJ 10A Intermediate Electromagnetic Relay with 11-Pin PTF11A Socket Base
The HH63P LY3NJ Intermediate Relay is a compact, CE-certified electromagnetic relay built for reliable switching in a wide range of industrial and DIY electrical control applications. Supporting multiple coil voltages — from DC/AC 12V and 24V all the way up to AC 110V, 220V, and 380V — this versatile relay fits neatly into automation panels, control boards, and electrical enclosures. Each package includes both the relay and a matching PTF11A 11-pin socket base, so you have everything you need to get started right away.
Made in Mainland China.
Key Features
- Model: HH63P / LY3NJ
- Rated Current: 10A
- Coil Voltage Options: DC 12V, AC 12V, DC 24V, AC 24V, AC 110V, AC 220V, AC 380V
- Terminal Configuration: 11-Pin DPDT (Double Pole Double Throw)
- Terminal Type: Socket type — easy plug-in installation

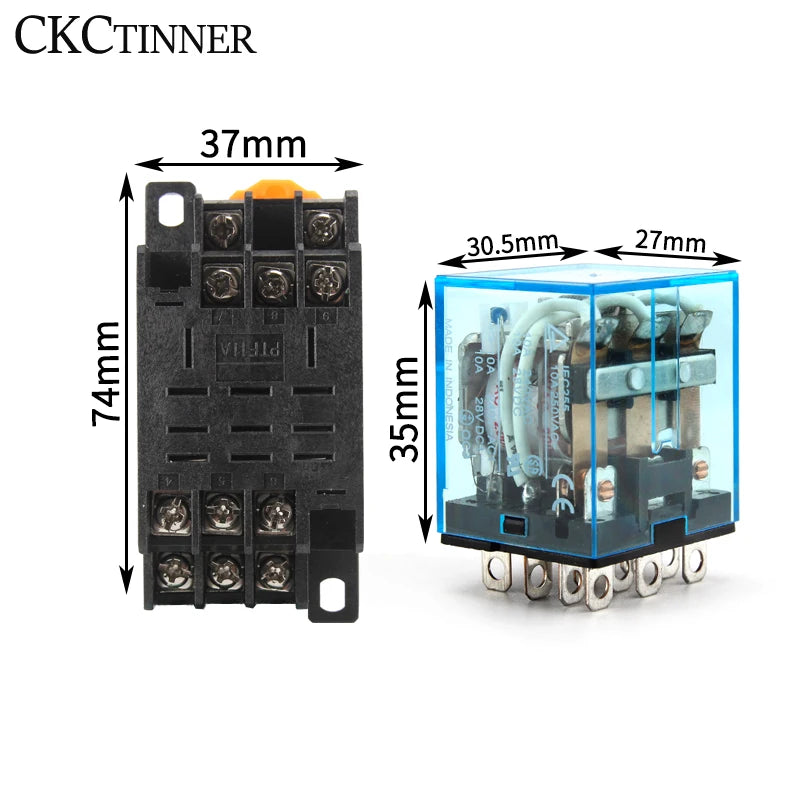

- Compact Dimensions: Approx. 27 × 30.5 × 35 mm (L × W × H)
- Socket Base Included: PTF11A
- Certification: CE
What's in the Box?
- 1 × HH63P LY3NJ Electromagnetic Relay
- 1 × PTF11A 11-Pin Socket Base
Ideal Applications
- Industrial automation and control panels
- Electrical switchgear and relay logic circuits
- DIY electronic projects and prototyping
- HVAC control systems
- Motor starter and signal switching circuits
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltages are compatible with the HH63P LY3NJ relay?
A: The HH63P LY3NJ relay is available in multiple coil voltage options including DC 12V, AC 12V, DC 24V, AC 24V, AC 110V, AC 220V, and AC 380V, making it suitable for a wide range of international electrical systems and control circuits.
Q: Does the PTF11A socket base come included with this relay?
A: Yes! Each order includes both the HH63P LY3NJ electromagnetic relay and the matching PTF11A 11-pin socket base, so you can install it directly without purchasing additional components.
Q: What does DPDT mean and how does it affect wiring?
A: DPDT stands for Double Pole Double Throw. This means the relay has two independent switching circuits, each capable of switching between two output positions. With 11 pins via the PTF11A socket base, it allows flexible wiring for a variety of control and switching applications in industrial and DIY projects.
Q: Is this relay CE certified?
A: Yes, the HH63P LY3NJ relay is CE certified, indicating it meets European safety, health, and environmental protection standards — suitable for use in professional and industrial environments.
