HH54P MY4NJ Plug-In Relay + PYF14A Socket 14-Pin 4PDT 5A

$12.15 $14.48

Size DC 24V AC 220V AC 380V DC 12V

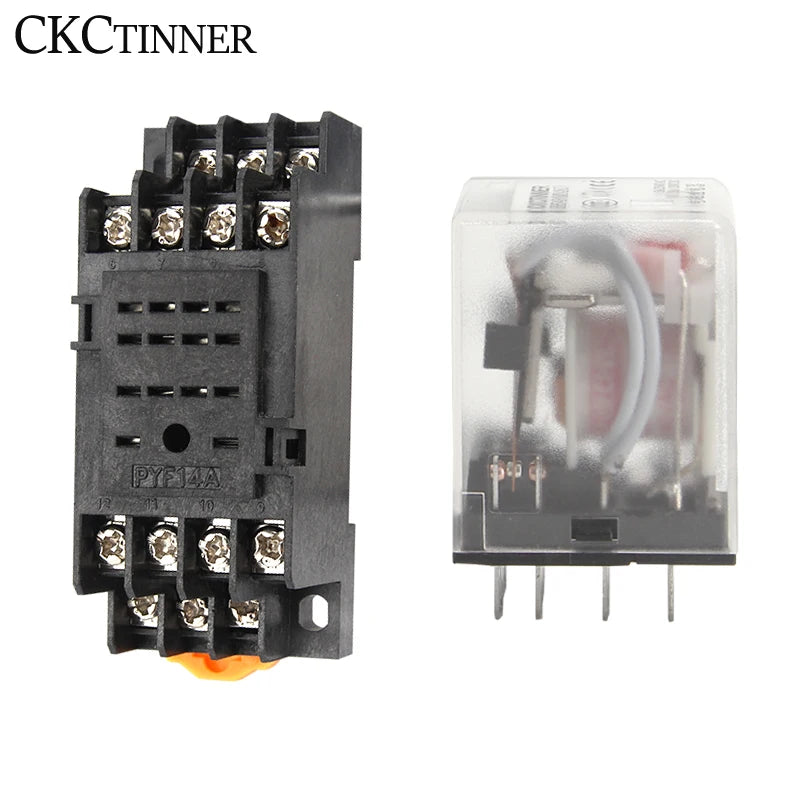

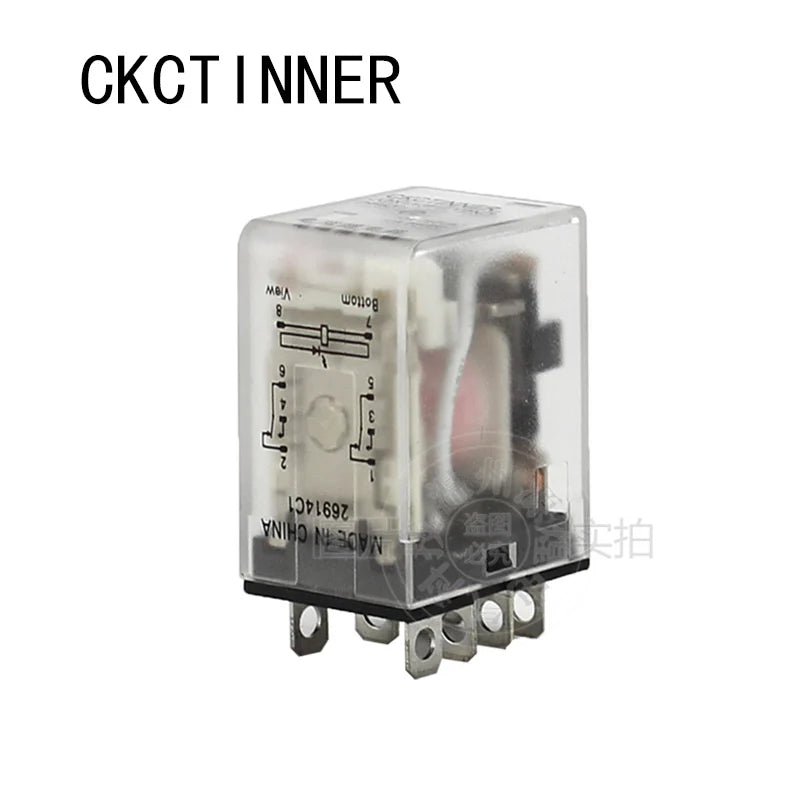

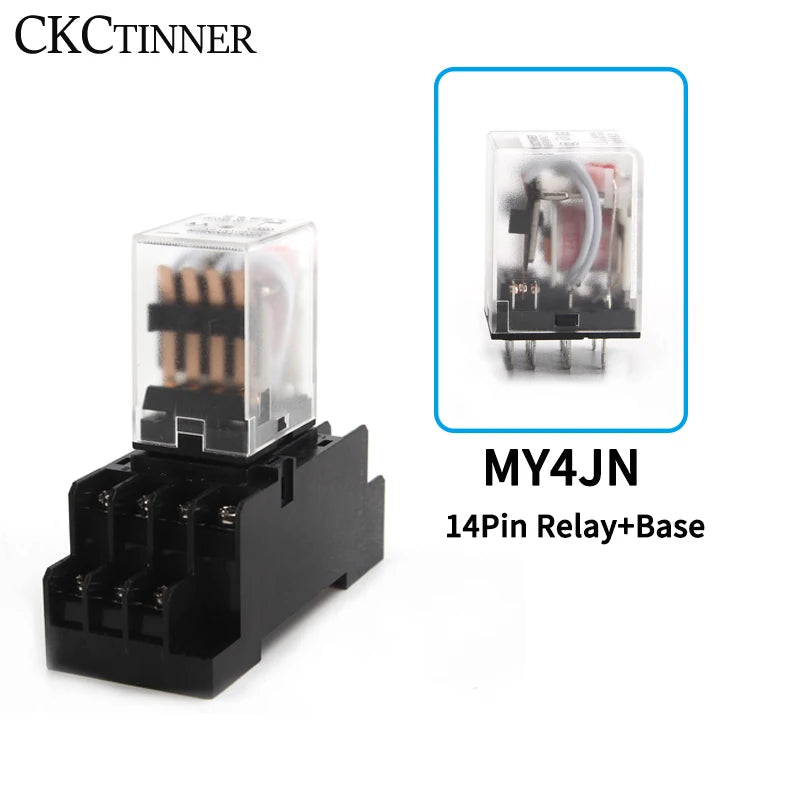

HH54P MY4NJ Plug-In Electromagnetic Relay with PYF14A Socket Base

The HH54P MY4NJ Plug-In Relay is a general-purpose electromagnetic relay designed for a wide range of industrial and DIY control circuit applications. Featuring a 14-pin, 4PDT (4-pole double-throw) configuration with 4NO/4NC contacts, this relay offers versatile switching capability in a compact, sealed housing. Compatible with the included PYF14A socket base for easy plug-in installation, it's a reliable choice for automation panels, relay logic circuits, and electrical control boards.

Key Features

Model: HH54P / MY4N-J with PYF14A Socket Base
Coil Voltages Available: DC 12V, DC 24V, AC 110V, AC 220V
Contact Type: 14 Pins, 4PDT (4NO + 4NC) – Silver Contacts
Contact Capacity: 5A at 240VAC / 28VDC
Working Indicator: Built-in LED lamp for visual status confirmation
Protection: Sealed housing for reliable, long-lasting operation
Certification: CE Certified

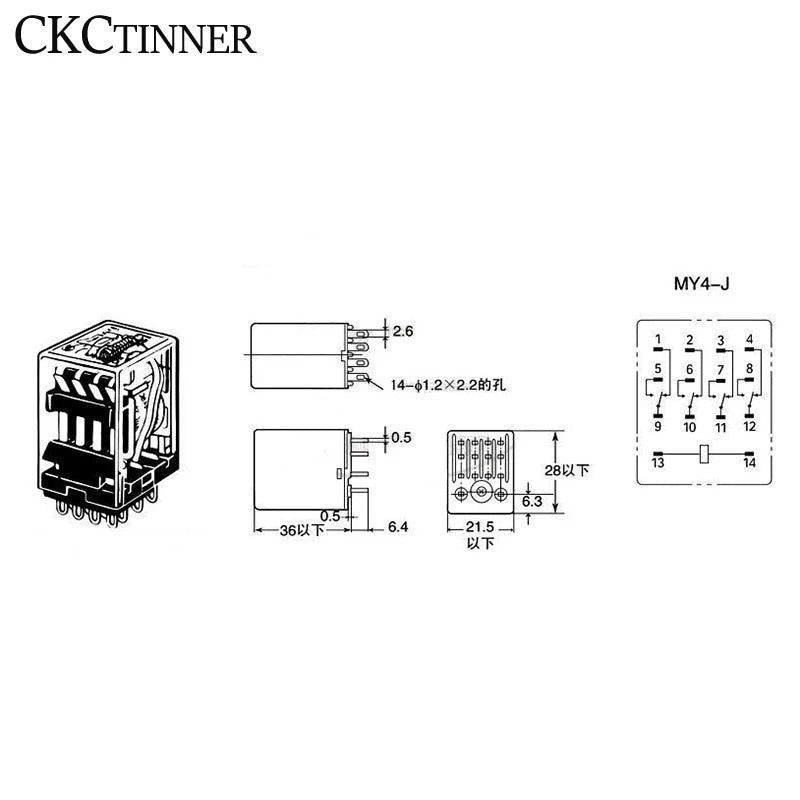

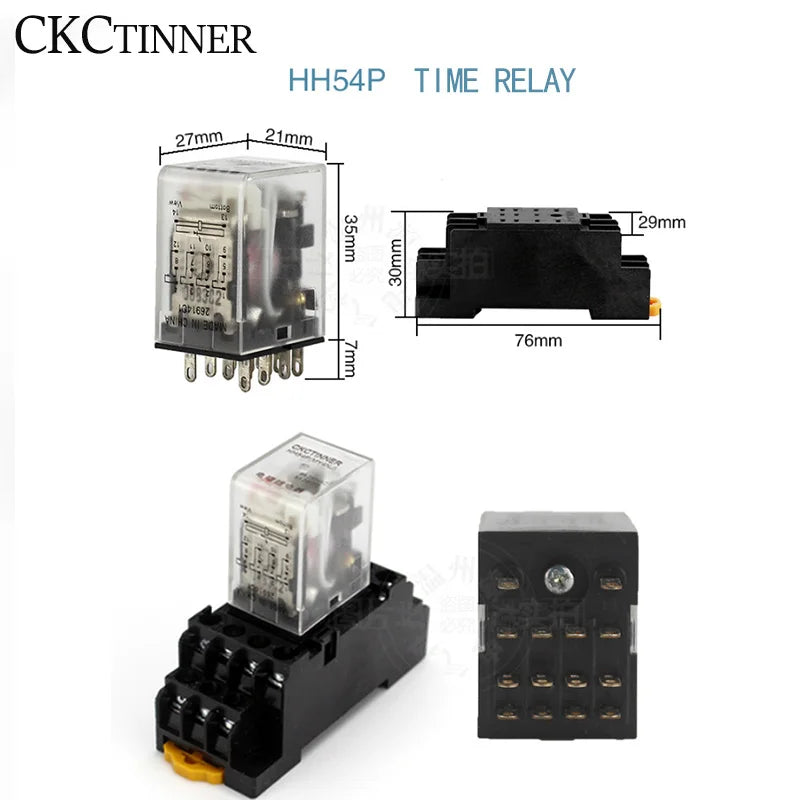

Compact Dimensions: Approx. 27 × 20.5 × 35 mm (L × W × H)
Contact Load: Low power general purpose

What's Included

1× HH54P MY4NJ Plug-In Relay
1× PYF14A Socket Base

Ideal For

Industrial automation and control panels
PLC relay output circuits
DIY electrical projects and prototyping
HVAC and machinery control systems
General-purpose switching applications

Made in Mainland China.

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What voltages are compatible with the HH54P MY4NJ relay?

A: The HH54P MY4NJ relay is available in DC 12V, DC 24V, AC 110V, and AC 220V coil voltages, making it suitable for a broad range of control circuit applications both domestically and industrially.

Q: Does this relay come with a socket base?

A: Yes! Each unit includes a PYF14A socket base, allowing for simple plug-in installation without soldering directly to the relay pins — making replacement and maintenance much easier.

Q: What is the contact rating of the HH54P relay?

A: The silver contacts are rated at 5A at 240VAC or 28VDC, making this relay well-suited for low-to-medium power switching in general-purpose control circuits.

Q: How do I know if the relay is energized?

A: The relay features a built-in LED indicator lamp that lights up when the coil is energized, providing instant visual confirmation of the relay's active status.
