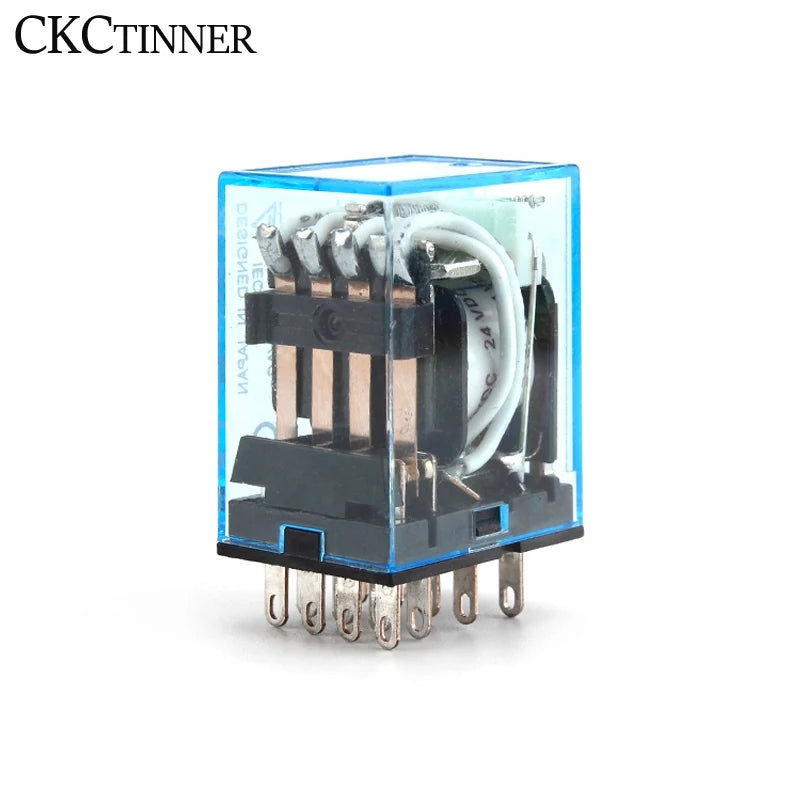

The HH54P (MY4NJ) is a compact, general-purpose electromagnetic relay designed for reliable switching in industrial and commercial control circuits. Compatible with a wide range of coil voltages and equipped with a 14-pin PYF14A socket base, this relay is an essential component for automation panels, control boards, and electrical systems.
Key Specifications
- Model: HH54P / MY4N-J
- Coil Voltage Options: DC 12V, DC 24V, AC 110V, AC 220V, AC 380V

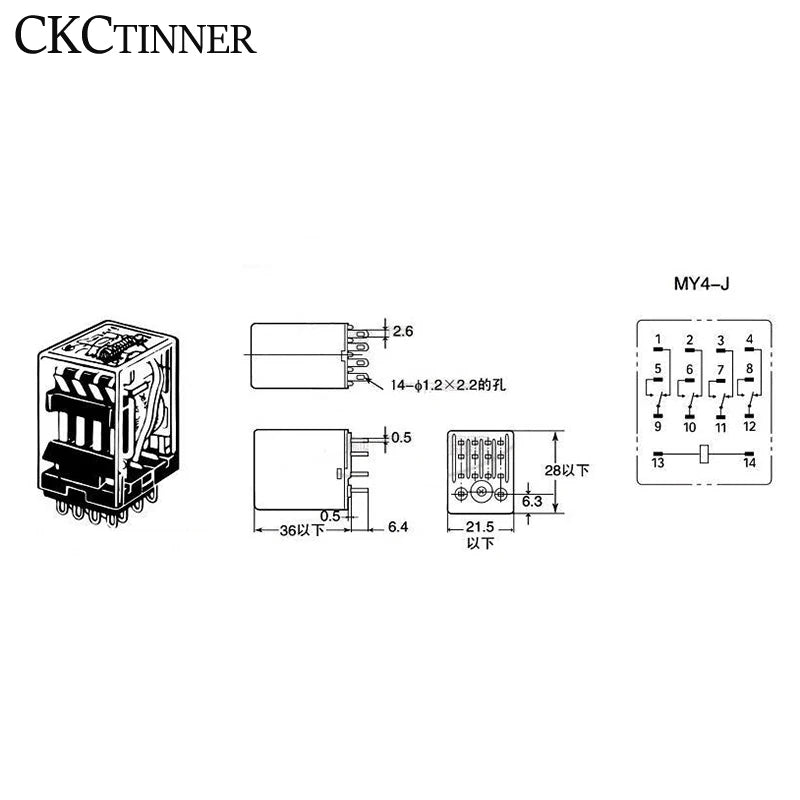

- Contact Type: 4PDT — 4 Normally Open (NO) / 4 Normally Closed (NC), 14-Pin
- Contact Capacity: 5A @ 240V AC / 28V DC
- Working Indicator: Built-in LED lamp for easy status monitoring
- Enclosure: Sealed design for dust and contamination resistance

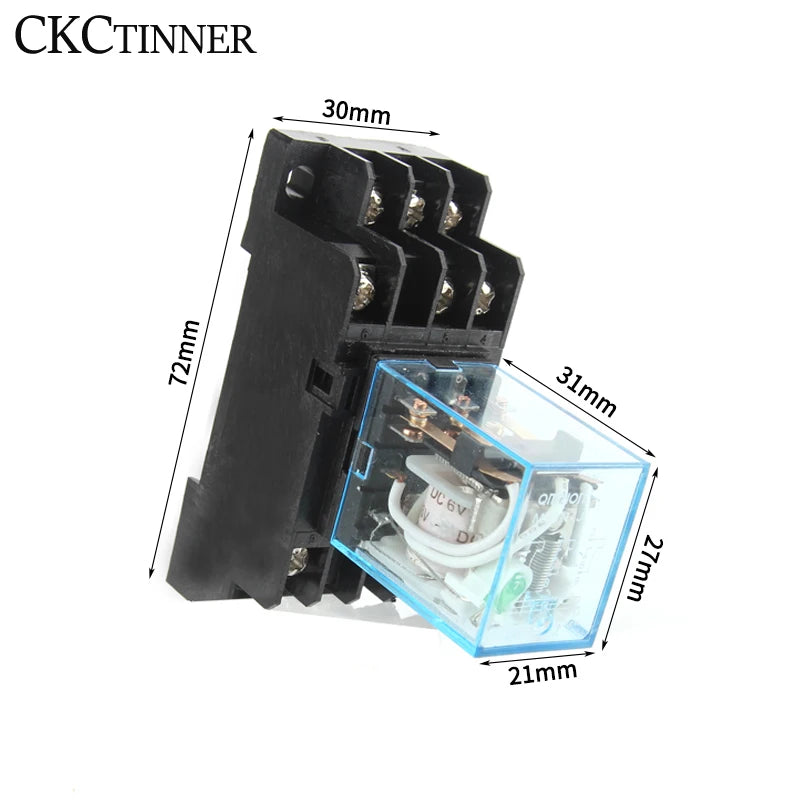

- Overall Dimensions: 27 × 20.5 × 35 mm (approx. 1" × 0.8" × 1.4") L × W × H
- Certification: CE Certified

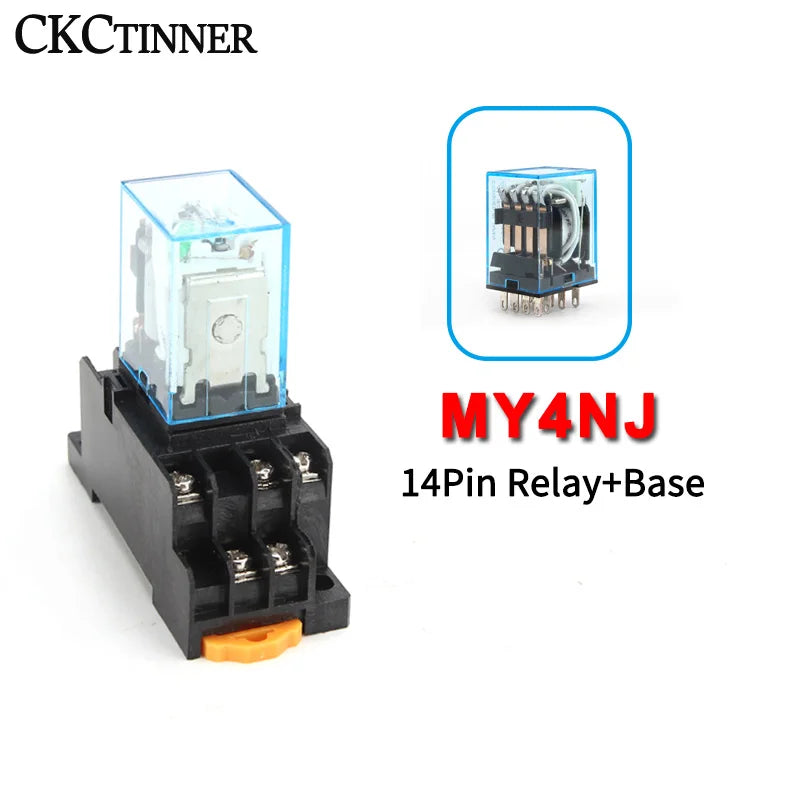

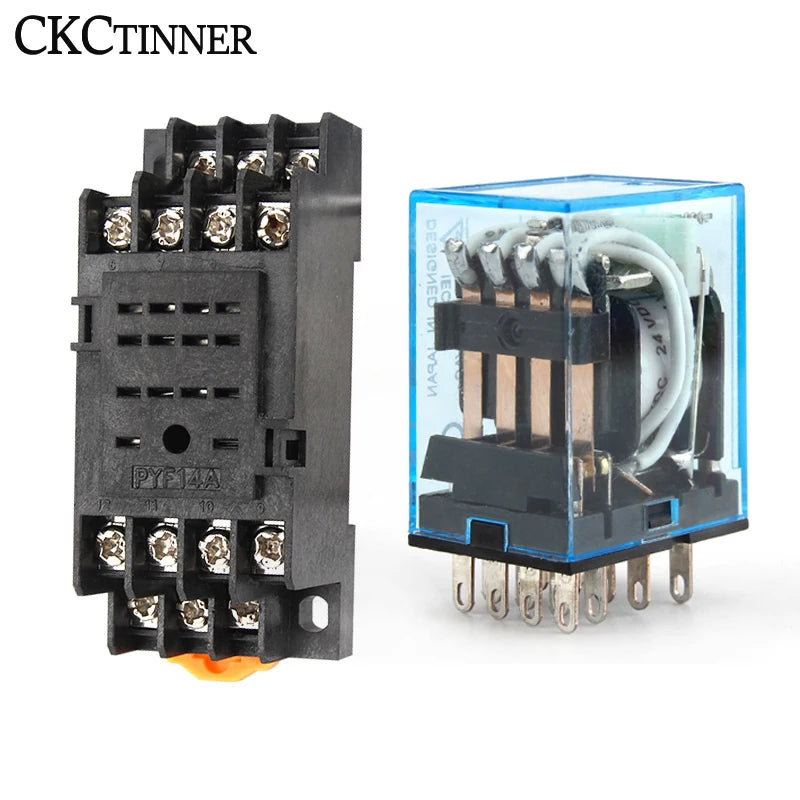

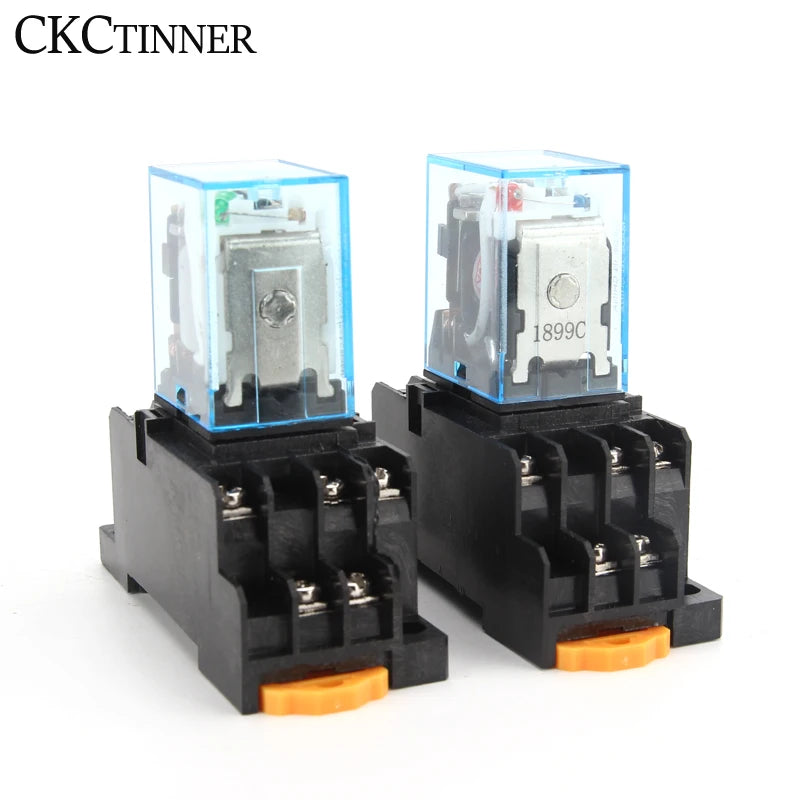

- Included: Relay unit + PYF14A socket base
Why Choose the HH54P Relay?
- Versatile Voltage Compatibility: Supports AC and DC coil voltages from 12V to 380V, making it suitable for a broad range of electrical control applications.
- 4PDT Contact Configuration: Four sets of changeover contacts provide maximum switching flexibility for complex circuit designs.
- LED Status Indicator: Instant visual confirmation of relay activation — no guesswork needed during testing or troubleshooting.
- Sealed Construction: Protected internals extend operational lifespan in dusty or industrial environments.
- Plug-In Socket Base (PYF14A): Simplifies installation and replacement — no soldering required.
- Compact Size: Space-efficient design fits easily into control panels and enclosures.
Typical Applications
- Industrial automation and PLC control panels
- HVAC and building management systems
- Motor control and protection circuits
- Signal switching and sequencing
- DIY electronics and prototyping projects
Made in Mainland China.
