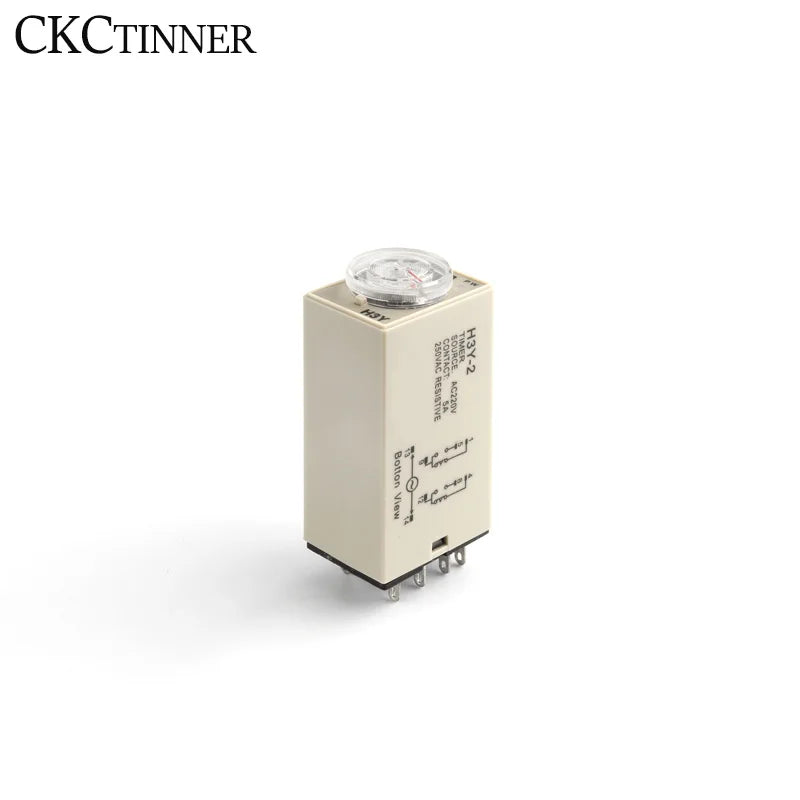

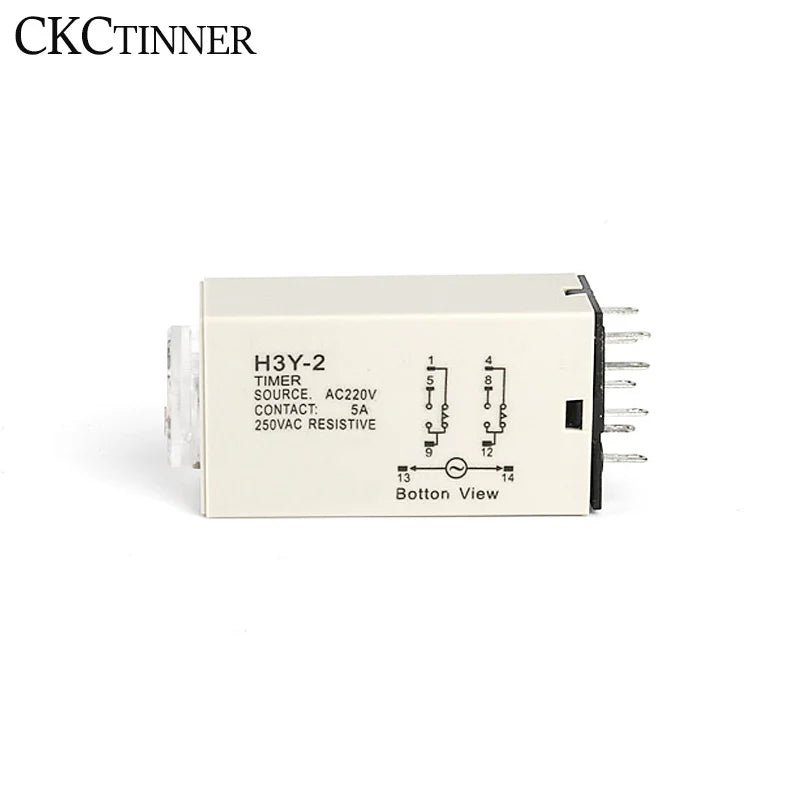

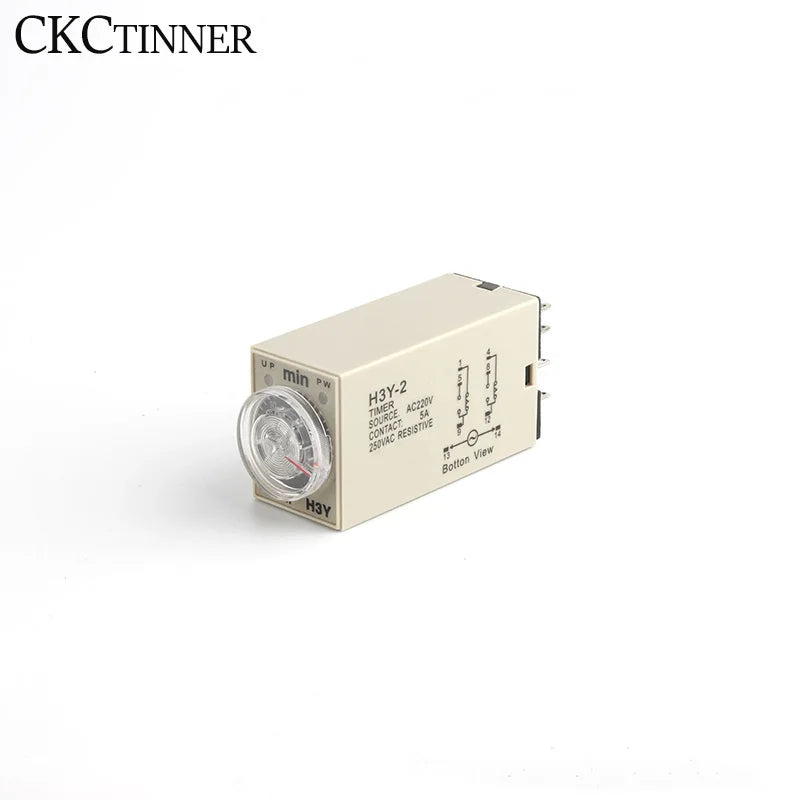

H3Y-2 AC220V Time Delay Relay Timer with 8-Pin Base Socket
H3Y-2 AC220V Time Delay Relay Timer with 8-Pin Base Socket
H3Y-2 AC220V Time Delay Relay Timer with Base Socket
The H3Y-2 Time Delay Relay is a versatile and reliable timing solution for industrial control panels, automation systems, and general-purpose electrical circuits. With a simple rotary knob, you can select precise delay intervals — making setup fast and intuitive. Whether you're automating machinery, sequencing equipment, or controlling timed switching operations, this relay delivers consistent performance you can count on.
Made in Mainland China.
Key Features

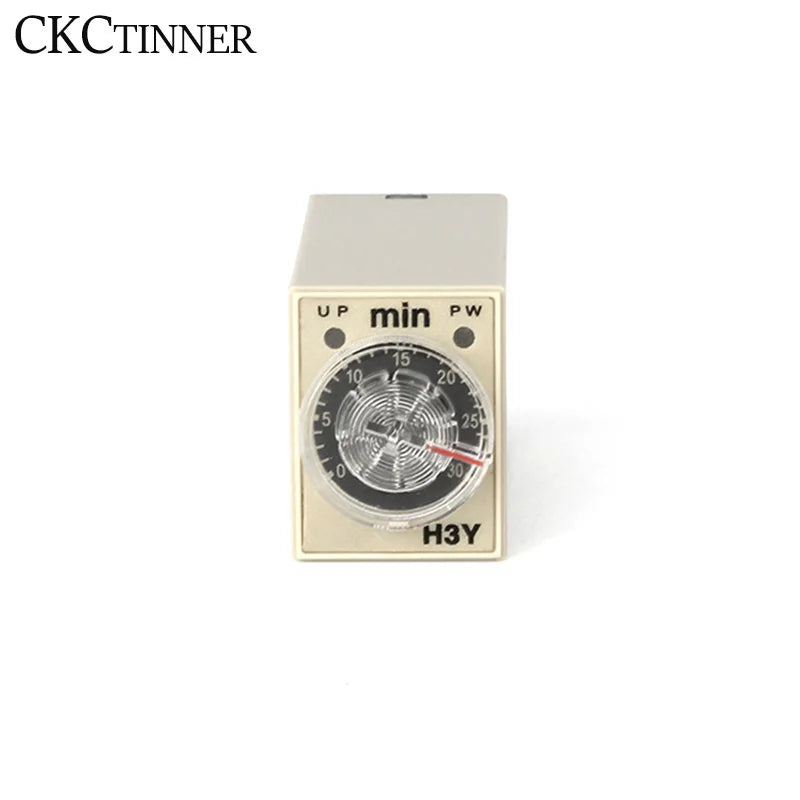

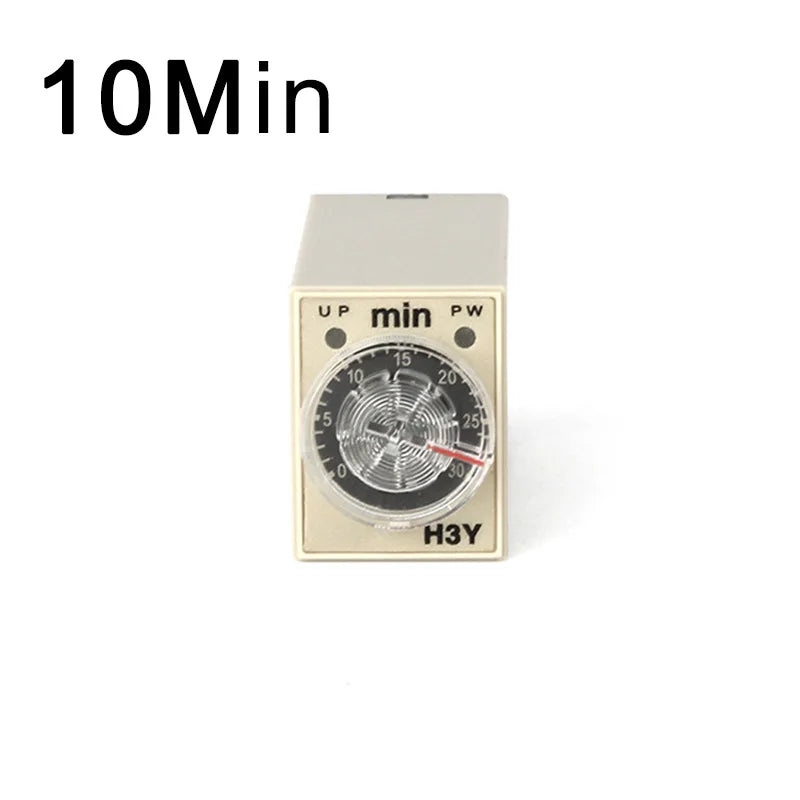

- Multiple Time Ranges: Choose from 5, 10, 30, or 60 seconds or minutes — selectable via rotary knob for flexible timing control
- AC 220V Operation: Designed for standard industrial AC220V power supplies
- 5A Contact Load: Rated at 250V/5A for dependable switching of a wide range of loads

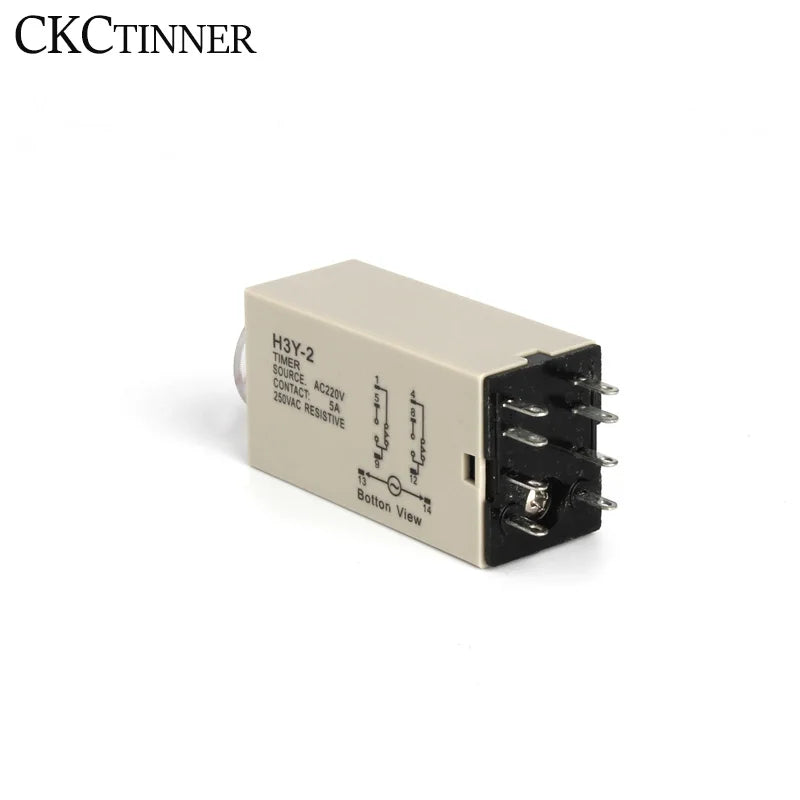

- 8-Pin Design: Fits the included matching H3Y-2 relay base socket for easy panel installation and replacement
- Sealed Construction: Sealed housing protects internal components from dust and interference
- High Withstand Voltage: Rated up to AC 1.5KV for added circuit protection
- Compact Size: 21 × 28 × 53 mm — fits neatly into standard DIN rail enclosures
Specifications
| Model | H3Y-2 |
| Supply Voltage | AC 220V |
| Contact Rating | 250V / 5A |
| Withstand Voltage | AC 1.5KV |
| Pins | 8 |
| Dimensions | 21 × 28 × 53 mm |
| Protection | Sealed |
| Country of Origin | Mainland China |
What's in the Box
- 1 × H3Y-2 Delay Timer Time Relay

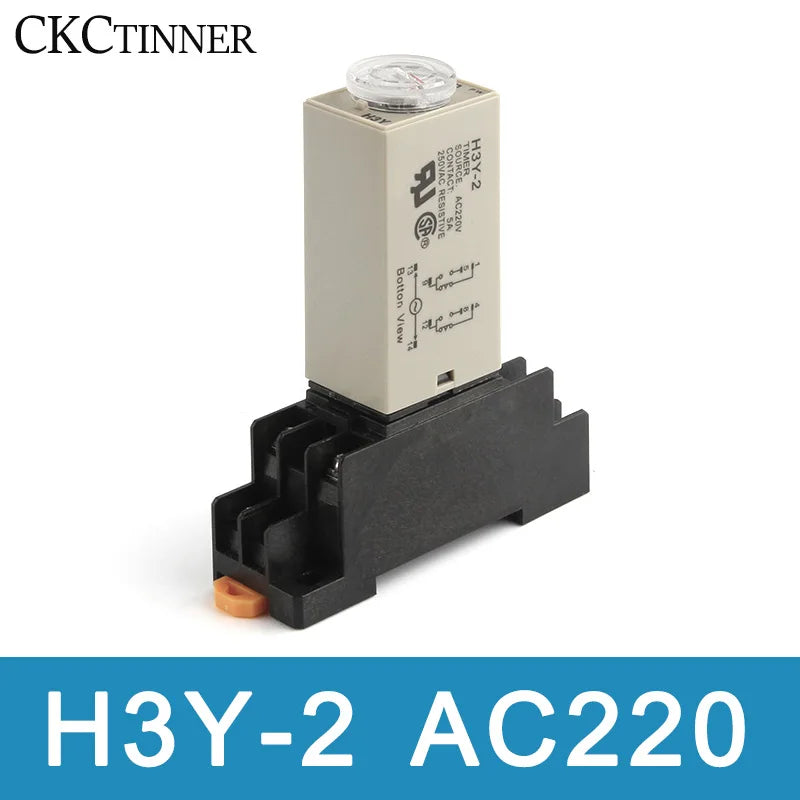

- 1 × H3Y-2 Relay Base Socket (8-pin)
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What time delay ranges are available on the H3Y-2 relay?
A: The H3Y-2 time delay relay supports multiple selectable ranges — 5, 10, 30, and 60 — in either seconds or minutes, depending on the variant ordered. The rotary knob makes it easy to dial in your exact timing requirement without any additional tools or programming.
Q: Does this relay come with a base socket?
A: Yes! Each set includes one H3Y-2 delay timer relay and one matching 8-pin relay base socket, so you have everything you need to mount and wire the relay directly into your control panel or automation system.
Q: What type of circuits is this relay suitable for?
A: The H3Y-2 is a general-purpose time delay relay designed for use with AC 220V circuits. It is commonly used in industrial automation, motor control panels, lighting sequencing, and other applications that require a timed switching operation. Its 5A/250V contact rating makes it compatible with a broad range of standard electrical loads.
