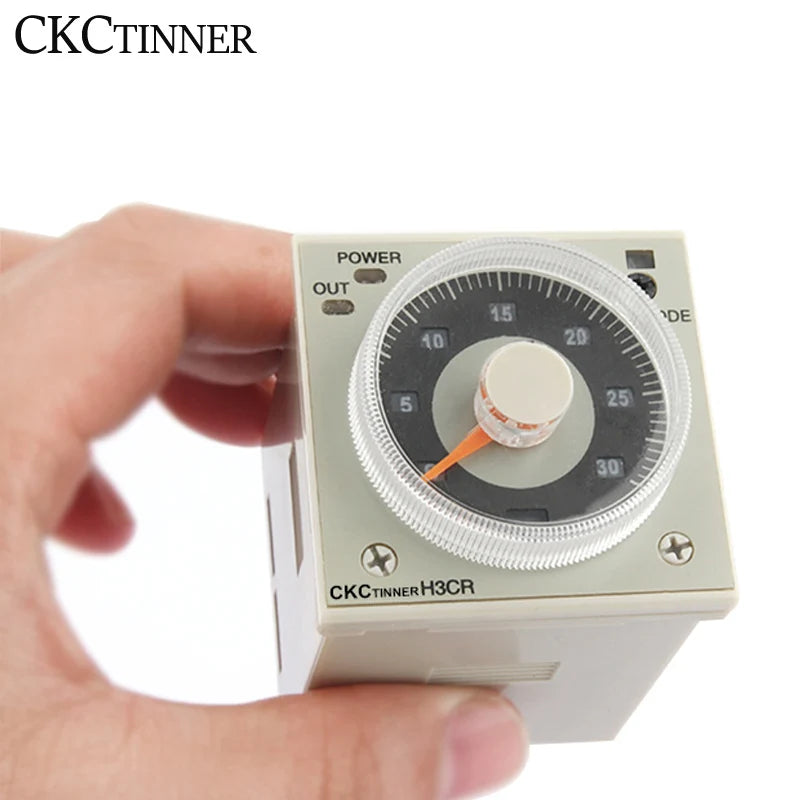

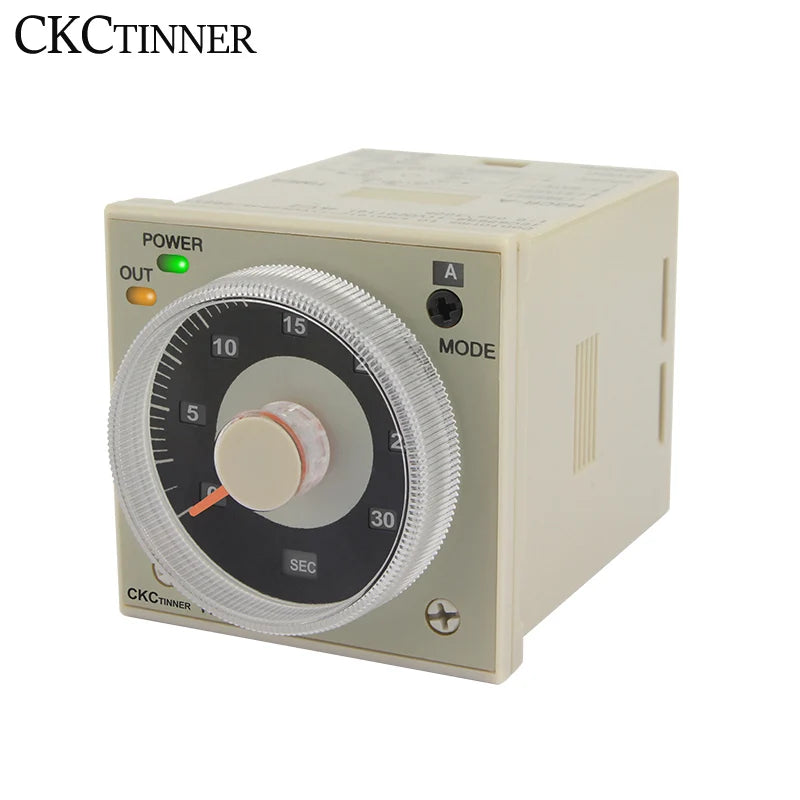

H3CR-A Power-On/Off Cycle Delay Time Relay with PF113A Socket Base
The H3CR-A Time Relay is a versatile, general-purpose cycle timer relay designed for precise power-on and power-off delay control in industrial and commercial automation systems. With a wide input voltage range of AC 100–240V / 24V / 12V at 50/60 Hz, this relay handles a broad range of timing tasks — from a quick 1.2 seconds all the way up to 300 hours — making it ideal for HVAC systems, lighting control, industrial machinery, conveyor systems, and more.
The unit comes complete with a PF113A socket base (11-pin), so installation is straightforward and tool-friendly. Its sealed housing provides extra protection in dusty or demanding environments. CE certified for safety and performance compliance.
Made in Mainland China.
Key Features
- Wide Voltage Compatibility: AC 100–240V, 24V, and 12V input — one relay for multiple applications
- Extensive Timing Range: 1.2 seconds to 300 hours, suitable for short bursts or long-cycle automation
- Power-On & Power-Off Delay Modes: Flexible cycle control for complex automation sequences

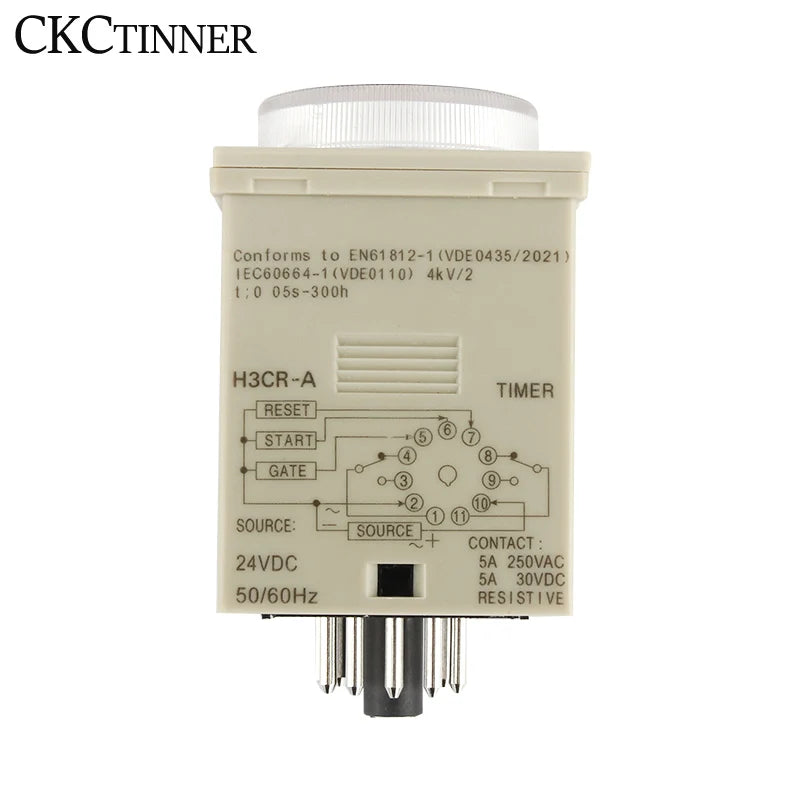

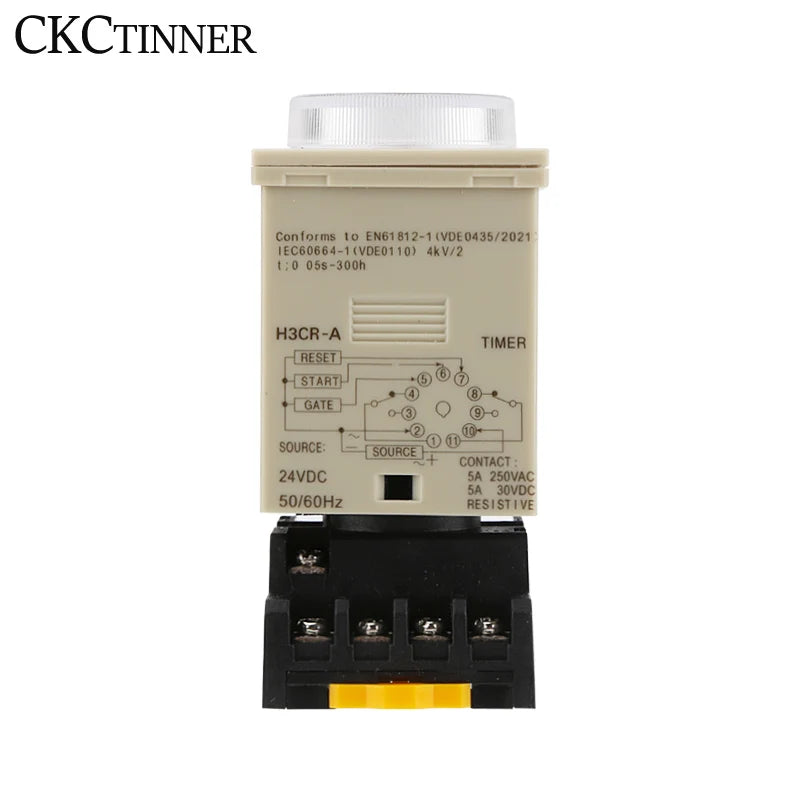

- 11-Pin Configuration: Includes matching PF113A socket base for quick, reliable wiring
- 50/60 Hz Compatible: Works with both standard global power frequencies
- Sealed Enclosure: Protects internal components in industrial environments
- CE Certified: Meets European safety and electromagnetic compatibility standards
- Model: H3CR-A | Brand: CKCTINNER
Specifications
| Model | H3CR-A |
| Input Voltage | AC 100–240V / 24V / 12V |
| Frequency | 50 / 60 Hz |
| Timing Range | 1.2 seconds – 300 hours |
| Contact Load | Low Power |
| Pin Configuration | 11-Pin |

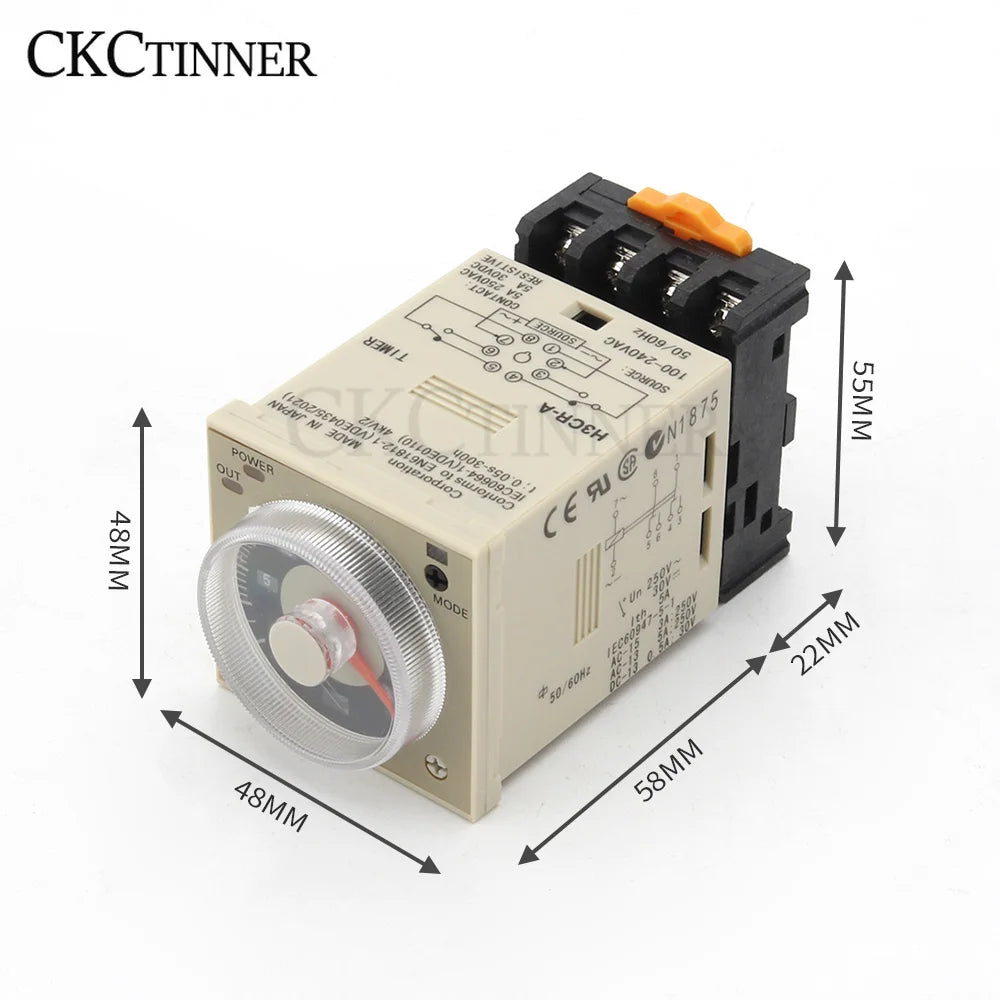

| Socket Base | PF113A (included) |
| Protection | Sealed |
| Certification | CE |
| Origin | Mainland China |
What's in the Box
- 1 × H3CR-A Time Relay

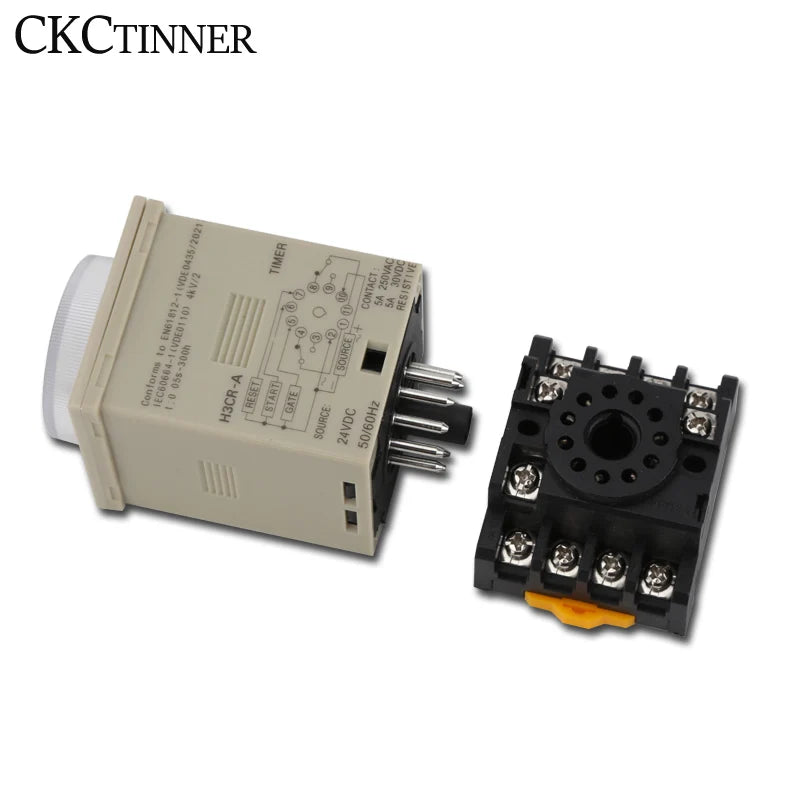

- 1 × PF113A 11-Pin Socket Base
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage inputs does the H3CR-A time relay support?
A: The H3CR-A time relay supports a wide range of input voltages including AC 100–240V, as well as 24V and 12V DC, making it compatible with a variety of industrial and commercial power supplies operating at 50 or 60 Hz.
Q: Does the PF113A socket base come included with the relay?
A: Yes, the PF113A 11-pin socket base is included with your purchase. This makes installation straightforward — simply mount the socket base and plug in the relay without any additional adapter required.
Q: What timing range does the H3CR-A support?
A: The H3CR-A offers an impressive timing range from as short as 1.2 seconds to as long as 300 hours. This makes it suitable for both rapid switching tasks and extended long-cycle automation applications such as HVAC control, lighting timers, and industrial process management.
Q: Is the H3CR-A time relay CE certified?
A: Yes, the H3CR-A is CE certified, confirming it meets European safety, health, and electromagnetic compatibility standards — giving you confidence in its quality and suitability for professional installations.
