Four-Terminal Standard Resistor Calibration Board
Achieve precise, repeatable measurements with this professional-grade four-terminal standard resistor calibration board. Engineered for technicians, engineers, and laboratory professionals, this board delivers reliable ohmmeter calibration across six selectable resistance values — making it an indispensable tool for electrical testing and quality control workflows.
Key Features
- High-Precision Calibration: The four-terminal (Kelvin) connection design eliminates lead resistance errors, ensuring highly accurate ohmmeter calibration and resistance verification.

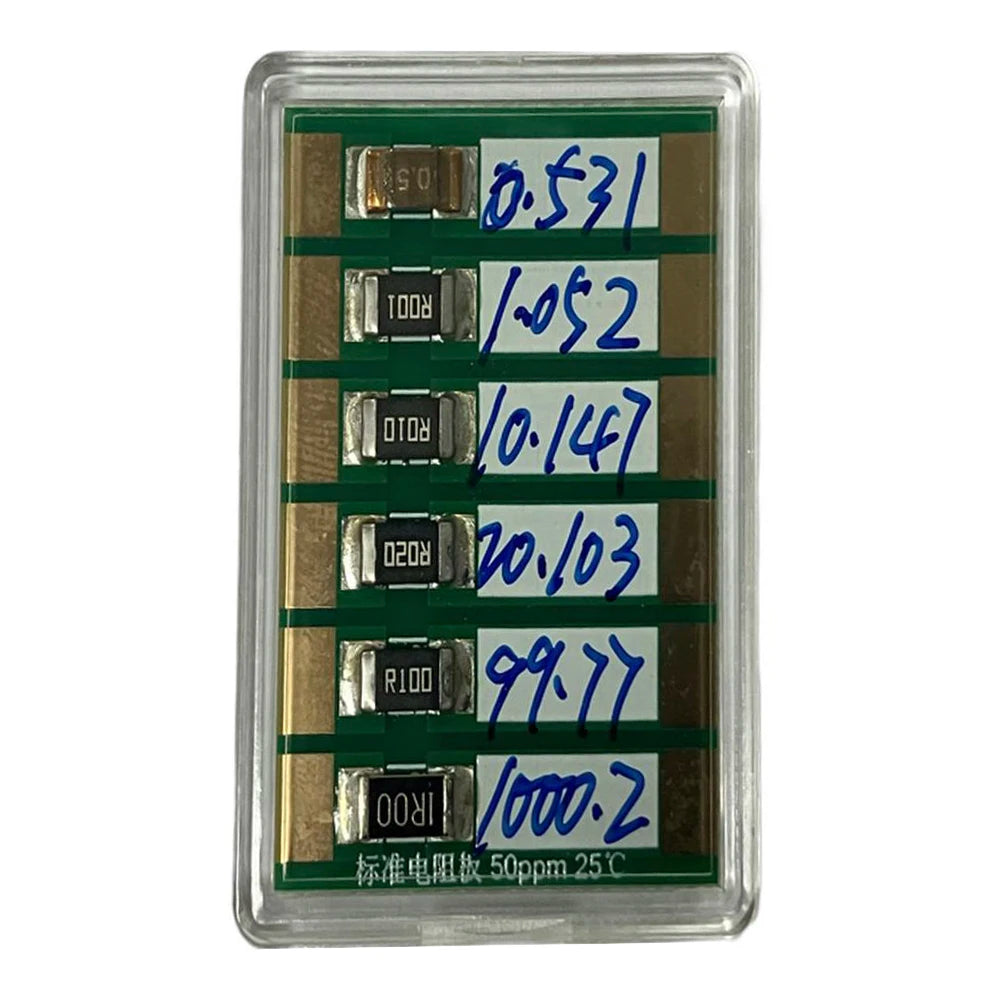

- Six Resistance Values: Choose from 0.5, 1, 10, 20, 100, and 1000 mΩ — each value factory-calibrated with a high-precision instrument to meet demanding testing requirements.

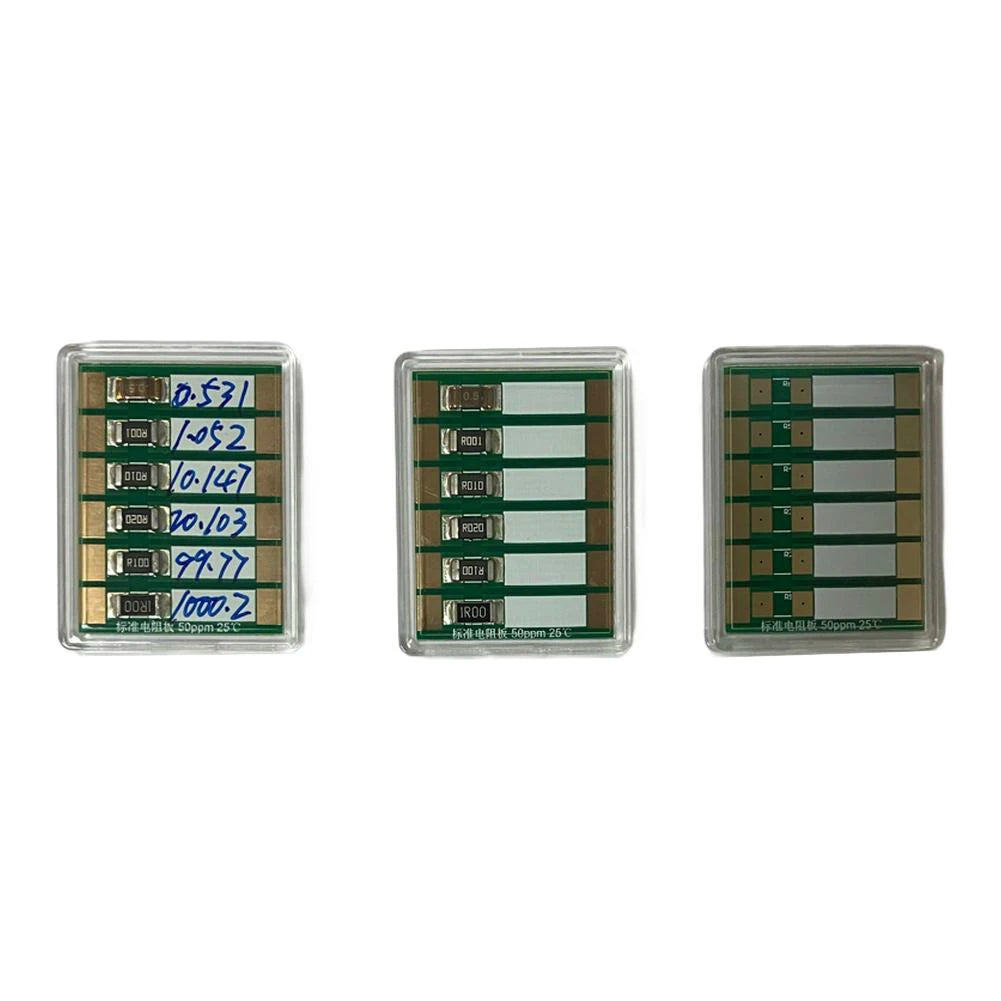

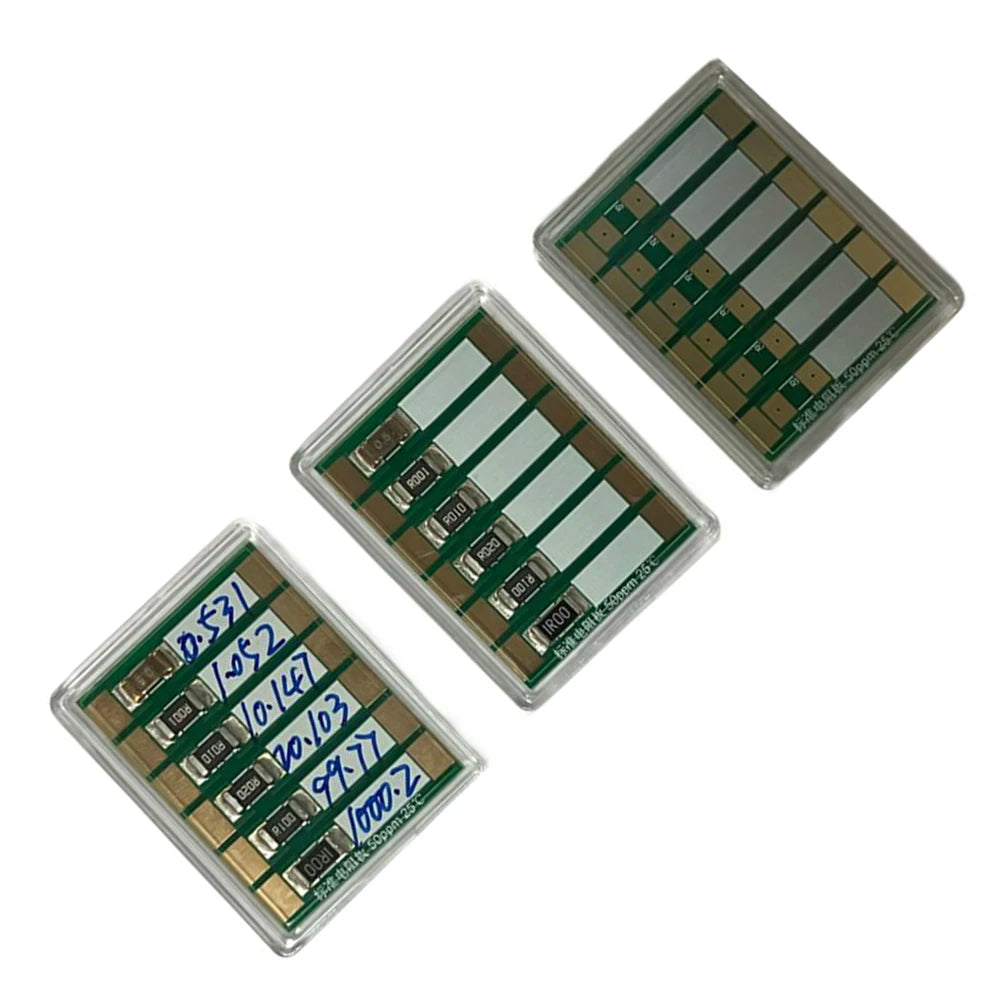

- Three Board Versions Available: Select from Calibrated, Uncalibrated, or Blank versions to match your exact lab or field application needs, providing maximum flexibility for different test procedures.
- Durable ABS Construction: Built from high-quality ABS material in a robust green PCB format, this board is designed for long-term stable performance in both laboratory and field environments.
- Quick & Easy Integration: The straightforward layout allows for rapid setup and seamless integration into existing test procedures — ideal for efficiency-conscious professionals.
Specifications
| Part Name | Four-Terminal Standard Resistor Calibration Board |
| Material | ABS |
| Color | Green |
| Resistance Values | 0.5, 1, 10, 20, 100, 1000 mΩ |
| Types | Calibrated, Uncalibrated, Blank (Optional) |
| Battery Required | No |
| Country of Origin | Made in Mainland China |
Package Contents
- 1× Four-Terminal Standard Resistor Calibration Board
Important Notes
- Due to differences in monitor brightness and lighting conditions, the actual product color may vary slightly from images shown.
- Minor dimensional tolerances may occur due to manual measurement.
Explore More Useful Tools
Looking to round out your toolkit? Check out these related products:
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does a four-terminal (Kelvin) resistor calibration board do?
A: A four-terminal resistor calibration board uses separate current-carrying and voltage-sensing connections to eliminate the effect of lead and contact resistance. This gives you a much more accurate reading when calibrating ohmmeters or verifying low-resistance measurements, making it the preferred method in professional lab and field settings.
Q: What resistance values are included on this calibration board?
A: This board supports six resistance values: 0.5, 1, 10, 20, 100, and 1000 mΩ. Each value is individually calibrated using a high-precision instrument, ensuring reliable and traceable measurement results across a wide range of testing scenarios.
Q: What is the difference between the Calibrated, Uncalibrated, and Blank versions?

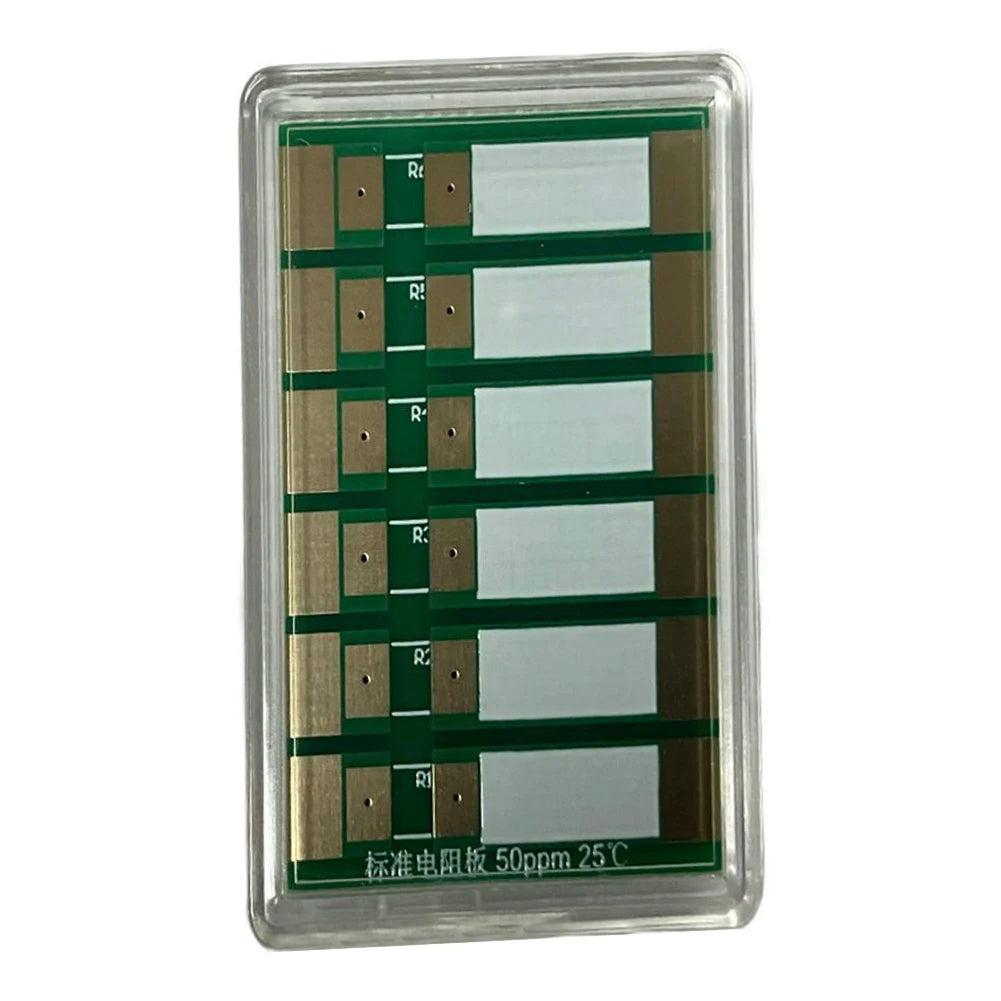

A: The Calibrated version comes with factory-verified resistance values ready for immediate use. The Uncalibrated version is suitable for users who wish to perform their own in-house calibration. The Blank version provides a bare board platform for custom resistance configurations or prototype development.
Q: Is this calibration board compatible with all ohmmeters and resistance meters?
A: Yes — this board is designed as a universal calibration reference for standard ohmmeters, micro-ohmmeters, and insulation resistance meters that accept a four-terminal (Kelvin) connection. It is widely used in electrical testing labs, quality assurance workflows, and field maintenance applications.
