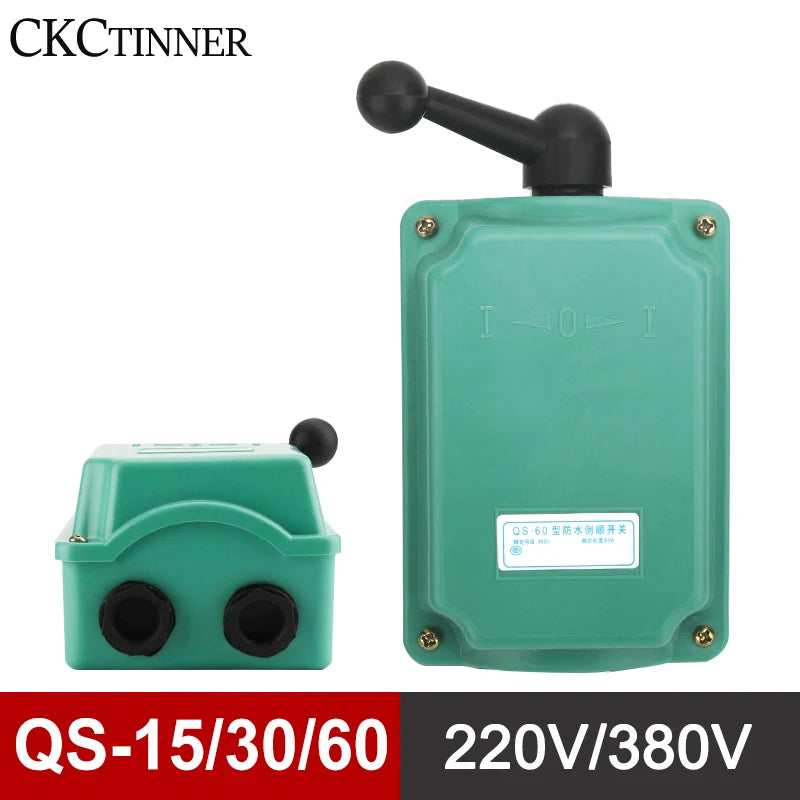

CKCTINNER QS-15/30/60 Forward Stop Reverse Motor Changeover Switch
Take full control of your three-phase motor direction with the CKCTINNER QS-Series Waterproof Changeover Switch. Available in 15A, 30A, and 60A ratings, this robust toggle switch lets you seamlessly switch your motor between forward rotation, stop, and reverse — all from a single, easy-to-operate control point. CE-certified and built for demanding industrial and workshop environments, it's engineered for reliable, long-lasting performance.
Key Features
- Three Positions: Forward / Stop / Reverse — full motor direction control in one switch

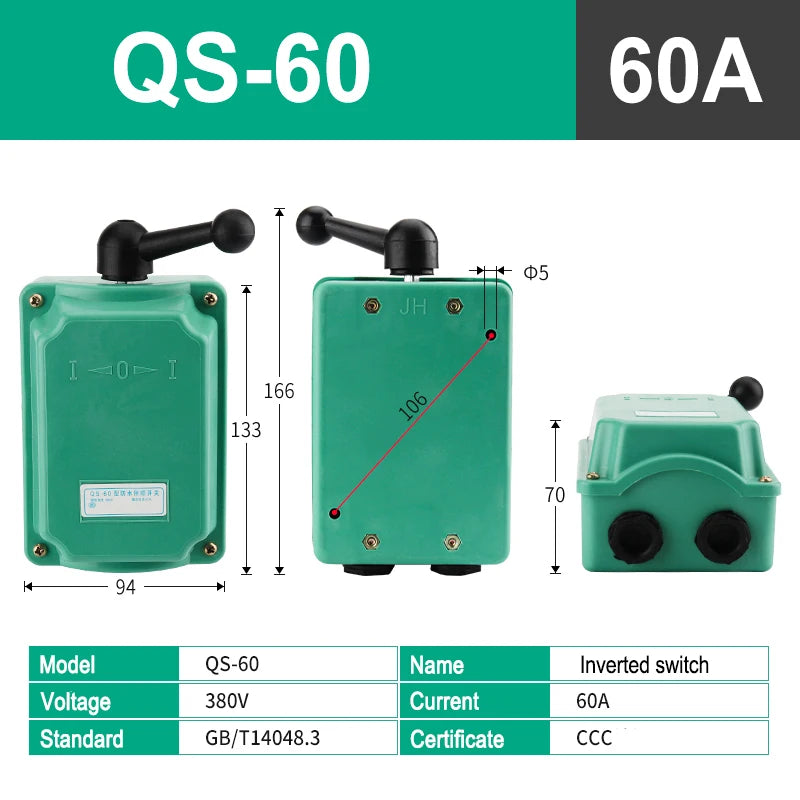

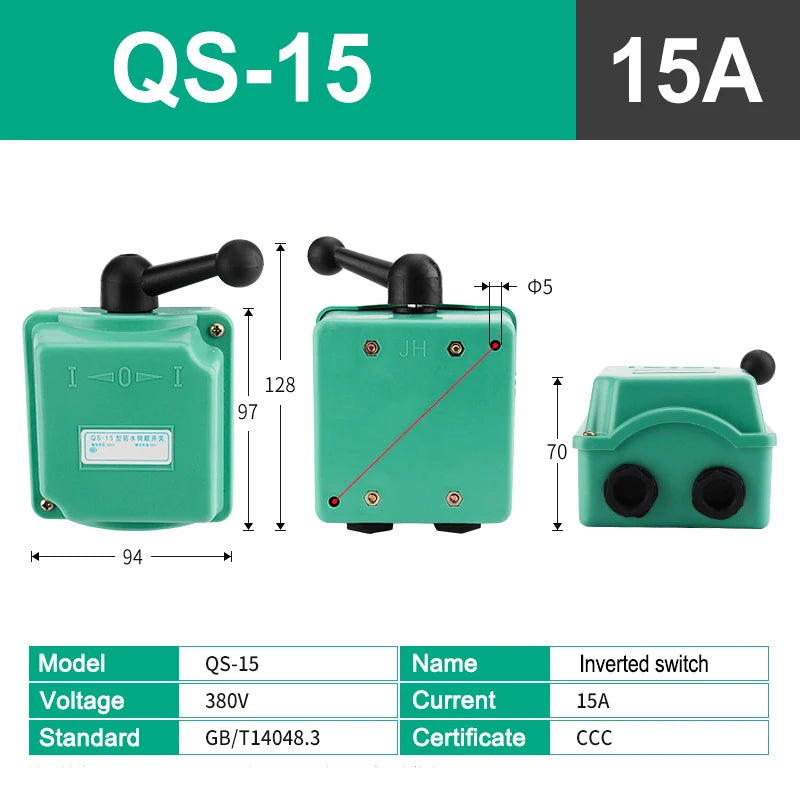

- Multiple Amperage Options: QS-15 (15A), QS-30 (30A), QS-60 (60A) to match your motor requirements
- Voltage Rating: 380V three-phase (also compatible with 220V applications)
- Waterproof Design: Protected housing keeps moisture and dust out for outdoor or industrial use
- CE Certified: Meets European safety and quality standards
- Durable Construction: Sturdy plastic body with steel shell for long service life
- Quick Wiring: Simple terminal layout for fast, straightforward installation
- Toggle Switch Type: Positive tactile feedback for confident operation
- No High-Concern Chemicals: Safe materials — no restricted substances
Technical Specifications
| Brand | CKCTINNER |
| Model Numbers | QS-15 / QS-30 / QS-60 |
| Current Ratings | 15A / 30A / 60A |
| Voltage | 380V (Three-Phase) / 220V |
| Switch Type | Toggle (Forward-Stop-Reverse) |
| Material | Plastic body, Steel shell |
| Certification | CE |
| Operating Temperature | -5°C to +40°C (24-hour average not exceeding +35°C) |
| Max Altitude | Up to 2,000 m |
| Relative Humidity | ≤50% at +40°C (up to 90% at lower temperatures) |
| Country of Origin | Made in China |
Operating Conditions
This switch is designed for environments where the ambient temperature remains between -5°C and +40°C, with a 24-hour average not exceeding +35°C. It is suitable for installations at altitudes up to 2,000 m. For best performance, install in locations free from significant vibration or shock.
Ideal Applications
- Three-phase electric motor direction control
- Industrial machinery and workshop equipment
- Conveyor belt and pump motor control panels
- Agricultural and irrigation equipment
- DIY electrical control projects
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between the QS-15, QS-30, and QS-60 models?
A: The QS-15, QS-30, and QS-60 refer to the maximum current ratings of each switch — 15 amps, 30 amps, and 60 amps respectively. Choose the model that matches or exceeds the rated current of your three-phase motor for safe and reliable operation.
Q: Is this forward stop reverse switch suitable for outdoor or wet environments?
A: Yes. The QS-Series features a waterproof housing designed to resist moisture ingress, making it suitable for both indoor and outdoor installations such as agricultural equipment, pumping stations, or exterior control panels.
Q: Can this changeover switch be used with single-phase 220V motors?
A: This switch is rated for 380V three-phase applications but is also compatible with 220V circuits. Always verify your motor's voltage and current requirements against the switch's rated specifications before installation.
Q: How difficult is it to wire the QS-Series motor switch?
A: The QS-Series is designed for quick wiring with clearly labeled terminals, making installation straightforward for qualified electricians. Always ensure the power supply is fully isolated before beginning any wiring work.
