ERS-07 Alternating Load Controller – 220V AC Dual-Channel Timer Relay

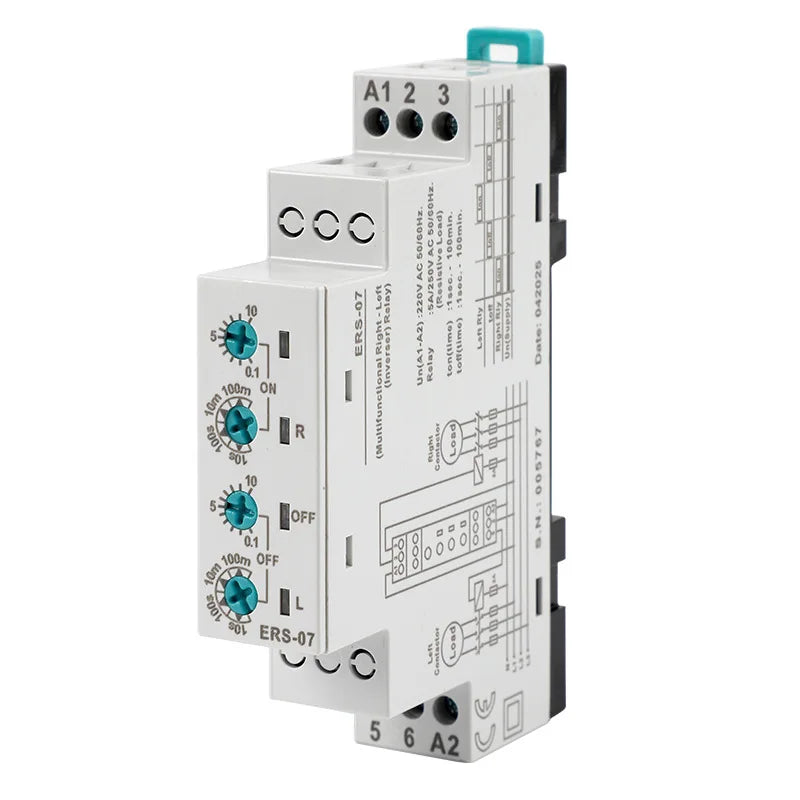

The ERS-07 Alternating Load Controller is a compact, DIN-rail-mounted time relay designed to manage two independent loads with perfectly balanced duty cycles. Ideal for industrial automation, DSP delay switch systems, pump alternation, motor switching, and any application requiring equal ON/OFF cycling between two circuits, this relay delivers reliable performance with intuitive LED state indication.
Key Features
- Dual Load Alternation: Automatically switches between two separate loads — Load 1 runs for the set time, powers off, then Load 2 activates for the same duration, ensuring balanced usage and extended equipment life.
- Adjustable Timing: Flexible ON and OFF time adjustment from 1 second to 100 minutes, making it suitable for a wide range of automation applications.

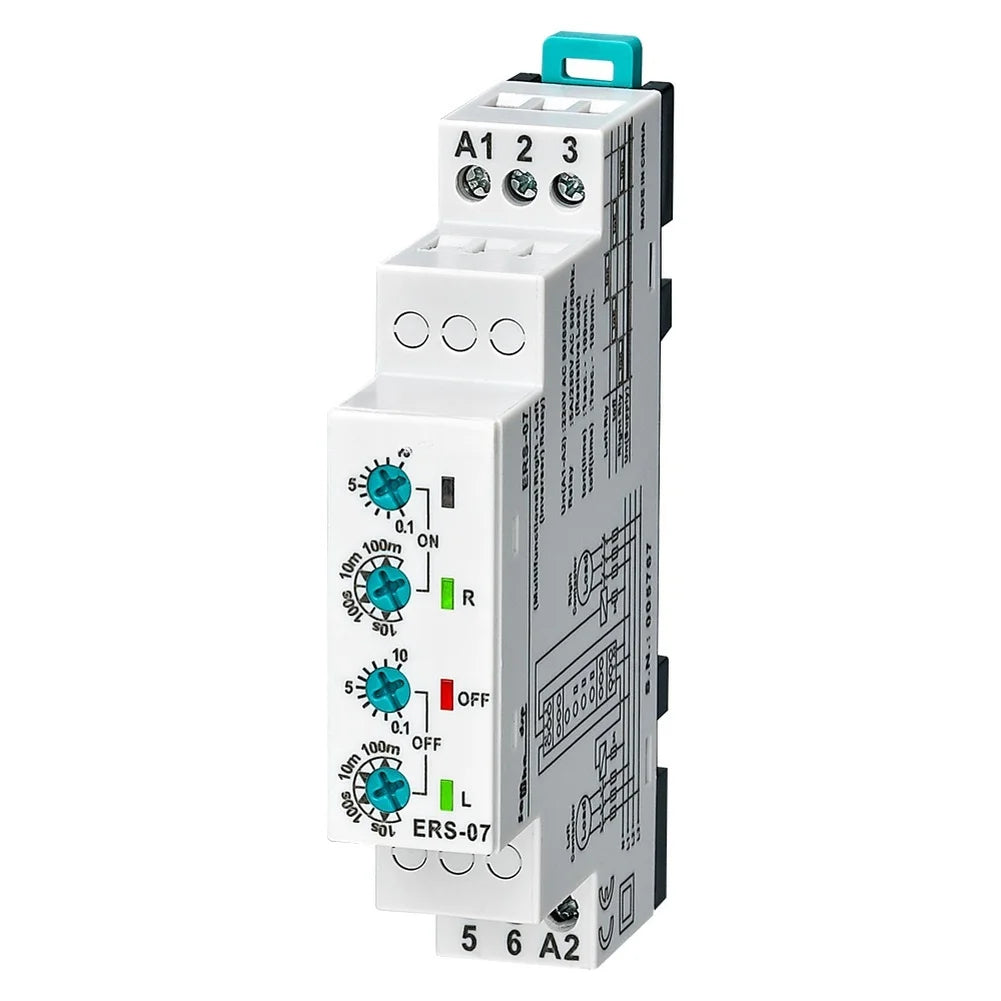

- 3 LED Visual Indicators: Flashing R and L LEDs provide real-time visual monitoring of which load is active and the current switch state — at a glance.

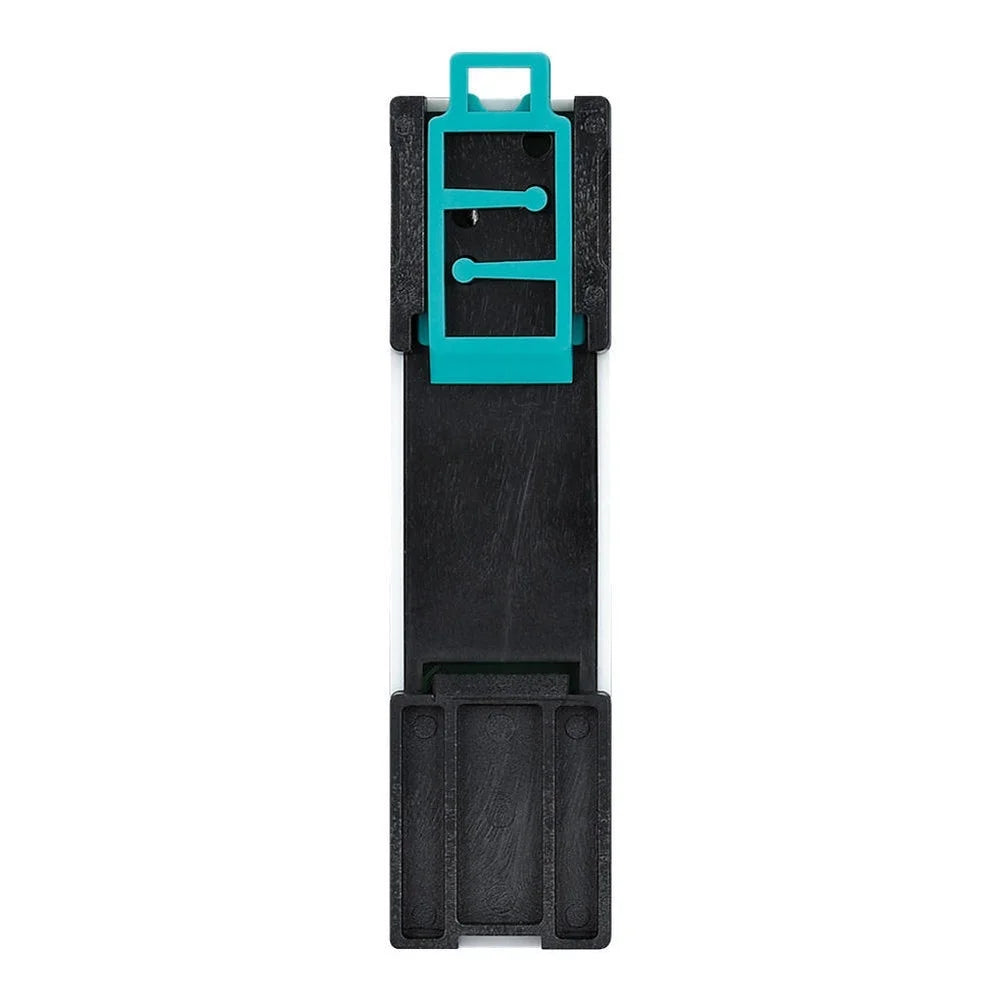

- DIN Rail Mounting: Standard DIN rail mounting for quick, tool-free installation in control panels and distribution boards.
- Built-in Time Relay & Breaker: Integrated safety components ensure secure, stable operation across a broad range of environments.
- Wide Temperature Range: Operates reliably from -20°C to +55°C, suitable for both indoor and light industrial environments.
- Easy Maintenance: Clean ABS housing can be wiped down with a dry swab for long-term, hassle-free reliability.
Technical Specifications
| Model | ERS-07 |
| Working Voltage | 220VAC / 110VAC (A1– to A2) |
| Frequency | 50/60 Hz |
| Operating Power | <5 VA |
| ON / OFF Time Range | 1 second – 100 minutes (each) |
| Contact Rating | 5A / 250V AC (resistive load) |
| Display | 3 LED indicators |
| Connection Type | Terminal connection |
| Mounting | DIN Rail |
| Material | ABS |
| Color | White |
| Dimensions | 90 × 17 mm |
| Weight | <125 g |
| Ingress Protection | IP20 |
| Operating Temperature | -20°C to +55°C |
| Operating Altitude | <2000 m |
| Cable Cross-section | 2.5 mm² |
Package Contents
- 1 × ERS-07 Time Relay / Alternating Load Controller
Made in Mainland China.
Note: Actual product color may vary slightly from images due to monitor brightness and lighting conditions. Please allow minor measurement tolerances.
