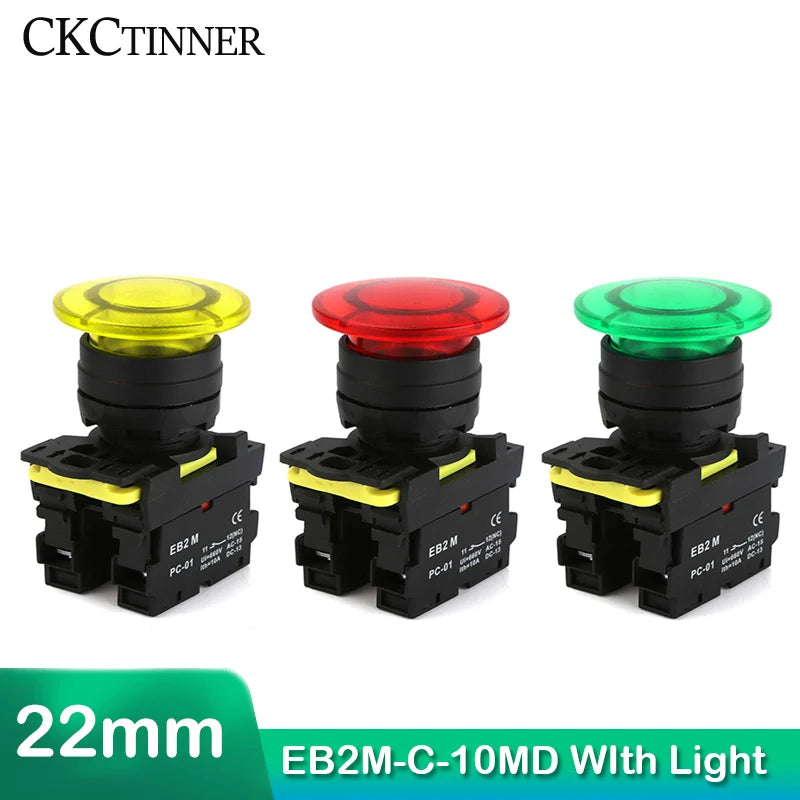

EB2M-C-10MD 22mm Mushroom Head Push Button Switch – 10A, 660V
The EB2M-C-10MD Mushroom Head Push Button Switch is a robust, industrial-grade control switch designed for machinery, automation panels, and electrical control systems. Featuring a 22mm mounting cutout, silver contacts, and a flame-retardant shell, this switch delivers dependable performance in demanding environments. Available in both self-reset and self-locking operation modes, it gives you the flexibility to match the exact control requirement of your application.
Key Features
- Model: EB2M-C-10MD
- Mounting Size: 22mm panel cutout
- Rated Current: 10A
- Insulation Voltage: 660V
- Contact Type: Silver contacts for reliable conductivity
- Shell Material: Flame-retardant plastic for added safety
- Operation Modes: Self-reset (momentary) & self-locking (latching)
- Waterproof Construction: Protects internal components from dust and moisture
- Certification: CE certified
- Made in Mainland China
Specifications
| Brand | CKCTINNER |
| Model Number | EB2M-C-10MD |
| Switch Type | Push Button Switch |
| Opening Size | 22mm |
| Current Rating | 10A |
| Insulation Voltage | 660V |
| Contact Type | Silver Contact |
| Shell Material | Flame Retardant Plastic |
| Operation Type | Self-locking / Self-resetting |
| Certification | CE |
What Is It Used For?
This mushroom head push button switch is ideal for use in industrial control panels, CNC machines, conveyor systems, manufacturing equipment, and electrical enclosures. Its oversized mushroom-shaped actuator makes it easy to operate quickly and decisively — a trusted choice for machine operators and electrical engineers alike.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the difference between self-reset and self-locking modes on this push button switch?
A: In self-reset (momentary) mode, the switch returns to its original position as soon as you release the button. In self-locking (latching) mode, the button stays pressed in after activation and must be deliberately released or rotated to return to its original position. The EB2M-C-10MD supports both operation types, making it versatile for a range of industrial control applications.
Q: Is this 22mm mushroom head push button switch suitable for outdoor or wet environments?
A: Yes. The EB2M-C-10MD features a waterproof design that protects its internal silver contacts and flame-retardant shell from dust and moisture ingress, making it suitable for use in workshops, outdoor panels, and environments where exposure to water or debris is possible.
Q: What panel cutout size is required to install this push button switch?
A: This switch requires a standard 22mm panel cutout for installation, which is one of the most common industrial mounting sizes. It fits directly into most standard control enclosures and switchboards designed for 22mm components.
Q: Is the EB2M-C-10MD CE certified?
A: Yes, this push button switch is CE certified, confirming it meets European safety and electromagnetic compatibility standards, giving you added confidence in its quality and compliance for professional electrical installations.
