E5C4 Digital Temperature Controller 0-399°C K Type/PT100 220V

Q: What sensor types are compatible with the E5C4 temperature controller?

The E5C4 thermostat supports both K Type thermocouples and PT100 RTD sensors. K Type sensors are commonly used for higher-temperature industrial applications, while PT100 RTDs offer slightly higher precision at lower temperature ranges. Choose the model variant that matches your existing sensor infrastructure.

Q: What is the maximum temperature range this controller can handle?

The E5C4 model covers a measurement and control range of 0–399°C. The E5C2 variant extends this range up to 0–999°C. Both models feature the same dial-code adjustment method and LCD digital display, making them easy to configure for your specific process temperature requirements.

Q: How do I install the E5C4 thermostat into my panel?

The controller is designed for standard 45×45mm panel cutout mounting. Simply cut the appropriate opening in your enclosure, slide the unit in from the front, and secure it with the included socket base at the rear. The relay output connects directly to your heating or cooling element. No advanced tools are required for a standard installation.

Q: Is this controller suitable for home use or is it industrial only?

While the E5C4 is primarily designed for industrial and workshop applications — including food ovens, greenhouses, fermentation chambers, and plastic machinery — it can also be used in well-ventilated home workshop or hobbyist setups where a 220VAC power supply is available. Always ensure proper electrical safety precautions are followed during installation.

E5C4 Digital Temperature Controller 0-399°C K Type/PT100 220V

$41.81 $51.68

Color E5C2 K 399 E5C4 K 999 E5C4 PT100 399 E5C4 K 399

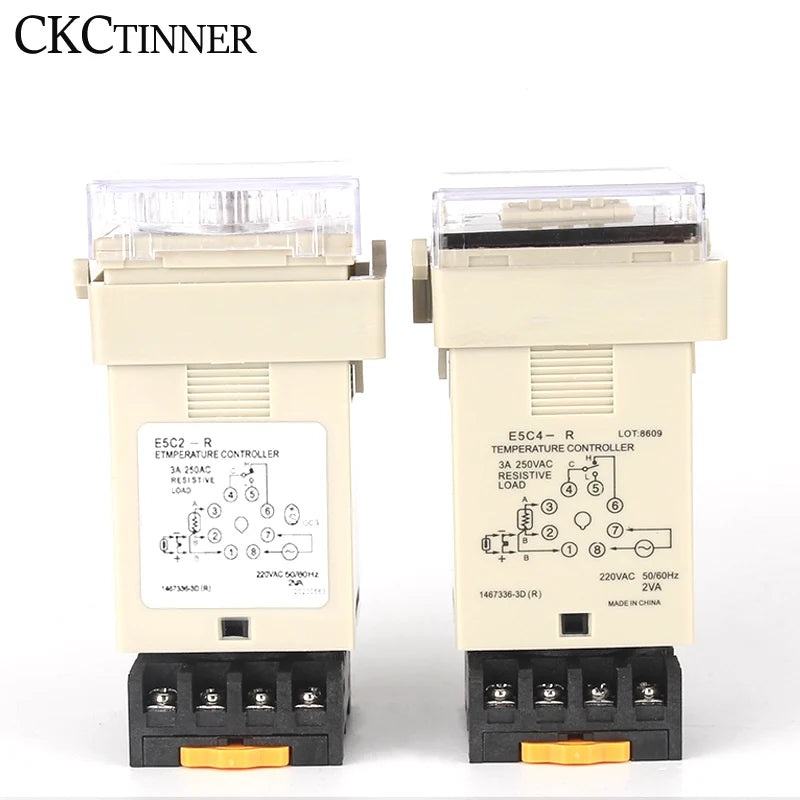

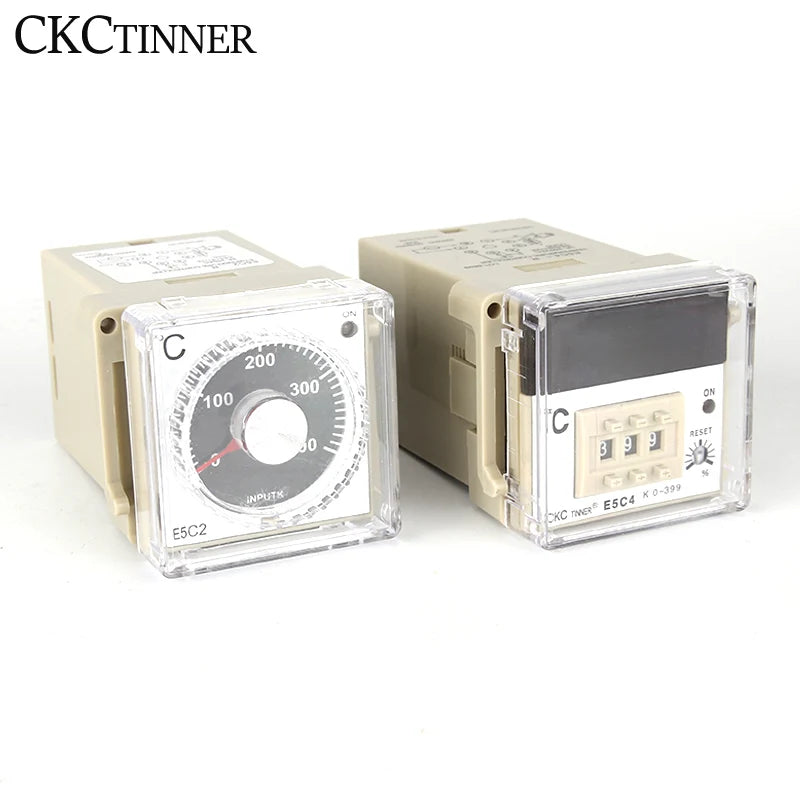

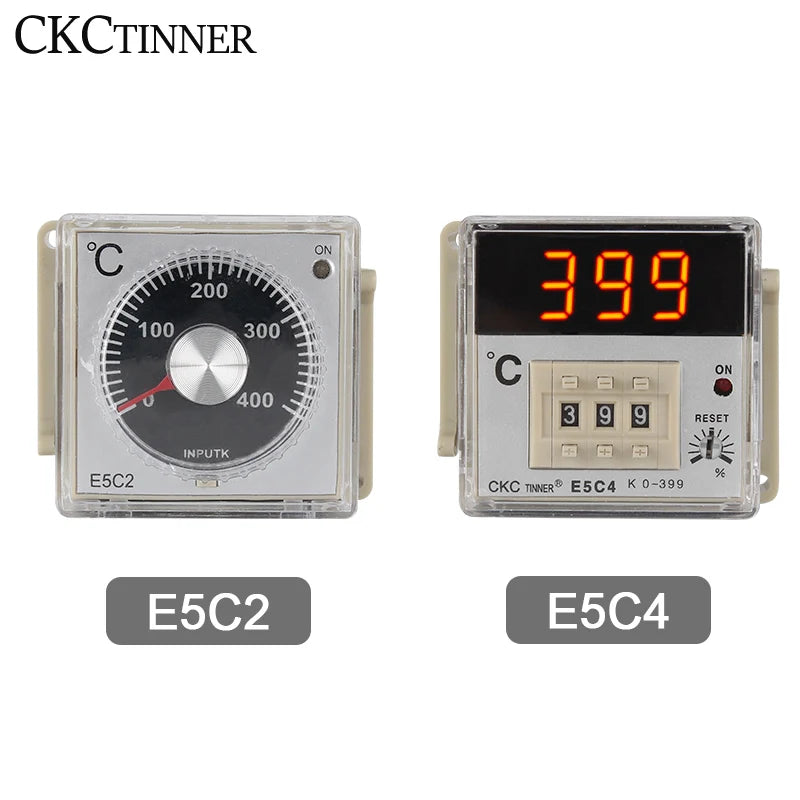

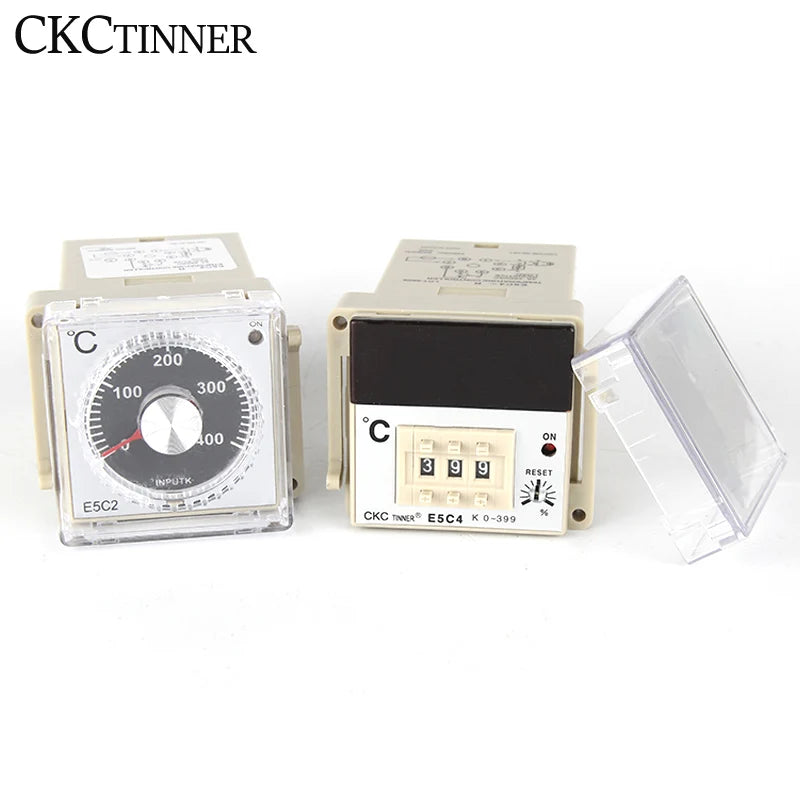

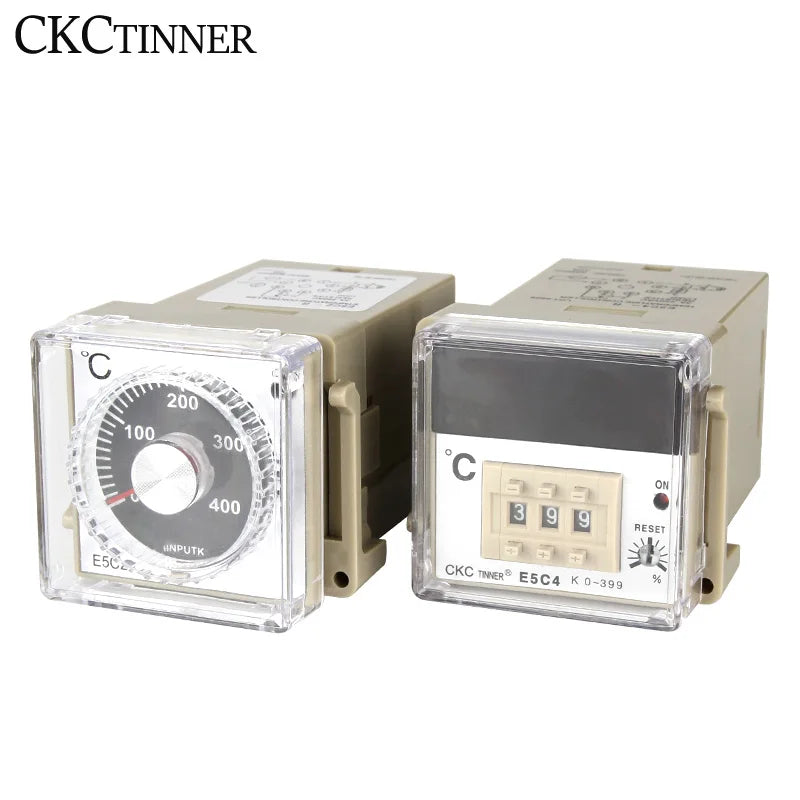

E5C4 Digital Display Temperature Controller – K Type / PT100 with Socket, 220V

Take precise control of your heating and cooling processes with the E5C4 Digital Pointer Knob Temperature Controller. Featuring an easy-to-read LCD digital display and a simple dial-code adjustment method, this CE-certified thermostat is engineered for reliable performance across a wide range of industrial and workshop applications. Compatible with both K Type and PT100 sensor inputs, it covers a measurement range of 0–399°C, making it a versatile choice for laboratories, food ovens, plastic machinery, fermentation chambers, vegetable greenhouses, and more.

Made in Mainland China.

Key Features

Clear LCD Digital Display: Large-format readout lets you monitor temperature at a glance, even in busy workshop environments.
High Accuracy & Stability: Measurement accuracy of ±1.0°C ensures dependable, consistent readings for precision processes.
Wide Temperature Range: Controls temperatures from 0°C to 399°C, suitable for chemical, textile, metallurgy, food processing, rubber vulcanization, and more.
Dual Sensor Compatibility: Accepts K Type thermocouple or PT100 RTD inputs — choose the configuration that suits your setup.
Large-Scale Integrated Circuit: Delivers excellent seismic resistance, high reliability, and long service life.
Simple Installation: Compact 48×48mm panel-mount body with included socket base for quick, tool-minimal setup.
Relay Output: Drives heating or cooling elements directly via relay switching for true automatic control.
Low Power Consumption: Operates at less than 3W on a standard 220VAC / 50–60Hz supply.
CE Certified: Meets safety and electromagnetic compatibility standards.

Specifications

Model	E5C4-R20K
Input Type	K Type Thermocouple / PT100 RTD
Output	Relay
Power Supply	220VAC, 50/60Hz
Temperature Range	0–399°C
Adjustment Method	Dial / Pointer Knob
Measurement Accuracy	±1.0°C
Power Consumption	<3W
Panel Cutout Size	45×45mm (1.8×1.8 in)
Dimensions	48×48×110mm (1.9×1.9×4.3 in)
Material	Plastic
Certification	CE
Country of Origin	Mainland China

Package Contents

1 × E5C4 Temperature Controller

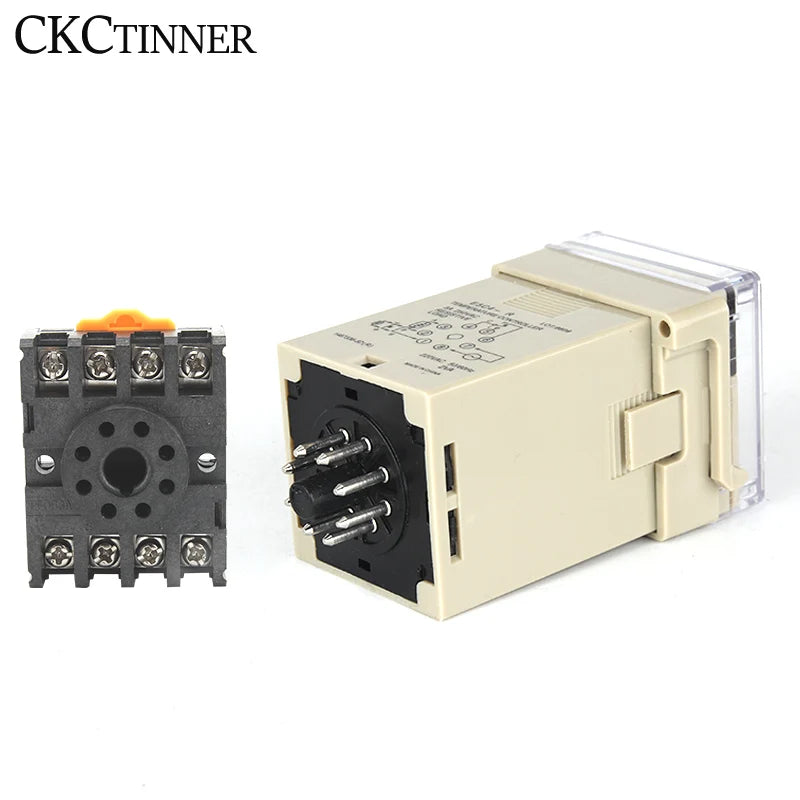

1 × Socket Base

Ideal Applications

This thermostat is widely used in chemical processing, light industry, textile manufacturing, metallurgy, laboratory environments, mushroom cultivation, vegetable greenhouses, aquaculture, plastic machinery, food ovens, refrigeration systems, garment shaping, heat treatment, fermentation, sugar production, and rubber vulcanization.

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What sensor types are compatible with the E5C4 temperature controller?

A: The E5C4 thermostat supports both K Type thermocouples and PT100 RTD sensors. K Type sensors are commonly used for higher-temperature industrial applications, while PT100 RTDs offer slightly higher precision at lower temperature ranges. Choose the model variant that matches your existing sensor infrastructure.

Q: What is the maximum temperature range this controller can handle?

A: The E5C4 model covers a measurement and control range of 0–399°C. The E5C2 variant extends this range up to 0–999°C. Both models feature the same dial-code adjustment method and LCD digital display, making them easy to configure for your specific process temperature requirements.

Q: How do I install the E5C4 thermostat into my panel?

A: The controller is designed for standard 45×45mm panel cutout mounting. Simply cut the appropriate opening in your enclosure, slide the unit in from the front, and secure it with the included socket base at the rear. The relay output connects directly to your heating or cooling element. No advanced tools are required for a standard installation.

Q: Is this controller suitable for home use or is it industrial only?

A: While the E5C4 is primarily designed for industrial and workshop applications — including food ovens, greenhouses, fermentation chambers, and plastic machinery — it can also be used in well-ventilated home workshop or hobbyist setups where a 220VAC power supply is available. Always ensure proper electrical safety precautions are followed during installation.
