E3Z-D62 Infrared Diffuse Photoelectric Switch Sensor DC12-24V
E3Z-D62 Infrared Diffuse Photoelectric Switch Sensor DC12-24V
E3Z Series Infrared Diffuse Reflection Photoelectric Switch Sensor
Upgrade your automation setup with this high-performance E3Z-D61 / E3Z-D62 / E3Z-D81 / E3Z-D82 Infrared Diffuse Reflection Photoelectric Switch Sensor. Designed for reliable, non-contact object detection in industrial and DIY applications, this compact sensor delivers lightning-fast response times and robust circuit protection — all in a durable ABS housing. Made in Mainland China.
Key Features
- Diffuse Reflection Technology: Detects objects without requiring a separate reflector — emitter and receiver are housed in a single unit for easy installation.
- Infrared Light Source (950 nm): Uses infrared luminescence for accurate, interference-resistant detection of non-fully-transparent objects 1 mm and above (e.g. colorless glass).

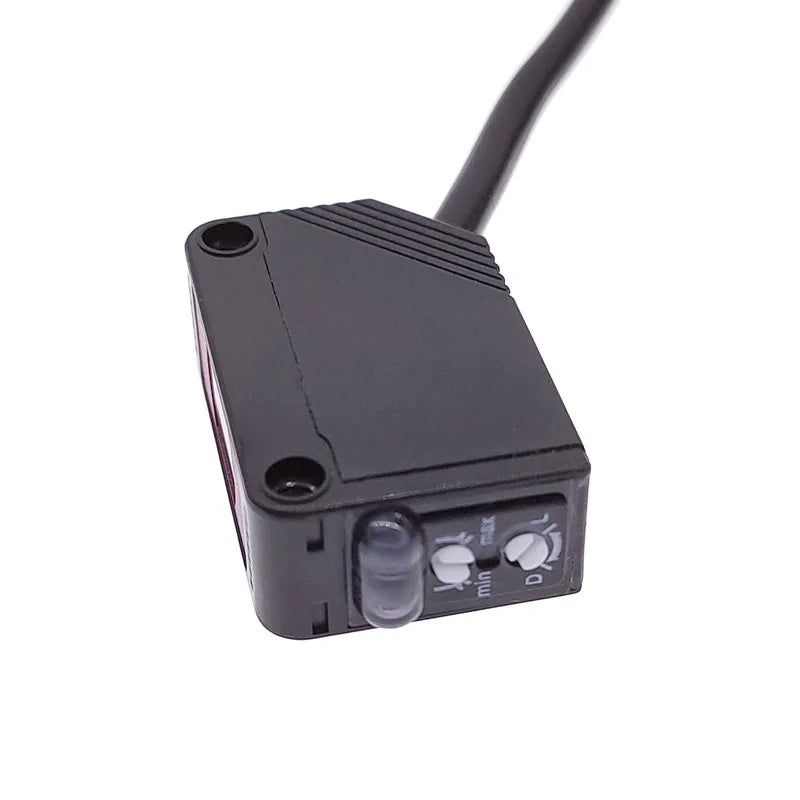

- Switchable Output Mode: Toggle between "L" (normally open) and "D" (normally closed) action status to suit your circuit requirements.
- Fast Response Time: Reacts in under 2 ms for real-time object detection in high-speed applications.
- Comprehensive Circuit Protection: Built-in reverse connection protection, open circuit protection, and surge protection safeguard your equipment.
- Long Service Life: Rated for up to 2 million operations, built to withstand demanding environments.
- Includes Mounting Bracket: Ready-to-install — bracket included for flexible positioning and secure mounting.
Technical Specifications
| Model Numbers | E3Z-D61, E3Z-D62, E3Z-D81, E3Z-D82 |
| Operating Voltage | DC 12–24V |
| Output Current | 300 mA |
| Reflection Type | Diffuse Reflection |
| Light Source | Infrared (950 nm wavelength) |
| Detection Distance | Non-fully-transparent objects ≥1 mm (e.g. colorless glass) |
| Response Time | <2 ms |
| Insulation Resistance | >20 MΩ |
| Cable Length | 2 m |
| Shell Material | ABS Plastic |
| Cable Material | PVC |
| Certification | CCC |
| Warranty | 1 Year |
| Country of Origin | Made in Mainland China |

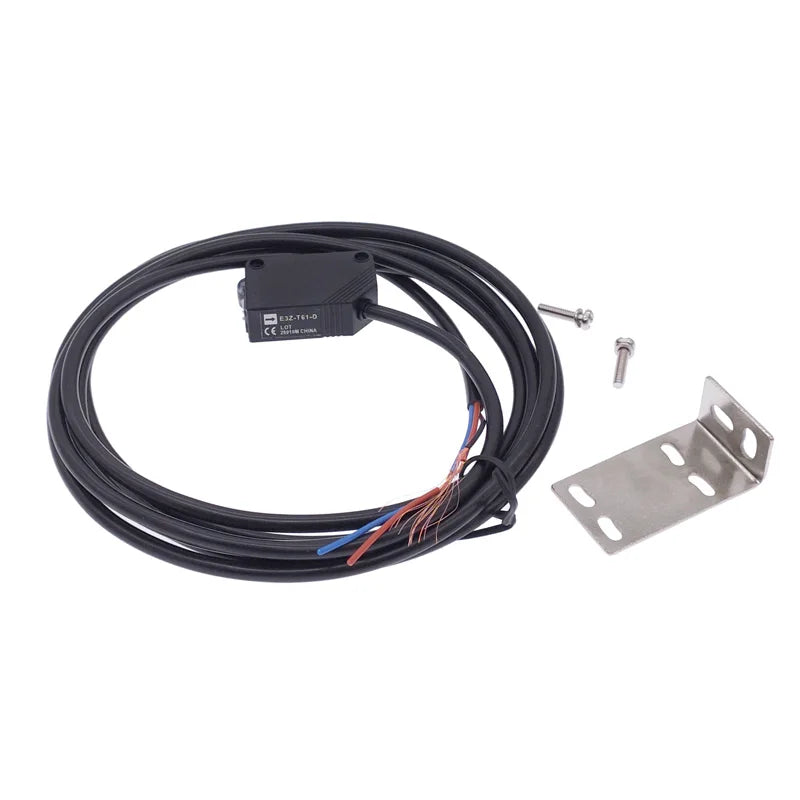

What's in the Box?
- 1 × E3Z Series Photoelectric Switch Sensor (model of your choice)
- 1 × Mounting Bracket
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between E3Z-D61, E3Z-D62, E3Z-D81, and E3Z-D82 models?

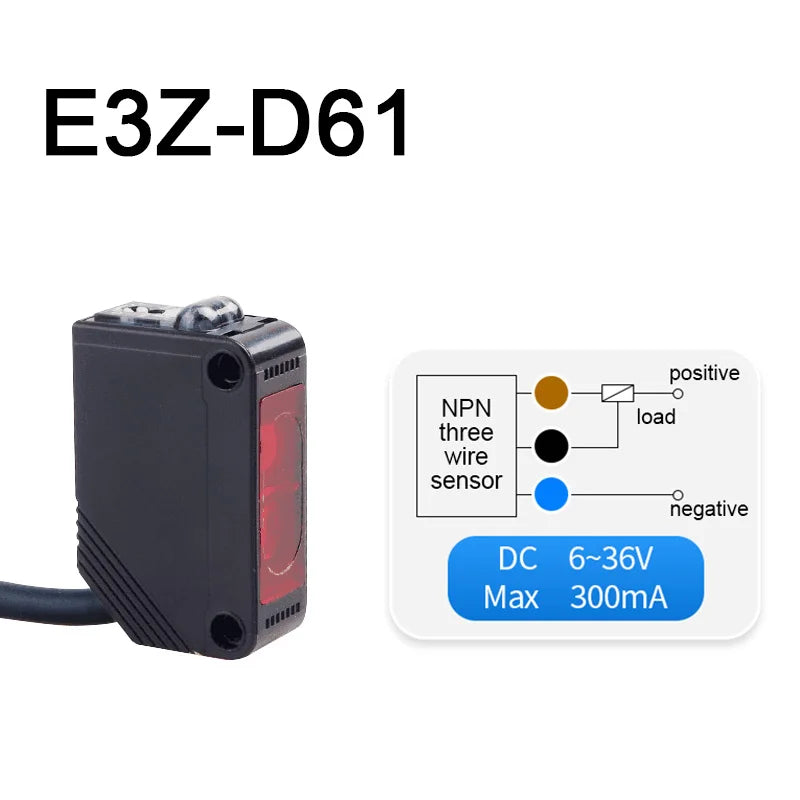

A: The E3Z-D61 and E3Z-D62 are standard diffuse reflection photoelectric sensors, while the E3Z-D81 and E3Z-D82 are designed for detecting transparent or near-transparent objects. The "1" suffix typically denotes NPN output and the "2" suffix denotes PNP output — make sure to select the model that matches your controller's input type.
Q: What voltage does this photoelectric switch sensor require?
A: This E3Z series infrared photoelectric switch operates on DC 12–24V, making it compatible with a wide range of industrial PLCs, microcontrollers, and automation systems.
Q: Can this sensor detect transparent objects like glass?
A: Yes. The diffuse reflection photoelectric switch sensor is specifically designed to detect non-fully-transparent objects 1 mm thick or greater, including colorless glass, making it suitable for transparent material detection tasks.
Q: Is the mounting bracket included in the package?
A: Yes, a mounting bracket is included with your purchase, allowing for quick and flexible installation in your application without needing additional hardware.
