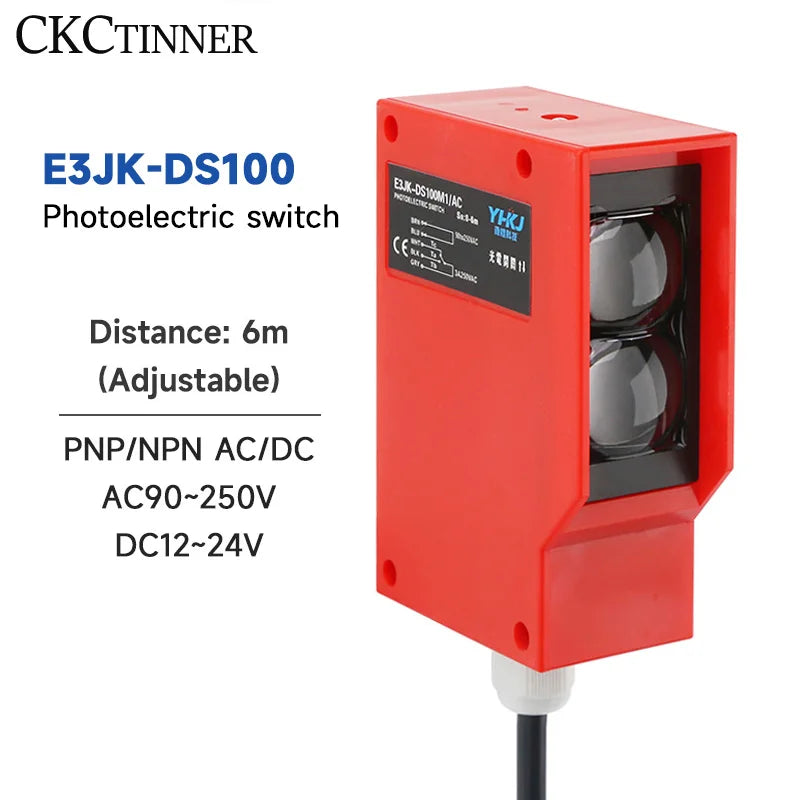

E3JK-DS100 Long Range Diffuse Reflection Photoelectric Sensor
The E3JK-DS100 Photoelectric Sensor delivers reliable, non-contact object detection up to 6 metres in distance, making it an ideal choice for industrial automation, car wash platforms, conveyor systems, and access control applications. Its universal 24V–220V AC/DC compatibility means it integrates seamlessly into virtually any electrical environment without additional converters or adapters.
Housed in a rugged, waterproof plastic enclosure with a CE certification and a 1-year warranty, this diffuse reflection photoelectric switch is engineered to perform dependably in demanding, moisture-rich settings such as car wash bays, outdoor platforms, and factory floors.
Made in Mainland China.
Key Features
- 6-Metre Long Detection Range – Accurately senses objects at distances up to 6 m for versatile mounting options
- Universal Voltage (24V–220V AC/DC) – Works with a wide range of power supplies; no extra transformer needed
- Diffuse Reflection Technology – Detects objects without requiring a separate reflector or receiver unit
- Waterproof Construction – Sealed housing protects internal components in wet or humid environments
- 3A Rated Current – Handles switching loads efficiently and reliably
- CE Certified – Meets European safety and electromagnetic compatibility standards
- Plastic Enclosure – Lightweight yet durable; resists corrosion in challenging conditions
- 1-Year Warranty – Backed by manufacturer warranty for peace of mind
Typical Applications
- Car wash platform vehicle detection
- Industrial conveyor belt object sensing
- Automated gate and barrier systems
- Packaging and assembly line detection
- Parking guidance and access control
- General factory automation and counting
Specifications at a Glance
| Model | E3JK-DS100 |
| Detection Range | Up to 6 m |
| Operating Voltage | 24V–220V AC/DC |
| Output Current | 3A |
| Switch Type | Diffuse Reflection Photoelectric |
| Material | Plastic |
| Certification | CE |
| Waterproof | Yes |
| Warranty | 1 Year |
| Origin | Mainland China |
Related Products You May Like
- Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage does the E3JK-DS100 photoelectric sensor support?
A: The E3JK-DS100 is a universal voltage sensor that operates on 24V to 220V AC or DC, making it compatible with a wide variety of industrial and commercial power supplies without the need for a separate voltage converter.
Q: Does this photoelectric sensor require a separate reflector or receiver?
A: No. The E3JK-DS100 uses diffuse reflection technology, meaning it both emits and receives the light beam within a single unit. It detects objects by sensing the light reflected directly off the target surface, so no separate reflector or receiver unit is needed.
Q: Is this sensor suitable for outdoor or wet environments such as a car wash?
A: Yes. The sensor features a waterproof, sealed plastic enclosure specifically designed to withstand moisture and humidity, making it well-suited for car wash platforms, outdoor installations, and other wet-environment applications.
Q: What is the maximum detection range of this photoelectric switch?
A: The E3JK-DS100 offers a maximum diffuse-reflection detection range of 6 metres (approximately 19.7 feet), providing flexibility in sensor placement and mounting distance.
