Door Lock Installation Kit – Adjustable Jig & Drill Bit Set

Door Lock Installation Kit – Adjustable Guide Template & Drill Bit Set for Wooden Doors

Take the guesswork out of door lock installation with this all-in-one Door Lock Installation Kit. Built for DIY enthusiasts and professional woodworkers alike, this kit includes an adjustable U-type guide template (jig), two hole openers, and a drill bit — everything you need to drill perfectly aligned holes for door knobs and lock sets every time.

Key Features

• Durable Construction: Made from high-quality carbon steel and reinforced ABS plastic for long-lasting reliability across multiple installations.
• Adjustable Jig for 4 Door Configurations: The guide template accommodates wooden doors from 1-3/8" to 1-3/4" thick and works with both 2-3/8" (60mm) and 2-3/4" (70mm) door lock latches:
  1. 1-3/8" thick door + 2-3/8" (60mm) latch
  2. 1-3/8" thick door + 2-3/4" (70mm) latch
  3. 1-3/4" thick door + 2-3/8" (60mm) latch
  4. 1-3/4" thick door + 2-3/4" (70mm) latch
• Simple 4-Step Process:

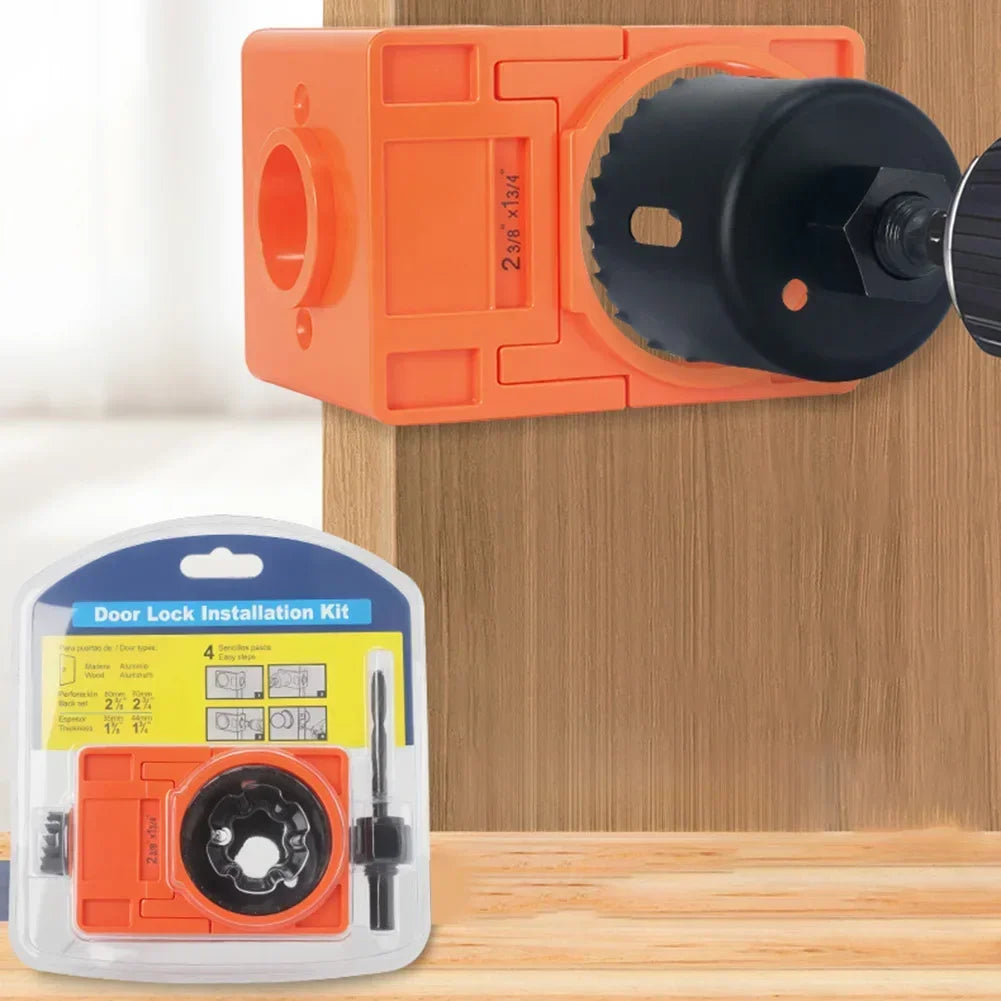

  1. Secure the jig to the door edge with the included screw.
  2. Use the 2-1/8" hole opener to drill through both faces of the door.
  3. Use the 1" hole opener to drill the latch hole on the door edge.
  4. Remove the jig and install your door lock — done!
• Compact & Reusable: Measures just 190 × 65mm, easy to store and use repeatedly on multiple doors.

Specifications

What's in the Box

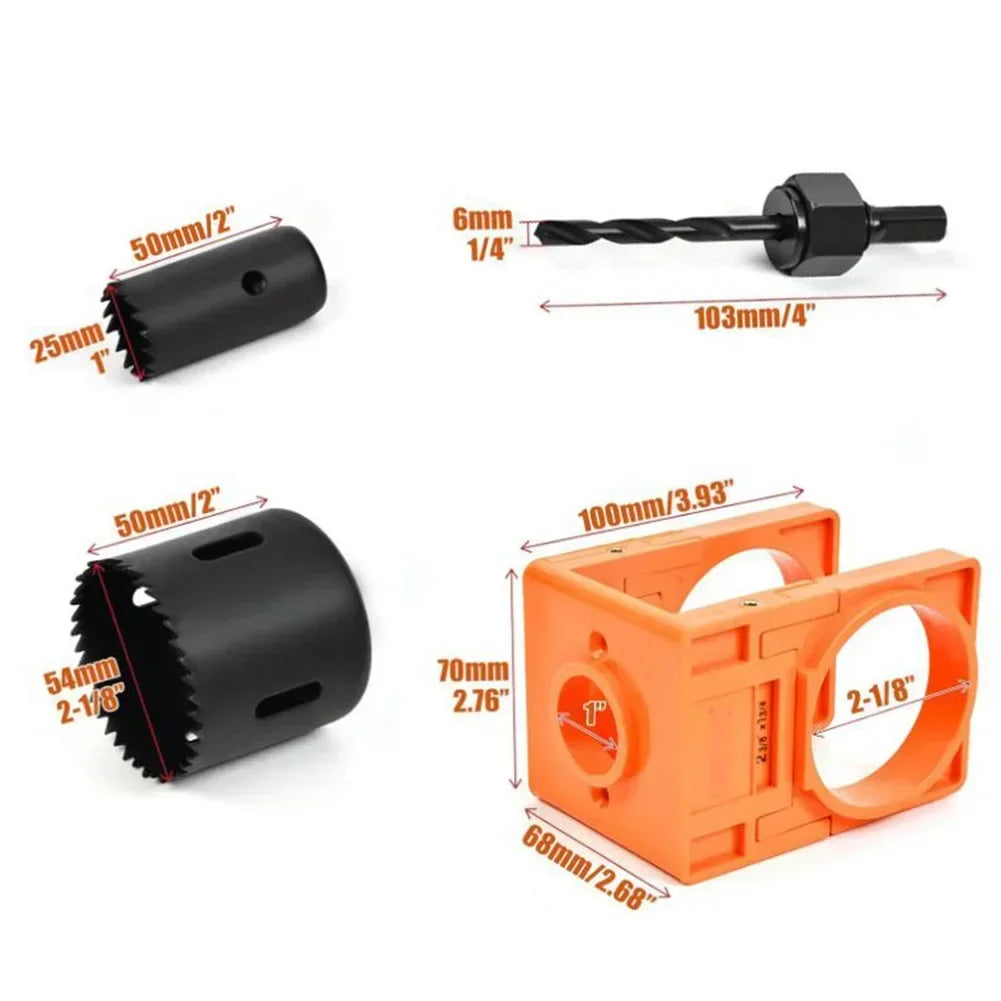

• 1 × Adjustable U-type plastic guide template (jig)

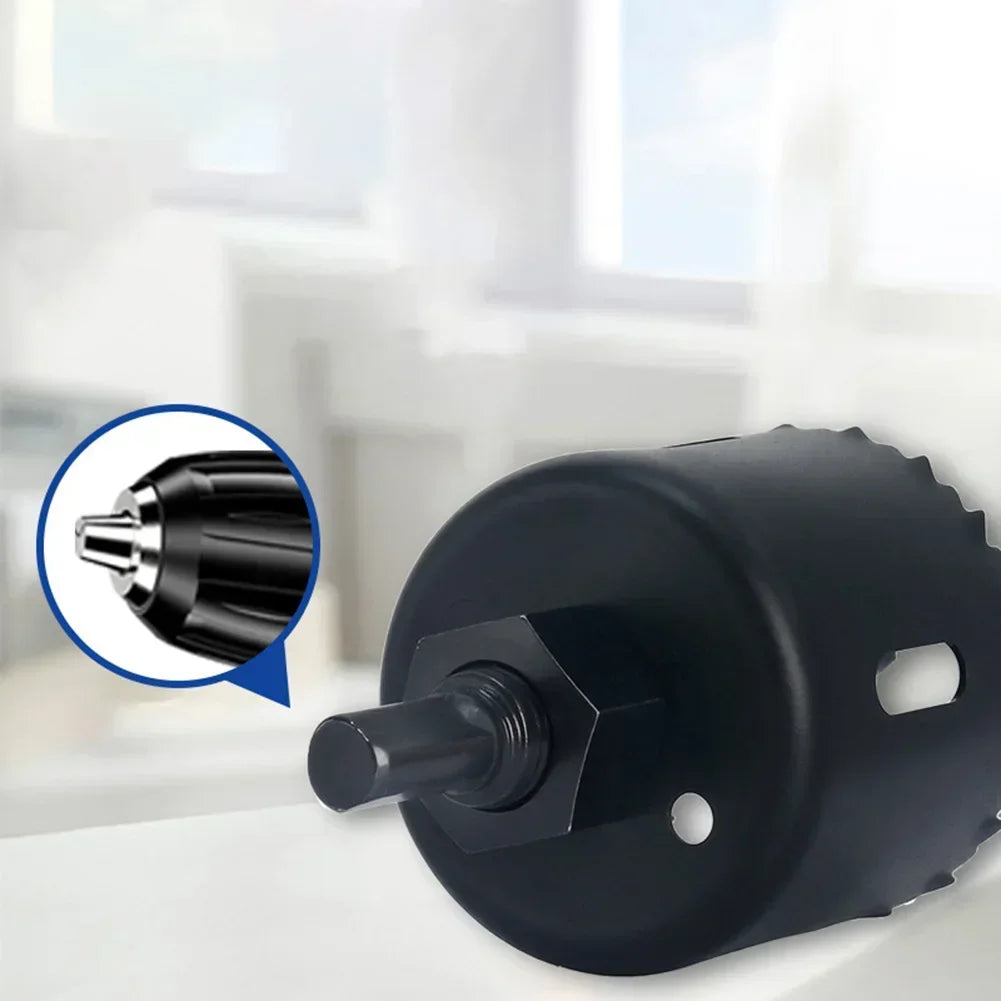

• 2 × Hole openers (1" and 2-1/8", depth 51mm)
• 1 × Drill bit

Related Products You May Like

• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers
• Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees

Note: Actual product color may vary slightly from images due to monitor settings and lighting. Please allow minor measurement deviations.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What door thicknesses is this door lock installation kit compatible with?

A: This adjustable door lock installation kit is designed for wooden doors ranging from 1-3/8" to 1-3/4" in thickness, covering the most common residential and interior door sizes.

Q: Does this kit work with both standard and wide backset door locks?

A: Yes! The adjustable guide template supports both 2-3/8" (60mm) and 2-3/4" (70mm) backset door locks, making it compatible with the majority of door knobs and lock sets available on the market.

Q: What tools or materials do I need in addition to this kit?

A: The kit includes all the core drilling accessories — two hole openers (1" and 2-1/8") and a drill bit. You will need a standard power drill to drive them, as well as your chosen door knob or lock set for final installation.

Q: Can this jig be reused for multiple door installations?

A: Absolutely. The durable carbon steel and ABS plastic construction means this door lock jig is built to withstand repeated use across multiple doors, making it a great addition to any home improvement or woodworking toolkit.
