Door Lock Installation Kit – Adjustable Guide Template & Drill Bit Set for Wooden Doors
Take the guesswork out of door lock installation with this professional-grade Door Lock Installation Kit. Engineered for DIY enthusiasts and professional carpenters alike, this kit combines an adjustable guide template, two hole-saw openers, and a drill bit into one complete solution for fitting door knobs and deadbolts accurately every time. Made in Mainland China.
Why You'll Love This Kit
- Heavy-Duty Construction: Built from high-quality carbon steel and ABS plastic, the components are tough enough to handle repeated use on wooden doors without warping or wearing out.
-
Adjustable for 4 Common Door & Lock Configurations: The U-type guide template adjusts to fit doors 1-3/8" to 1-3/4" thick and accommodates both 2-3/8" (60mm) and 2-3/4" (70mm) door lock latches — covering the four most common installation scenarios:
- 1-3/8" thick door + 2-3/8" (60mm) latch backset
- 1-3/8" thick door + 2-3/4" (70mm) latch backset
- 1-3/4" thick door + 2-3/8" (60mm) latch backset
- 1-3/4" thick door + 2-3/4" (70mm) latch backset
- Simple 4-Step Process: No specialist skills required — secure the jig, drill the face holes, drill the latch hole, remove the jig, and fit your lock. Done.
- Complete Kit: Everything you need arrives together so there are no extra trips to the hardware store.
Specifications
| Material | ABS Plastic & Carbon Steel Metal |
| Kit Size | 190 × 65 mm |
| Door Thickness Range | 1-3/8" to 1-3/4" (35–44 mm) |
| Latch Backsets Supported | 2-3/8" (60 mm) & 2-3/4" (70 mm) |
| Hole Opener Depth | 51 mm |
| Country of Origin | Made in Mainland China |

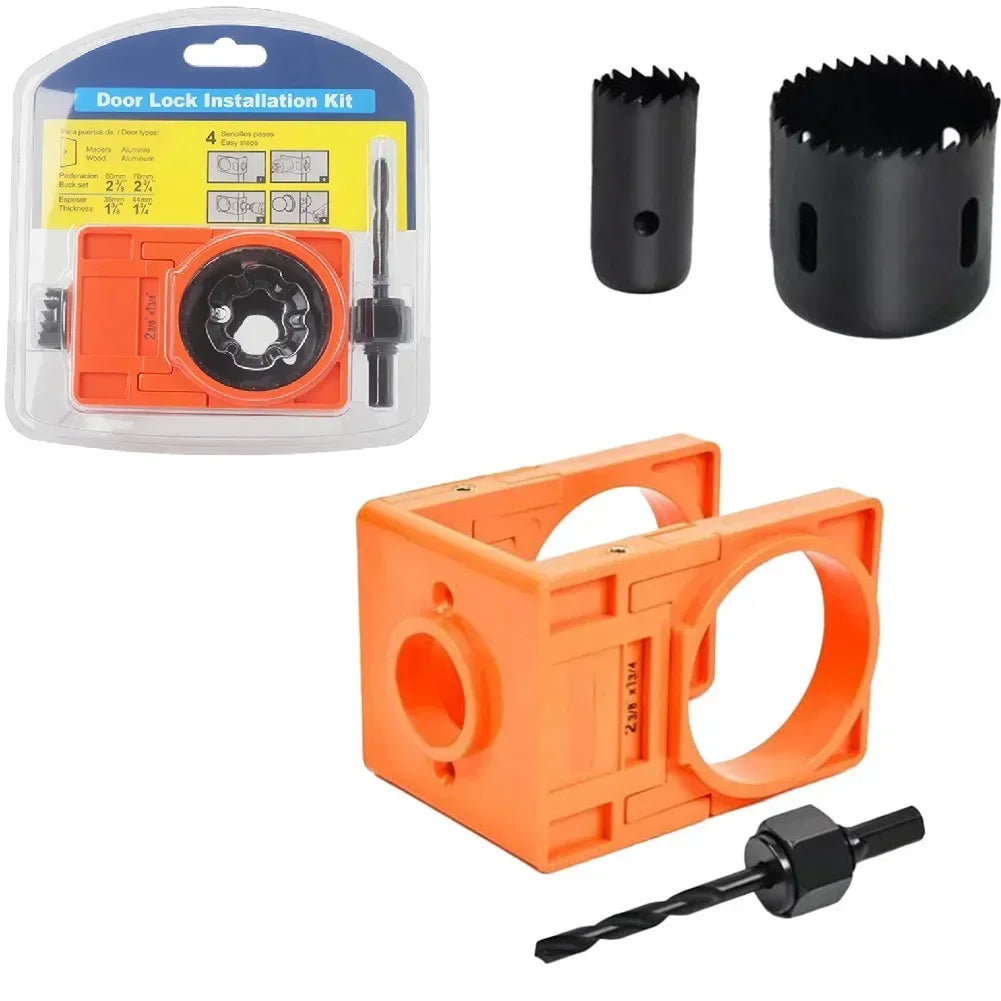

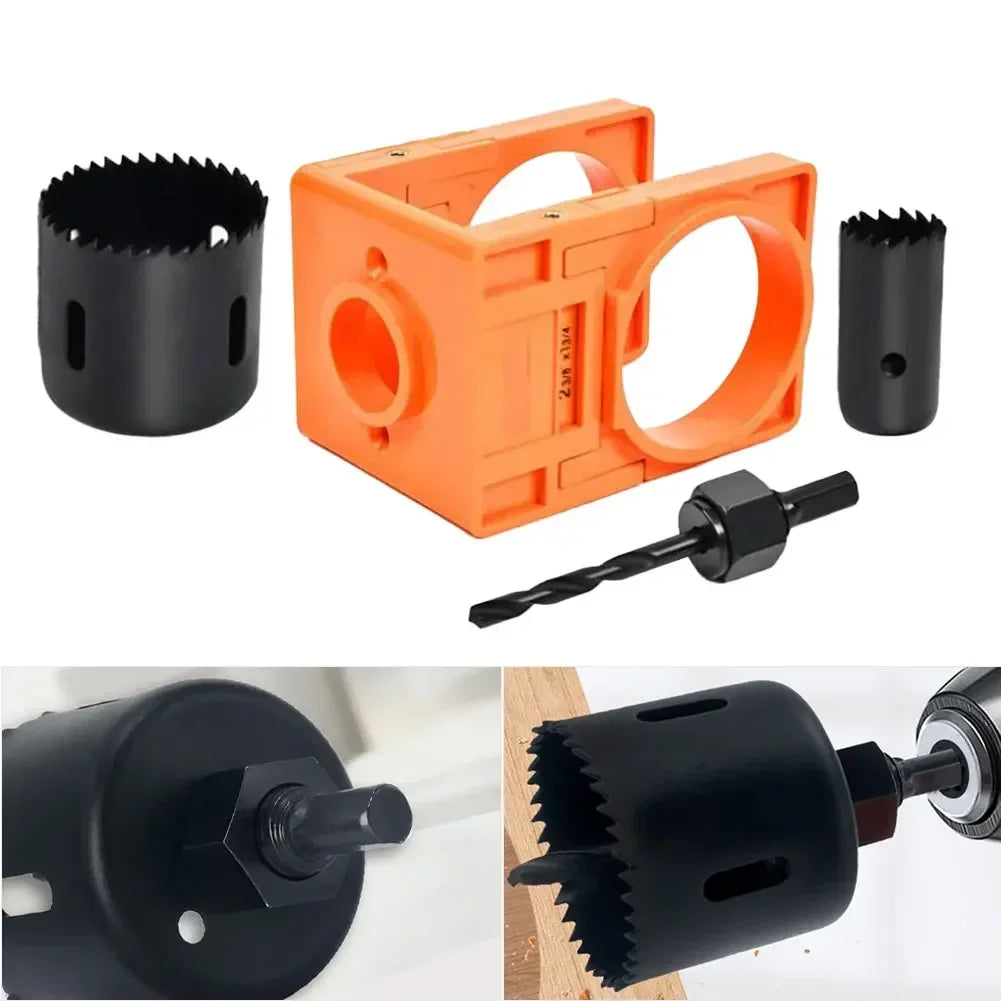

Package Contents
- 1 × Adjustable U-type plastic guide template

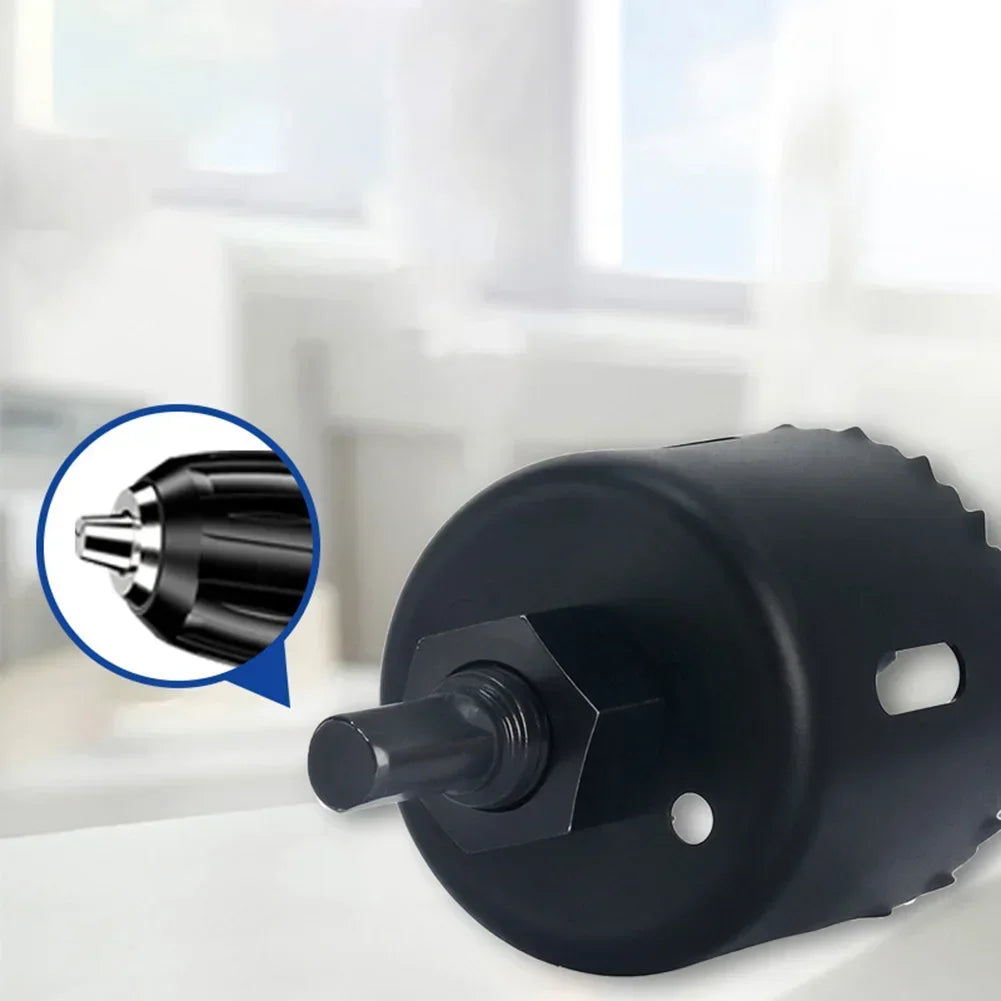

- 1 × 2-1/8" hole saw opener (depth 51 mm)
- 1 × 1" hole saw opener (depth 51 mm)
- 1 × Drill bit
How to Use
- Adjust the guide template to match your door thickness and lock backset, then secure it to the door edge with the included screw.

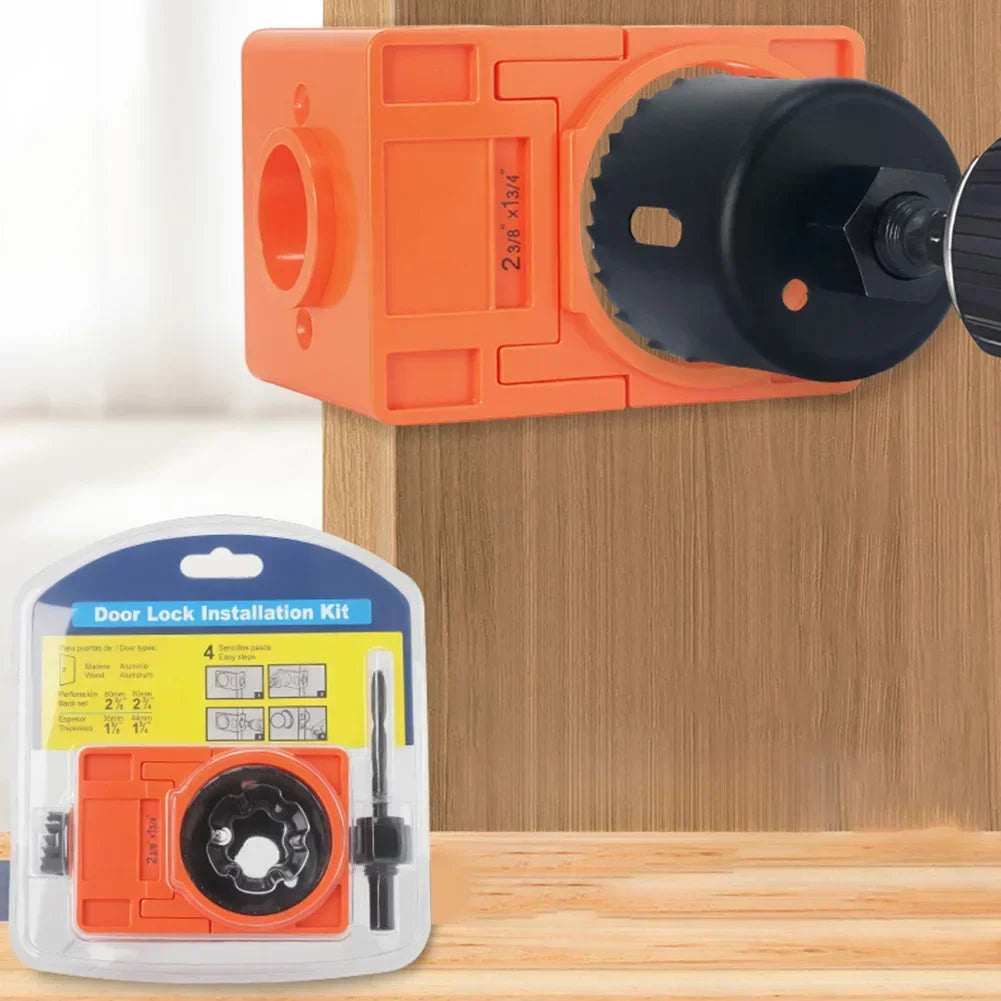

- Use the 2-1/8" hole saw to drill through both faces of the door at the marked knob position.
- Use the 1" hole saw to drill into the door edge at the latch position.
- Remove the jig and install your door lock — it fits perfectly, every time.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
- 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What door thicknesses does this door lock installation kit support?
A: The adjustable guide template is compatible with standard wooden doors ranging from 1-3/8 inch (35 mm) to 1-3/4 inch (44 mm) thick, covering the vast majority of interior and exterior residential doors.
Q: Does this kit work for both door knob and deadbolt installations?
A: Yes. The kit is designed to accommodate both door knob and deadbolt lock sets. It supports latch backsets of 2-3/8" (60 mm) and 2-3/4" (70 mm), which are the two standard backset dimensions used by most residential door knob and deadbolt sets.
Q: What material is the guide template made from?
A: The guide template is constructed from durable ABS plastic reinforced with carbon steel metal components, ensuring it holds its shape and provides precise, repeatable drill guidance across multiple installations.
Q: Is any additional drilling equipment needed beyond what is included in the kit?
A: The kit includes two hole saw openers (1" and 2-1/8") and a drill bit, so you have all the cutting tools you need. You will require a standard power drill or drill press to drive the included bits.
