DIY Mini Tesla Coil Kit BD243 – Plasma Arc & Wireless Power Module

$11.25 $13.35

Build Your Own Mini Tesla Coil – DIY Electronic Kit with BD243 Transistor

Explore the fascinating world of high-frequency electronics with this DIY Mini Tesla Coil Kit. Powered by a BD243 NPN transistor, this compact resonance transformer kit lets you generate stunning plasma arcs, wirelessly illuminate fluorescent lamps, and conduct exciting science experiments — all from a 9–12V input source.

Designed for electronic enthusiasts, students, hobbyists, and makers, this kit comes with all the components needed to assemble your own functioning mini Tesla coil on a compact PCB board. Note: Basic circuit assembly experience is required. Components are verified in good condition before shipping; successful assembly depends on the builder's soldering and circuit skills. Made in Mainland China.

Key Features

Input Voltage: 9–12V (9V battery start; 12V recommended for arc generation)

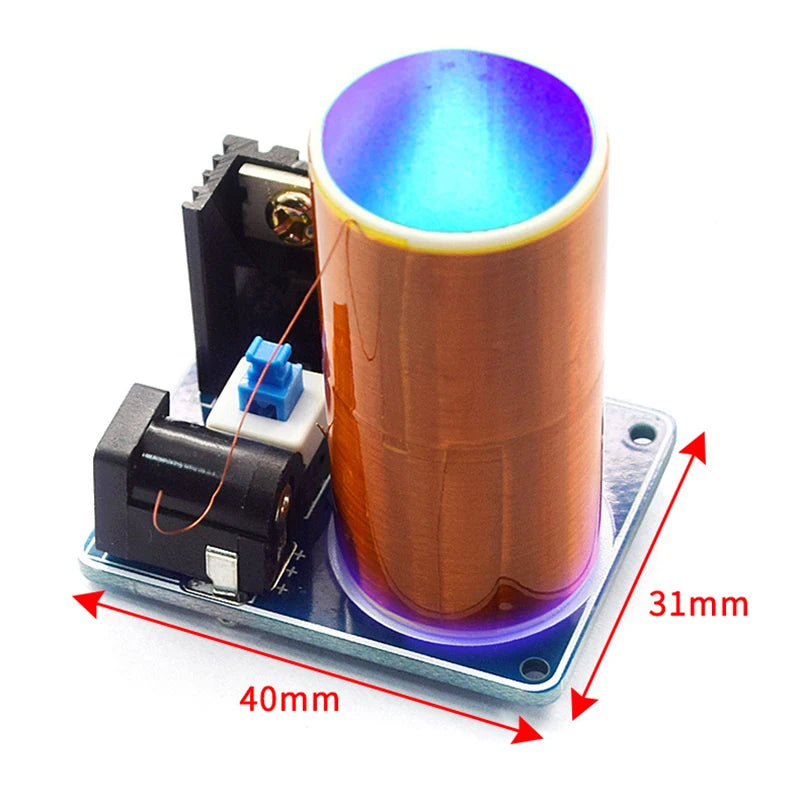

PCB Board Size: 4cm × 3.1cm — compact and bench-friendly
Resonance Transformer Design: Generates high-voltage, high-frequency oscillations
Wireless Electricity Transmission: Lights up a fluorescent lamp without direct contact
Visible Plasma Arcs: Spectacular arc effects for science demos and magic props
BD243 NPN Power Transistor: Reliable switching component at the heart of the circuit
Includes Heat Sink: Keeps the transistor cool during operation
Great for STEM Learning: Explore resonance, electromagnetic induction, and high-voltage principles

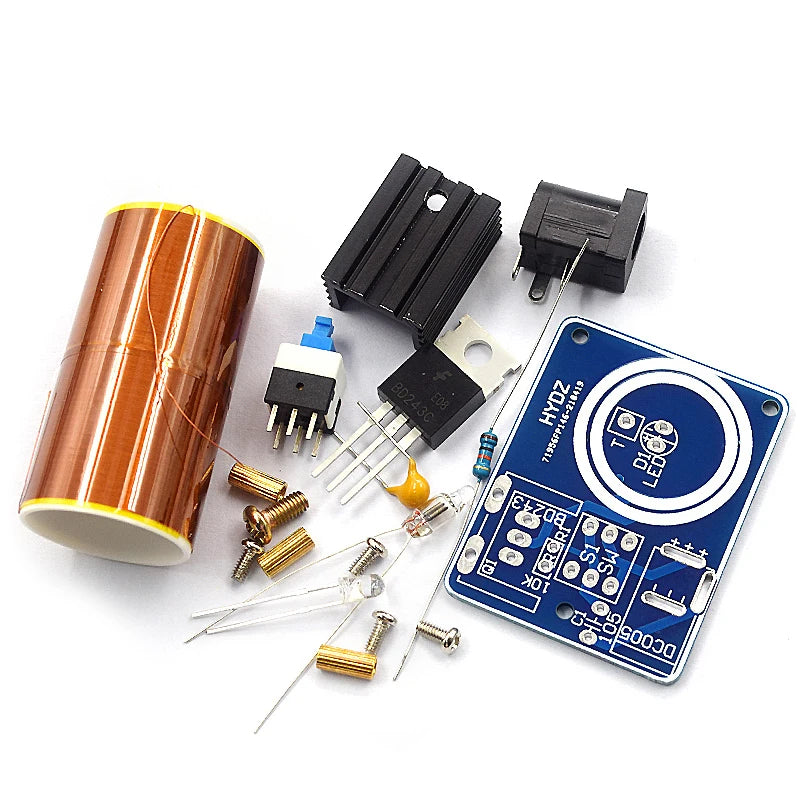

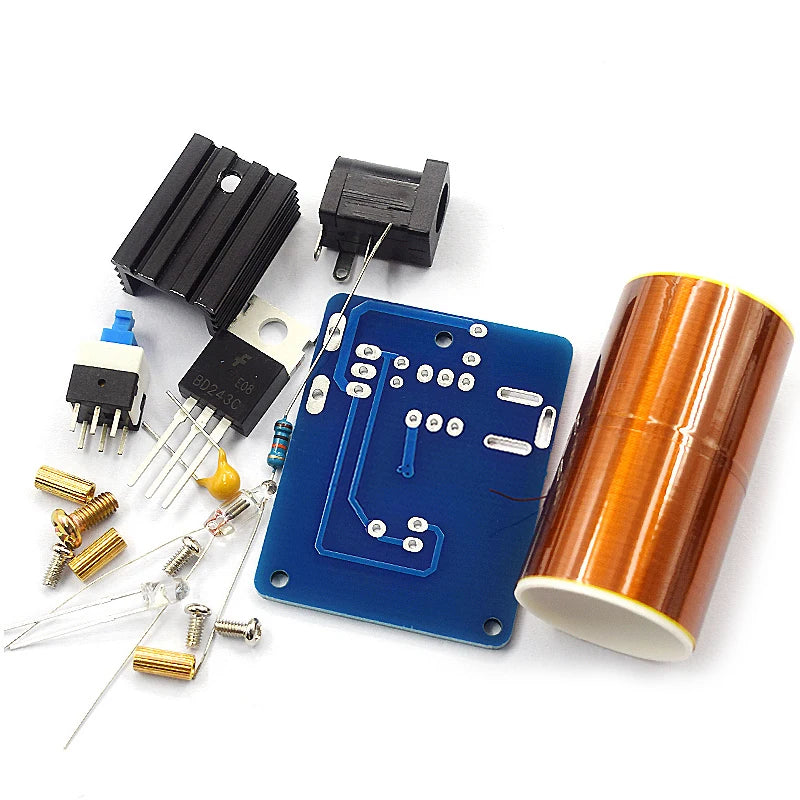

What's Included in the Kit

1 × PCB Board
1 × Coil
1 × 3MM Blue LED
1 × DC005 Power Jack Seat
1 × 105 Monolithic Capacitor
1 × 8×8 Self-Locking Switch
1 × 10K Resistor
1 × 15×10×20 Small Heat Sink
1 × 3×6 Screw
1 × BD243 NPN Transistor
1 × Protective Bubble Bag
3 × M2×4 Screws
3 × M2×7 Double-Pass Copper Standoffs

What Can a Tesla Coil Do?

A Tesla Coil operates on the principle of electromagnetic resonance. This mini version can:

Produce visible plasma arcs and corona discharge
Wirelessly transmit electricity to light fluorescent or neon tubes nearby
Demonstrate high-frequency oscillation for educational experiments
Serve as a unique magic prop or science fair centerpiece

Who Is This Kit For?

This kit is ideal for electronics hobbyists, STEM students, science teachers, and DIY makers who want a hands-on project that demonstrates real electromagnetic principles. Soldering experience and a basic understanding of circuit assembly are recommended before attempting this build.

Related Products You May Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What voltage do I need to power this DIY Mini Tesla Coil Kit?

A: The kit operates on an input voltage of 9–12V DC. A standard 9V battery can start the circuit, but for visible plasma arc effects you will need a 12V power supply connected via the included DC005 power jack.

Q: Do I need soldering experience to assemble this Tesla coil kit?

A: Yes. This is a DIY electronics kit intended for buyers with basic circuit assembly and soldering experience. All components are tested and verified before shipping, but successful assembly is the responsibility of the builder. Please read the product details carefully before purchasing.

Q: What kind of experiments can I do with this mini Tesla coil module?

A: Once assembled, you can generate plasma arcs, wirelessly power fluorescent lamps without direct contact, explore electromagnetic resonance principles, and use it as a fascinating magic prop or STEM demonstration tool.

Q: What is the BD243 transistor used for in this kit?

A: The BD243 is a high-power NPN transistor that acts as the primary switching component in the resonance circuit. It drives the coil oscillation that produces high-frequency, high-voltage output. A small heat sink is included in the kit to manage the transistor's operating temperature.
