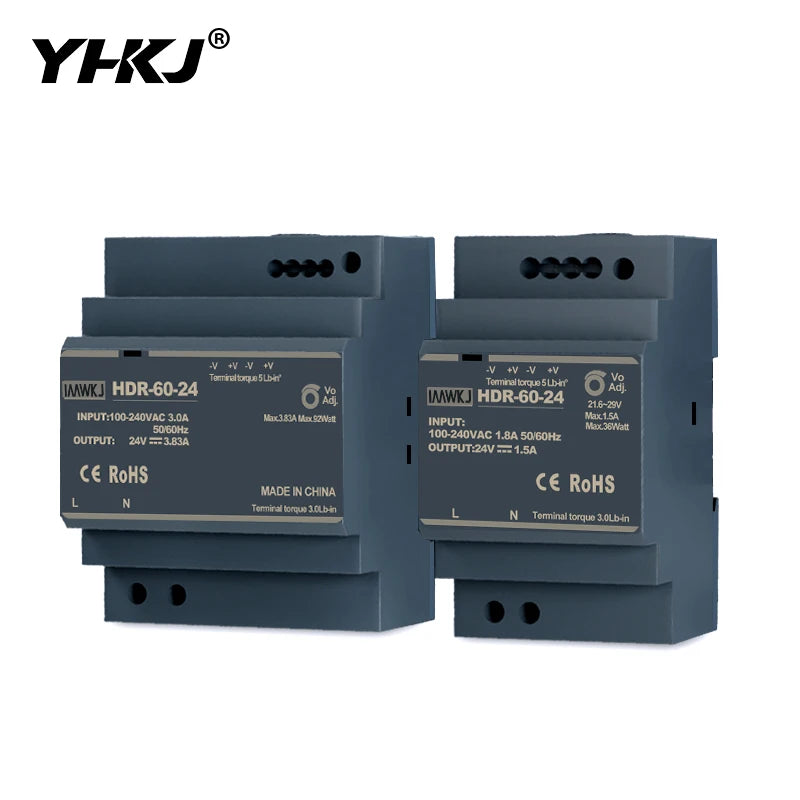

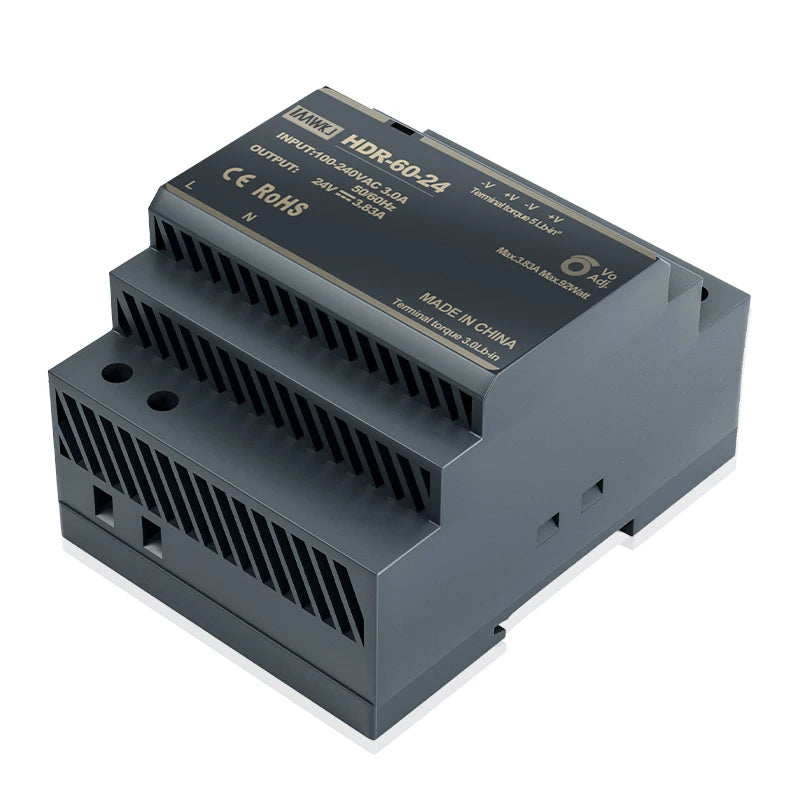

CKCTINNER HDR Series DIN Rail Switching Power Supply
Power your industrial control panels, automation systems, and DIY electronics projects with confidence. The CKCTINNER HDR-30 / HDR-60 / HDR-100 DIN Rail Switching Power Supply converts AC mains input to a stable, regulated DC output — available in 5V, 12V, 15V, 24V, and 48V configurations with output current options of 2A, 3A, 4A, and 5A. Compact, reliable, and engineered for demanding environments, this slim DIN rail–mount design slots easily into standard distribution boards.
Why Choose the HDR Series?
- Wide Voltage Range: AC input compatible with global mains voltages, delivering single-output DC from 5V to 48V.
- Multiple Models: Choose from HDR-30 (30W), HDR-60 (60W), and HDR-100 (100W) to match your exact power requirement.

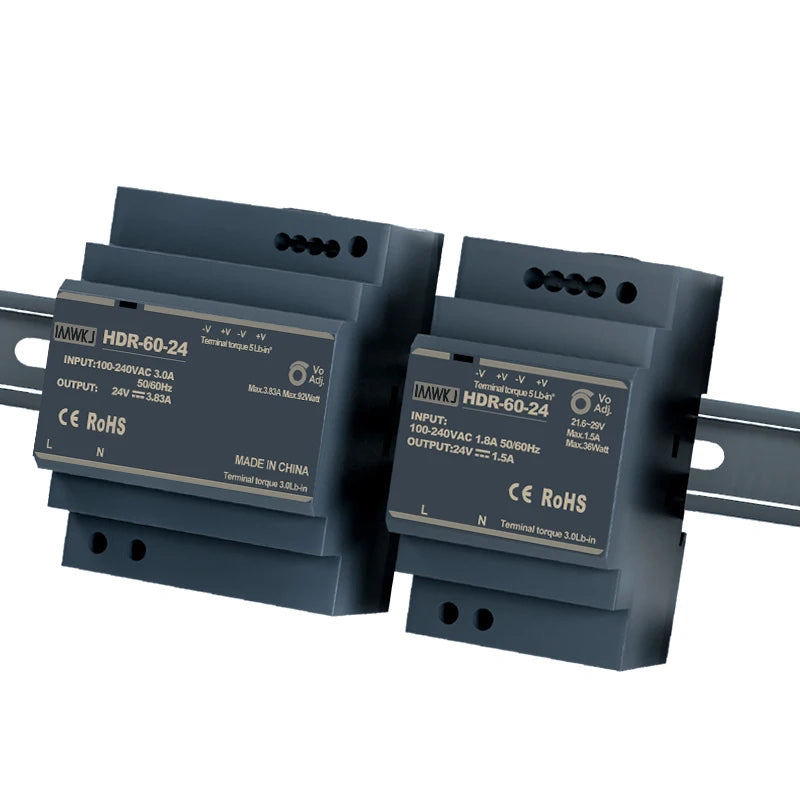

- DIN Rail Mounting: Snaps onto standard 35mm DIN rail for fast, tool-free installation in control cabinets and enclosures.
- Single Output Design: Clean, regulated DC output ideal for PLCs, sensors, relays, and industrial control equipment.
- Compact & Slim Profile: Space-saving form factor fits inside crowded electrical panels without hassle.
- High Efficiency Switching: Low power dissipation keeps operating temperatures down, extending service life.
- Built-in Protections: Overcurrent, overvoltage, and short-circuit protection help safeguard your connected equipment.
- No High-Concern Chemicals: Manufactured without hazardous substances of concern.

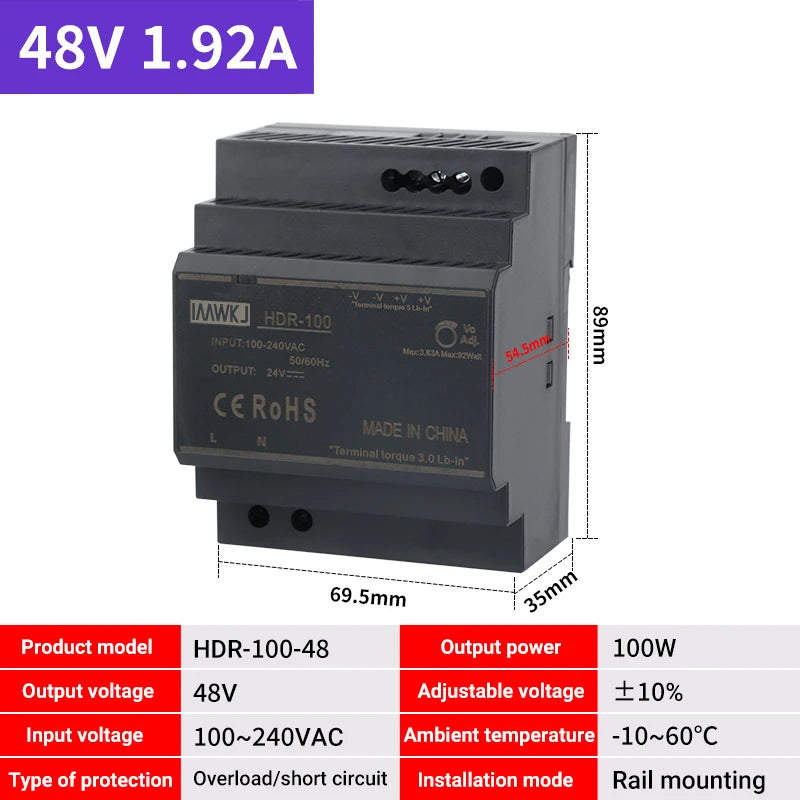

Specifications at a Glance
| Brand | CKCTINNER |
| Model Series | HDR-30 / HDR-60 / HDR-100 |
| Input | AC Mains (wide range) |
| Output Type | Single DC Output |
| Output Voltage Options | 5V, 12V, 15V, 24V, 48V |
| Output Current Options | 2A, 3A, 4A, 5A |
| Mounting | 35mm DIN Rail |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Industrial automation & PLC systems
- Control panel & distribution board builds
- LED lighting drivers
- Security & surveillance systems
- DIY electronics and maker projects
- HVAC control systems
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between the HDR-30, HDR-60, and HDR-100 models?
A: The model numbers indicate the maximum power output — the HDR-30 delivers up to 30W, the HDR-60 up to 60W, and the HDR-100 up to 100W. Choose based on your total load wattage requirements. For example, if you need a 24V 3A supply (72W total), the HDR-100 would be the appropriate choice.
Q: What output voltages are available for the HDR DIN Rail Switching Power Supply?
A: The HDR series is available in five DC output voltage options: 5V, 12V, 15V, 24V, and 48V. Each voltage option comes in various current ratings (2A, 3A, 4A, or 5A depending on the model), so you can select the exact combination that matches your application.
Q: Is this DIN rail power supply compatible with standard electrical enclosures?
A: Yes. The HDR series is designed to mount on standard 35mm DIN rail, which is used in the vast majority of industrial control enclosures, distribution boards, and electrical panels worldwide. Installation is straightforward — simply clip the unit onto the rail and make your AC input and DC output terminal connections.
Q: Does this switching power supply include overcurrent and short-circuit protection?
A: Yes, the HDR series includes built-in overcurrent, overvoltage, and short-circuit protection to help safeguard both the power supply and your connected devices during fault conditions.
