CKCTINNER D52-2042 DIN Rail Digital Voltmeter Ammeter
Monitor your electrical systems with precision using the CKCTINNER D52-2042 DIN Rail Digital Voltmeter Ammeter. This compact, dual LED display meter measures both AC voltage and current simultaneously, making it an essential tool for electricians, engineers, panel builders, and DIY electrical enthusiasts. Designed for DIN rail mounting, it fits neatly into standard electrical enclosures and control panels.
Key Features
- Dual LED Display – Reads voltage and current at the same time for efficient monitoring

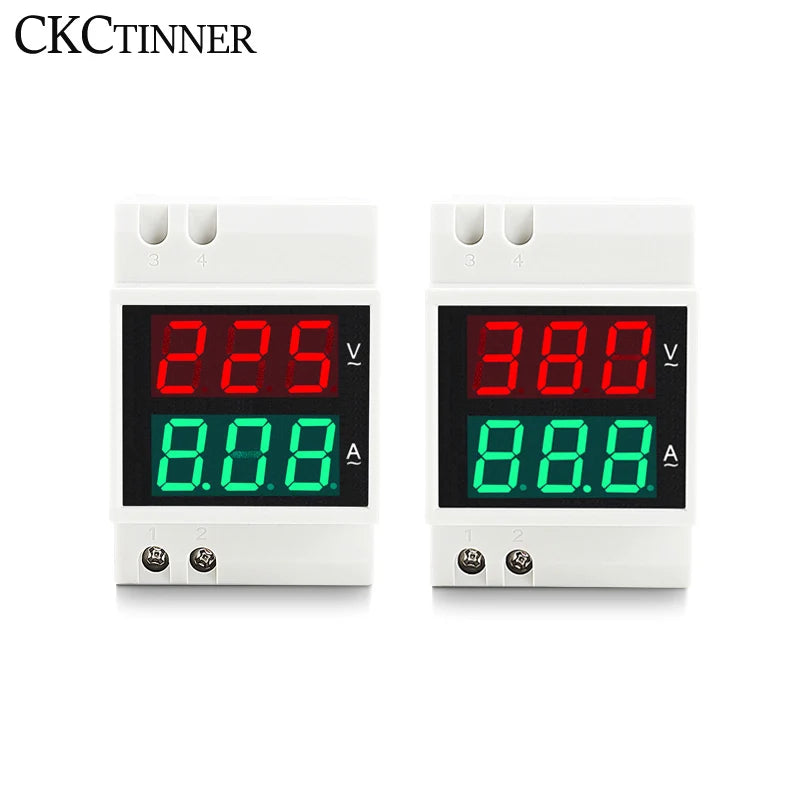

- Wide Voltage Range – Supports AC 80–300V and AC 200–450V, covering standard 220V and 380V systems
- Current Range – AC 0.2–99.9A for versatile load monitoring
- High Accuracy – 1% accuracy class (±2 digits) for reliable, precise readings
- Active Power Measurement – 0–30,000W (at AC 80–300V) / 0–45,000W (at AC 200–450V)

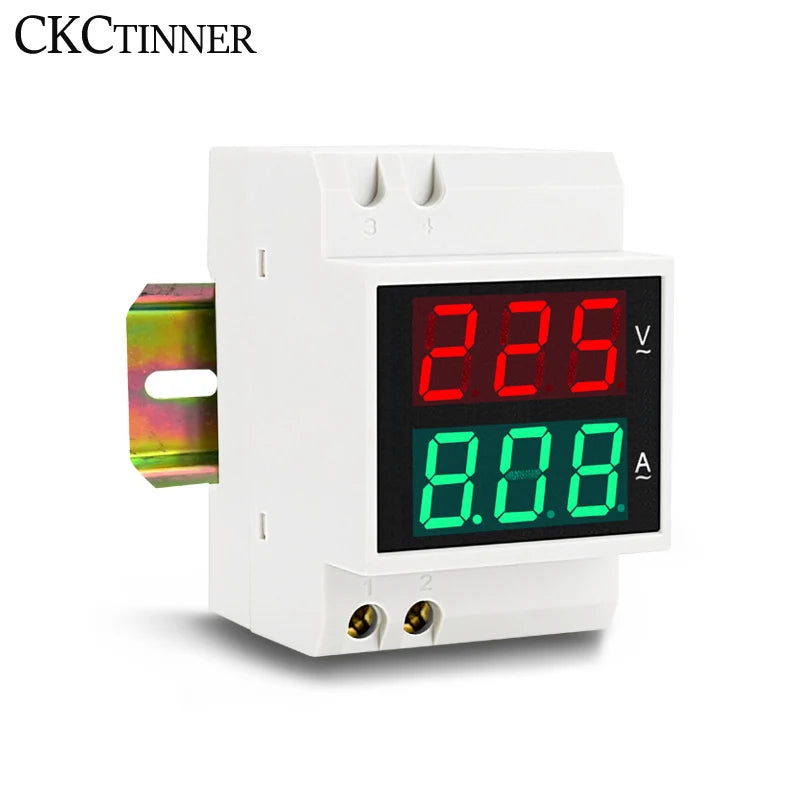

- DIN Rail Mount – Standard 35mm DIN rail compatible for quick, secure panel installation
- Low Power Consumption – Less than 0.2VA, energy-efficient operation

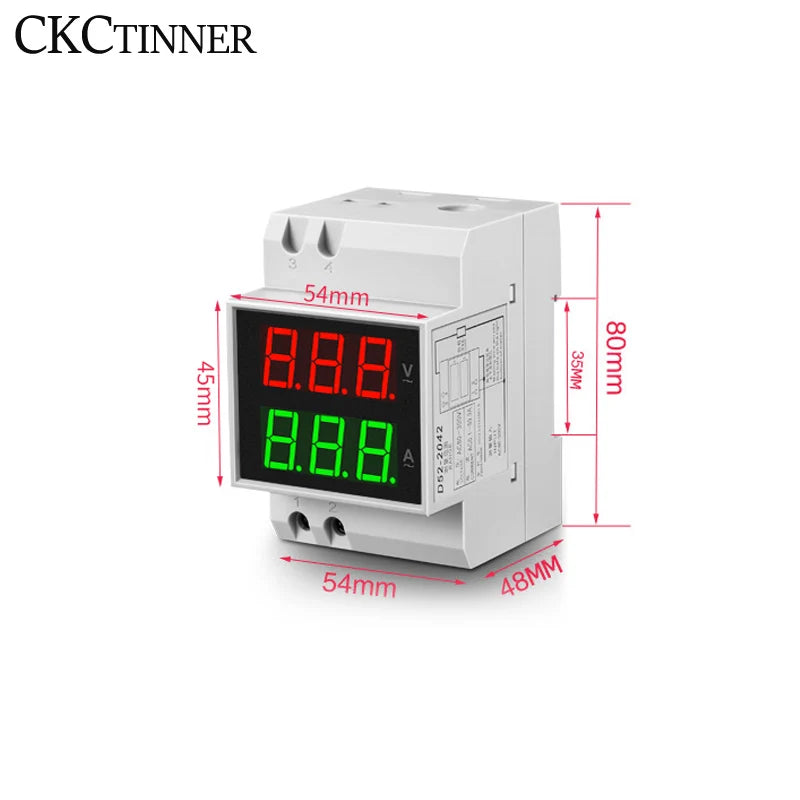

- Compact Design – Dimensions: 54mm (W) × 80mm (H) × 64mm (D); Weight: 145g
- Wide Operating Temperature – -10°C to 50°C, suitable for industrial and commercial environments
- No Battery Required – AC powered directly from the monitored circuit
Technical Specifications
| Model | D52-2042 (YHD52-2042) |
| Voltage Range | AC 80–300V / AC 200–450V |
| Current Range | AC 0.2–99.9A |
| Active Power | 0–30,000W / 0–45,000W |
| Accuracy Class | 1% ± 2 digits |
| Display | Dual LED Digital |
| Power Supply | AC (no external battery needed) |
| Power Consumption | <0.2VA |
| Dimensions | 54 × 80 × 64mm |
| Weight | 145g |
| Operating Temperature | -10°C to 50°C |
| Humidity | 20%–80% |
| DIN Rail | 35mm standard |
Made in Mainland China.
Ideal For
- Electrical control panels and switchboards
- Industrial machinery monitoring
- Commercial and residential electrical systems (AC 220V / AC 380V)
- DIY electrical projects and workshops
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage systems is the D52-2042 DIN Rail Voltmeter Ammeter compatible with?
A: The D52-2042 supports two voltage ranges — AC 80–300V (covering standard AC 220V systems) and AC 200–450V (covering AC 380V three-phase systems) — making it versatile for a wide range of residential, commercial, and industrial electrical panels.
Q: Does this digital voltmeter ammeter require an external power supply or batteries?
A: No batteries are required. The meter is powered directly by the AC circuit it is monitoring, with an ultra-low power consumption of less than 0.2VA, so it won't noticeably impact your system's energy use.
Q: How is the D52-2042 mounted in an electrical panel?
A: The meter is designed for standard 35mm DIN rail mounting, allowing for quick, tool-friendly snap-in installation inside most electrical enclosures, control cabinets, and distribution boards.
Q: What is the accuracy of this digital AC voltmeter ammeter?
A: The D52-2042 features a 1% accuracy class with ±2 digit precision, delivering reliable and consistent readings suitable for professional electrical monitoring applications.
