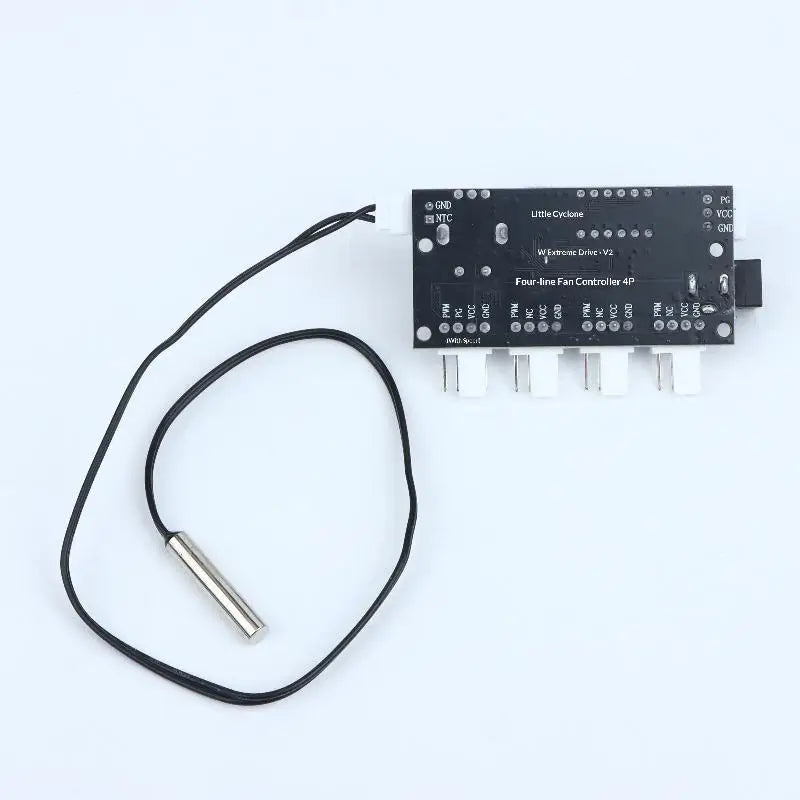

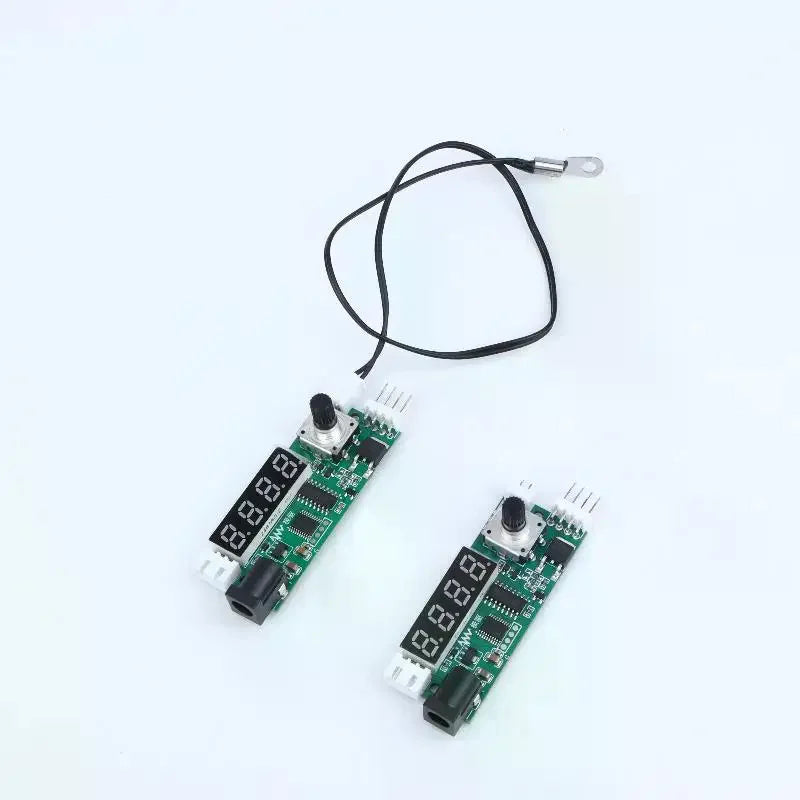

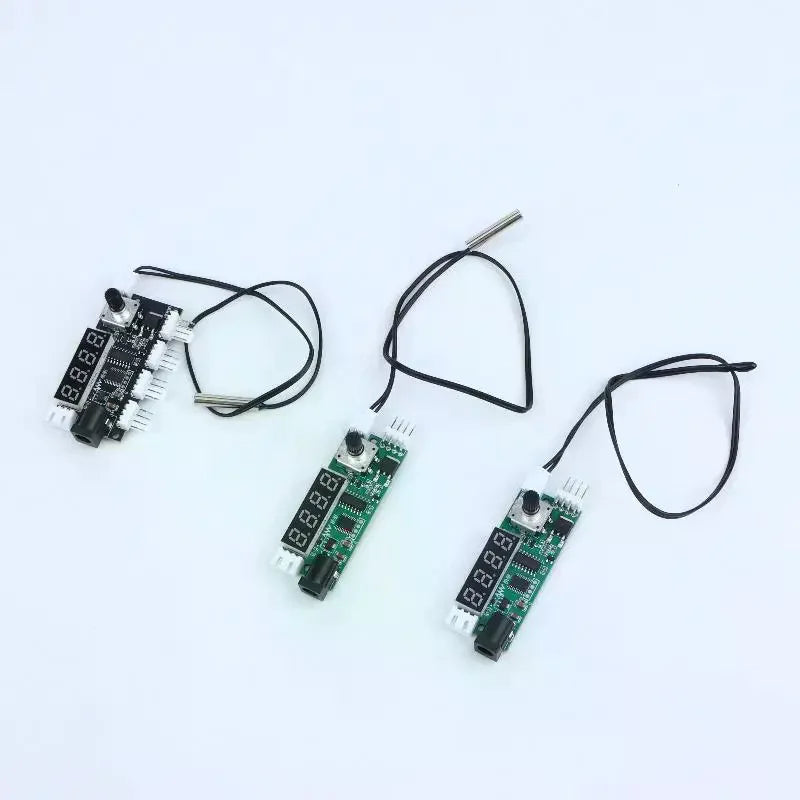

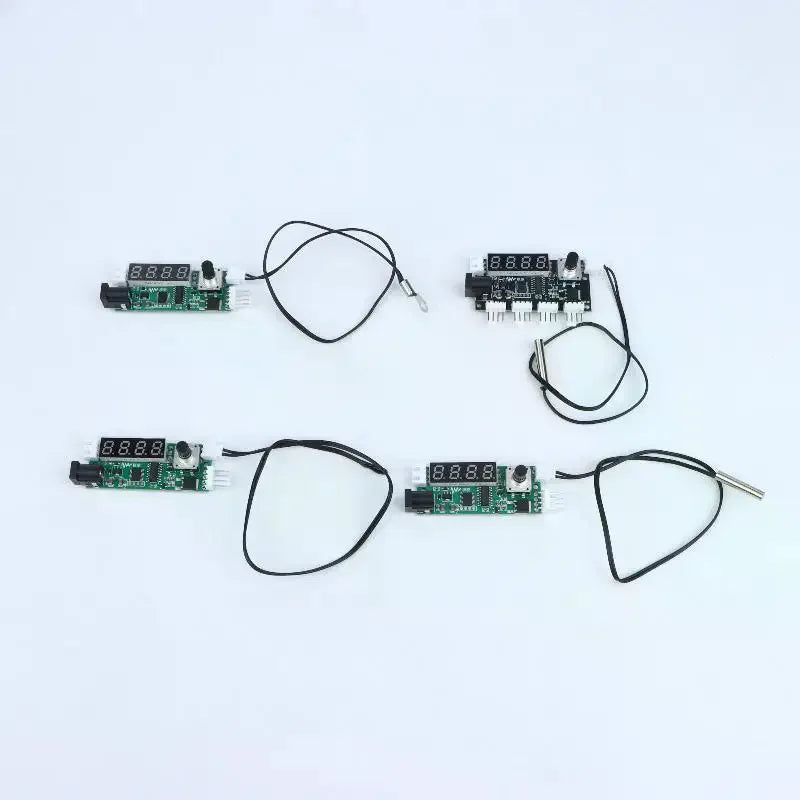

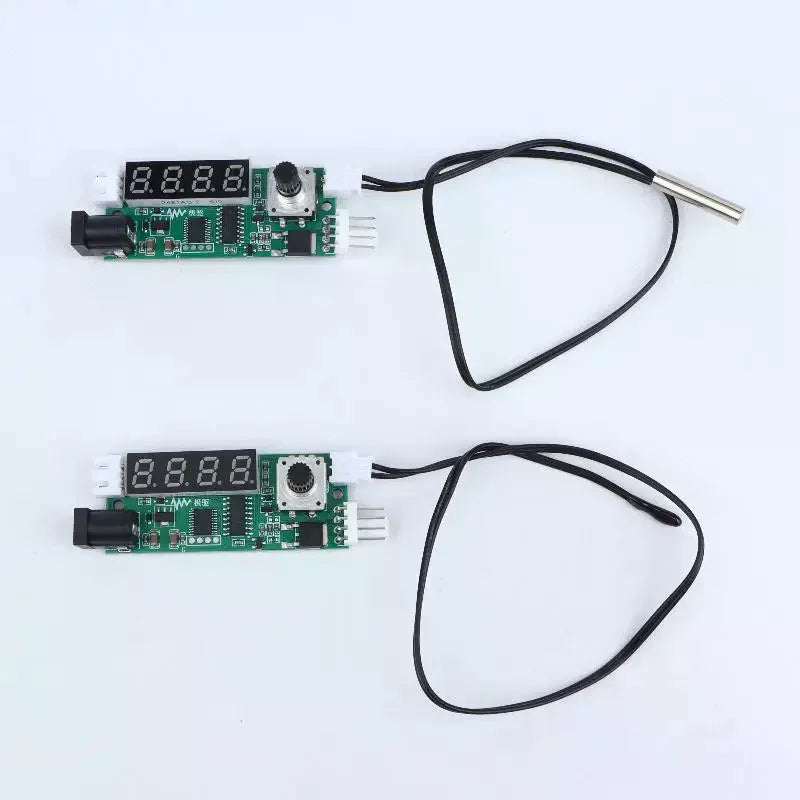

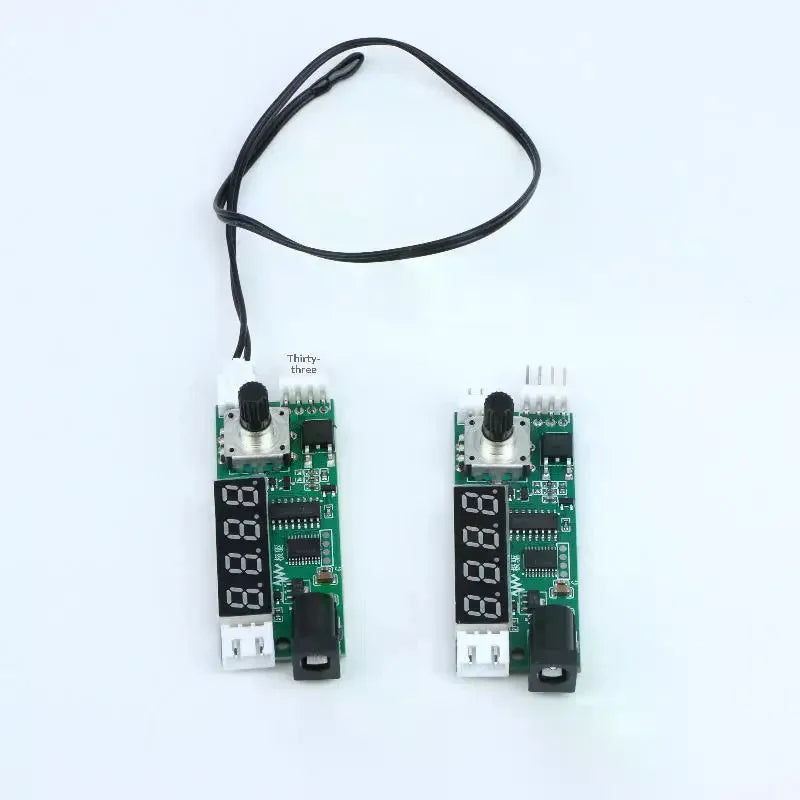

Digital Temperature Controller Module with 4-Digit LED Display
Build your own precision soldering station or custom temperature-control device with this compact Digital Temperature Controller Module. Featuring a high-brightness 4-digit LED readout, a smooth rotary encoder for stepless adjustment, and a high-precision NTC sensor, this circuit board gives hobbyists, makers, and electronics enthusiasts rock-solid temperature regulation for T12, JBC210, and JBC245 soldering iron handles — or virtually any 12–24V DC application.
Made in Mainland China.
Key Features
- High-Precision NTC Temperature Sensing: Metal NTC probe with high-temperature-resistant insulated wire delivers real-time temperature detection with just ±1 °C error tolerance, ensuring consistent, stable output for demanding DIY and professional projects.
- Clear 4-Digit LED Readout: High-brightness LED display module remains easily readable even under strong ambient light, letting you check and adjust the current temperature at a glance.
- Durable FR-4 PCB Construction: Built on a high-quality FR-4 fiberglass PCB with high-conductivity copper traces for excellent corrosion resistance, oxidation resistance, and heat dissipation — engineered for long-term, reliable operation.
- Smooth Stepless Adjustment: High-sensitivity rotary encoder potentiometer supports wide-range, stepless temperature setting so you can dial in your exact target quickly and accurately — no complicated multi-step menus.
- Multi-Layer Circuit Protection: Built-in ESD protection diode, overcurrent protection precision resistor, and voltage-stabilising capacitor guard against overvoltage, overcurrent, and static discharge, keeping your components and connected devices safe.
- Universal Compatibility: Standard XH2.54 pin ports are compatible with T12, JBC210, and JBC245 soldering iron handles and most 12–24V DC power supplies — ideal for DIY soldering station builds, electronic maintenance, small industrial temperature monitoring, and custom temperature-control applications.
Specifications
| Display | 4-digit high-brightness LED |
| Sensor Type | Metal NTC temperature probe |
| Temperature Accuracy | ±1 °C |
| Adjustment Type | Stepless rotary encoder potentiometer |
| PCB Material | FR-4 fiberglass |
| Connector | XH2.54 pin ports |
| Compatible Handles | T12, JBC210, JBC245 |
| Power Supply | 12–24V DC |
| Quantity | 1 piece per pack |
| Origin | Mainland China |
Applications
- DIY soldering station assembly
- Electronic maintenance and repair
- Small industrial chamber temperature monitoring
- Household appliance temperature regulation projects
- Custom embedded electronics and maker builds
You Might Also Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Note: Product images are for illustrative purposes only and may not reflect actual size. Slight colour variations may occur due to monitor differences. Allow minor tolerances due to manual measurement.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What soldering iron handles is this digital temperature controller module compatible with?
A: The module uses standard XH2.54 pin ports and is compatible with T12, JBC210, and JBC245 soldering iron handles. It also works with most 12–24V DC power supplies, making it highly versatile for a wide range of DIY soldering station builds and custom electronics projects.
Q: How accurate is the NTC temperature sensor on this controller board?
A: The metal NTC temperature probe provides real-time temperature detection with an error tolerance of just ±1 °C, ensuring precise and consistent temperature regulation throughout your soldering or temperature-control operations.
Q: Does the module include circuit protection features?
A: Yes. The board integrates a built-in ESD protection diode, an overcurrent protection precision resistor, and a voltage-stabilising capacitor. These combined safeguards protect both the module and any connected devices from overvoltage, overcurrent, and electrostatic discharge during operation.
Q: Can I use this temperature controller for applications other than soldering?
A: Absolutely. While it is optimised for T12/JBC soldering stations, the module is equally suited to small industrial chamber temperature monitoring, household appliance temperature regulation, and a wide variety of custom embedded electronics and maker projects that require stable, adjustable temperature control.
