Dial Indicator & Magnetic Base Inspection Kit – 0–1 Inch
Get workshop-grade measurement accuracy with this complete Dial Indicator Kit. Whether you're checking runout, surface flatness, or part alignment, this kit gives you everything you need in one package — a precision 0–1 inch dial indicator and a versatile magnetic base inspection stand. Engineered for machinists, toolmakers, engineers, and serious DIYers who demand reliable, repeatable measurements.
Key Features
- High-Quality Brass Main Drive Gear – Wear-resistant and rust-proof for long-lasting performance
- Hardened Stainless Steel Spindle & Contact Points – Durable construction that holds up to heavy workshop use
- Forged Brass Case – Solid, robust housing that protects internal components
- Rotating Scale Ring with Tolerance Markings – Easy range setting with clamp locks for fast, accurate setup

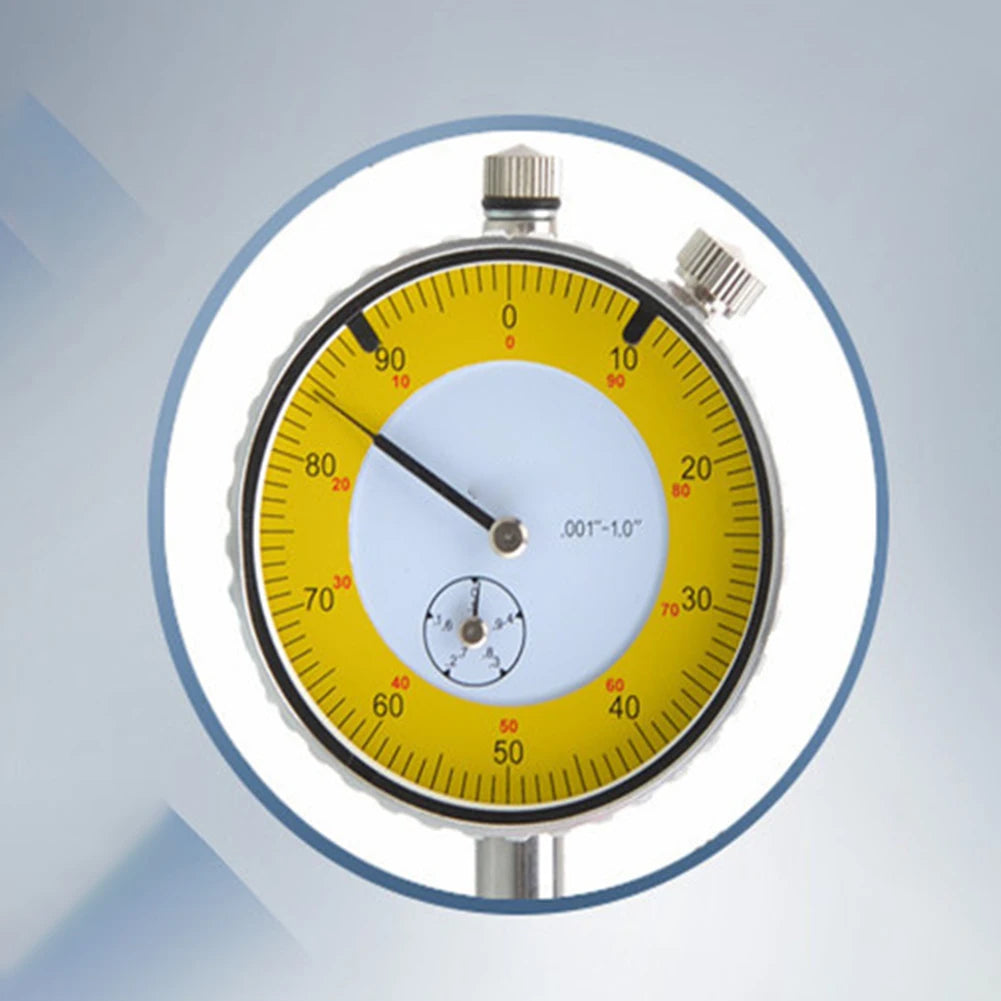

- Anti-Glare Aluminum Dial Face – Crisp, easy-to-read scale reduces eye strain during long measuring sessions
- Replaceable Contact Points – 4-48 thread specification for maximum versatility

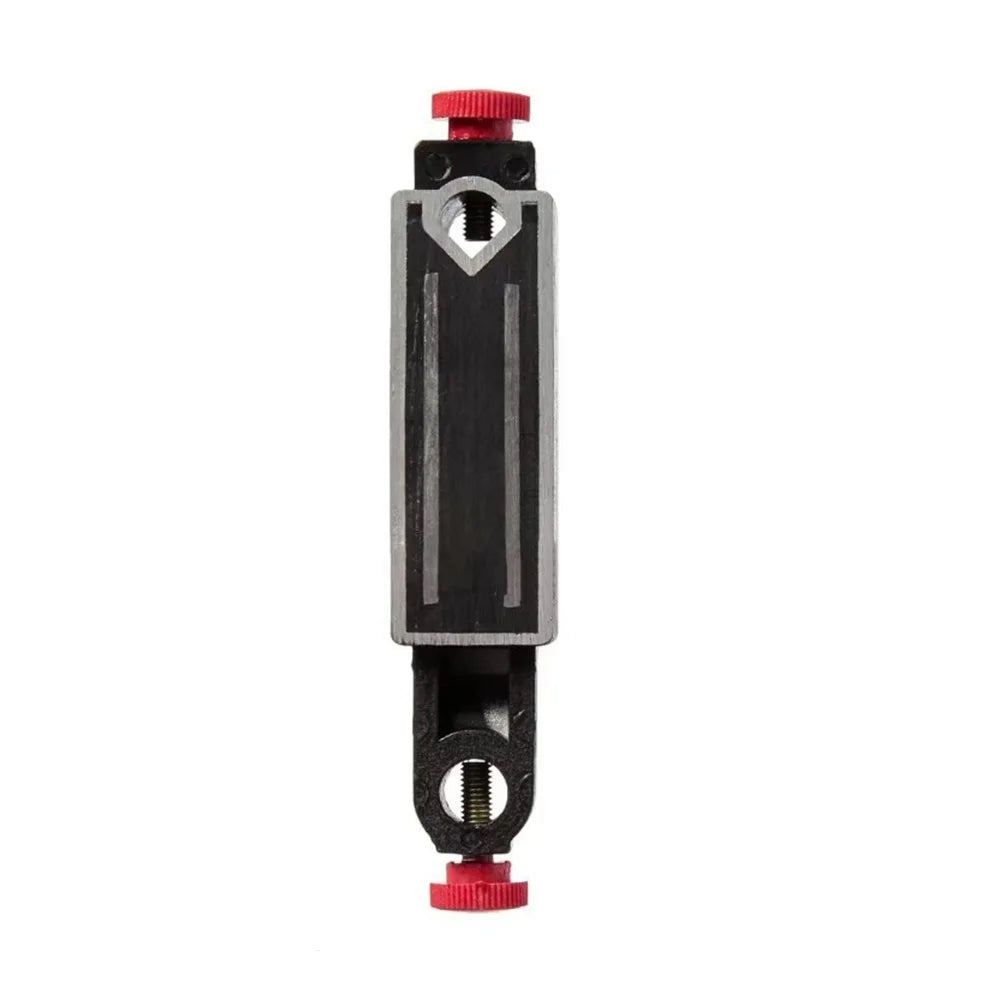

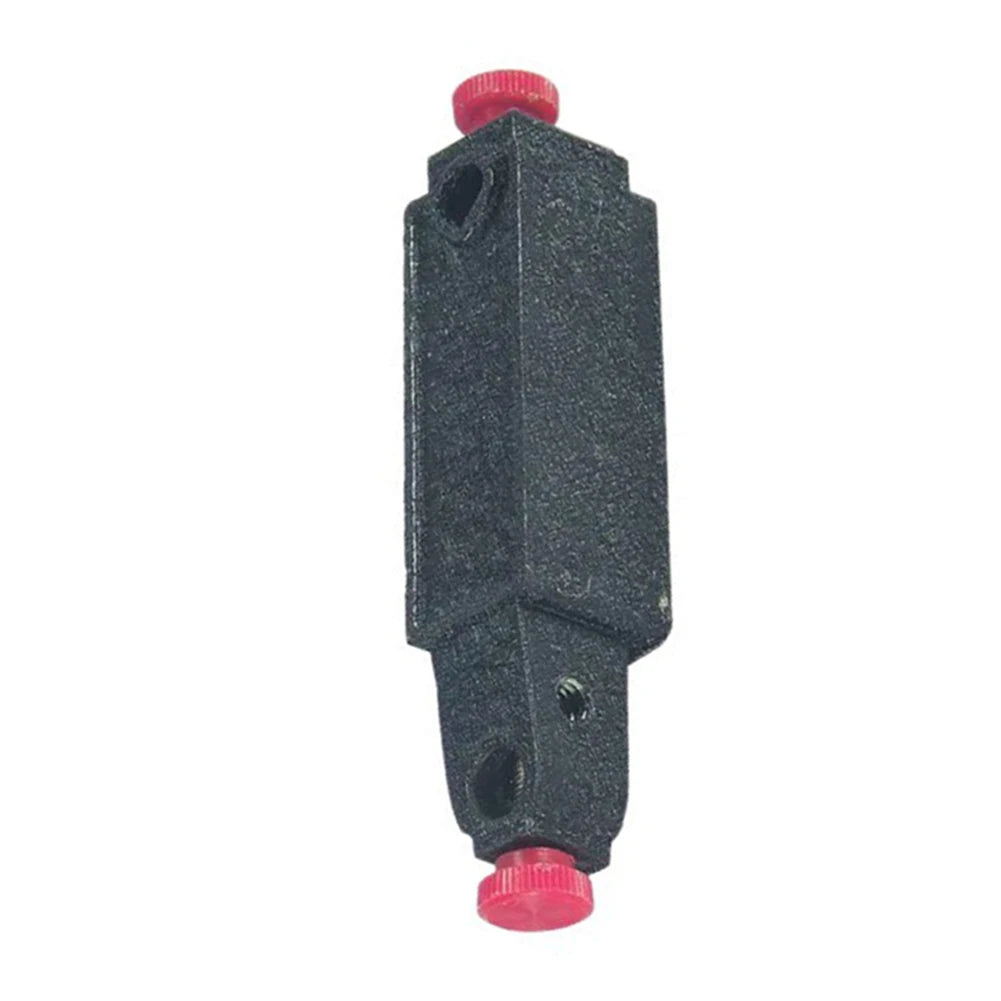

- Powerful Magnetic Base – Multiple mounting methods supported; saves setup time and improves measurement accuracy
Specifications

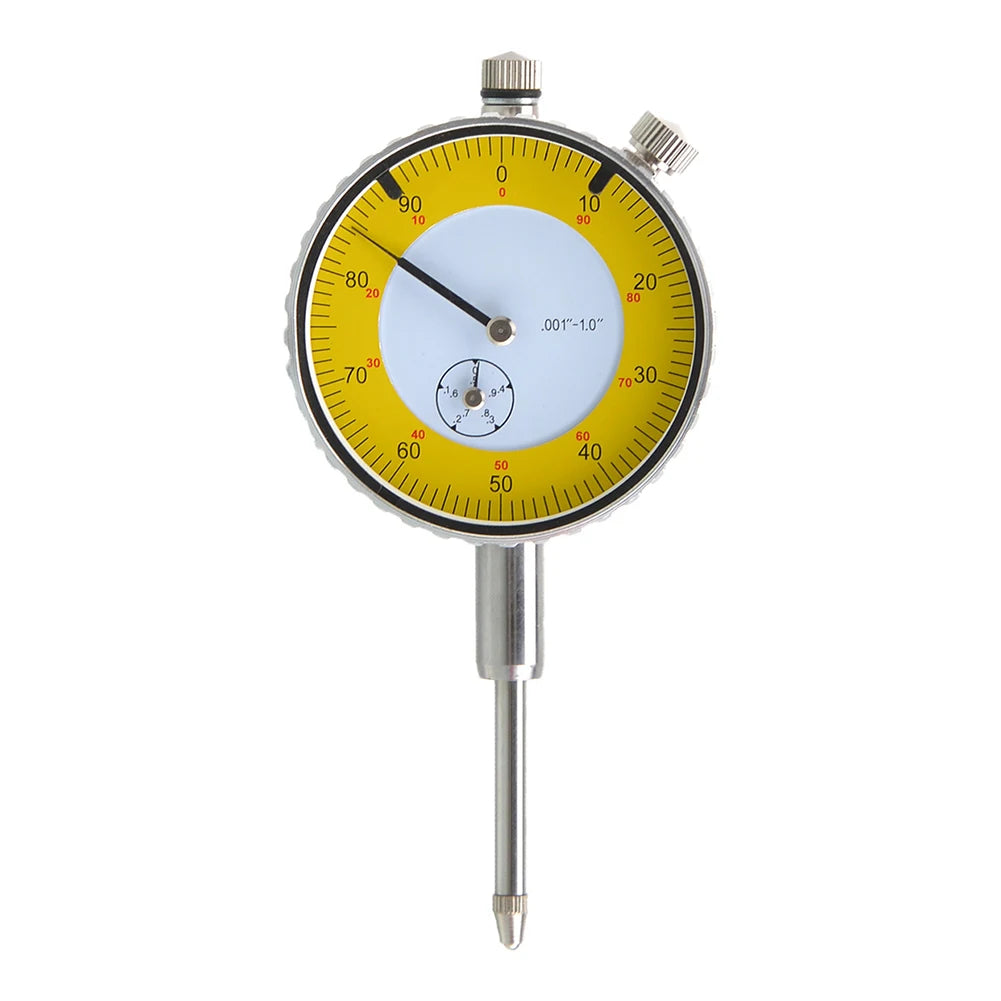

- Measuring Range: 0–1 inch
- Graduation: 0.001 inch
- Reading Scale: 0–100
- Dial Diameter: 2 3/8 inches
- Probe Diameter: 3/8 inch
- Accuracy (first 2.5 turns): ±0.001 inches
- Overall Accuracy: ±0.002 inches
- Back Lug Hole: 1/4 inch
- Mounting Options: #10-32 threaded holes, 1/4"-20 threaded holes, 3/8" reamed hole, Back V-hole 1/8" to 5/16"
- Material: Metal (brass, hardened stainless steel)
Package Options
- Package 1: 1 x Small Magnetic Base
- Package 2: 1 x Small Magnetic Base + 1-inch Dial Indicator
- Package 3: 1 x Small Magnetic Base + 2-inch Dial Indicator
Made in Mainland China.
Looking for more precision tools and workshop accessories? Check out the Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool and the Electromagnetic Induction Tester – Coil & Circuit Fault Detector to round out your toolkit.
Note: Screen calibration and monitor brightness may cause slight color variation compared to actual product. Please allow for minor manual measurement deviation.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is included in the Dial Indicator Magnetic Base Kit?
A: Depending on the package selected, the kit includes a small magnetic base inspection stand, and optionally a 0–1 inch dial indicator (Package 2) or a 2-inch dial indicator (Package 3). Package 1 includes the magnetic base only. All packages feature a sturdy magnetic base with multiple mounting hole options for flexible workshop use.
Q: What measuring range and accuracy does this dial indicator offer?
A: The dial indicator covers a measuring range of 0–1 inch with a graduation of 0.001 inch. Accuracy for the first 2.5 turns is ±0.001 inches, with an overall accuracy of ±0.002 inches — suitable for precision machining, runout checks, and surface alignment tasks.
Q: Are the contact points replaceable on this dial indicator?
A: Yes. The contact points are made from hardened stainless steel and feature a standard 4-48 thread specification, making them easy to swap out when worn or when a different tip profile is needed for your measurement application.
Q: What mounting options does the magnetic base support?
A: The magnetic base supports multiple mounting methods, including #10-32 threaded holes, 1/4"-20 threaded holes, a 3/8" reamed hole, and a back V-hole ranging from 1/8" to 5/16". This versatility allows you to position the dial indicator precisely for a wide variety of measurement setups.
