Dial Indicator Kit 0–1" with Magnetic Base — Professional Precision Measurement
Get shop-grade accuracy in one complete kit. This 0–1 inch Dial Indicator Kit with Magnetic Base is built for machinists, mechanics, and DIY enthusiasts who demand reliable, repeatable measurements. Whether you're checking runout, surface flatness, or part alignment, this kit delivers results you can trust — right out of the box.
Made in Mainland China.
Key Features
- High-Quality Brass Gearing: Main drive gear is crafted from wear-resistant, rust-proof brass for long-lasting performance.
- Hardened Stainless Steel Contact & Spindle: Spindle rack and contact points resist wear; forged brass case for durability.

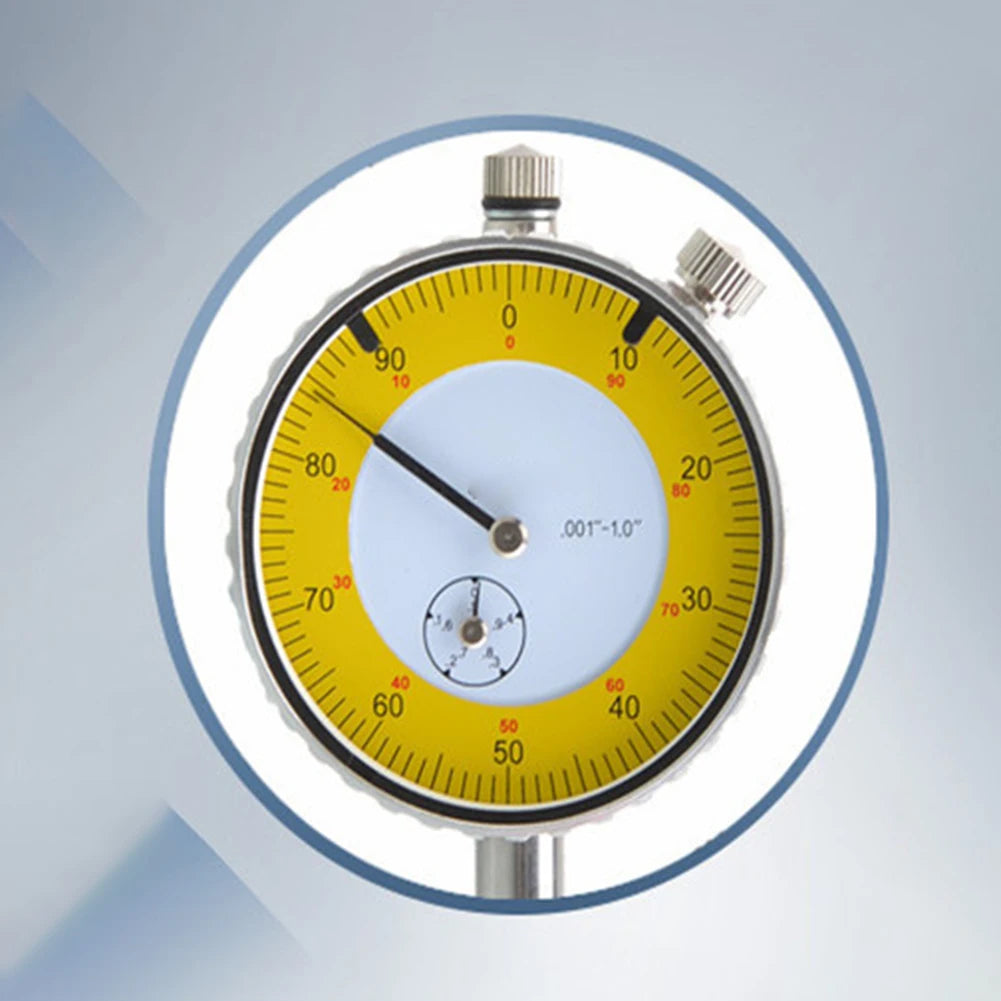

- Anti-Glare Aluminum Dial: Easy-to-read dial with anti-glare treatment — no squinting, no missed readings.
- Rotating Scale Ring: Includes clamp and tolerance markings so you can set your measurement range quickly and confidently.
- Replaceable Contact Points: 4-48 thread specification contact points are swappable for versatility across jobs.

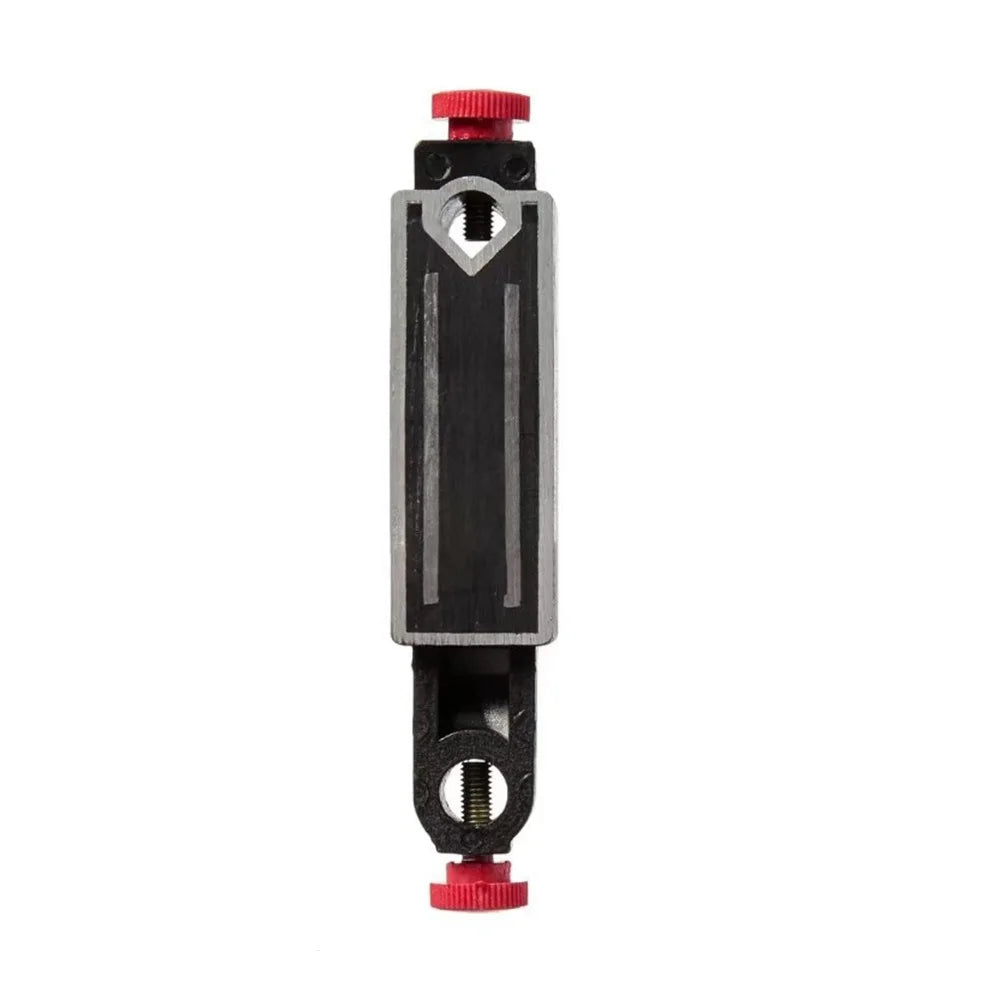

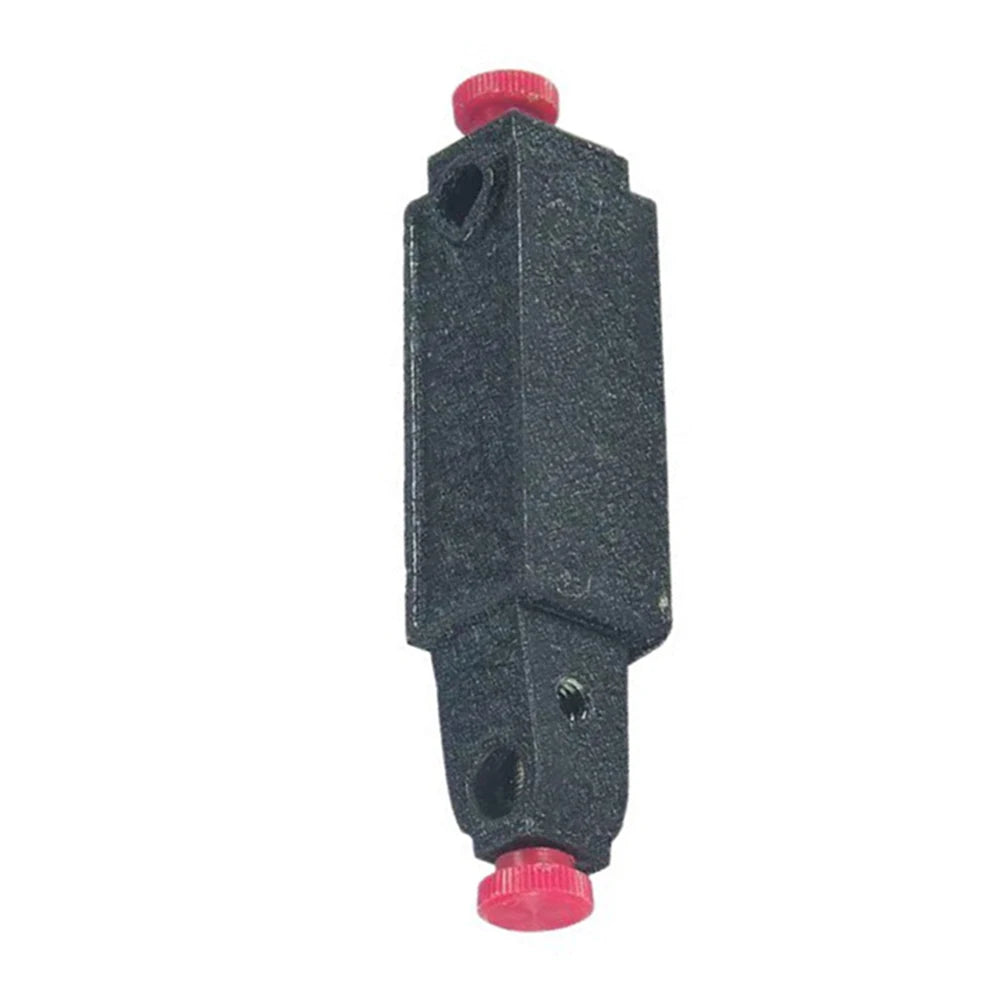

- Versatile Magnetic Base: Powerful magnetic base supports multiple mounting methods, saving setup time and boosting accuracy. Mounting options include #10-32 threaded holes, 1/4"–20 threaded holes, 3/8" reamed hole, and back V-hole (1/8" to 5/16").
Specifications
| Measuring Range | 0–1 inch |
| Graduation | 0.001 inch |
| Reading Scale | 0–100 |
| Dial Diameter | 2 3/8 inches |
| Probe Diameter | 3/8 inch |
| Back Lug Hole | 1/4 inch |
| Accuracy (First 2.5 Turns) | ±0.001 inches |
| Overall Accuracy | ±0.002 inches |
| Material | Metal (Brass & Stainless Steel) |
Package Options
- Package 1: 1 × Small Magnetic Base
- Package 2: 1 × Small Magnetic Base + 1-inch Dial Indicator
- Package 3: 1 × Small Magnetic Base + 2-inch Dial Indicator
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
Important Notes
Monitor brightness and lighting conditions may cause slight color variations between product images and the actual item. Please allow for minor manual measurement tolerances in the listed data.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is included in the dial indicator magnetic base kit?
A: You can choose from three package options: Package 1 includes just the small magnetic base; Package 2 includes the magnetic base plus a 1-inch dial indicator; and Package 3 includes the magnetic base plus a 2-inch dial indicator. All packages feature the same precision-built magnetic base with multiple mounting configurations.
Q: What mounting options does the magnetic base support?
A: The magnetic base is highly versatile, offering #10-32 threaded holes, 1/4"–20 threaded holes, a 3/8" reamed hole, and a back V-hole ranging from 1/8" to 5/16". This ensures compatibility with a wide range of inspection stands, arms, and workholding setups.
Q: How accurate is this 0–1 inch dial indicator?
A: The dial indicator offers an accuracy of ±0.001 inches for the first 2.5 turns and an overall accuracy of ±0.002 inches, with a graduation of 0.001 inch. This level of precision makes it suitable for machining, automotive work, and quality inspection tasks.
Q: Are the contact points replaceable on this dial indicator?
A: Yes — the contact points use a standard 4-48 thread specification, making them easy to swap out when worn or when a different tip style is required for a specific measuring task.
