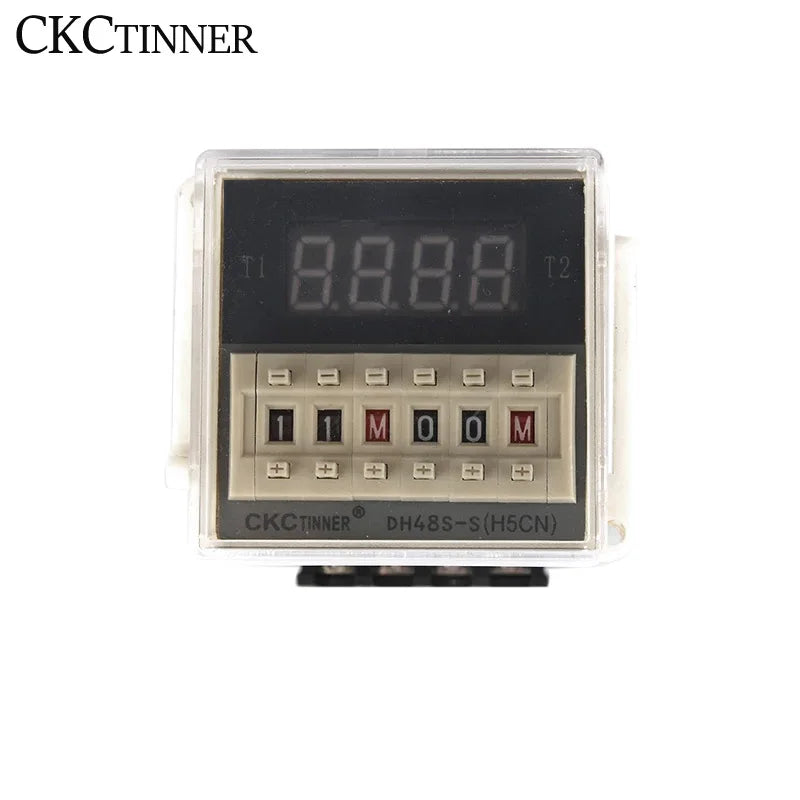

DH48S-S Digital LED Programmable Repeat Cycle Timer Relay Switch
Take precise control of your electrical circuits with the CKCTINNER DH48S-S Digital Programmable Timer Relay Switch. Whether you're automating industrial equipment, irrigation systems, lighting, or any general-purpose electrical load, this versatile repeat-cycle timer delivers accurate, reliable timing from 0.1 seconds up to 99 hours. With a wide input voltage range covering AC/DC 12V, 24V, 36V, 110V, 220V, and 380V, it fits almost any application right out of the box.
Key Features

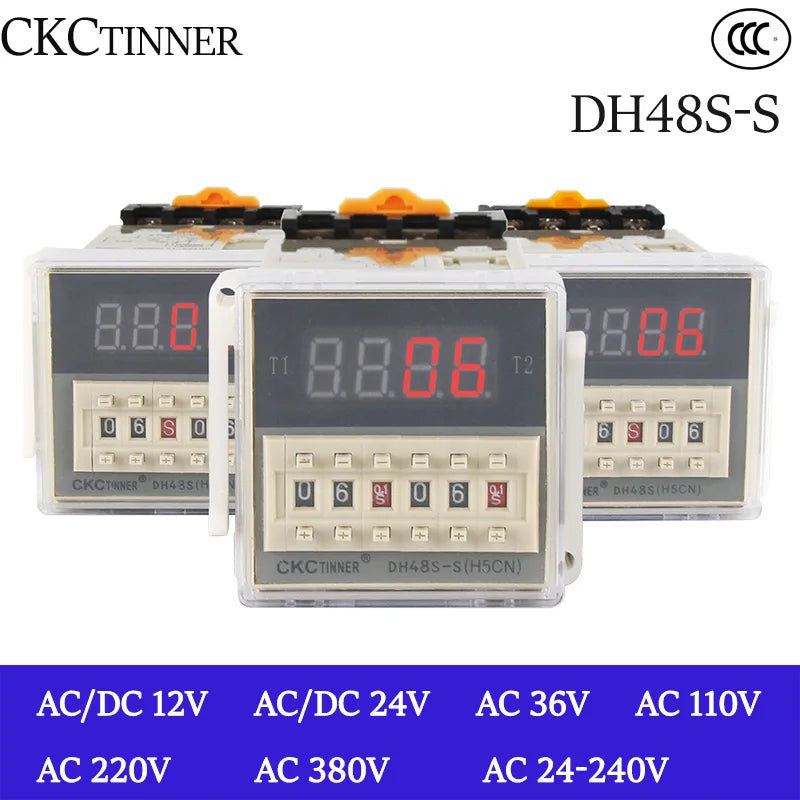

- Wide Voltage Compatibility: Supports AC/DC 12V, 24V, 36V, 110V, 220V, and 380V — versatile for home, commercial, and industrial use.
- Precision Timing Range: Adjustable delay from 0.1 seconds to 99 hours with a control accuracy of ≤0.3% + 0.05s for dependable cycle management.
- Digital LED Display: Clear, easy-to-read LED readout makes setting and monitoring your timing intervals straightforward.
- Repeat Cycle Operation: Automatically repeats ON/OFF cycles without manual intervention — ideal for automated processes.

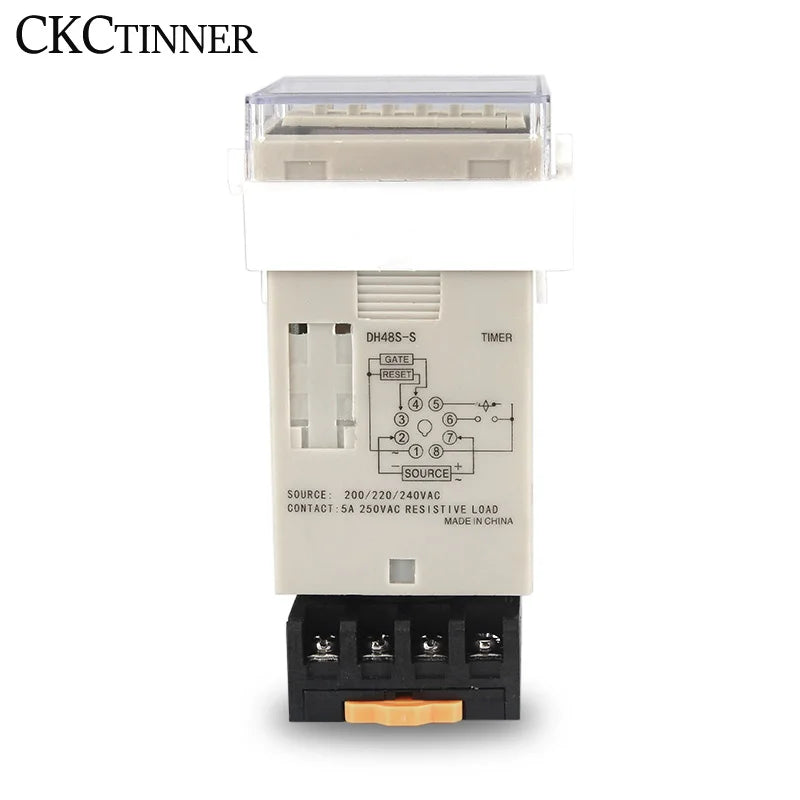

- Reset Function: Connecting terminals 1 and 3 at any time resets the relay to its original state and restarts the count from zero upon disconnection.

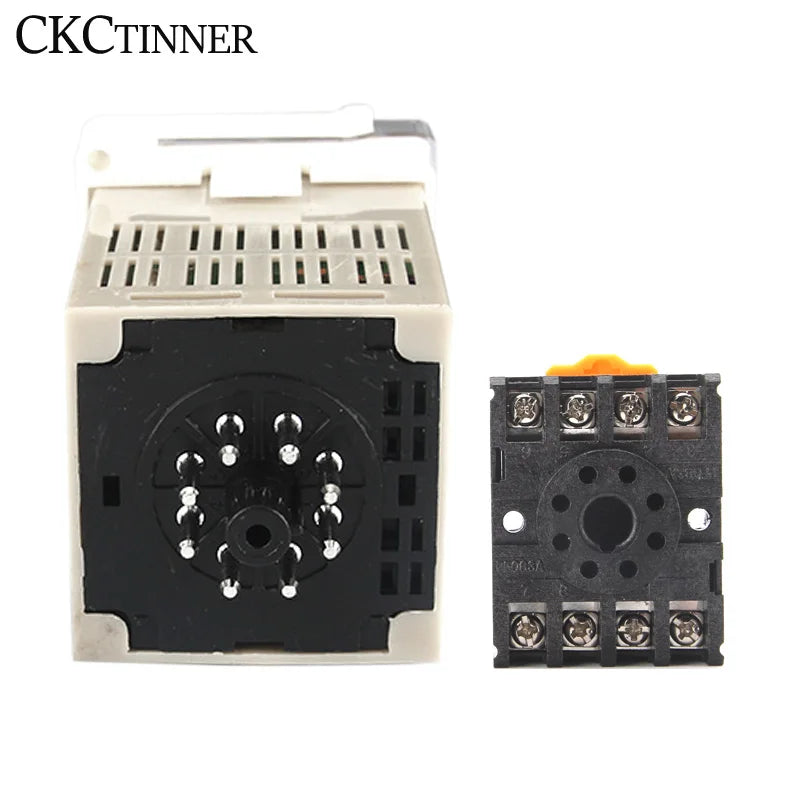

- Socket Base Included: Plug-in socket base makes installation and replacement fast and tool-free.
- CE Certified: Meets European safety and performance standards for peace of mind.
- Epoxy Protection: Internal epoxy coating guards critical components against moisture and dust.
- Low Power Consumption: Draws ≤5W, keeping your energy usage minimal.
Specifications
| Model | DH48S-S |
| Input Voltage | AC/DC 12V / 24V / 36V / 110V / 220V / 380V |
| Timing Range | 0.1 seconds – 99 hours |
| Timing Accuracy | ≤0.3% + 0.05s |
| Contact Capacity | 5A DC30V / 5A AC220V (resistive load) |
| Power Consumption | ≤5W |
| Ambient Temperature | -10°C to +50°C |
| Max Altitude | <2,000 m |

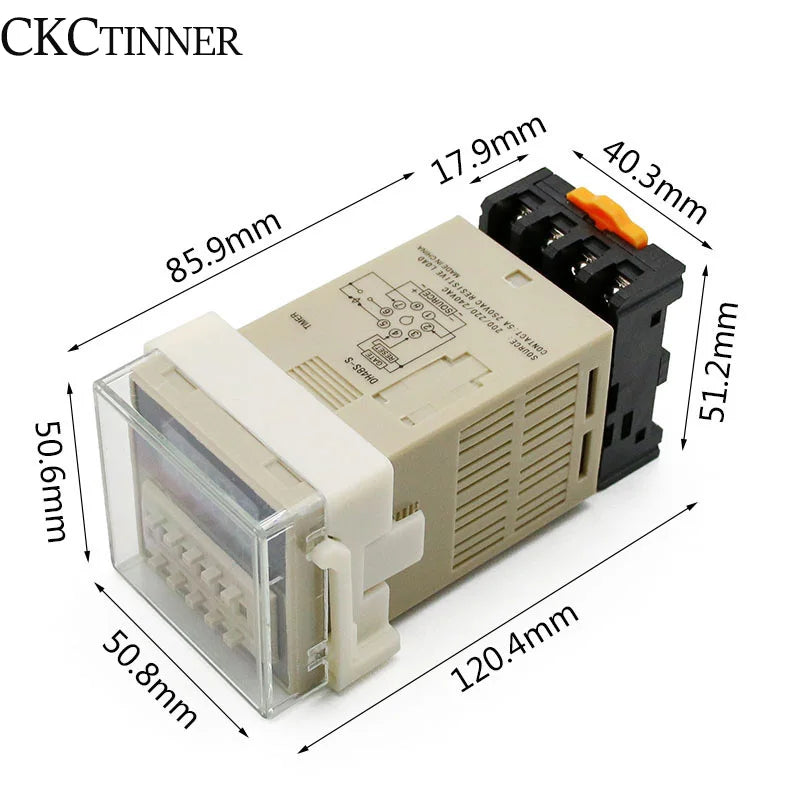

| Dimensions | 11 × 5.5 × 5 cm |
| Material | Plastic / Metal |
| Certification | CE |
| Country of Origin | Made in China |

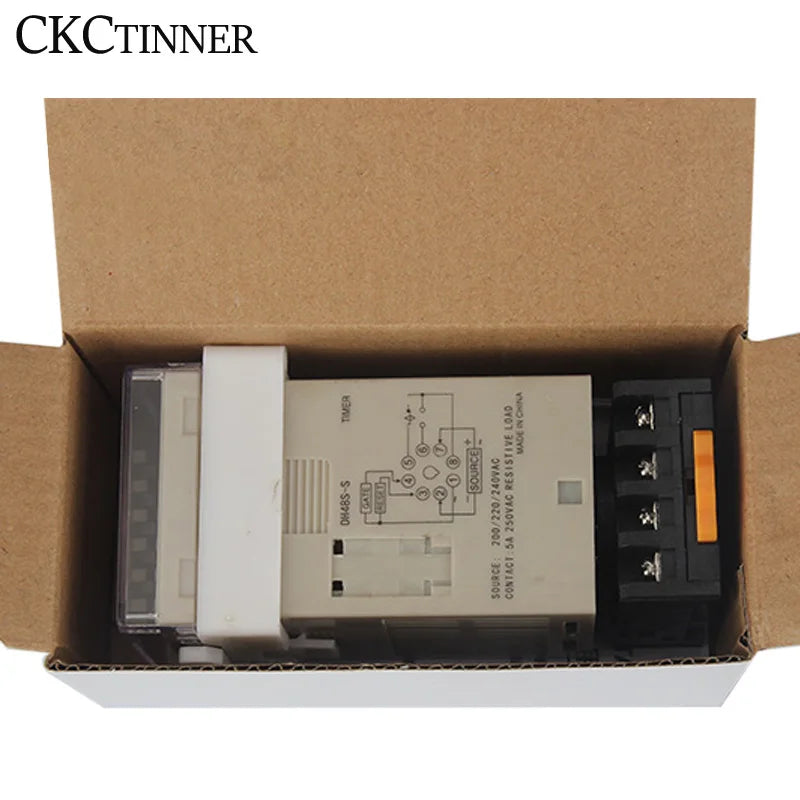

What's in the Box

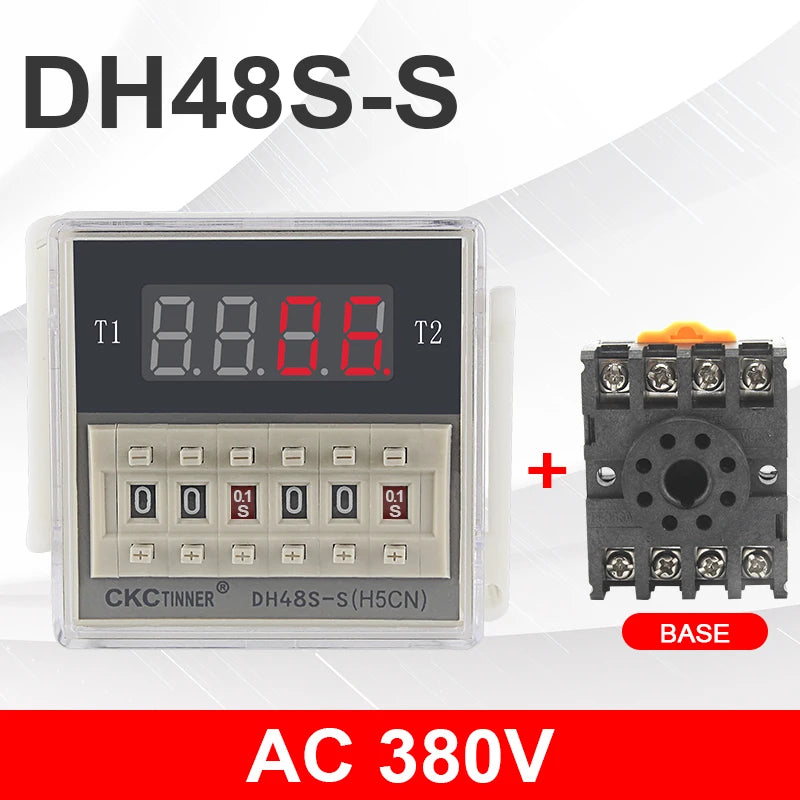

- 1 × DH48S-S Timer Relay with Socket Base
How to Use
- Preset your desired delay value using the digital controls.
- Connect power supply — the relay begins its timing cycle immediately.
- Once your preset is complete, fit the protective cover over the adjustment controls.
- For loads requiring higher current, use the relay in conjunction with an AC contactor.
- For reset/pause functions, connect shielded wire to terminals 1 and 3 as directed.
Explore More Tools & Accessories
Looking for other DIY and workshop tools? Check out our Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool and the Electromagnetic Induction Tester – Coil & Circuit Fault Detector for your electrical and workshop projects.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage options does the DH48S-S timer relay switch support?
A: The DH48S-S programmable timer relay supports a wide range of AC and DC voltages including 12V, 24V, 36V, 110V, 220V, and 380V, making it suitable for a broad variety of residential, commercial, and industrial electrical applications.
Q: What is the timing range of this digital repeat cycle timer relay?
A: The timing range spans from 0.1 seconds up to 99 hours, giving you exceptional flexibility whether you need very short interval cycling or extended long-duration timing schedules.
Q: Can this timer relay handle high-current loads directly?
A: The DH48S-S has a contact capacity of 5A DC30V / 5A AC220V for resistive loads. For driving larger current loads beyond this rating, it is recommended to use the relay in combination with an appropriately rated AC contactor.
Q: How does the reset function work on the DH48S-S?
A: To reset the timer at any point during operation, connect a wire to terminals 1 and 3. This immediately returns the relay contacts to their original (default) position. When the reset wire is disconnected, the timer restarts its count from zero. Use shielded wire for the reset and pause terminals to minimize electrical interference.
