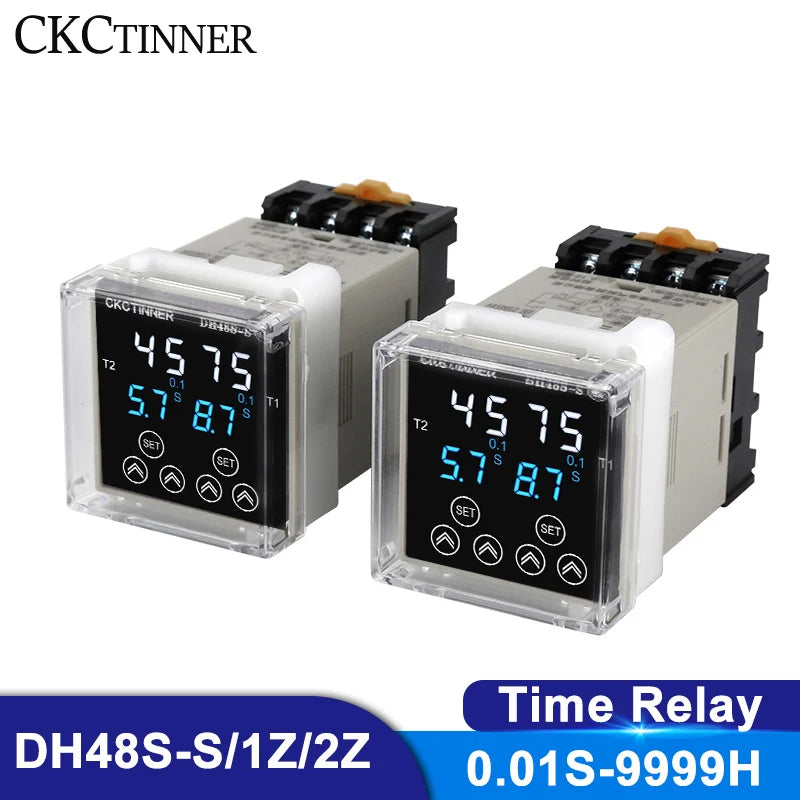

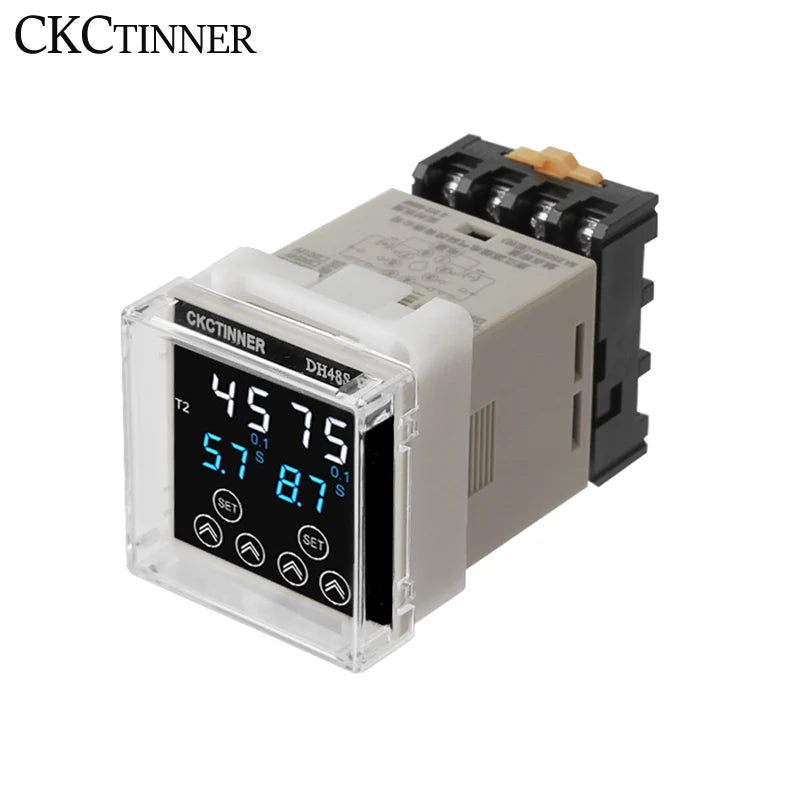

DH48S Programmable Digital Time Relay with Socket Base
The CKCTINNER DH48S Programmable Digital Time Relay is a versatile, CE-certified timing control solution designed for industrial and general-purpose automation. Supporting multiple voltage inputs (AC220V, AC380V, DC24V, DC12V), this relay covers a wide timing range of 0.01 seconds to 9999 hours, making it ideal for everything from short-cycle automation to long-duration scheduled control tasks.
Made in Mainland China.
Key Features
- Multiple Models Available: DH48S-S, DH48S-1Z, and DH48S-2Z to suit your specific wiring and contact requirements
- Wide Voltage Compatibility: AC220V, AC380V, DC24V, DC12V — one relay fits a broad range of electrical systems
-
Three Timing Modes:
- Y – Power-On Delay: Contact closes after a set delay following power-on
- C – Instantaneous Delay: Contact closes immediately at power-on, then opens after the programmed delay
- X – Cycle Delay: Contact closes after a delay, then opens after another delay, repeating cyclically
- High Power Contact Load: Handles demanding switching tasks with reliability

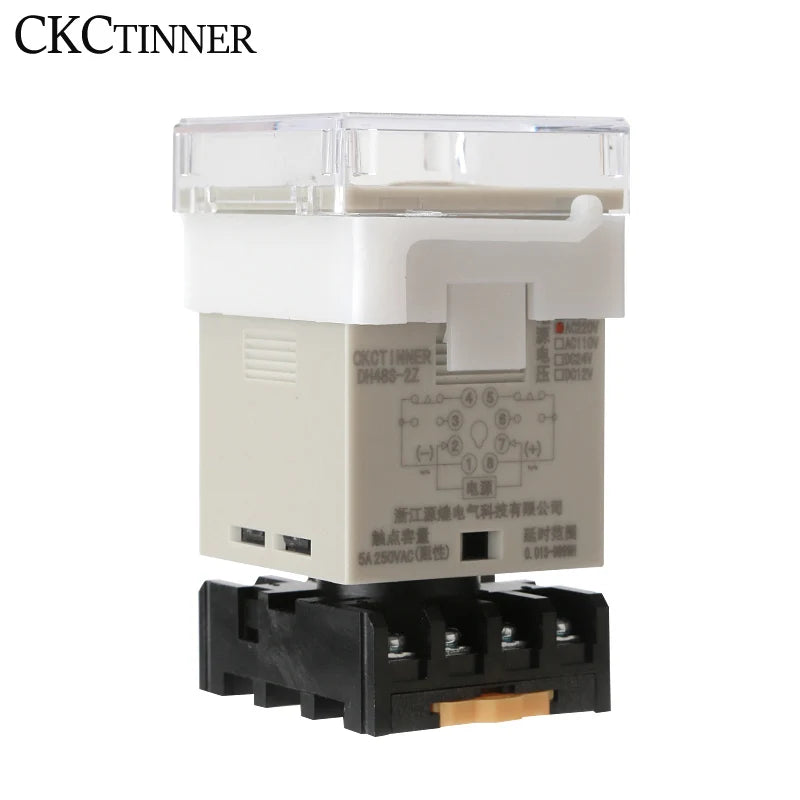

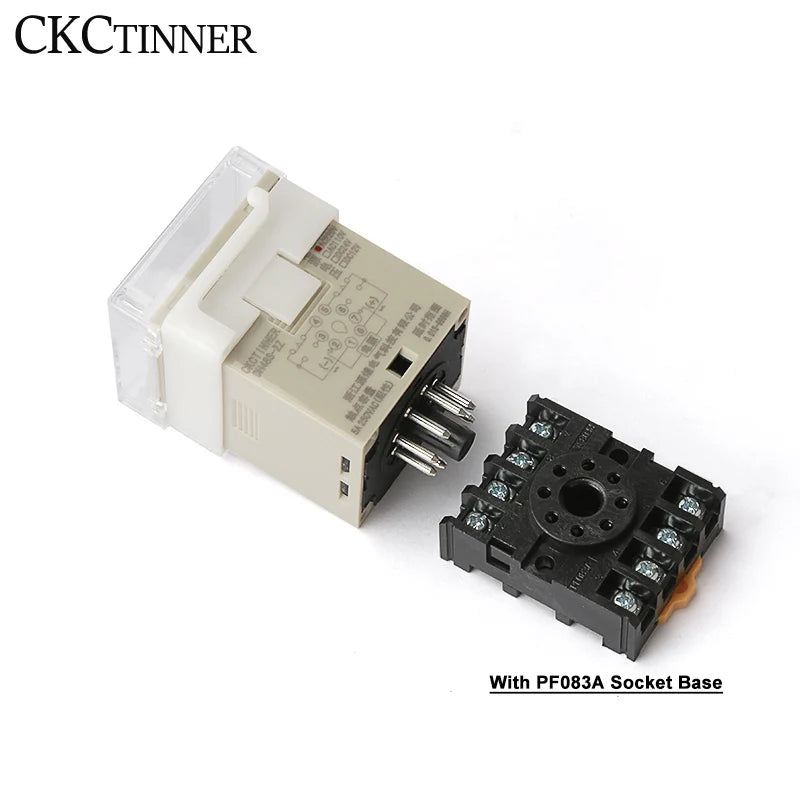

- 8-Pin Socket Base Included: Easy plug-in installation on standard DIN rail panels
- CE Certified: Meets European safety and performance standards

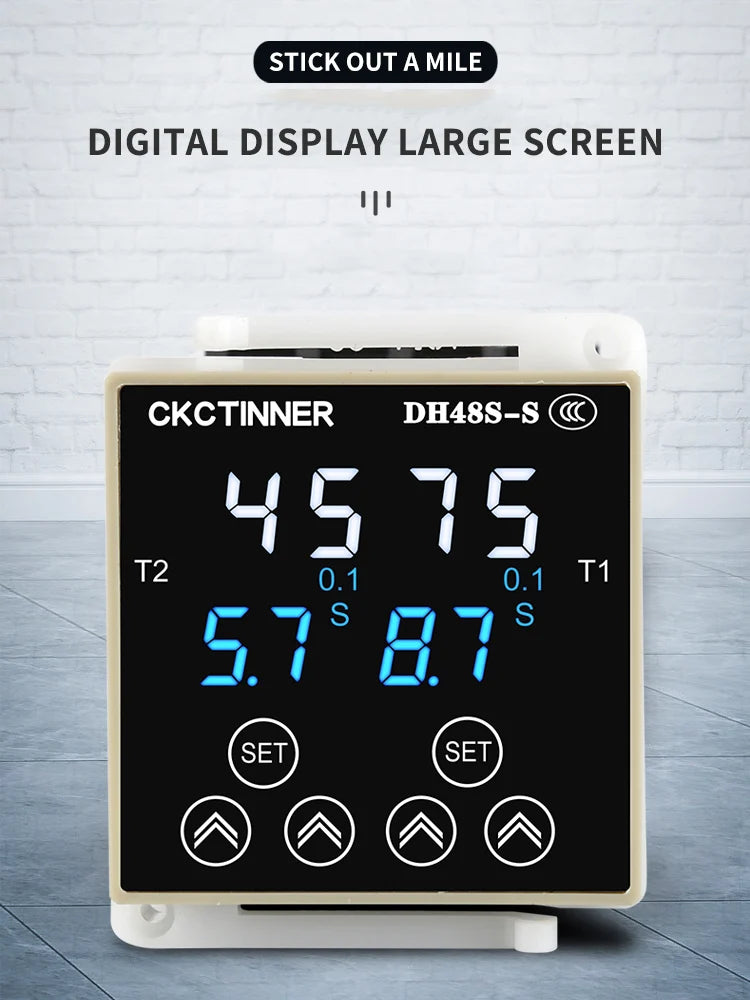

- Digital Display: Clearly shows countdown and set time for effortless programming
Specifications
| Brand | CKCTINNER |

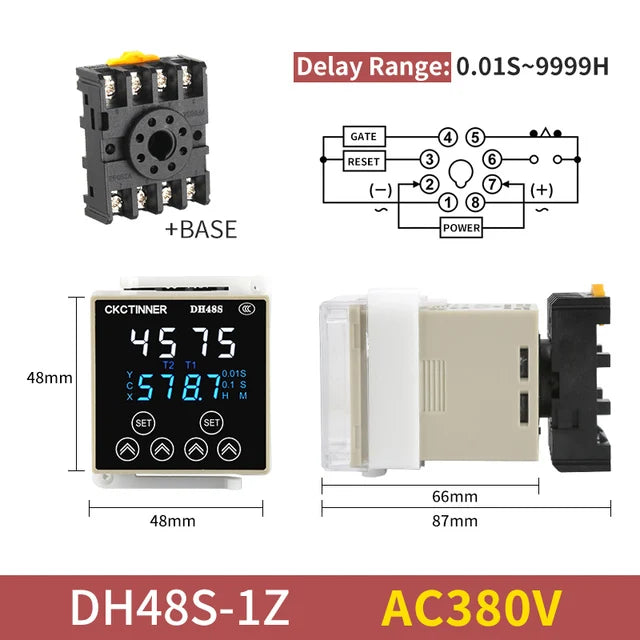

| Model | DH48S-S / DH48S-1Z / DH48S-2Z |
| Voltage | AC220V / AC380V / DC24V / DC12V |
| Timing Range | 0.01S – 9999H |
| Contact Form | SPDT(1C) / SPDT(2C) |
| Pin Configuration | 8 Pin |
| Mounting | DIN Rail with Socket Base |
| Certification | CE |
| Power Source | AC / DC |
| Origin | Mainland China |
What's in the Box
- 1 × DH48S Digital Time Relay
- 1 × 8-Pin Socket Base
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage options does the DH48S digital time relay support?
A: The DH48S time relay is compatible with AC220V, AC380V, DC24V, and DC12V, making it suitable for a wide range of industrial and general-purpose electrical systems.
Q: What is the difference between DH48S-S, DH48S-1Z, and DH48S-2Z models?
A: The DH48S-S supports both SPDT(1C) and SPDT(2C) contact configurations. The DH48S-1Z features a single SPDT(1C) contact, while the DH48S-2Z features a double SPDT(2C) contact. Choose the model based on your circuit's switching requirements.
Q: How do I mount the DH48S time relay?
A: The relay comes with an 8-pin socket base that allows for easy plug-in installation on a standard DIN rail panel — no soldering required, making installation and replacement quick and straightforward.
Q: What timing range does the DH48S support?
A: The DH48S offers an extremely wide programmable timing range from 0.01 seconds all the way up to 9999 hours, covering both short-cycle and long-duration automation applications.
