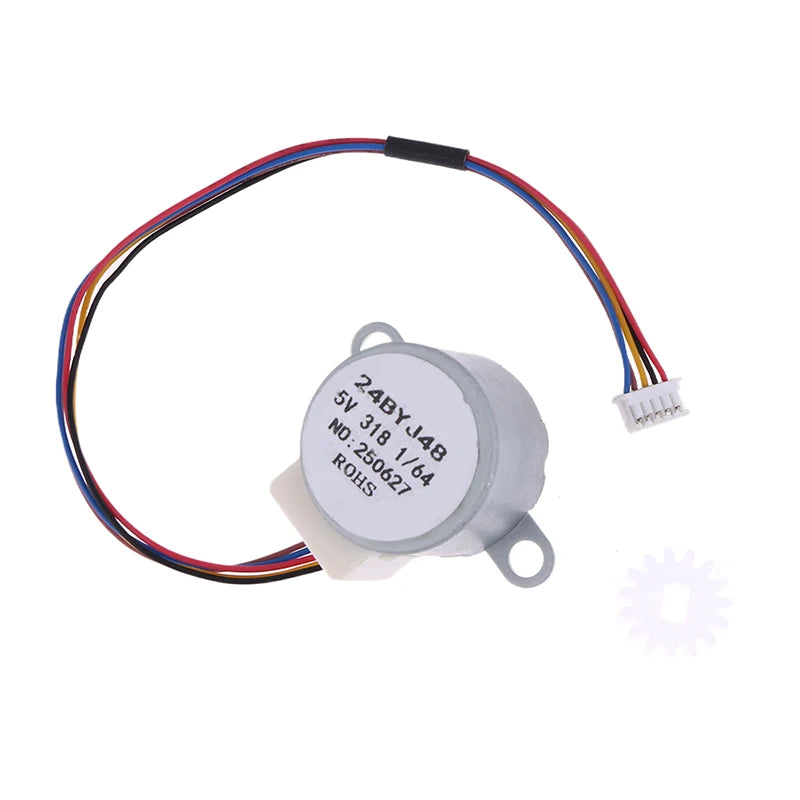

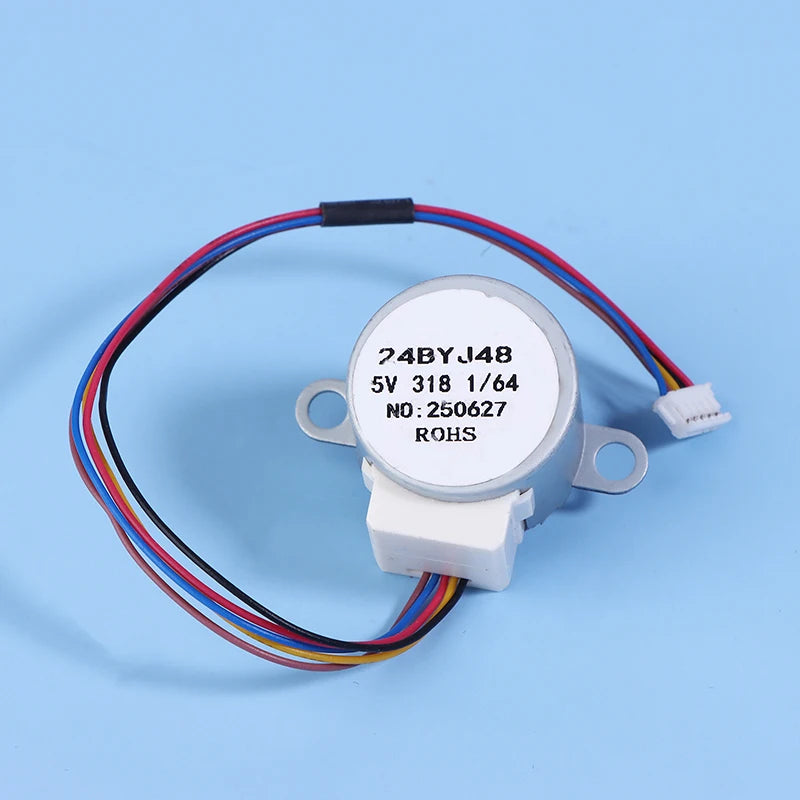

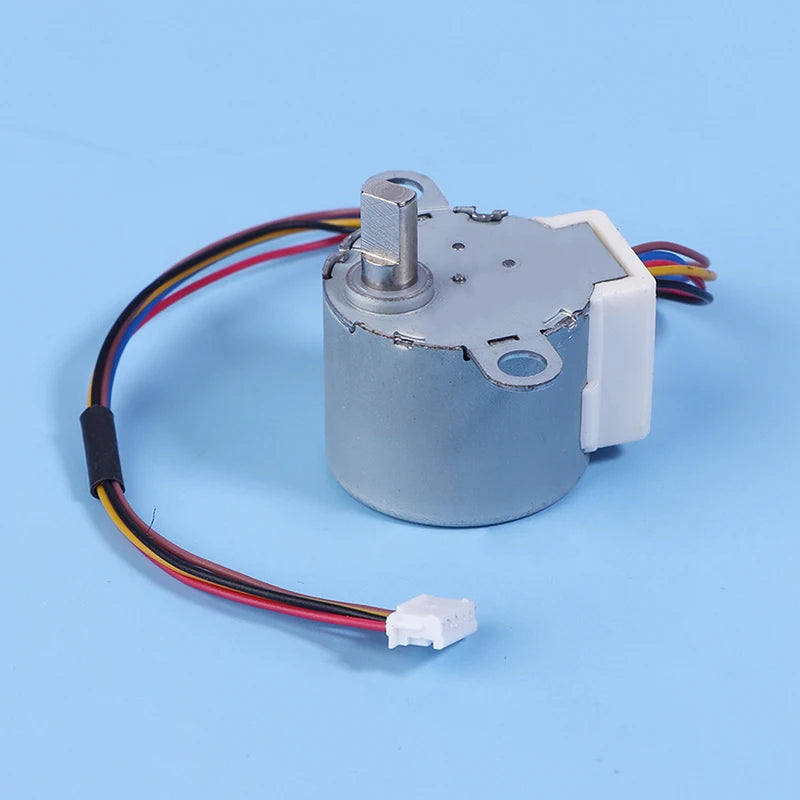

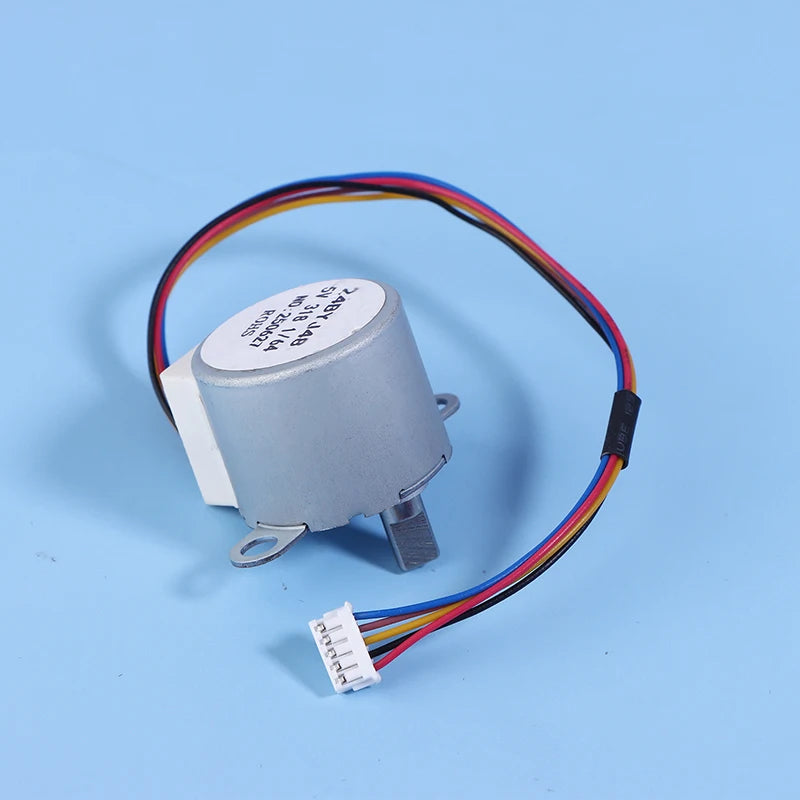

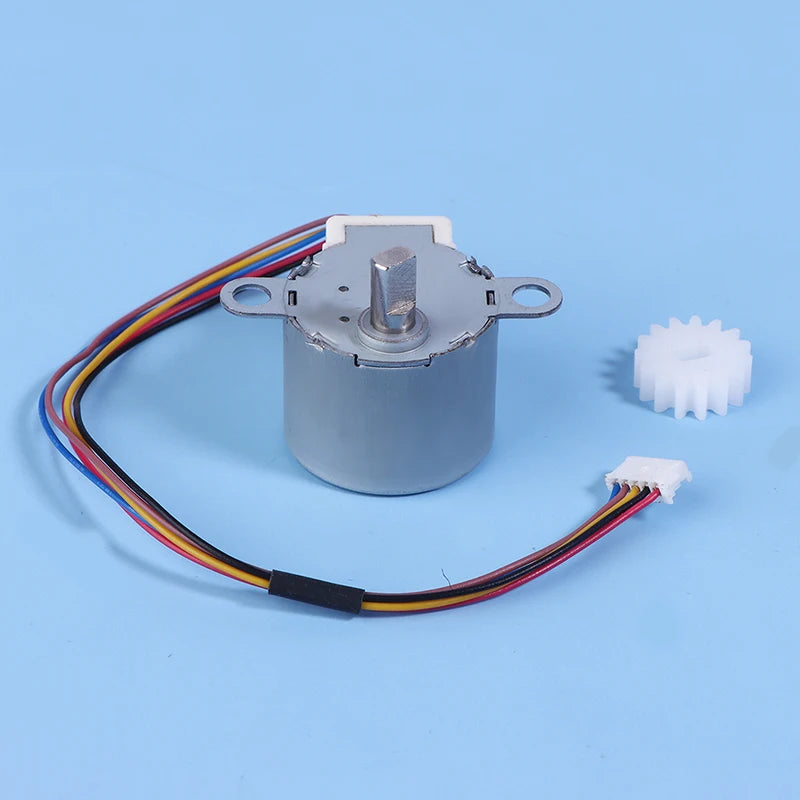

DC Stepper Motor 24BYJ48 – 5V, 2W, 6 RPM Step Gear Motor
The 24BYJ48 DC Stepper Motor is a compact, reliable step gear motor designed for precise low-speed rotation in a wide range of DIY electronics and small appliance projects. Running on just 5V and rated at 2W, it delivers smooth, controlled movement at 6 RPM — making it ideal for oscillating fans, rotating camera mounts, phone brackets, heating system mechanisms, and more.
Built with a metal construction for durability, this gear motor fits neatly into tight spaces at just 3.8 × 2.8 × 3.0 cm, while the 24 mm appearance size makes it a standard drop-in choice for a variety of hobby and household electronics builds.
Key Specifications
- Model: 24BYJ48
- Rated Voltage: 5V DC
- Rated Power: 2W
- Rated Current: 0.06 – 0.5 A
- Rated Speed: 6 RPM
- Rated Torque: 0.1 – 0.6 Nm
- Appearance Size: 24 mm

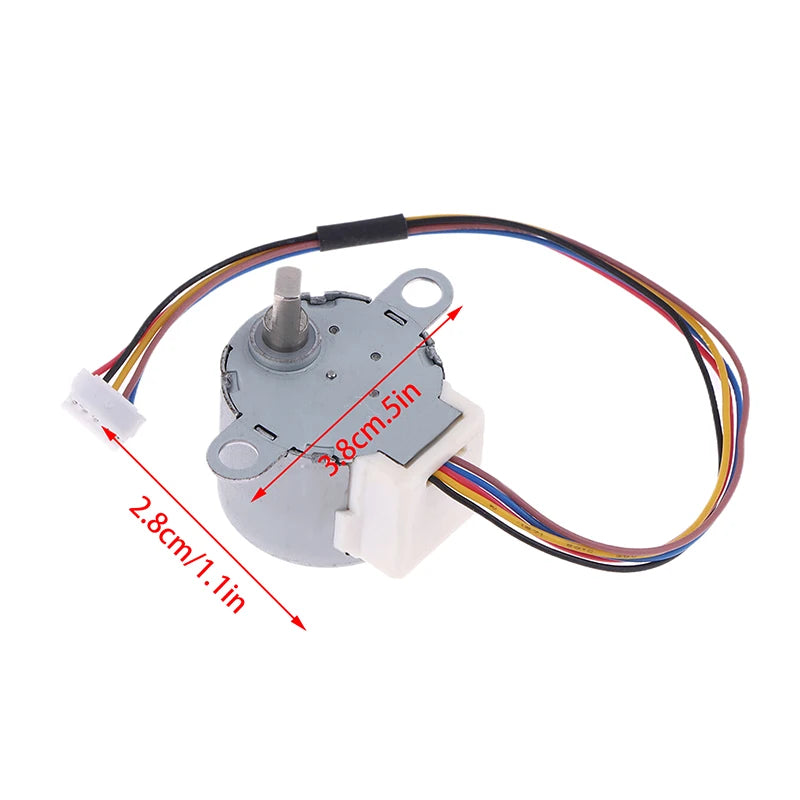

- Overall Dimensions: 3.8 × 2.8 × 3.0 cm
- Material: Metal
Common Applications
- Oscillating / shaking head fans
- Rotating mobile phone brackets
- Security and household camera pan mechanisms
- Heating system directional vents
- DIY robotics and automation projects
- Small household appliances
What's in the Box
- 1 × 24BYJ48 Step Gear Motor
Made in Mainland China.
Looking for other useful tools and gadgets for your DIY projects? Check out our Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool or the Electromagnetic Induction Tester – Coil & Circuit Fault Detector for your electronics toolkit.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage does the 24BYJ48 stepper motor require?
A: The 24BYJ48 step gear motor operates on a rated voltage of 5V DC with a rated power of 2W and a current range of 0.06 – 0.5 A, making it compatible with most standard 5V microcontroller setups such as Arduino or Raspberry Pi driver boards.
Q: What is the rated speed of this stepper motor?
A: This DC stepper motor runs at a rated speed of 6 RPM (revolutions per minute), providing smooth, low-speed rotational control suitable for oscillating fans, rotating mounts, and similar applications requiring gentle, precise movement.
Q: Is a driver board included with the 24BYJ48 motor?
A: The package includes 1 × 24BYJ48 step gear motor only. A separate ULN2003 driver board or equivalent stepper motor driver is typically required to connect and control this motor with a microcontroller. Driver boards are widely available as accessories.
