DC Digital Voltmeter Ammeter 10A/50A/100A LED Display 0-100V

DC Dual Digital Voltmeter Ammeter – LED Display, 10A / 50A / 100A

Monitor DC voltage and current simultaneously with this compact, easy-to-read dual LED display meter. Whether you're working on electroplating setups, DC power control projects, battery testing, or DIY electronics, this voltmeter ammeter combo gives you accurate, real-time readings at a glance. The bright blue and red 0.28" digital tube display makes values easy to read even in dimly lit workspaces.

Made in Mainland China.

Key Features

• Dual display: Simultaneously shows voltage (blue) and current (red) readings

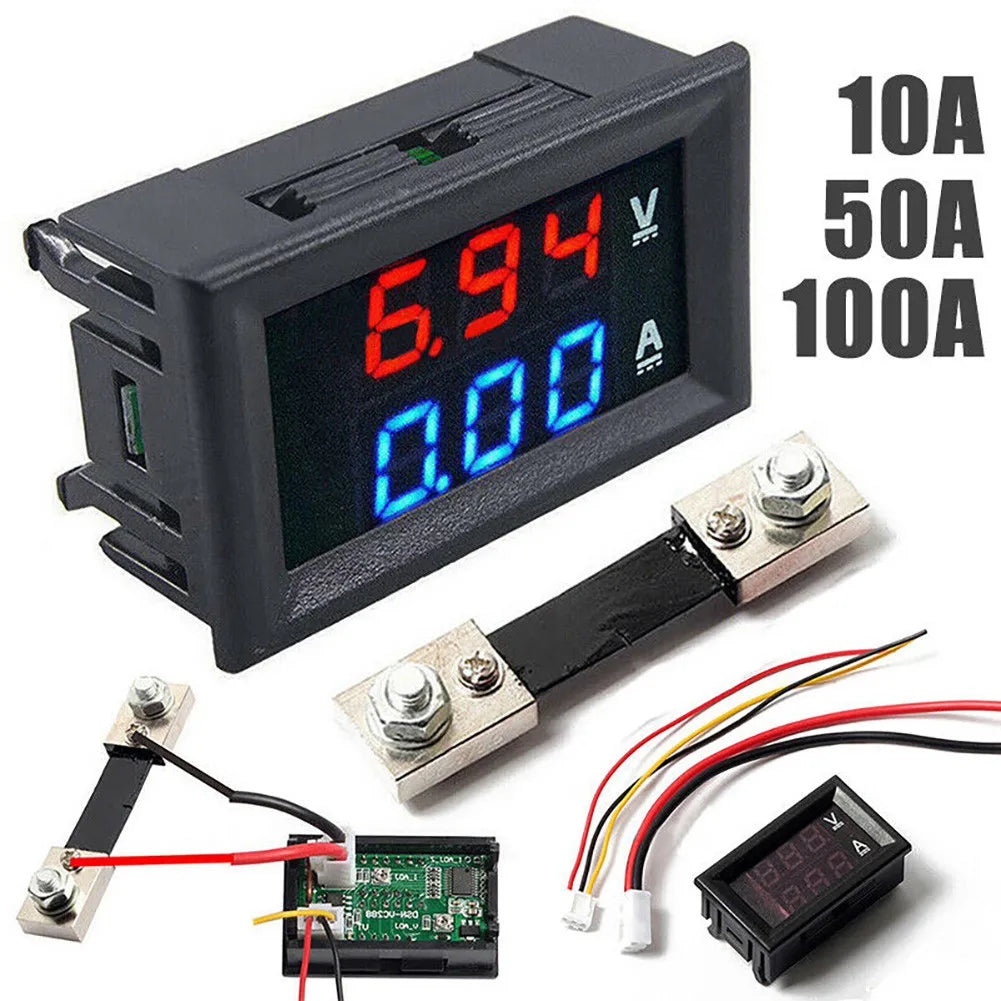

• Three current range options: 10A (no shunt), 50A (shunt included), or 100A (shunt included)
• Wide voltage measurement range: DC 0–100V with 0.1V resolution
• High accuracy: 1% (±1 digit) measurement accuracy
• Fast refresh rate: ~300ms per reading cycle for near-real-time monitoring

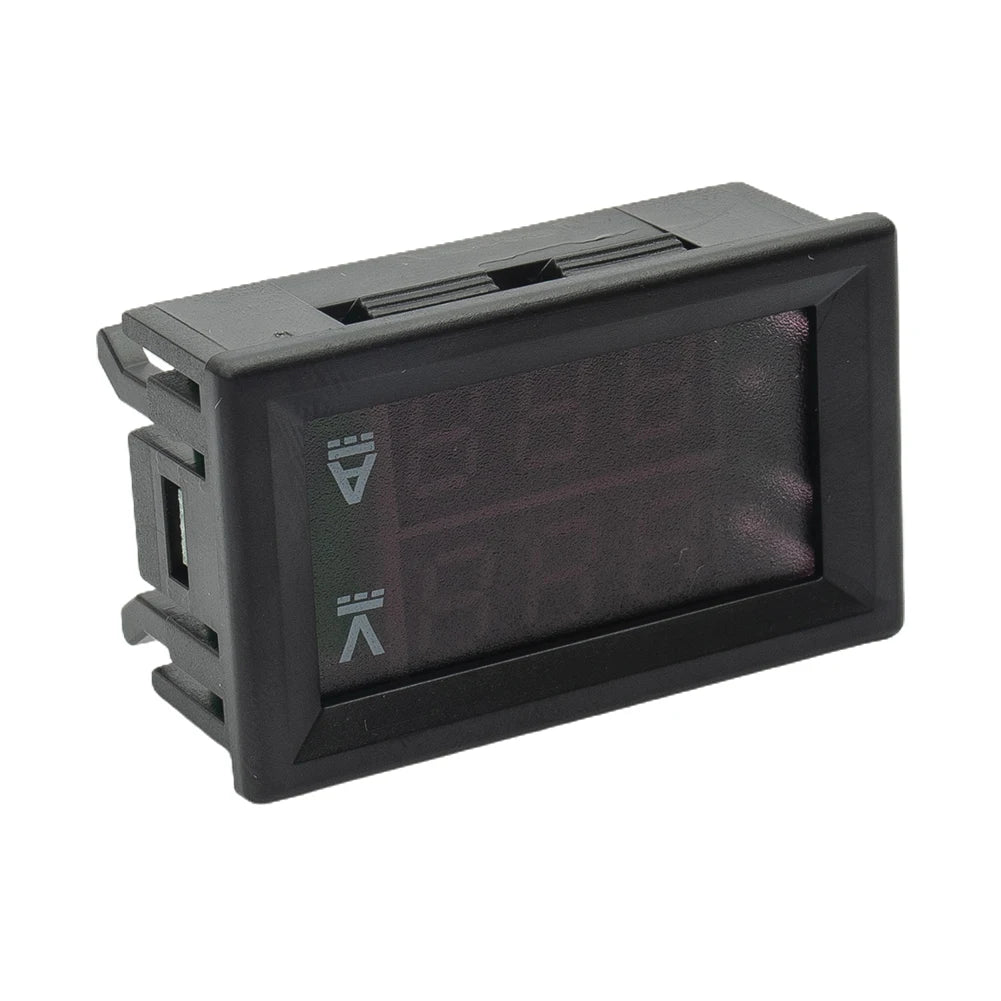

• Compact form factor: ~48 × 29 × 26 mm — easy to integrate into panels or enclosures
• Low power consumption: Instrument working current ≤20mA

Technical Specifications

Important Wiring Notes

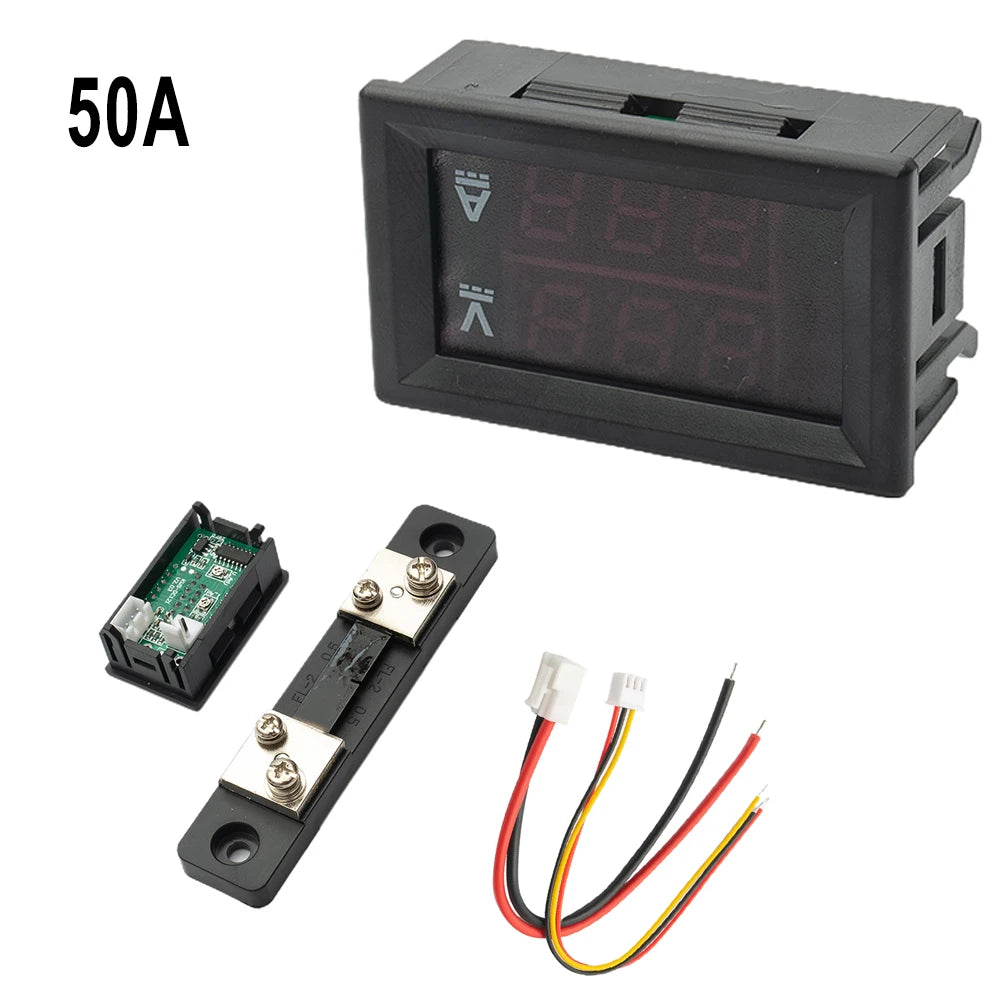

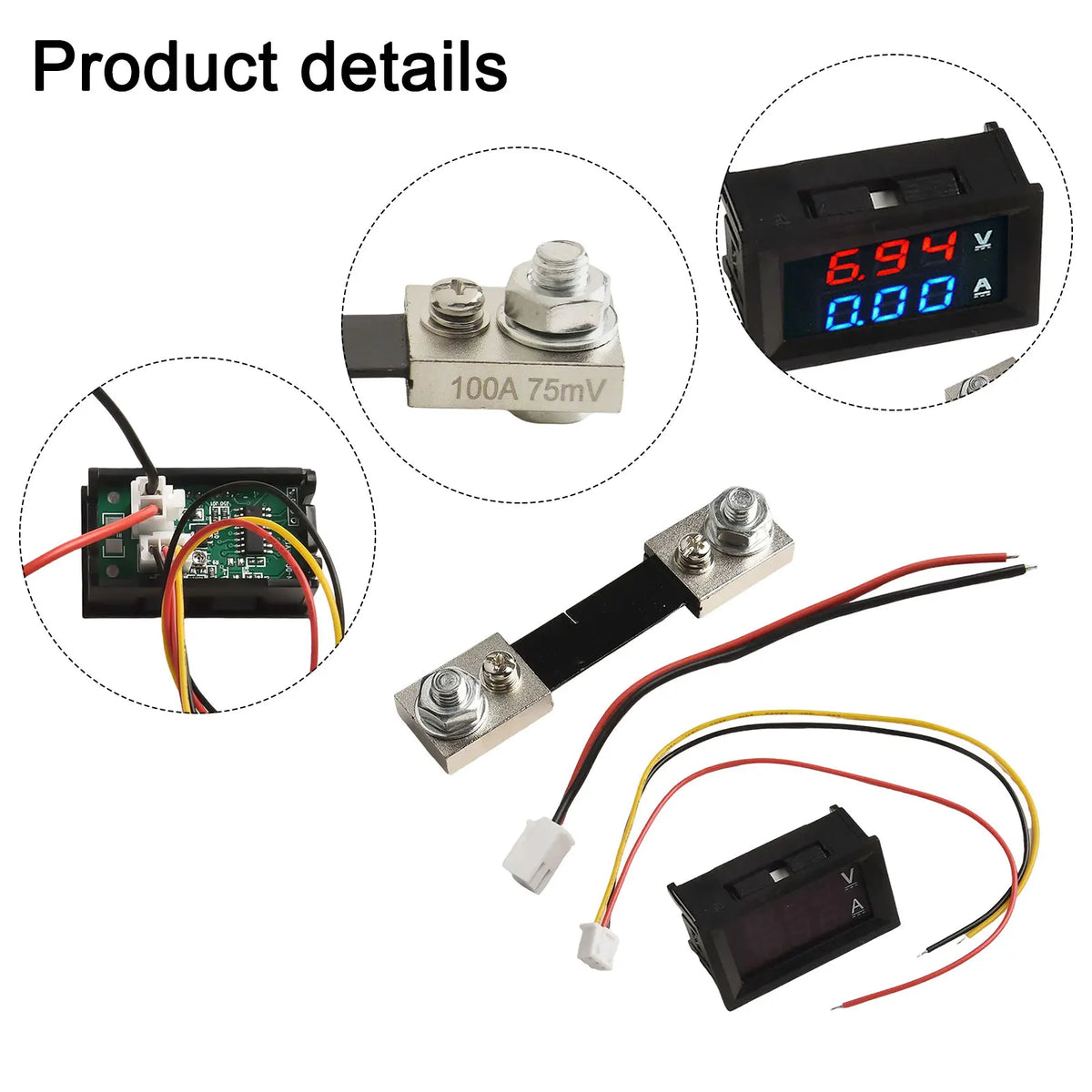

• The 50A and 100A kits include a shunt; the 10A kit does not require one.
• For 50A or 100A models, the shunt must always be connected to measure current — even when the actual current is under 10A. Failure to connect the shunt will damage the meter.
• Maximum input voltage to the instrument must not exceed 30V on the power supply wires.
• Connect the thick black wire to the negative pole of the power source, and the thick red wire to the negative pole of the load.
• All rectified AC power supplies must be filtered with an electrolytic capacitor of 1000µF or higher before powering the meter.
• If the current display shows 0.00 or 0.0 with correct voltage, recheck wiring — this is almost always a connection issue, not a faulty meter.

What's in the Box

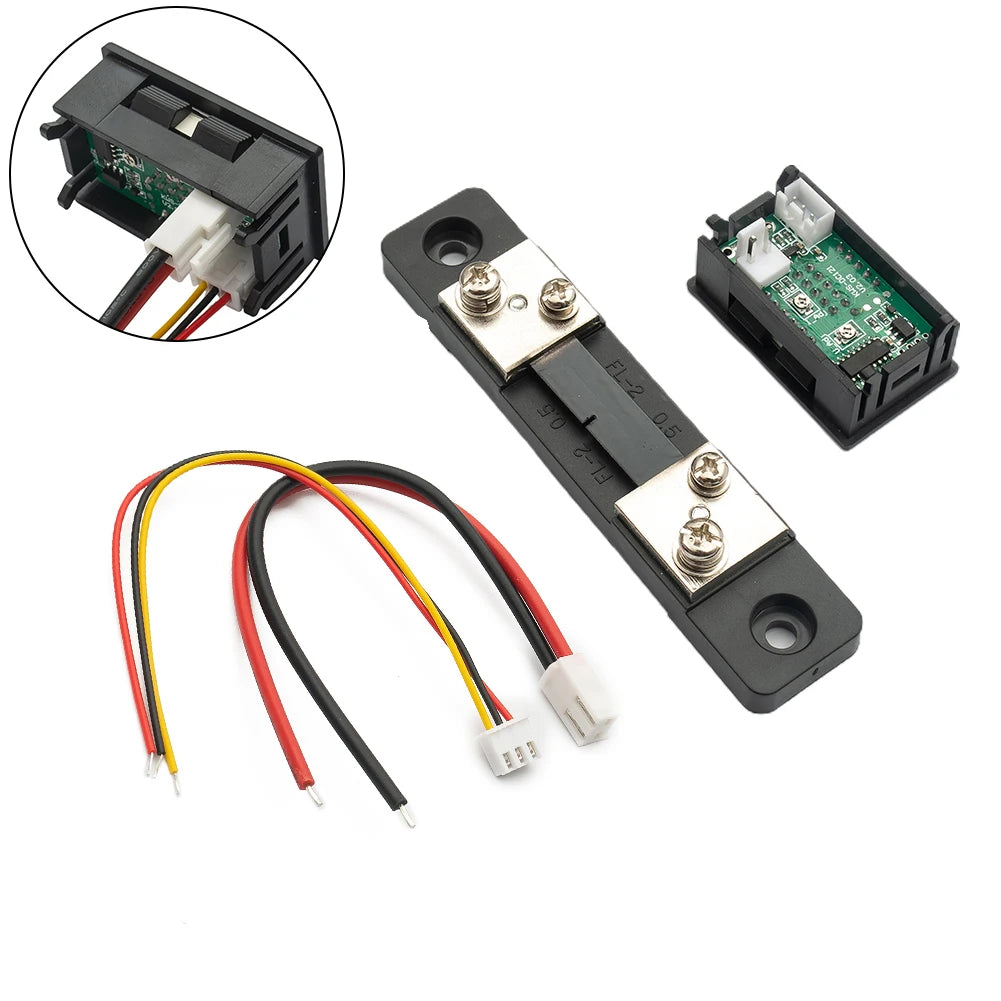

• 1× Dual LED Voltmeter Ammeter
• 1× Shunt (included with 50A and 100A models only — not included with 10A)

Related Products You May Like

• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• Electromagnetic Induction Tester – Coil & Circuit Fault Detector

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Does the 10A voltmeter ammeter come with a shunt?

A: No — the 10A model does not require or include a shunt. The 50A and 100A models both include a shunt, which must be connected at all times when measuring current with those ranges.

Q: What power supply does the meter itself need to operate?

A: The instrument requires a DC working voltage of 4–30V and draws no more than 20mA. Do not exceed 30V on the meter's supply wires, or the unit may be damaged.

Q: Why is the current showing 0.00 even though voltage displays correctly?

A: This is almost always a wiring issue. For 50A and 100A models, verify that the shunt is properly connected. Also confirm that the thick black wire goes to the negative pole of the power source and the thick red wire to the negative pole of the load. Carefully re-checking all connections resolves this in the vast majority of cases.

Q: Can this meter be used for both charging and discharging applications?

A: Yes. However, the wiring method differs depending on whether the device acts as a power source (e.g., charger, solar panel) or a load (e.g., battery, motor). Refer to the wiring diagram and the concepts of "load" and "power source" provided with the unit to ensure correct installation for your specific use case.
