DC 6V/12V/24V Electromagnet Cabinet Door Lock – 10mm Stroke
DC 6V/12V/24V Electromagnet Cabinet Door Lock – 10mm Stroke

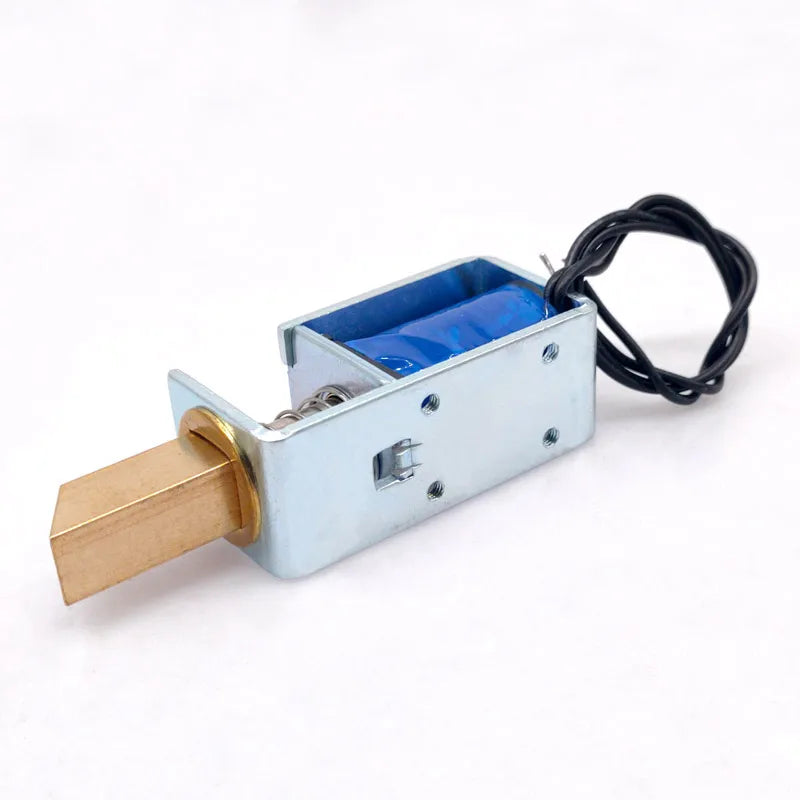

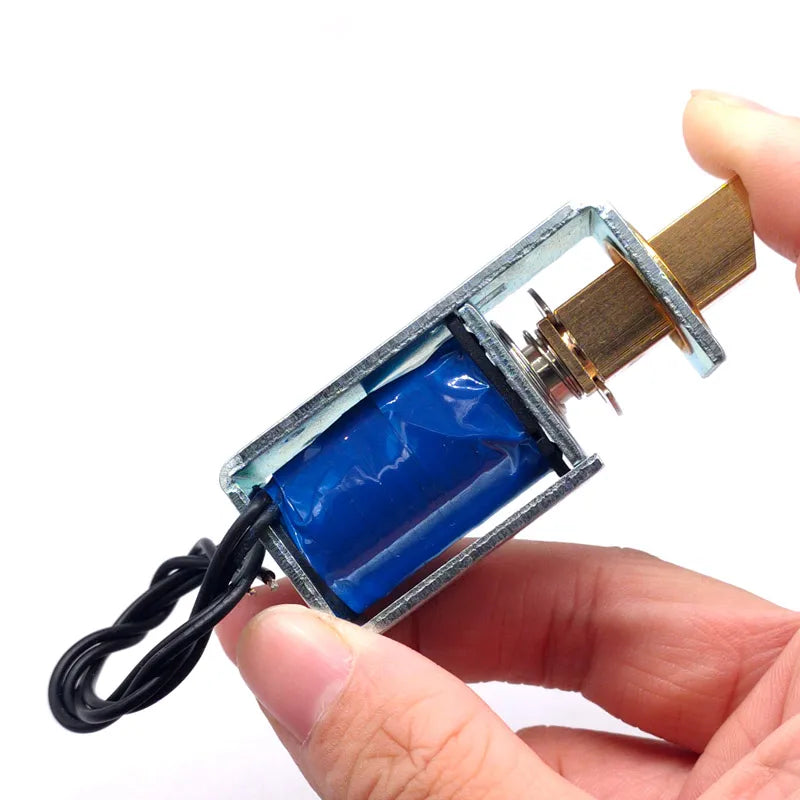

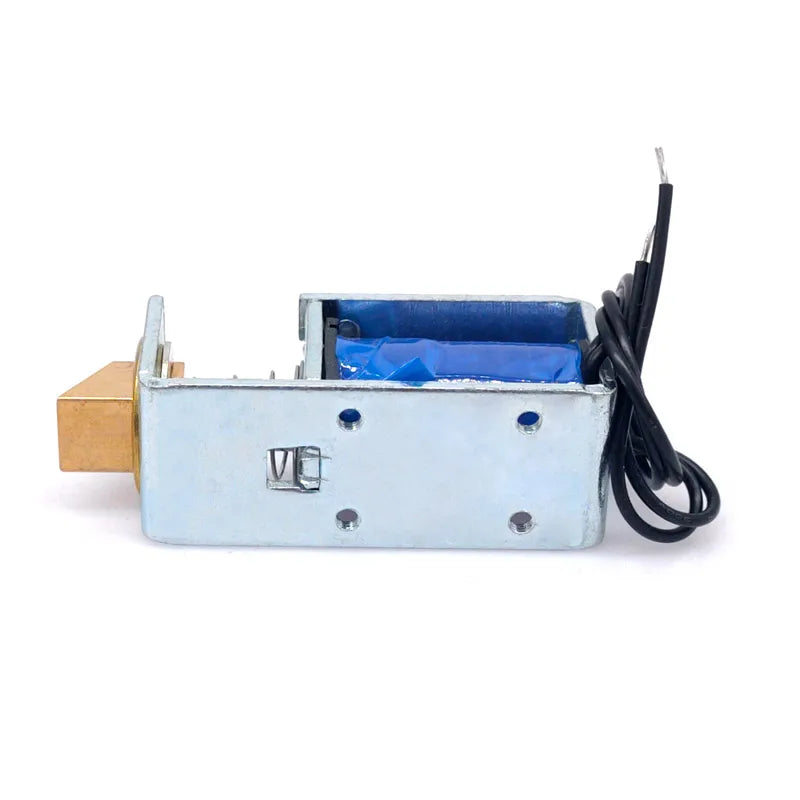

TAU-S0837DL DC Electromagnet Electric Lock for Cabinet & Door
Secure your cabinets, drawers, and doors with this compact and reliable DC Electromagnet Electric Lock. Compatible with 6V, 12V, and 24V power supplies, this versatile solenoid lock features a 10mm stroke and is ideal for automated access control systems, smart home setups, vending machines, and more. CE certified for your peace of mind.
Key Features
- Multi-Voltage Compatibility: Works with DC 6V, 12V, and 24V power sources — easy to integrate into existing systems.
- 10mm Stroke: Precise and consistent stroke length for reliable locking and unlocking action.
- Intermittent Operation Optimized: Designed for intermittent duty cycles (e.g. 1 second on / 1 second off), allowing all-day operation without issue.
- Self-Regulating Temperature: The unit naturally warms during operation and stabilises at a safe working temperature. Cooler environments further extend service life.
- CE Certified: Meets European safety and electromagnetic compatibility standards.
- Stick/Solenoid Shape: Compact form factor fits neatly in cabinets, enclosures, and custom installations.
- No High-Concern Chemicals: Safe materials — contains no RoHS-restricted high-concern substances.
Specifications

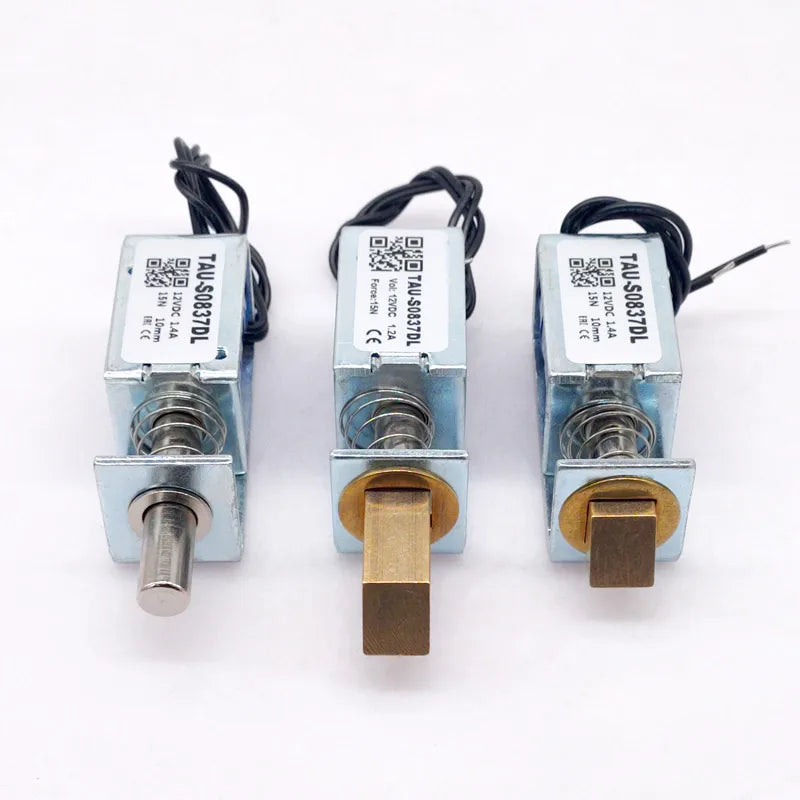

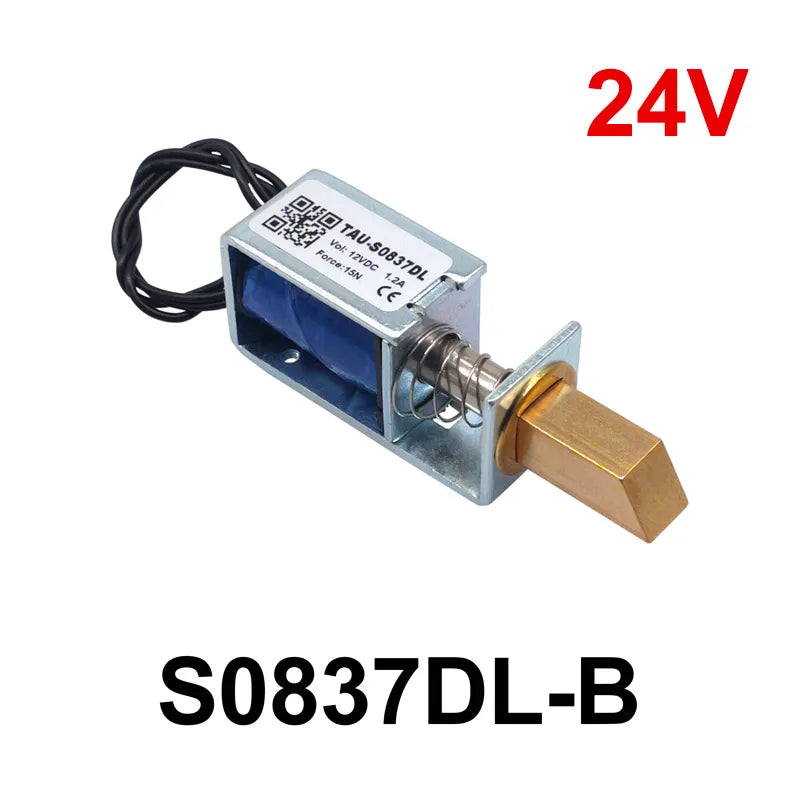

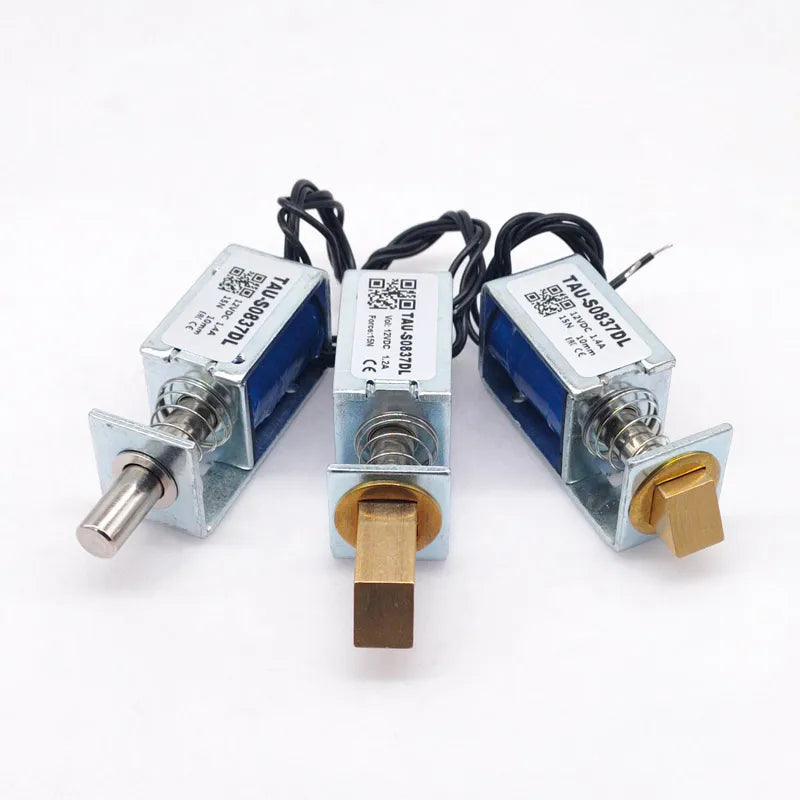

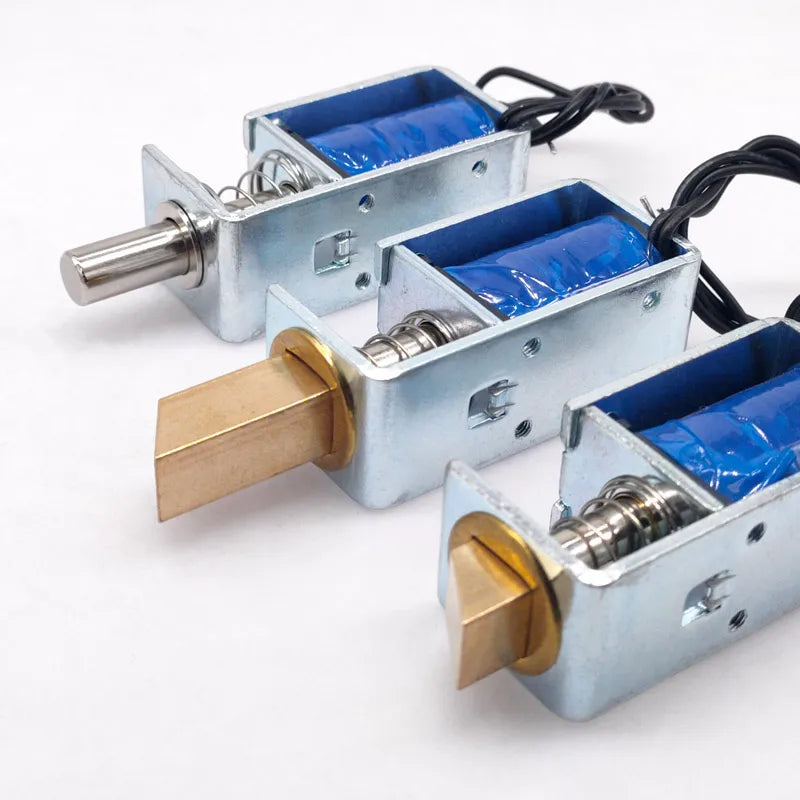

- Model: TAU-0837DL-A / TAU-0837DL-B / TAU-0837DL-D
- Voltage: DC 6V / 12V / 24V
- Stroke: 10mm
- Shape: Stick (Solenoid)
- Certification: CE
- Country of Origin: Made in China
Common Applications
- Cabinet and drawer locking systems
- Access control panels and entry systems
- Vending machines and coin-operated devices
- Smart home automation projects
- Industrial equipment and enclosures
- DIY electronics and maker projects
Important Usage Note
This electromagnet is designed for intermittent operation — for example, 1 second energised followed by 1 second de-energised. The unit will naturally rise in temperature during use; this is normal and expected. Once it reaches its stable operating temperature, it will maintain that level safely. Operating in a well-ventilated or cooler environment helps maximise longevity.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Large Capacity Pencil Pen Bag – Zipper Fabric Stationery Organizer
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage options are compatible with this electromagnet lock?
A: This electric solenoid lock supports DC 6V, 12V, and 24V power inputs, making it flexible for a wide range of cabinet door lock and access control installations.
Q: Can this electromagnet lock run continuously all day?
A: It is designed for intermittent duty cycles — such as 1 second on and 1 second off — and can operate this way all day long. Continuous (non-stop) energisation is not recommended, as it generates more heat and can reduce service life.
Q: Is the temperature rise during operation dangerous?
A: No. Some temperature increase is completely normal for solenoid electromagnets. The unit is engineered to reach a stable thermal equilibrium during intermittent use. Ensuring adequate airflow or a cooler ambient environment will help extend the product's lifespan.
Q: What are the main uses for the TAU-S0837DL electric lock?
A: This DC electromagnet lock is commonly used in cabinet door lock systems, access control panels, vending machines, smart home automation, industrial enclosures, and DIY electronics projects requiring a compact solenoid actuator.
