DC 5V 6V Micro Peristaltic Pump – Dosing & Liquid Transfer

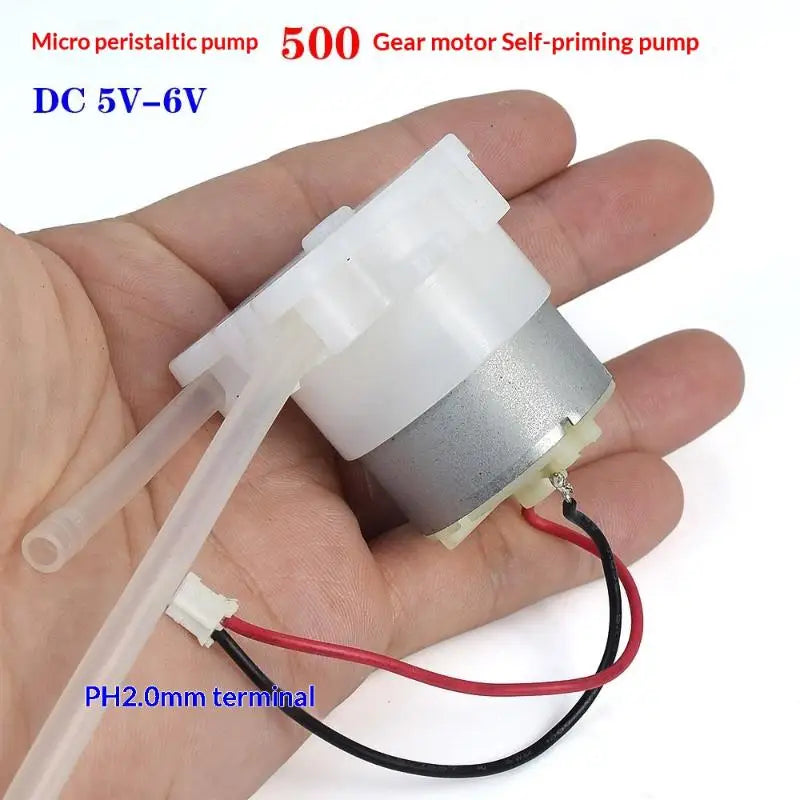

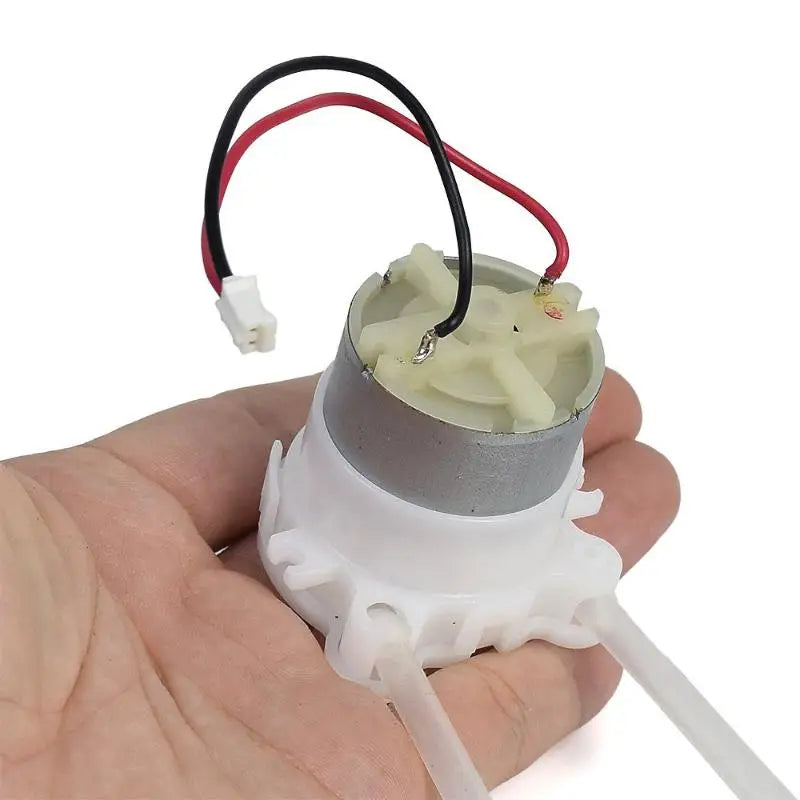

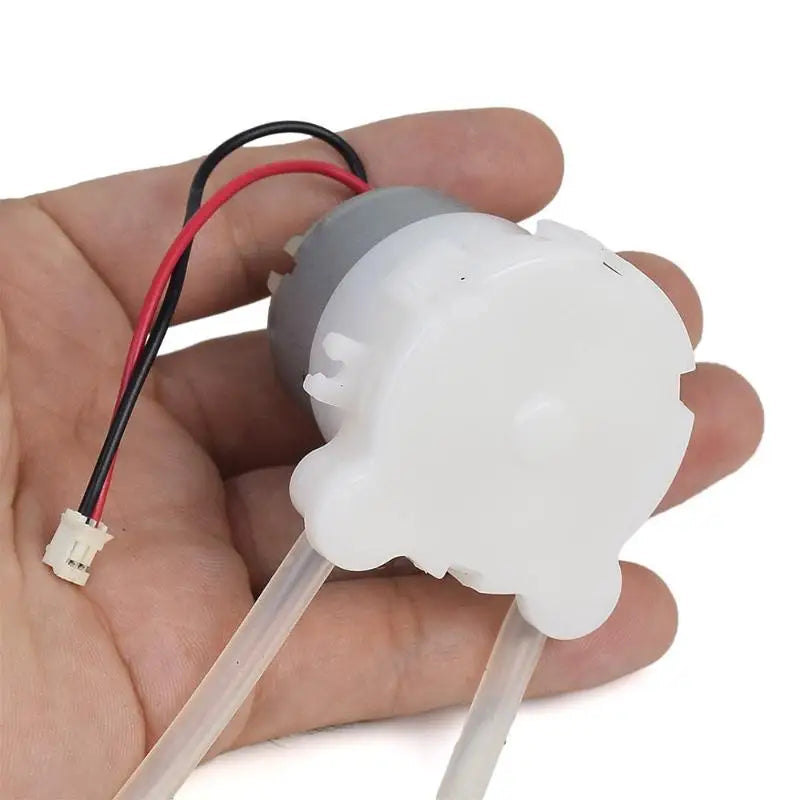

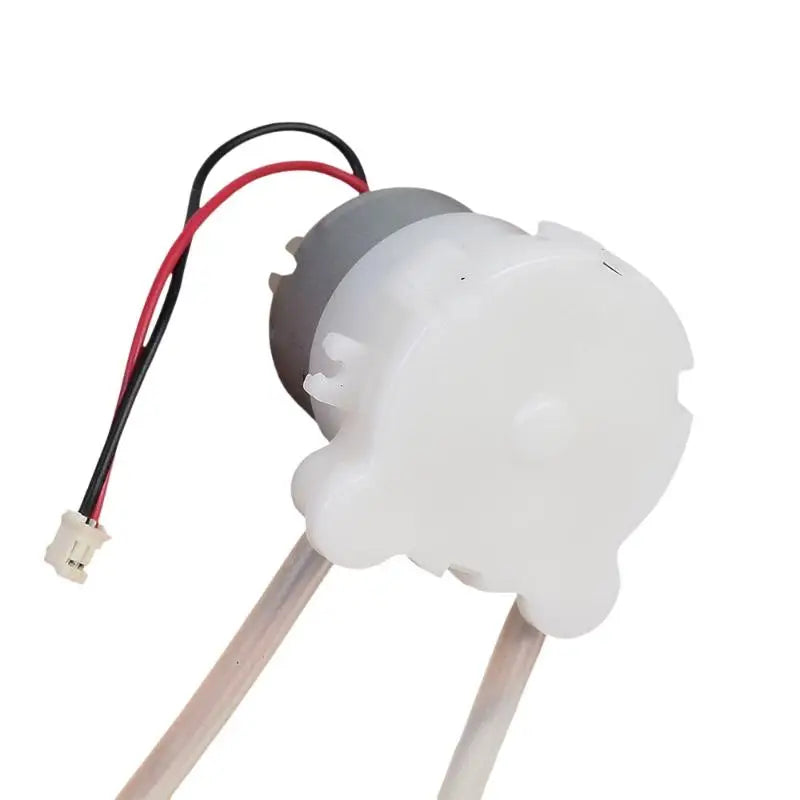

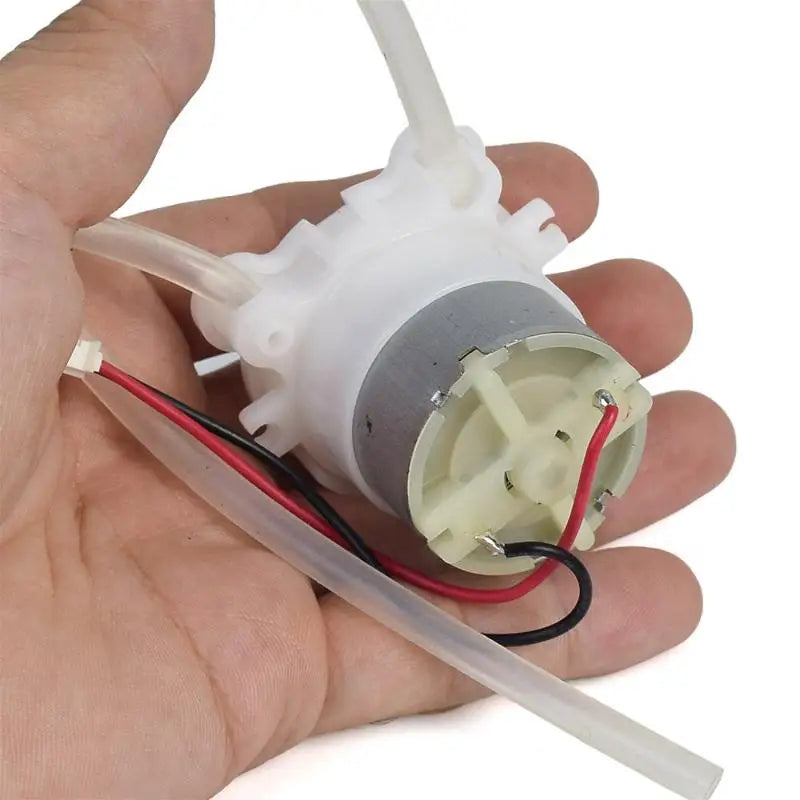

DC 5V/6V Micro Peristaltic Pump with 500 Metal Brush Geared Motor

Meet your new go-to liquid transfer solution for DIY projects, lab experiments, ink dosing, and sampling applications. This compact micro peristaltic pump is powered by a DC 5V or 6V metal brush 500-series geared motor and uses three rollers to alternately squeeze a silicone tube, gently and precisely moving liquids from point A to point B — without the liquid ever contacting the motor itself.

Whether you're working with viscous fluids like ink, aqueous solutions, or other lab liquids, this pump delivers reliable, consistent flow with reversible motor operation. Made in Mainland China.

Key Features

• Peristaltic Squeeze Action: Three rollers compress a silicone tube in sequence, creating smooth, pulsed liquid flow — no seals or valves required.
• Bi-Directional Motor: The 500 DC metal brush motor supports forward and reverse rotation, allowing flexible inlet/outlet configuration.
• Handles Viscous & Non-Viscous Liquids: High conveying pressure makes it suitable for ink, viscous fluids, water, and other lab-grade liquids.
• DIY & Maker Friendly: Compact, low-voltage design is perfect for Arduino, Raspberry Pi, and custom lab setups.
• Plastic + Metal Construction: Durable combination of materials for longevity in workshop and lab environments.

Usage Tips

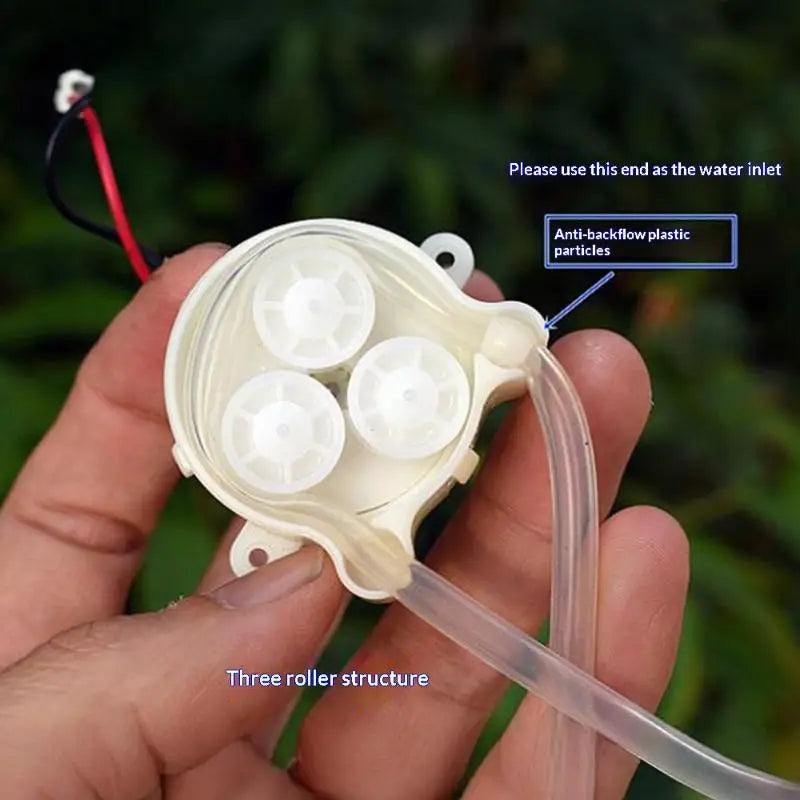

This pump uses plastic positioning particles inside the pump head to keep the silicone tube stable during operation. It is strongly recommended to use the end with plastic particles as the liquid inlet. Using the opposite end as the inlet may cause the silicone tube to shift or wrinkle inside the pump head, potentially jamming the rotor. If needed, the pump cover can be carefully pried open to reposition the plastic particles.

Specifications

Great for Use With

• Lab ink dosing and sampling systems
• DIY liquid dispensers and aquarium dosing pumps
• Arduino / Raspberry Pi fluid control projects
• Viscous liquid transfer in workshop settings

Looking for more tools and accessories for your workshop or DIY setup? Check out our Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar or our Electromagnetic Induction Tester – Coil & Circuit Fault Detector.

Note: Colors may appear slightly different from product images due to monitor brightness and lighting conditions. Please refer to the actual product received.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What liquids can this micro peristaltic pump handle?

A: This DC 5V/6V micro peristaltic pump is designed for both viscous and non-viscous liquids, including ink, water, and other lab-grade fluids. Its high conveying pressure makes it especially well-suited for thicker, harder-to-move liquids that standard pumps struggle with.

Q: Can this peristaltic pump run in reverse?

A: Yes — the 500 series metal brush DC motor supports both forward and reverse rotation. In theory, the pump can operate in either direction, effectively swapping the inlet and outlet. However, it is strongly recommended to use the end with the positioning plastic particles as the inlet at all times to prevent the silicone tube from shifting or wrinkling inside the pump head.

Q: Does this pump require any external power supply or batteries?

A: No batteries are included. The pump requires an external DC power source of either 5V (0.3A) or 6V (0.35A). It is compatible with standard lab power supplies and popular maker platforms like Arduino or Raspberry Pi that can supply regulated DC voltage.

Q: Is the silicone tube included with the pump?

A: The product listing includes 1 × micro peristaltic pump unit. Please check the package contents carefully — if a silicone tube is not listed, it may need to be sourced separately based on your application's inner diameter requirements.
