DC 3V–5V High Voltage Arc Igniter DIY Module – PCB Kit
DC 3V–5V High Voltage Arc Igniter DIY Module – PCB Kit

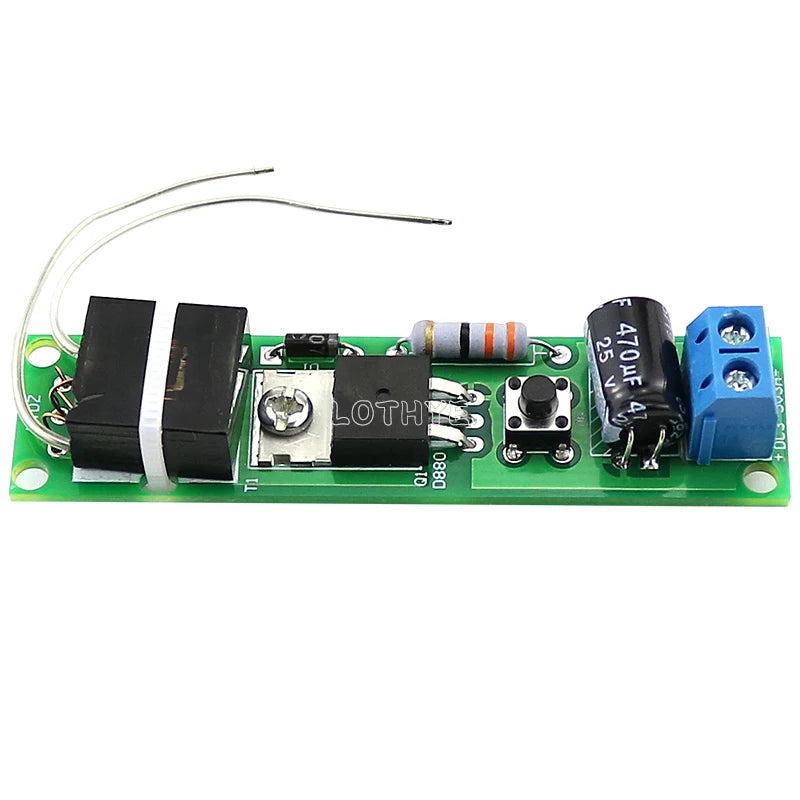

The DC 3V–5V High Voltage Arc Igniter Module is a compact, resin-encapsulated PCB kit designed for electronics enthusiasts, hobbyists, and DIY circuit builders. Powered by a standard DC 3–5V input (ideally a 3.7V 18650 lithium battery), this pulse arc generator produces a vivid purple high-temperature arc capable of instantly igniting paper, tinder, or thin materials — perfect for science experiments, prototyping, and learning about high-voltage circuits.
⚠️ Important Notice: This product is intended for experienced electronics hobbyists who are comfortable working with circuits and soldering. The kit ships as bulk components that require soldering and assembly. The seller guarantees components are in good condition at the time of shipment but cannot guarantee results post-assembly. Please read all instructions carefully before purchasing.
Key Specifications
- Input Voltage: DC 3V – 5V
- Input Current: ~5A (recommended power: 15W+)
- Recommended Power Source: 3.7V 18650 lithium battery
- Output Pulse Voltage: 0.5kV – 0.8kV
- Working Frequency: 20kHz – 25kHz
- Arc Distance: 5–8mm
- Kit Dimensions: 71mm (L) × 18mm (W) × 12mm (H)
- Arc Length: ≤ 0.8 cm (without high-voltage rectifier diode/capacitor)
- Transformer Encapsulation: Resin-sealed for reliable, continuous operation
Product Highlights
- 🔵 High-Temperature Purple Arc: Generates a sustained, visible arc ideal for ignition and high-voltage experiments
- 🔋 Low Voltage Input, High Voltage Output: Converts a modest 3–5V DC supply into a powerful 0.5–0.8kV pulse output
- 🛡️ Resin-Encapsulated Transformer: Provides excellent insulation, durability, and long-term reliability
- 🔧 DIY Assembly Required: Ships as unsoldered kit components — ideal for learning PCB soldering and circuit construction
- ⚡ Versatile Use: Suitable for arc ignition experiments, science demonstrations, and circuit prototyping
Assembly Tips
- Identify the three wire types from the transformer and tin the wire ends with solder.
- Wind any excess wire into a spring-like coil using a screwdriver. The thick wire goes on the right side.
- Bend the tips of the two translucent output wires to approximately 5mm apart.
- Connect a 3.7V 18650 lithium battery to the input terminals.
- Power on and observe the high-voltage arc between the wire tips.
⚠️ Safety Notice: Do not run the module continuously for more than 1 minute at a time. Ensure adequate heat dissipation during operation. Handle all high-voltage components with appropriate care.
Made in Mainland China.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What power source is recommended for the DC 3V–5V arc igniter module?
A: The manufacturer recommends using a 3.7V 18650 lithium battery as the power source. This provides a stable DC input within the 3–5V operating range and delivers enough current (approximately 3–5A) to generate a consistent 5–8mm arc at the output terminals.
Q: Does this arc igniter module come pre-assembled or do I need to solder it myself?

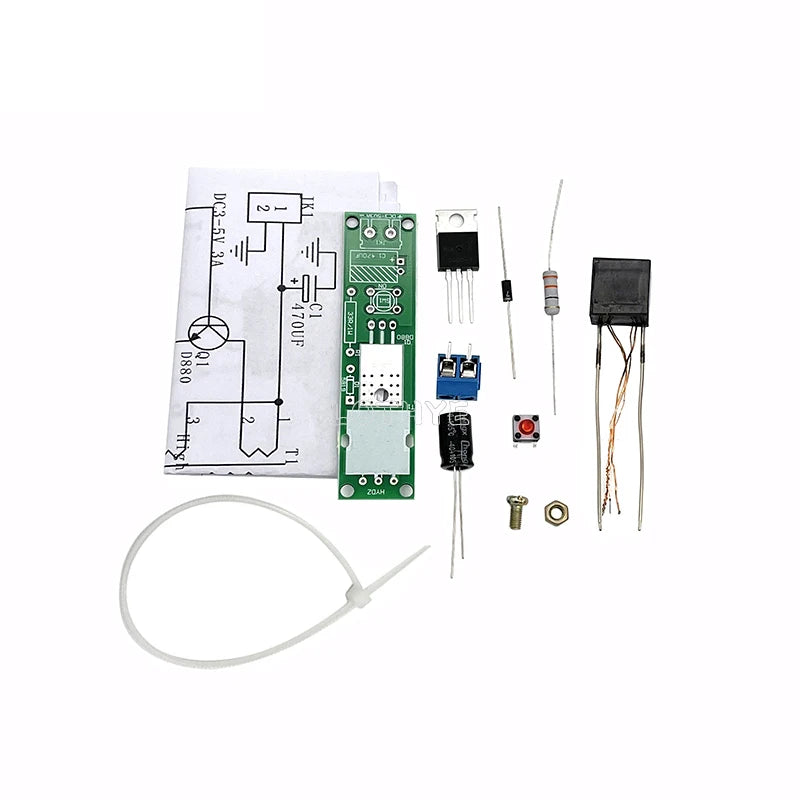

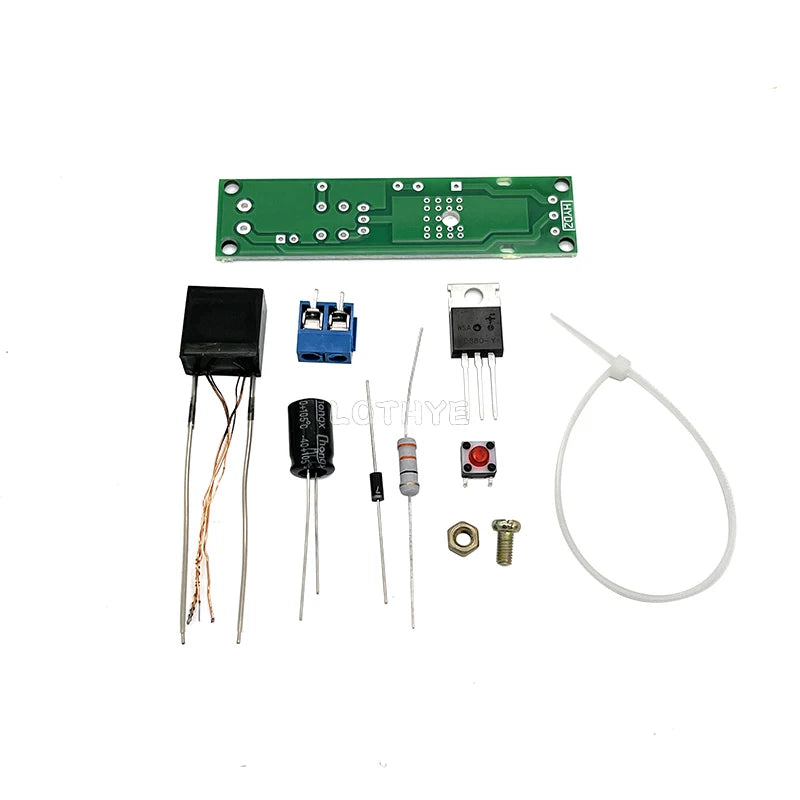

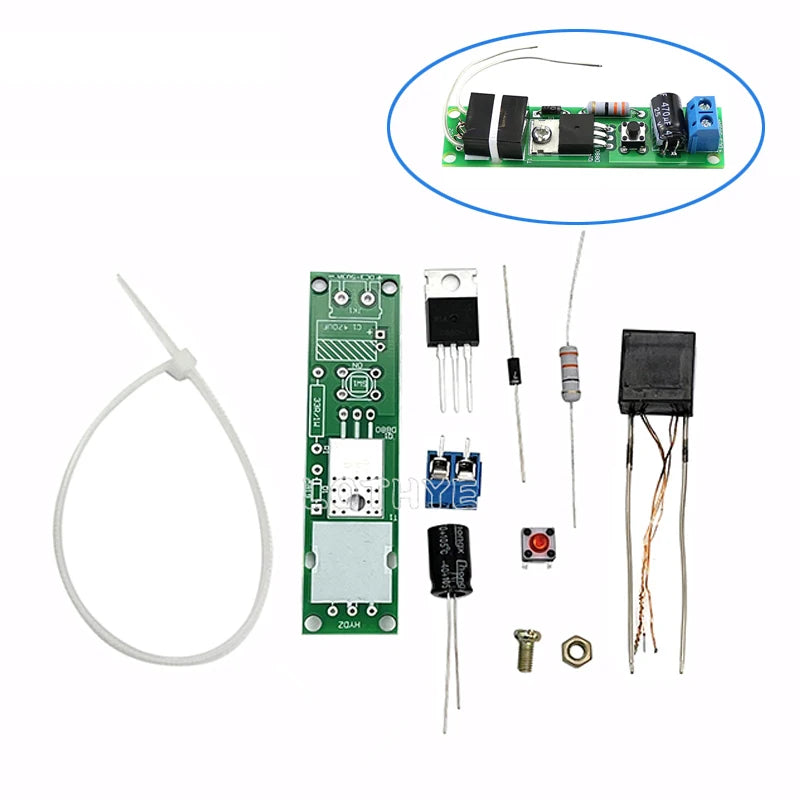

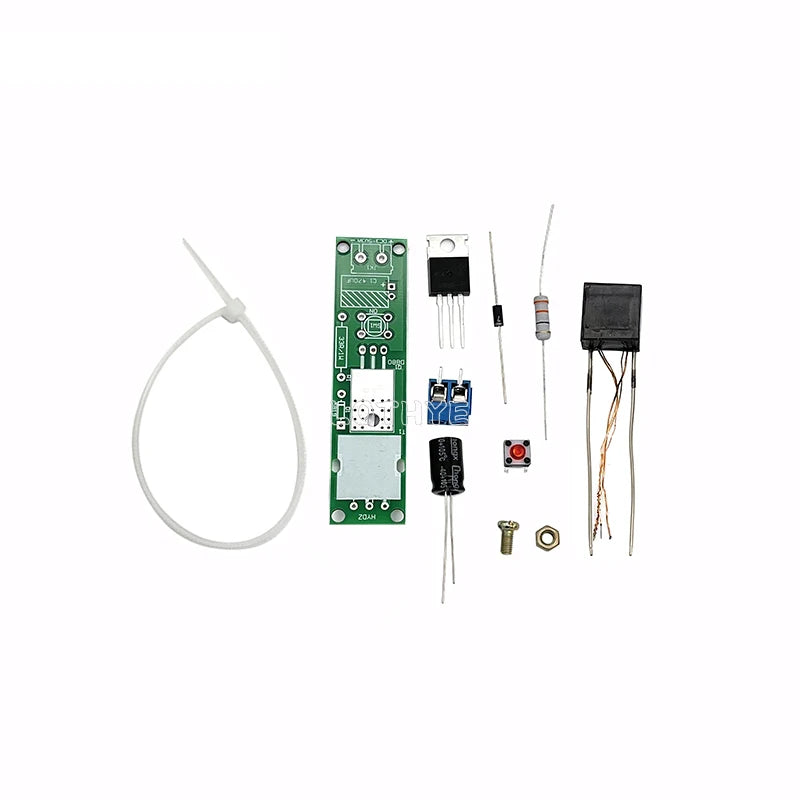

A: This kit ships in bulk (unassembled) and requires soldering by the buyer. It is designed for electronics enthusiasts with circuit assembly experience. The transformer is pre-encapsulated in resin, but the PCB components need to be soldered and wired according to the included instructions.
