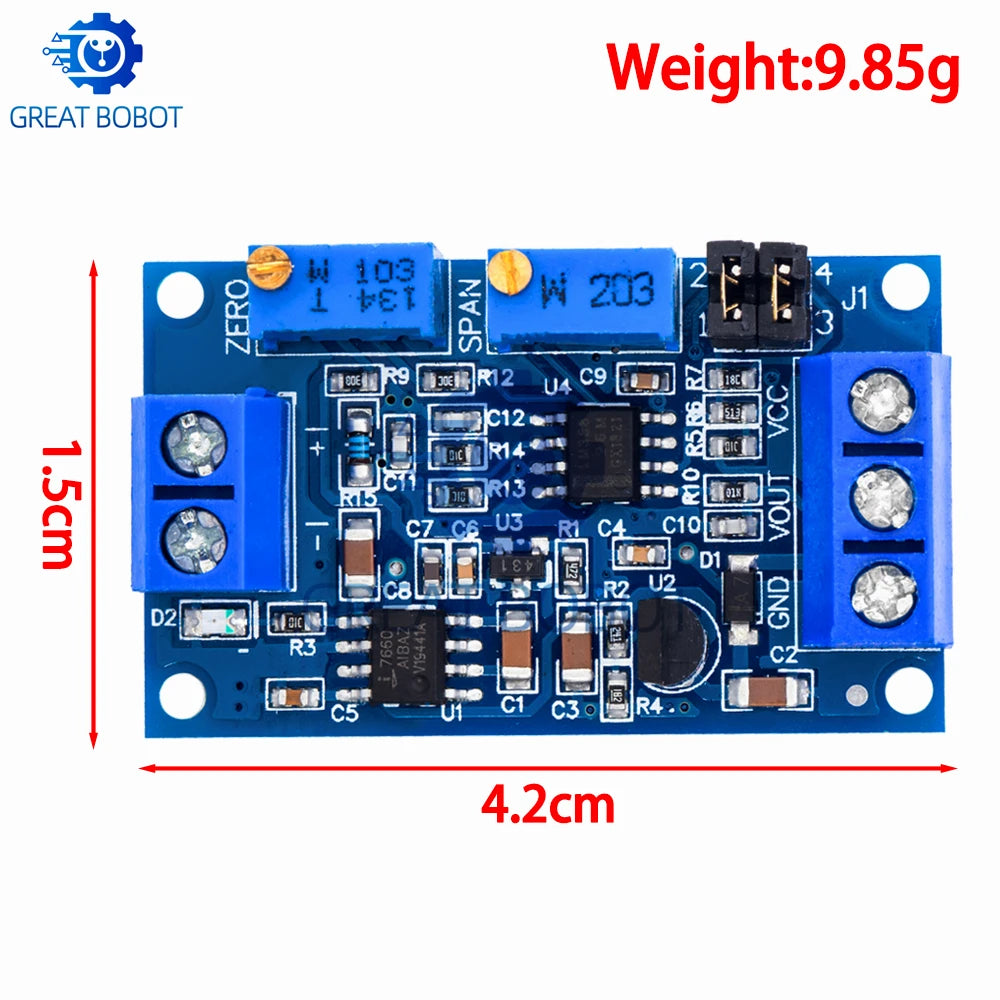

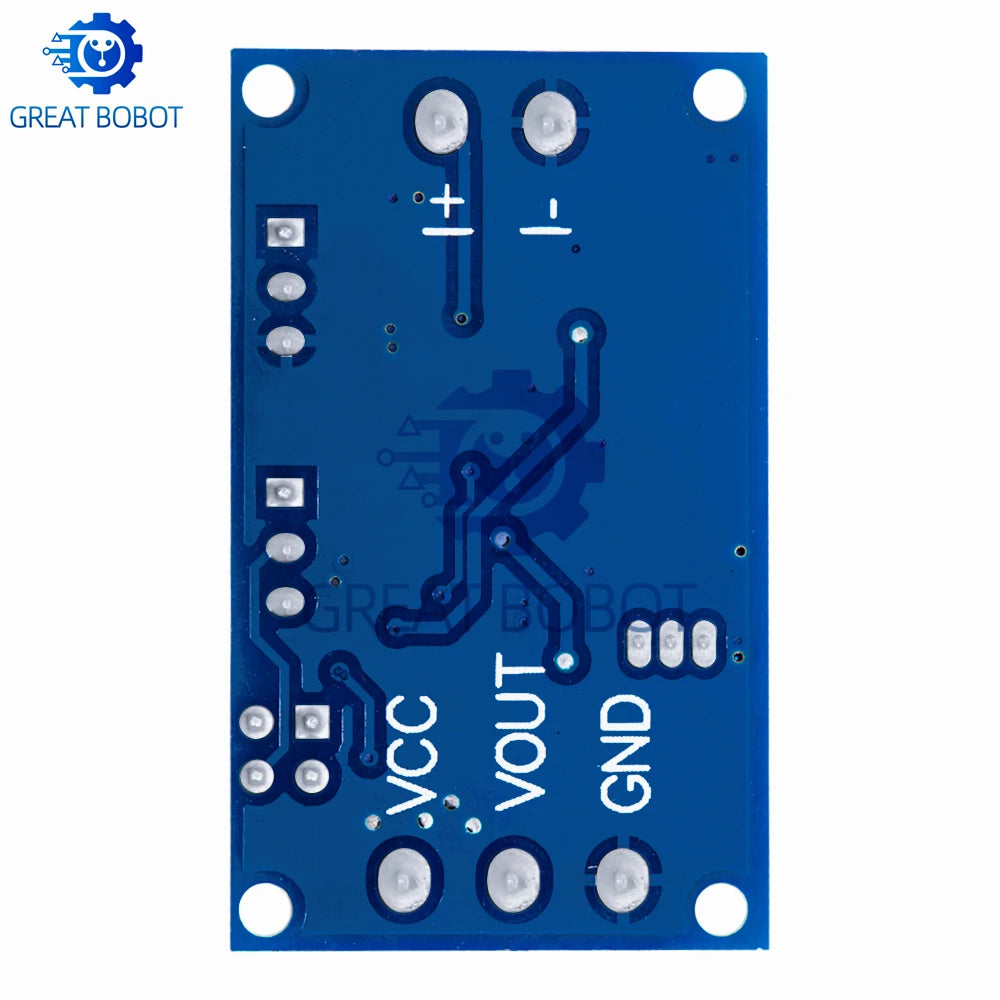

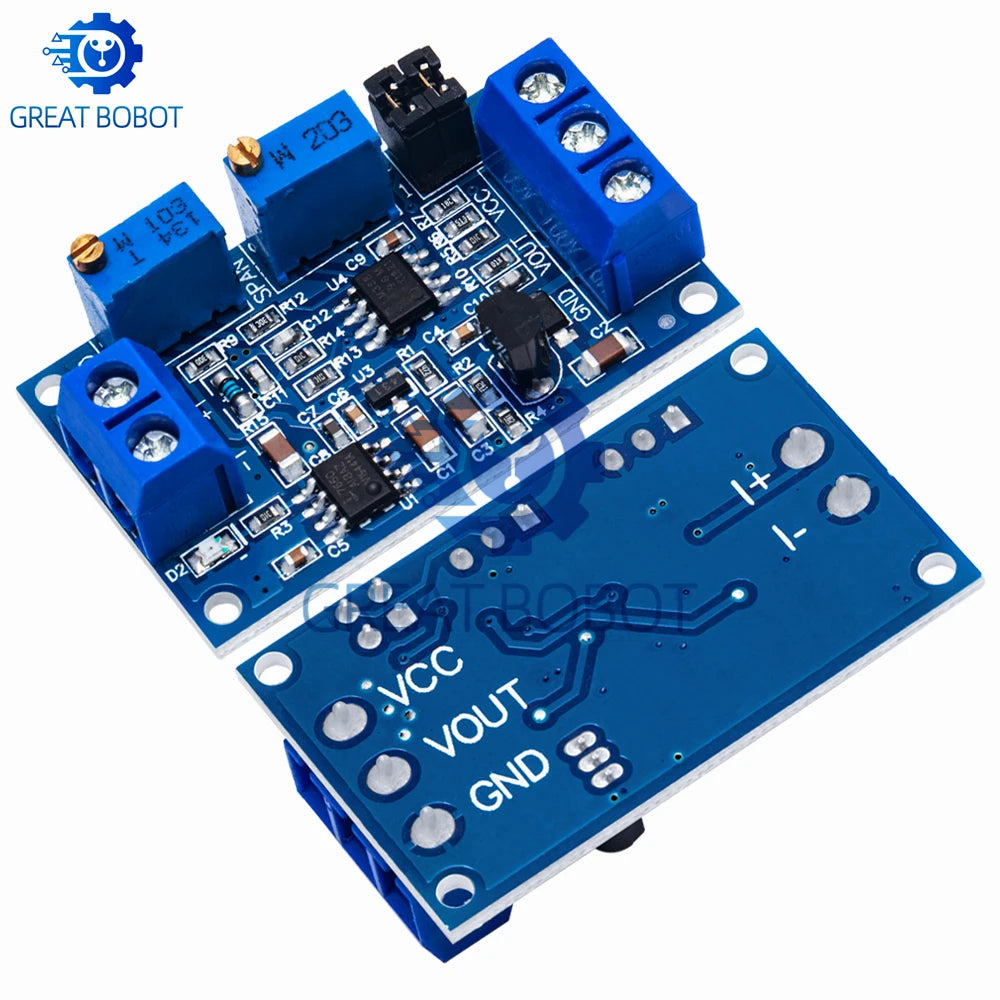

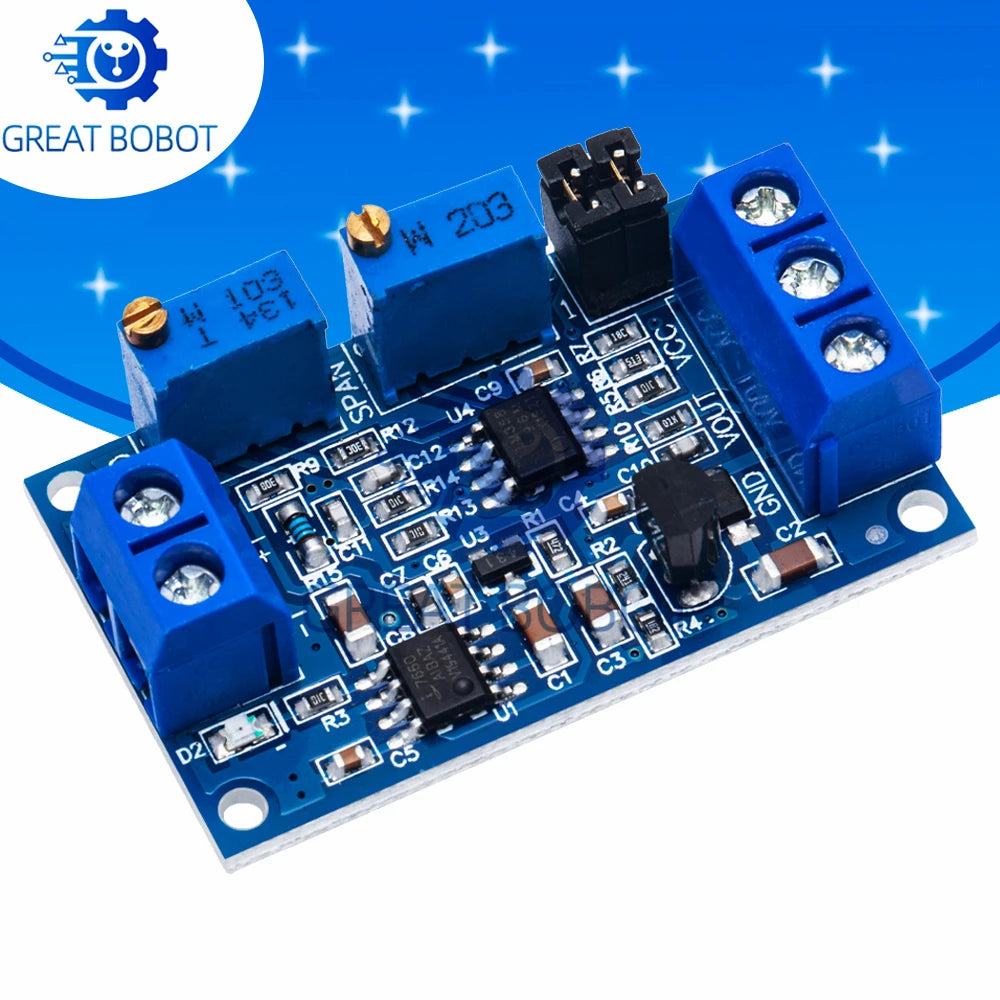

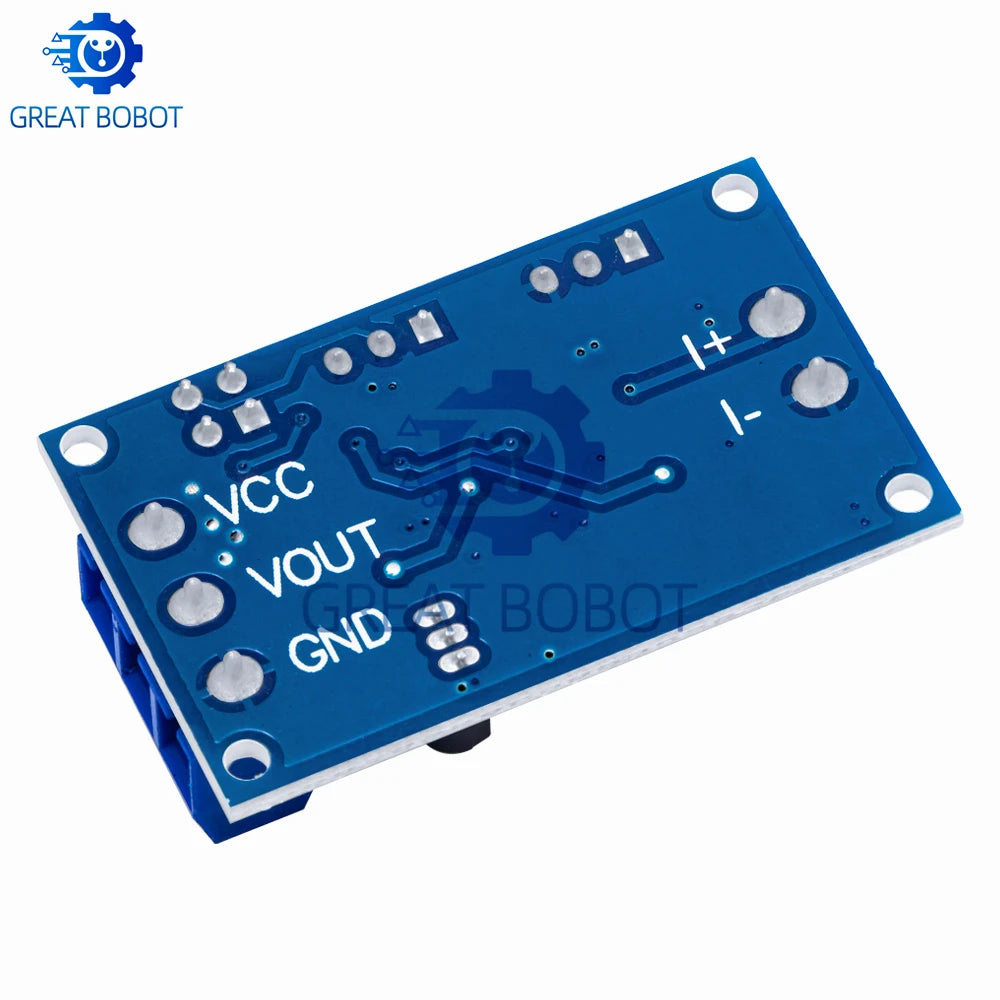

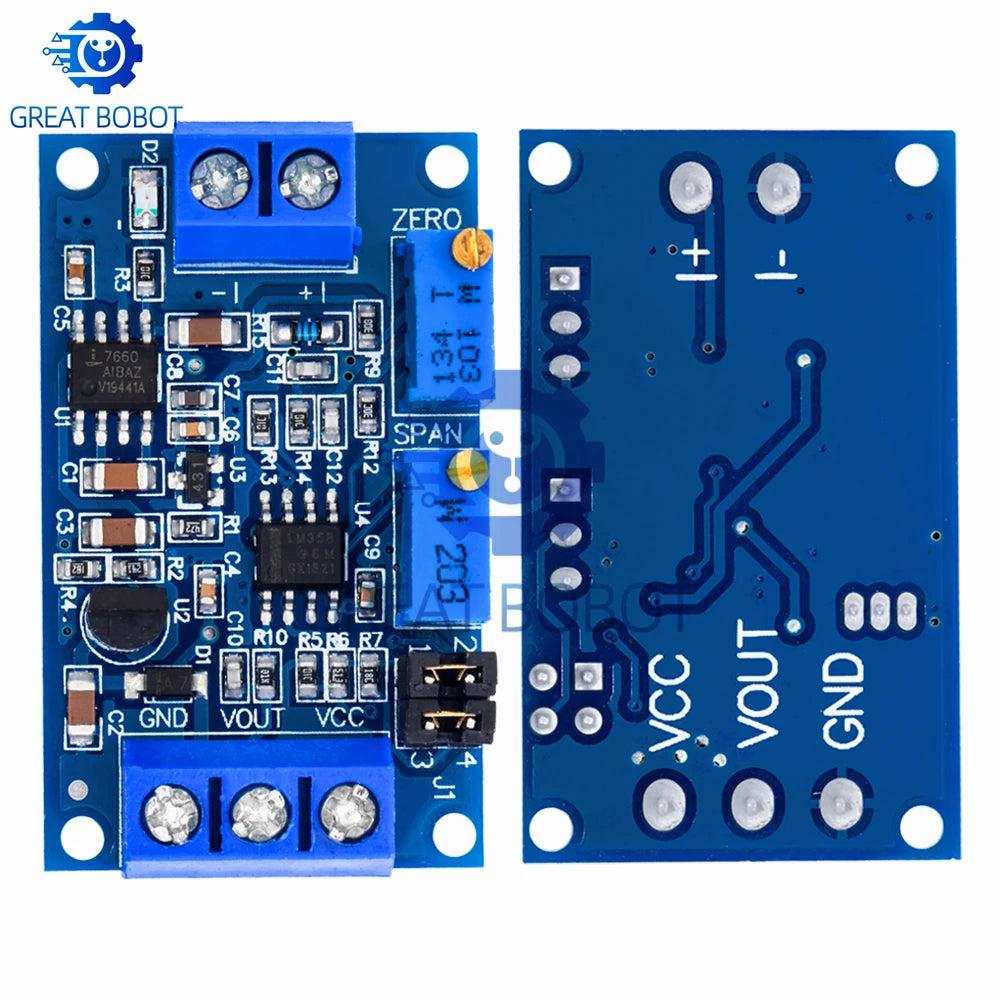

BS Current to Voltage Signal Converter Module
Convert standard industrial current signals (0–20mA or 4–20mA) into precise voltage outputs (0–3.3V, 0–5V, or 0–10V) with this compact, high-performance signal converter module. Ideal for engineers, hobbyists, and automation professionals who need reliable signal conditioning between sensors, PLCs, and microcontrollers.
Key Specifications
- Input Signal Range: 0–20mA / 4–20mA
- Output Voltage Range: 0–3.3V / 0–5V / 0–10V (selectable)
- Supply Voltage: 7V – 36V DC (wide input range)
- Dissipation Power: 12V
- Operating Temperature: -40°C to +85°C
- Package Type: SMD (Surface Mount Device)
- Quantity: 1 Module
- Condition: Brand New
- High-Concern Chemicals: None
Why Choose This Module?
- ✅ Wide Supply Voltage Range (7–36V): Compatible with most industrial and DIY power supplies
- ✅ Multiple Output Options: Select 0–3.3V, 0–5V, or 0–10V to match your target device
- ✅ Industrial-Grade Temperature Tolerance: Operates reliably from -40°C to +85°C
- ✅ Compact SMD Design: Easy to integrate into custom PCBs and enclosures
- ✅ Customizable: Supports custom configurations for specialized applications
Typical Applications
- PLC and industrial automation signal conditioning
- Sensor output conversion for microcontrollers (Arduino, Raspberry Pi, STM32)
- Process control and instrumentation systems
- Data acquisition and monitoring systems
- Computer interface signal adaptation
Made in Mainland China.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What current input ranges does this signal converter module support?
A: This current to voltage converter module supports two standard industrial current signal ranges: 0–20mA and 4–20mA. These are the most common ranges used in sensors, transmitters, and industrial process control equipment.
Q: What output voltage levels can I select with this module?
A: The module offers three selectable output voltage ranges: 0–3.3V, 0–5V, and 0–10V. This makes it compatible with a wide variety of microcontrollers, PLCs, and data acquisition devices that require different analog input voltage levels.
Q: What supply voltage does the current to voltage converter module require?
A: The module accepts a wide supply voltage range of 7V to 36V DC, making it highly versatile and compatible with most industrial power supplies and standard lab bench power supplies.
Q: Is this module suitable for outdoor or harsh-environment use?
A: Yes. With an operating temperature range of -40°C to +85°C, this signal converter module is well-suited for demanding environments including industrial plants, outdoor installations, and applications subject to significant temperature variation.
