CTM1050 DIP-7 High Speed CAN Isolation Transceiver IC

$26.47 $32.44

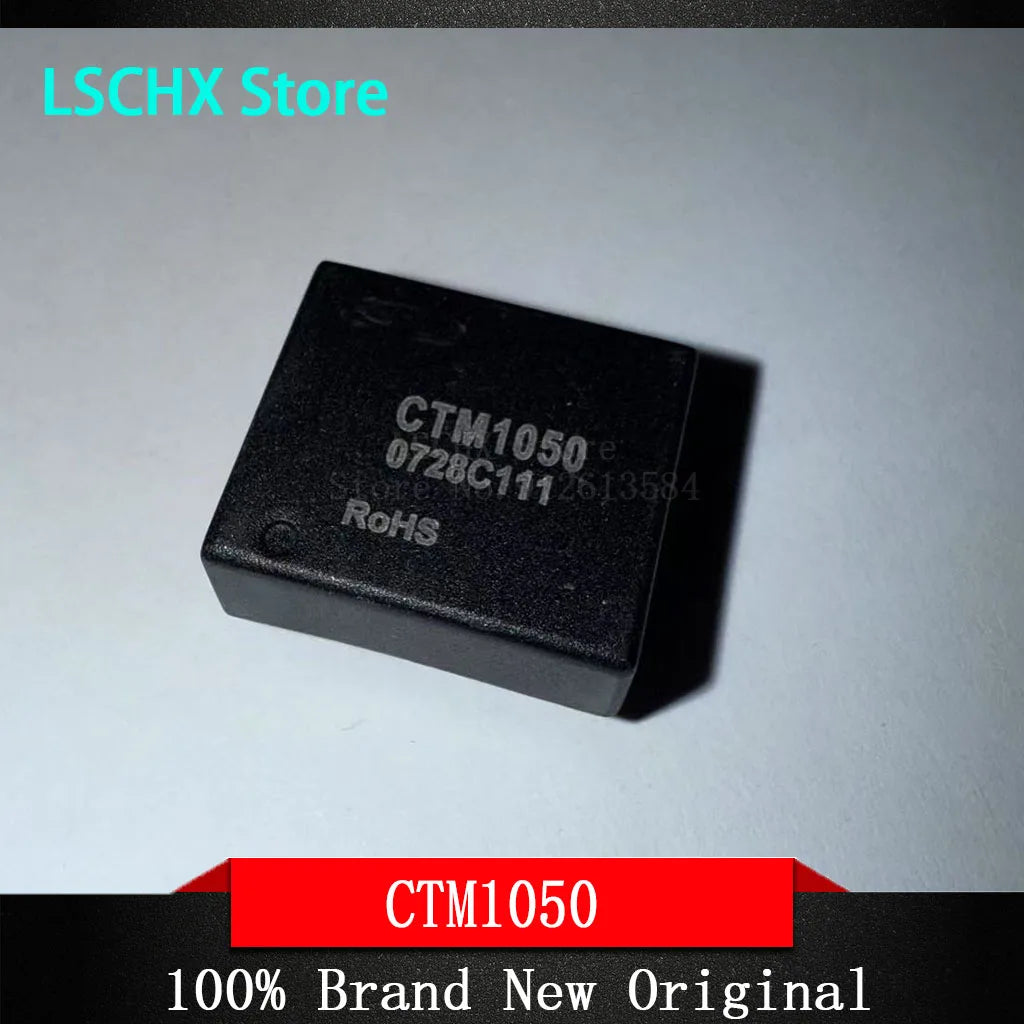

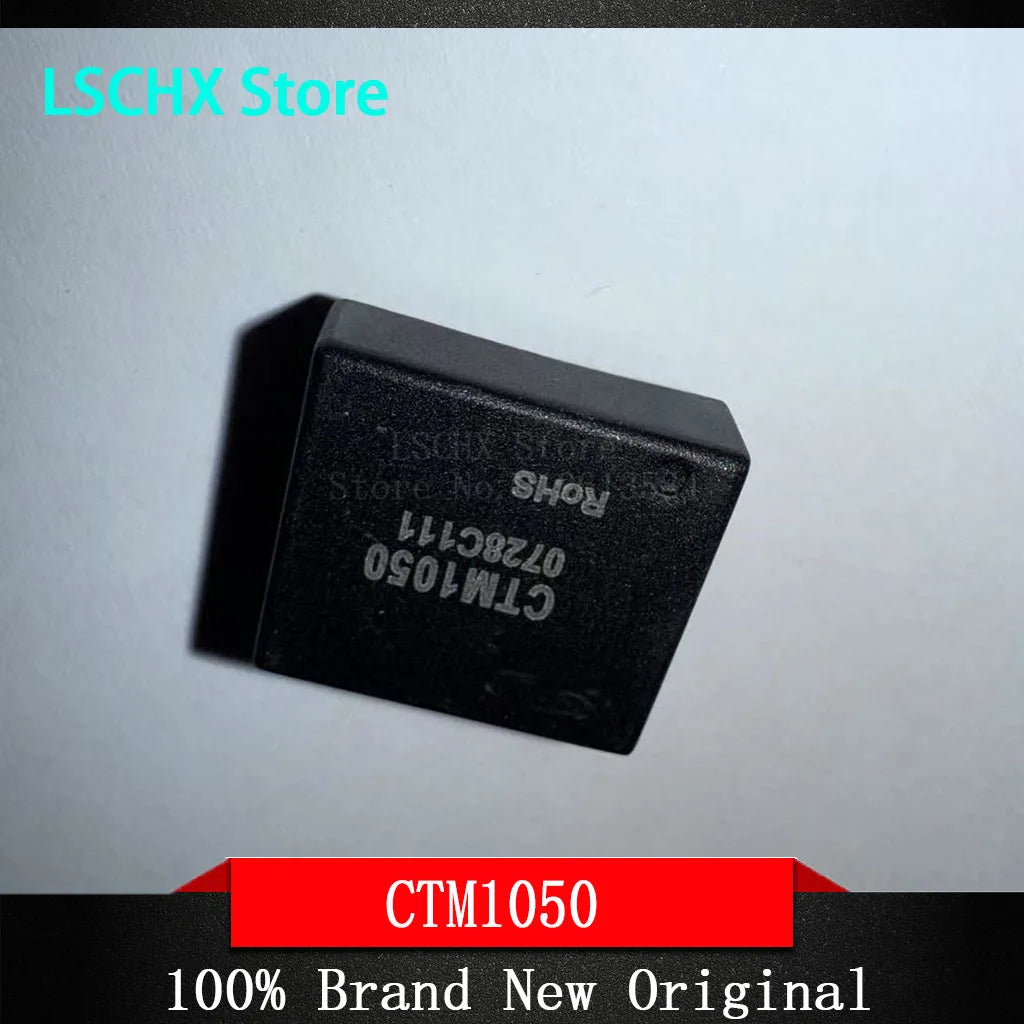

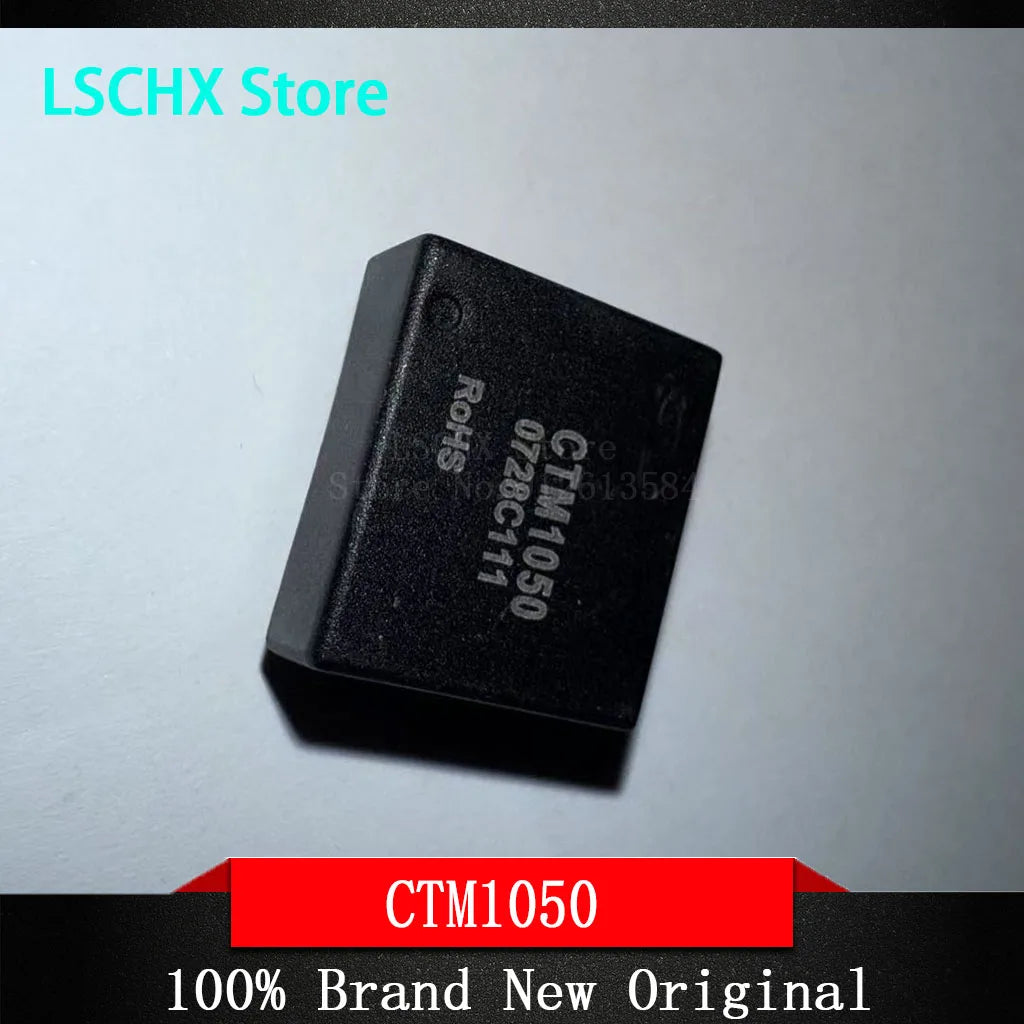

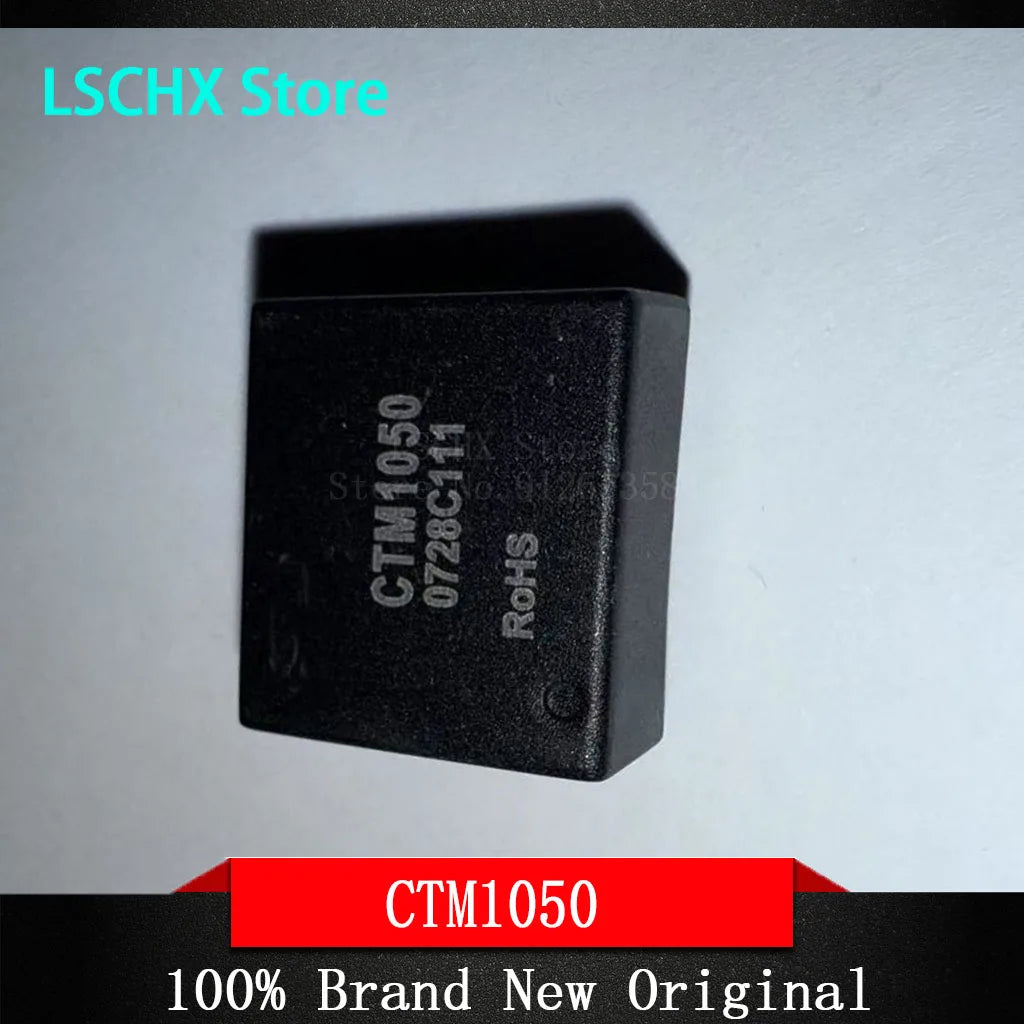

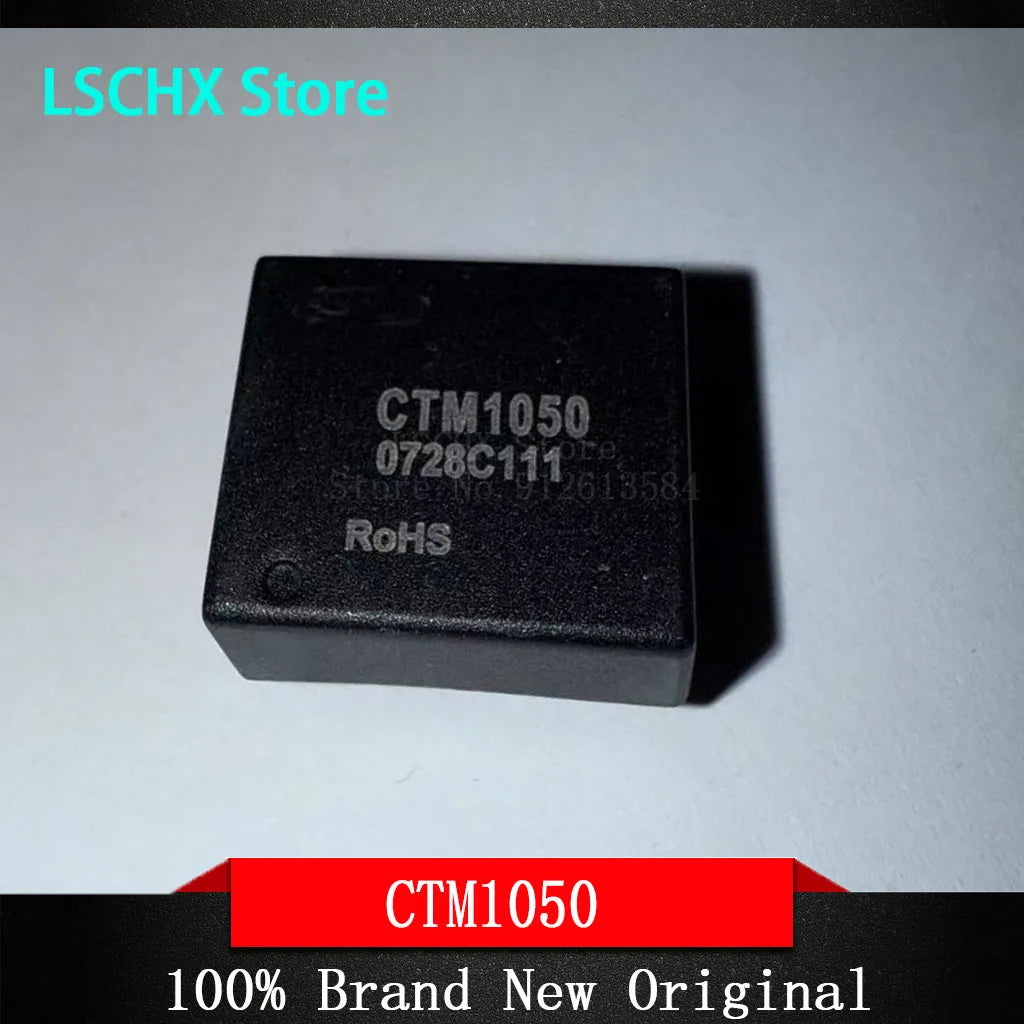

CTM1050 DIP-7 High Speed CAN Isolation Transceiver

The CTM1050 is a high-performance, isolated CAN (Controller Area Network) transceiver in a compact DIP-7 package. Designed for general-purpose industrial and embedded applications, it integrates both CAN transceiver functionality and galvanic isolation into a single chip — simplifying circuit design while delivering reliable, noise-immune communication across CAN bus networks.

Whether you're building industrial control systems, automotive-grade electronics, or embedded communication modules, the CTM1050 offers a dependable solution for high-speed CAN data transmission with built-in isolation protection.

Key Features

Model: CTM1050
Package: DIP-7 (Dual Inline Package, 7-pin)
Function: Isolated CAN bus transceiver — combines isolation and transceiver in one IC
High-Speed Communication: Supports CAN bus high-speed data rates for real-time control applications
Galvanic Isolation: Protects sensitive microcontrollers and system components from voltage spikes and ground loops
General Purpose Use: Suitable for industrial automation, robotics, automotive electronics, and embedded systems
International Standard Compliance: Meets international electrical and protection standards
No High-Concern Chemicals: RoHS-conscious design with no flagged chemical content
Customizable: Available for custom configurations as needed
Made in Mainland China

What's in the Box?

1 × CTM1050 DIP-7 CAN Isolation Transceiver IC

Applications

Industrial automation and control panels
CAN bus communication modules
Automotive electronics and ECU development
Robotics and motion control systems
Embedded system prototyping and development boards

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the CTM1050 DIP-7 CAN isolation transceiver used for?

A: The CTM1050 is used to enable isolated CAN bus communication in industrial, automotive, and embedded systems. It integrates a CAN transceiver and galvanic isolation in a single DIP-7 IC, protecting connected microcontrollers and circuits from voltage differentials, noise, and ground loop interference on the CAN bus.

Q: What does the DIP-7 package mean for the CTM1050?

A: DIP-7 stands for Dual Inline Package with 7 pins. This through-hole package format makes the CTM1050 easy to install on standard breadboards, development boards, and PCB prototypes without requiring surface-mount soldering equipment.

Q: Is the CTM1050 compatible with standard CAN bus systems?

A: Yes. The CTM1050 is designed to comply with international CAN bus standards, making it compatible with a wide range of industrial controllers, automotive ECUs, and embedded development platforms that use standard CAN communication protocols.
